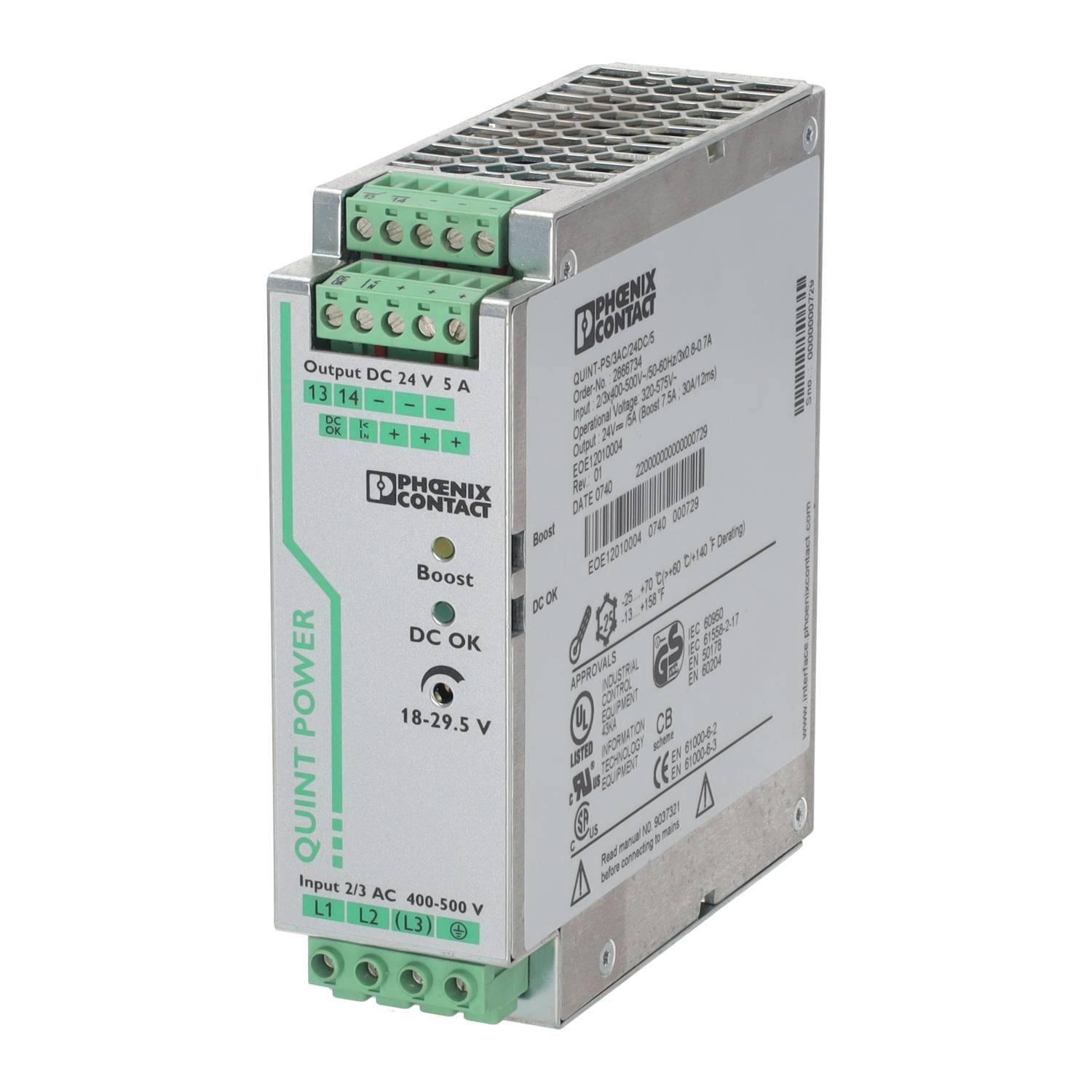

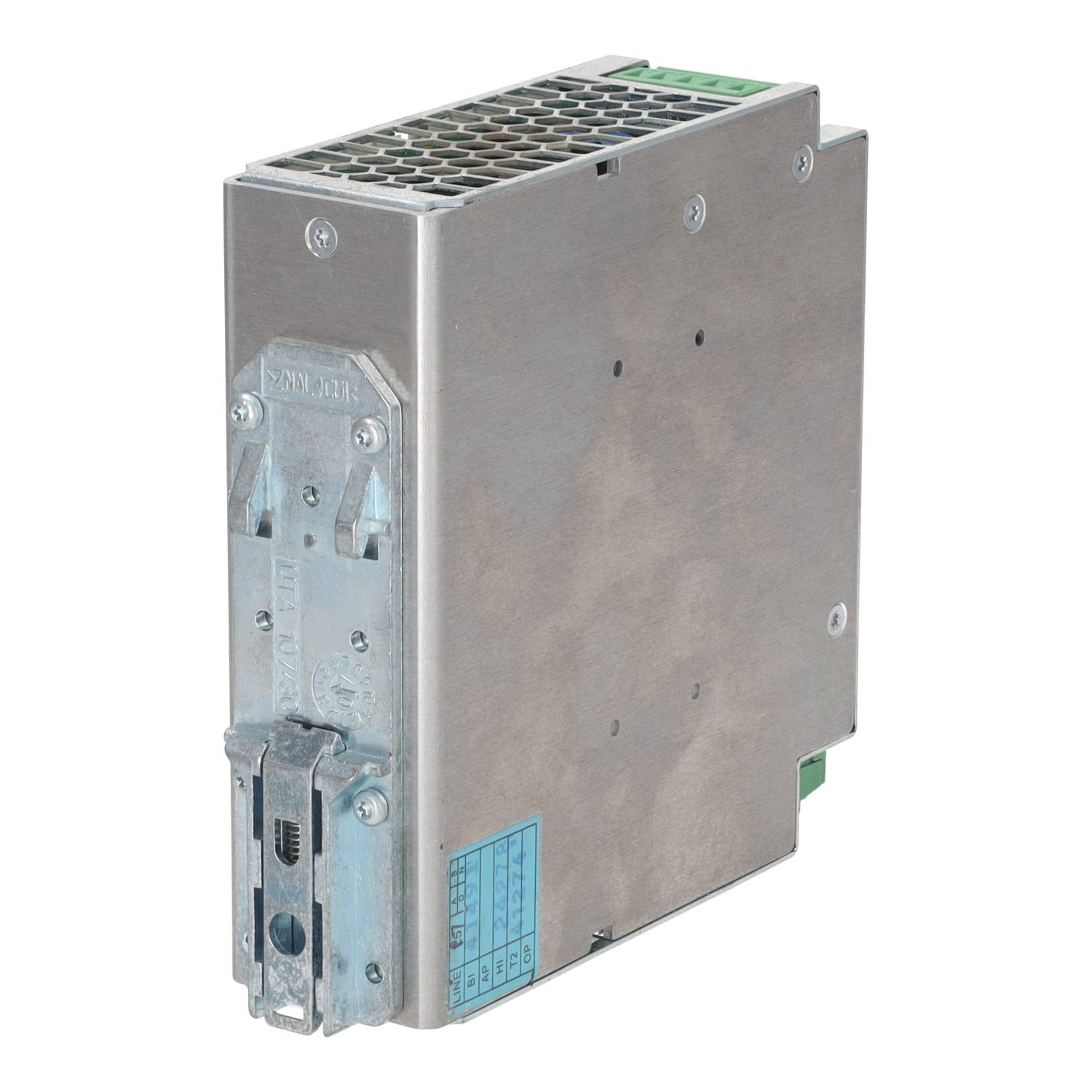

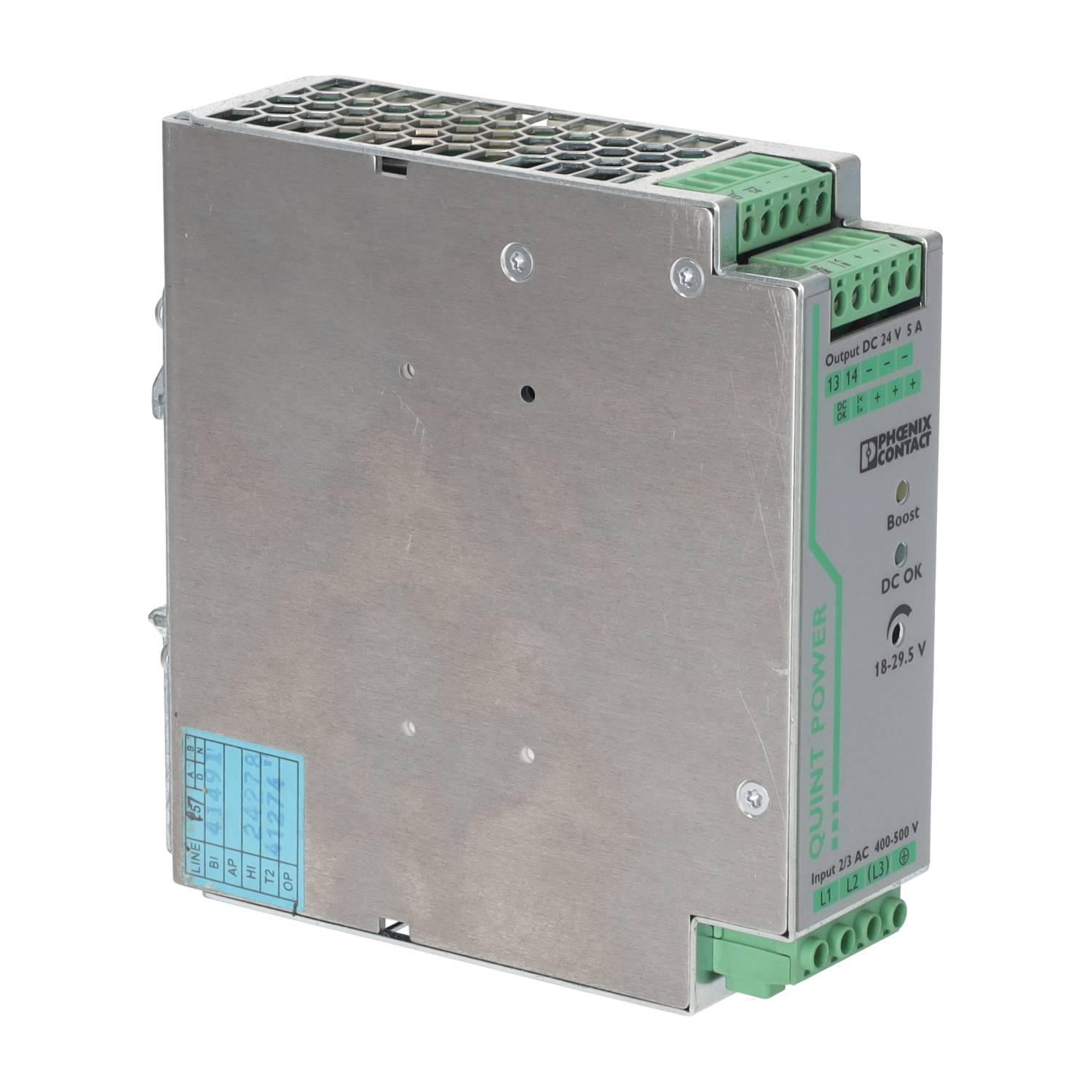

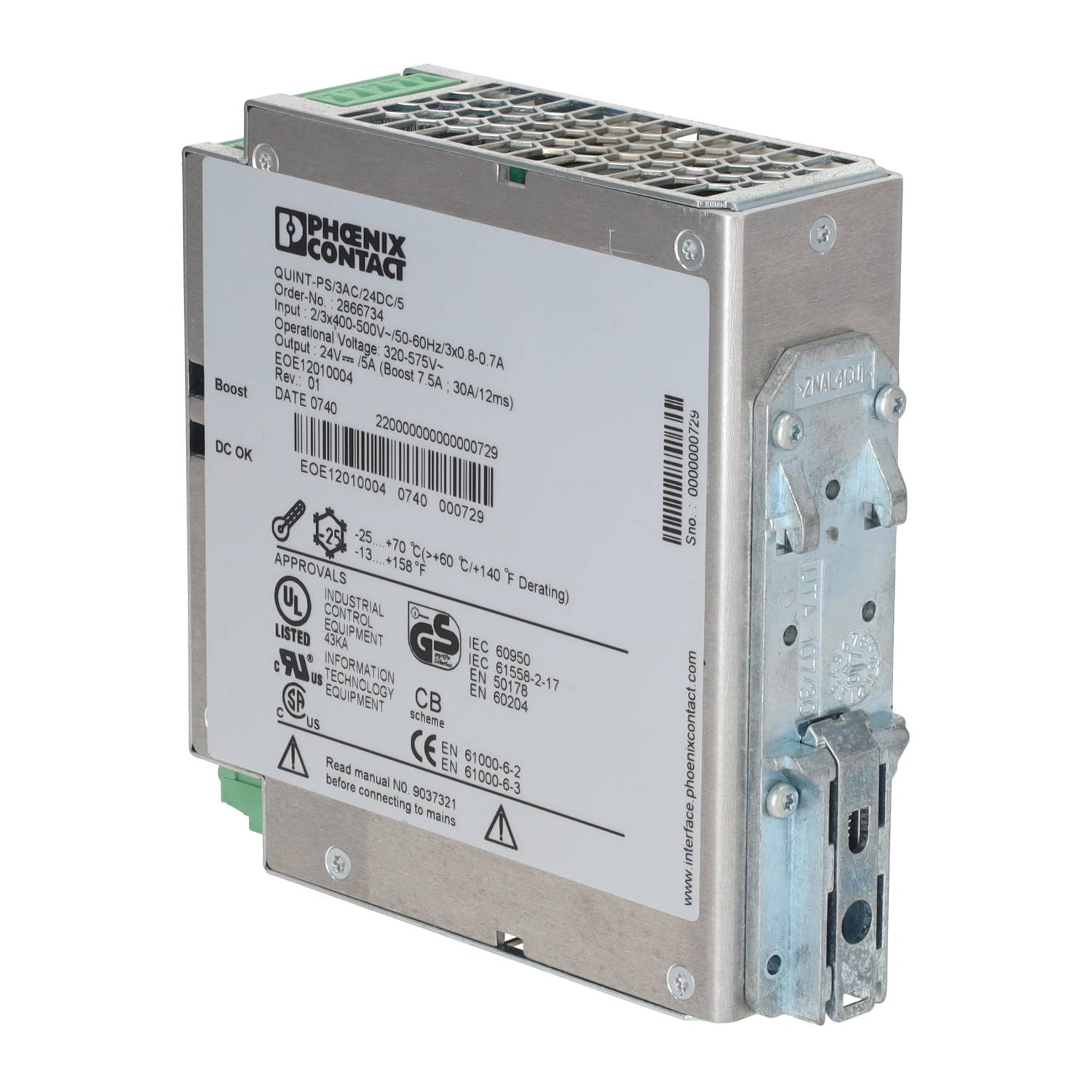

Product Name: QUINT-PS/3AC/24DC/5 Power Supply
Article Number: 2866734
Product Type: Primary switched 3-phase DIN rail power supply with SFB Technology
Input Voltage AC: 3× 320–575 V AC, 45–65 Hz
Input Voltage DC: 450–800 V DC
Nominal Output Voltage: 24 V DC ±1 %
Output Voltage Range: 18–29.5 V DC
Nominal Output Current: 5 A
Output Power: 120 W
POWER BOOST: 7.5 A (permanent up to 40 °C)
Selective Fuse Breaking: 30 A / 12 ms
Efficiency: > 89 %
Ripple: < 20 mVSS
Parallel Operation: yes, for redundancy and power increase
Connections: pluggable screw terminals (0.2–2.5 mm²)
Degree of Protection: IP20
Operating Temperature: –25 °C to +70 °C (derating above 60 °C)
Dimensions (W×H×D): 40 × 130 × 125 mm (alternative mounting 122 × 130 × 43 mm)
Housing Material: metal, zinc-plated steel, aluminum side panels
