573695 (NECA-S1G9-P9-MP5)
Free shipping from 49€
worldwide shipping

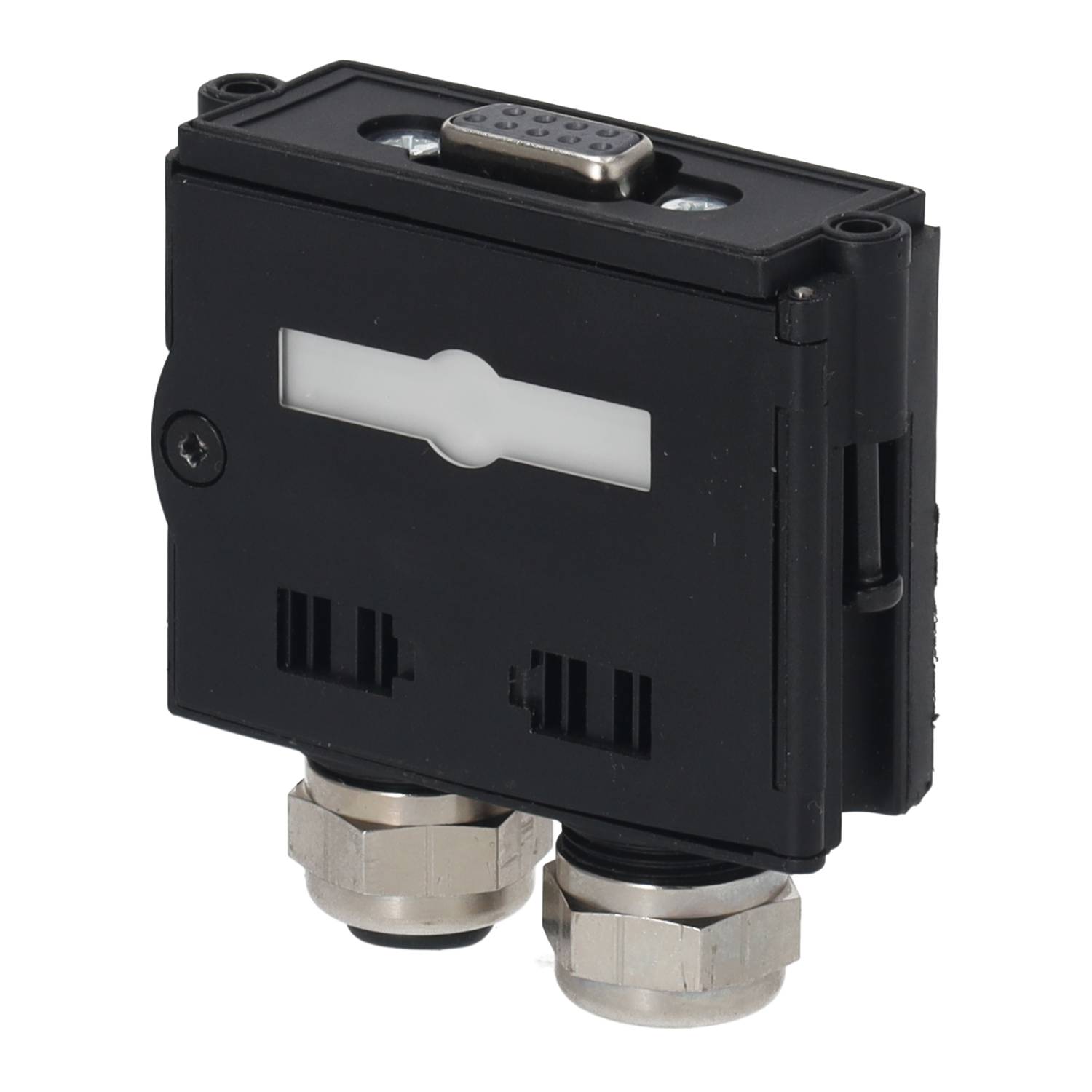

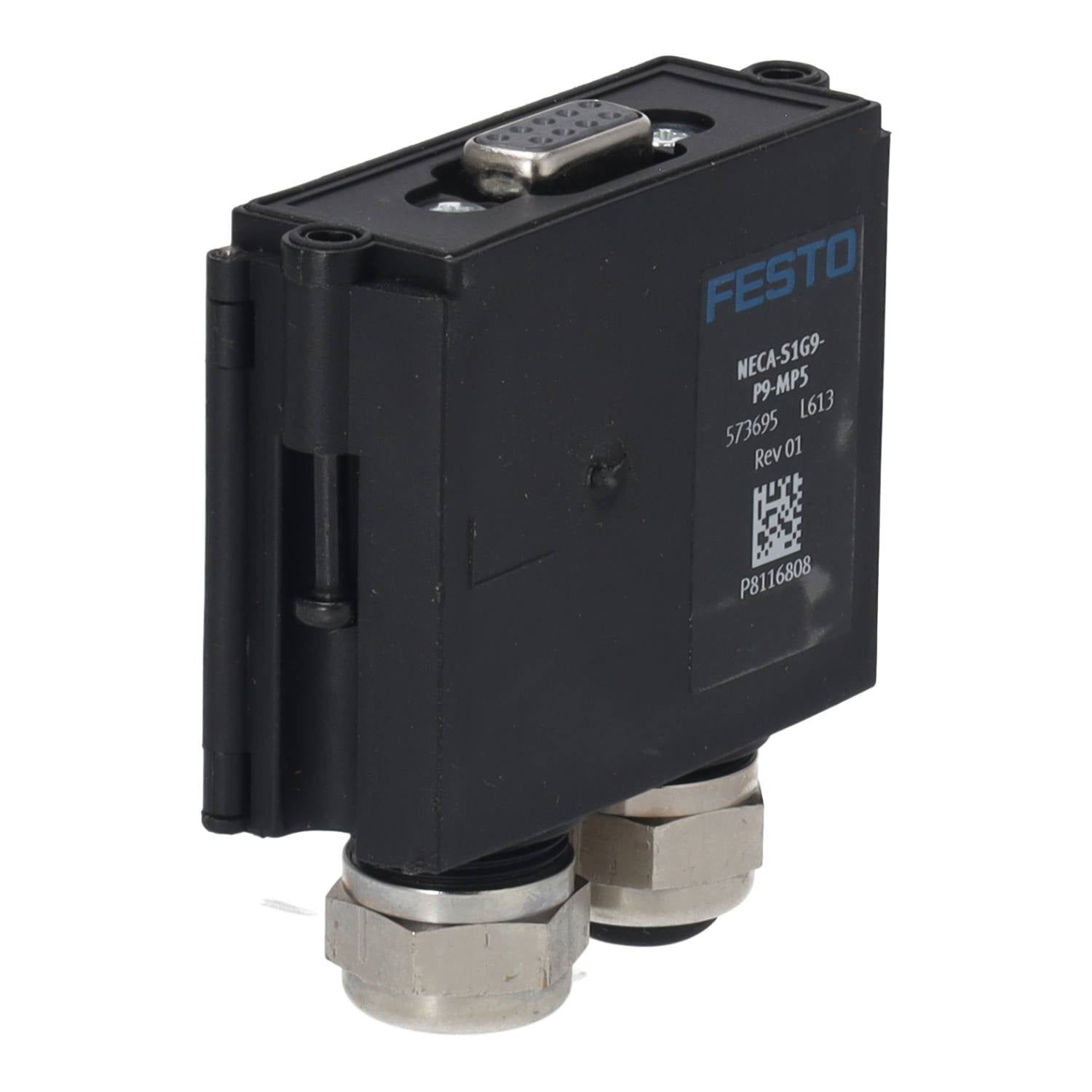

Product: Multipole socket NECA-S1G9-P9-MP5
Part number: 573695
Mounting type: Through-hole mounting
Weight: 60 g
Electrical connection 1: Sub-D, 9-pin
Electrical connection 2: Screw terminal, 9-pin
Rated voltage: 24 V DC
Operating voltage: 21.6–26.4 V DC
Current rating (at 40 °C): 1 A
Cable diameter: 5–10 mm
Conductor cross-section: 0.34–1 mm² (with ferrules: 0.34–0.5 mm²)
Protection rating: IP65 (per IEC 60529)
Ambient temperature: 0–50 °C
Storage temperature: –20 to 70 °C
Relative humidity: 95 %, non-condensing
LABS compliance: VDMA24364-B1/B2-L
Corrosion class: KBK 2
Housing material: Reinforced PA
Locknut material: Brass
Screw material: Steel
Seal material: NBR
