578769 (MS6-SV-1/2-C-10V24P-S)
Free shipping from 49€
worldwide shipping

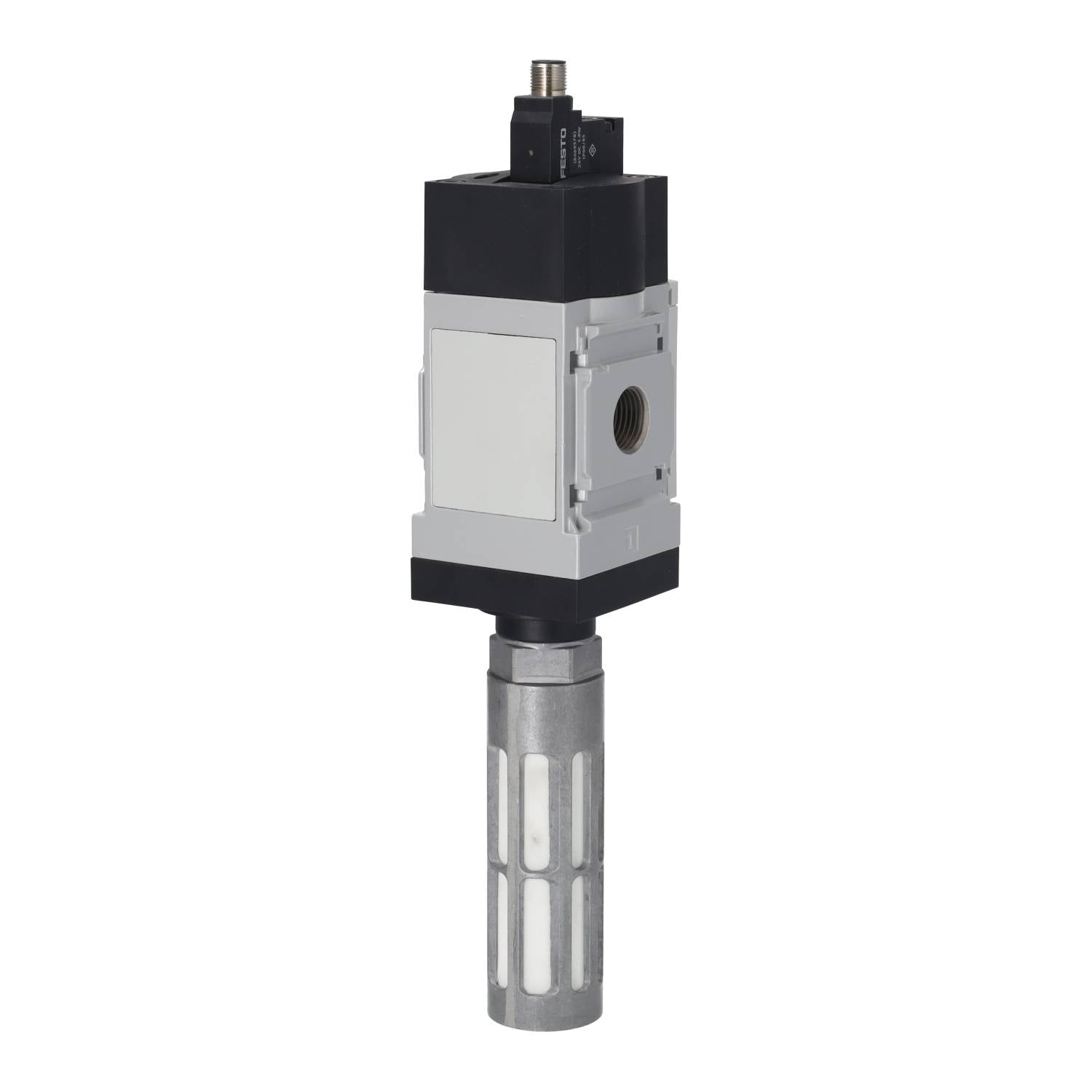

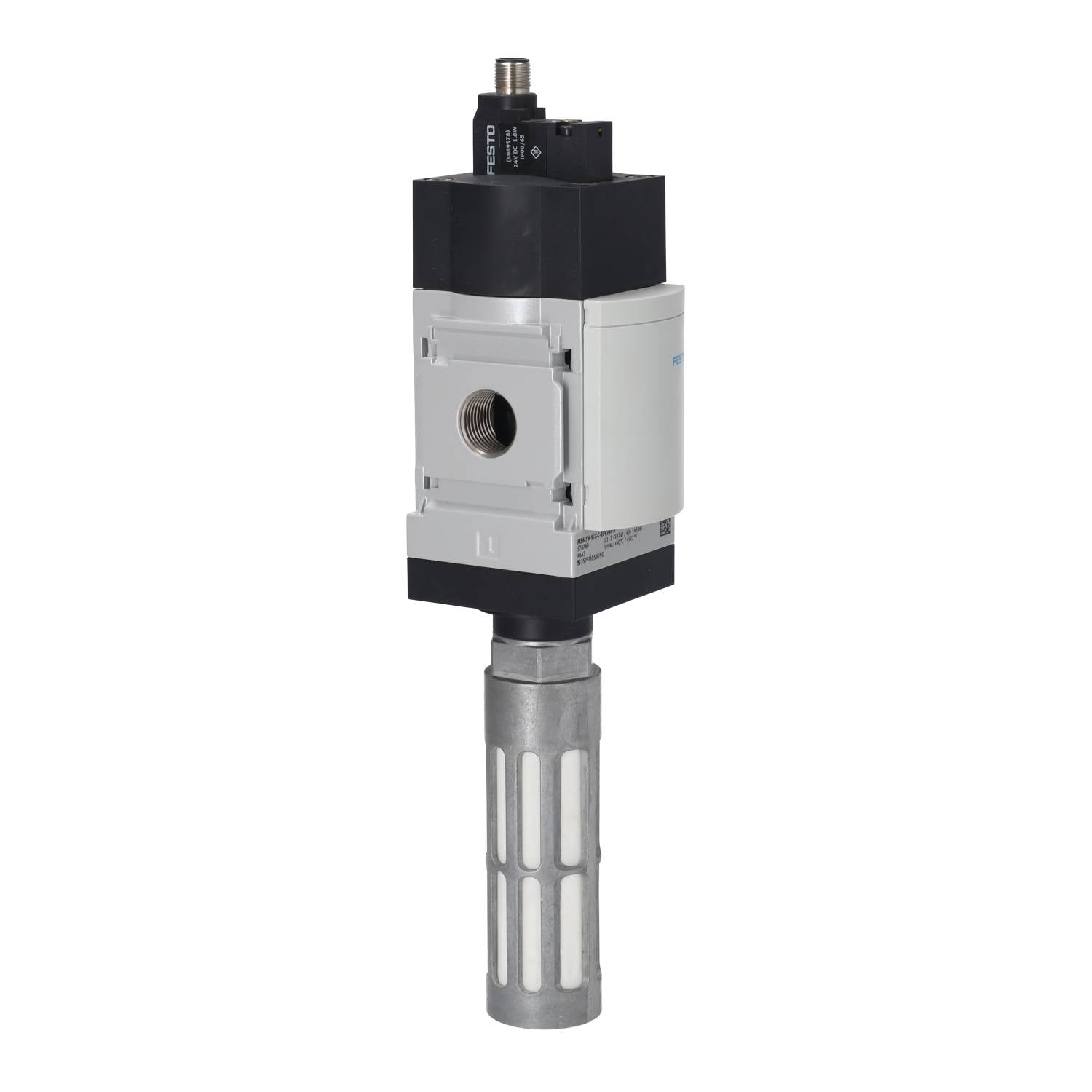

Product: Soft-start and exhaust valve MS6-SV-1/2-C-10V24P-S
Part number: 578769
Series / Size: MS / Size 6 (grid dimension 62 mm)
Valve function: 3/2 closed, monostable
Safety function: Exhaust and prevention of unexpected startup
Performance Level: Cat. 1 / PL c
Operating pressure: 3–10 bar (0.3–1 MPa)
Nominal flow rate: 5700 l/min
Exhaust flow rate: 7600 l/min
Switching time on/off: 370 ms / 65 ms
Control: electrically piloted, internal air supply
Coil: 24 V DC / 1.8 W
Duty cycle: 100 %
Pneumatic ports: 1 & 2 = G1/2, 3 = G3/4
Electrical connection: 4-pin per IEC 61076-2-101
Protection class: IP65 (with socket)
Temperature range: 0–60 °C (medium & ambient)
Materials: Housing = die-cast aluminum, Seals = NBR, Piston rod = stainless steel
Mounting: In-line installation (optional with accessories)
Weight: 1006 g
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.
- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
We offer worldwide shipping, with the buyer covering shipping costs outside Germany.
