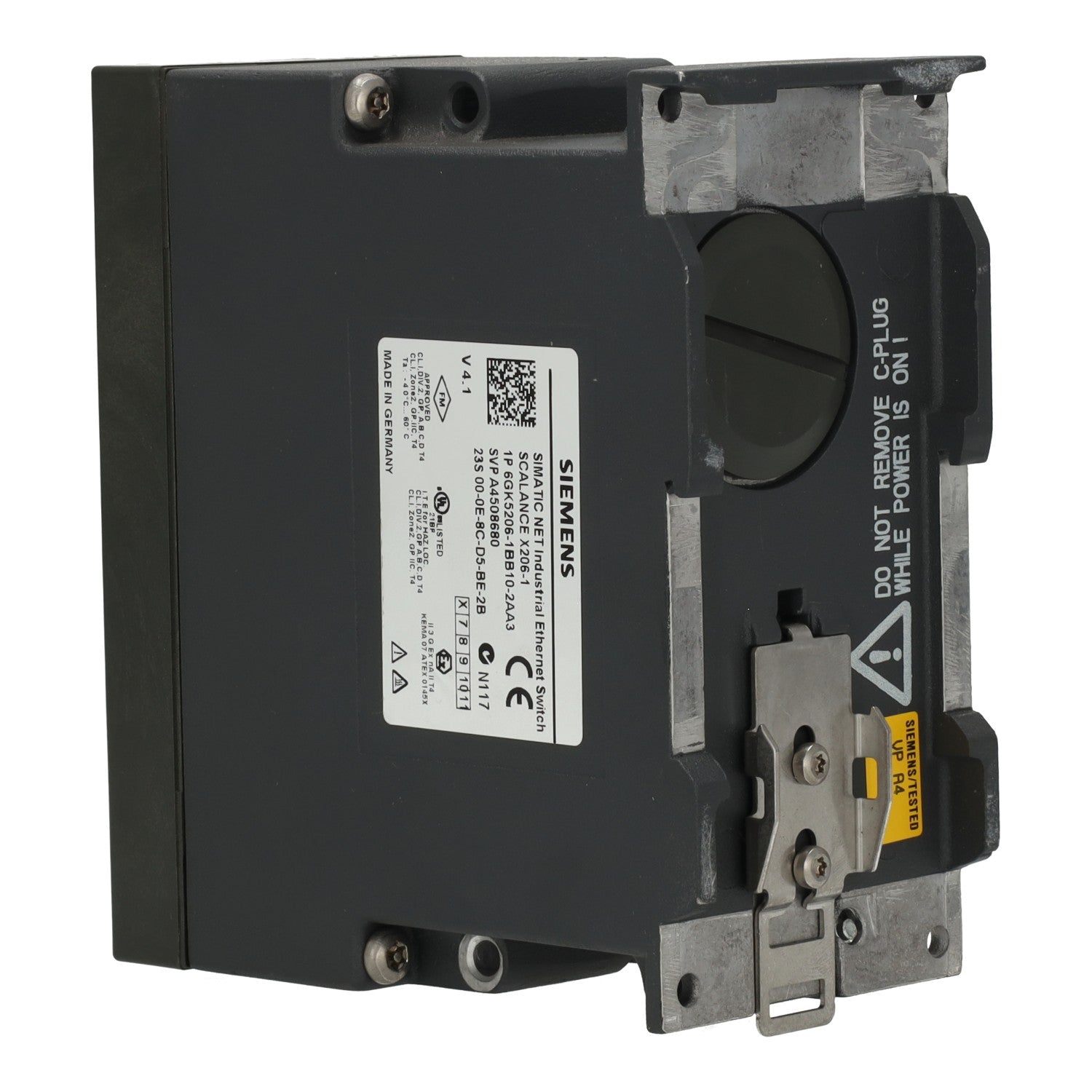

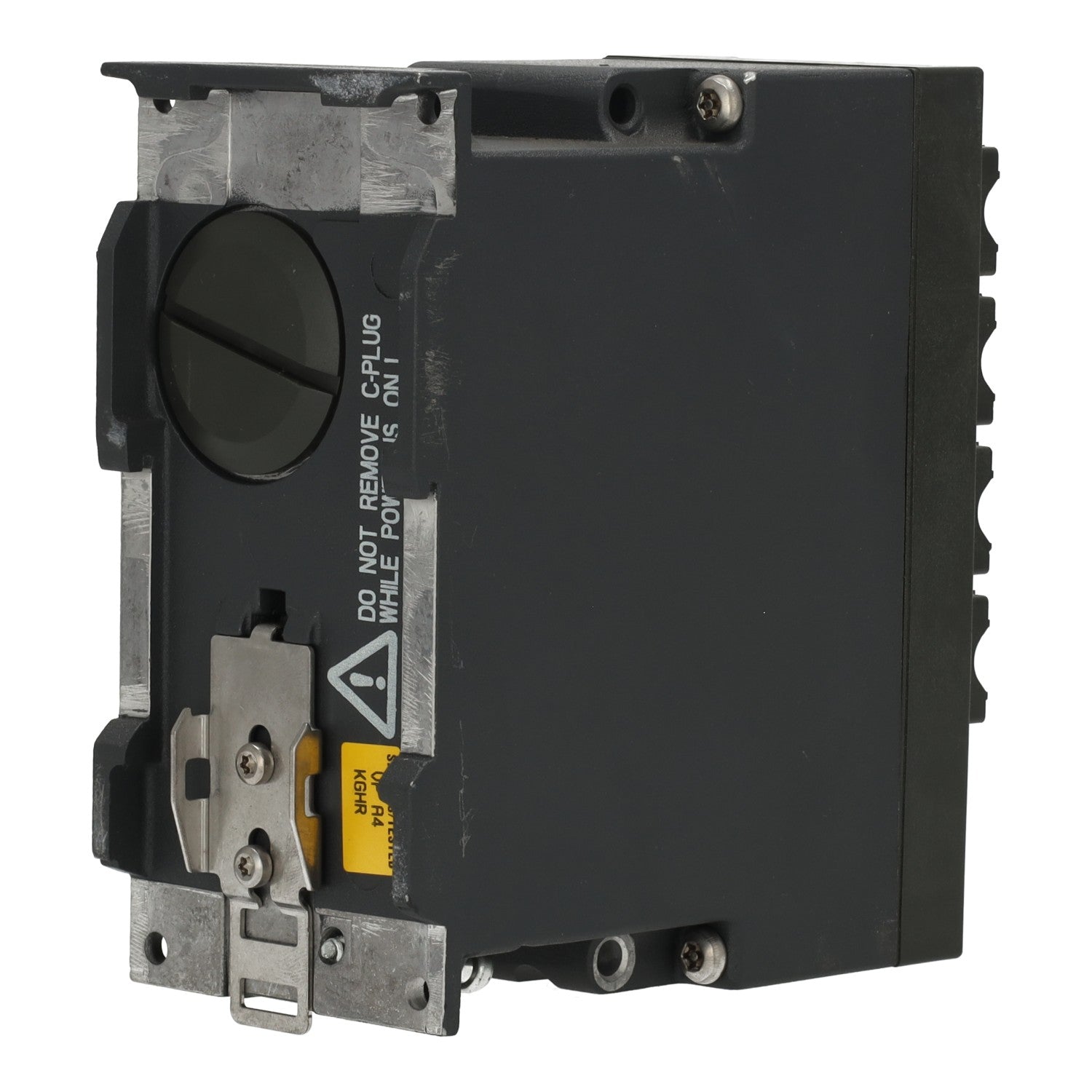

6GK5206-1BB10-2AA3
Free shipping from 49€
worldwide shipping
- Product Type: SCALANCE X206-1
- Transfer Rate: 10/100 Mbit/s
- Interfaces:
- 6x 10/100 Mbit/s RJ45 ports
- 1x 100 Mbit/s multimode BFOC port
- Other Interfaces:
- 1x signaling contact
- 1x power supply
- Removable Storage: C-PLUG
- Power Supply:
- Connection for redundant voltage supply: Yes
- Type of voltage: DC
- Supply voltage rated value: 24V
- Power loss rated value: 5.28W
- Ambient Conditions:
- Operating Temperature: -40...+60 °C
- Storage Temperature: -40...+70 °C
- Transport Temperature: -40...+70 °C
- Relative Humidity: Maximum 95% at 25 °C without condensation during operation
- Protection Class IP: IP30
- Design, Dimensions, and Weights:
- Design: Compact
- Width: 60mm
- Height: 125mm
- Depth: 124mm
- Net Weight: 0.78 kg
- Fastening Method: 35 mm top hat DIN rail mounting, wall mounting, S7-300 rail mounting
- Management, Configuration, Engineering:
- CLI, web-based management, MIB support, TRAPs via email, configuration with STEP 7, port mirroring, PROFINET IO diagnosis
- Switch-Managed: Yes
- Supported Protocols: Telnet, HTTP, HTTPS, TFTP, FTP, BOOTP, DCP, LLDP, SNMP v1, SNMP v2, SNMP v3
- Diagnostics: Port diagnostics, statistics Packet Size, statistics packet type, error statistics
- Redundancy: Ring redundancy, High Speed Redundancy Protocol (HRP), Media Redundancy Protocol (MRP), passive listening
- Security: SSH
- Time: SICLOCK support
- Standards, Specifications, Approvals:
- EN 61000-6-4:2001 (Class A) for emitted interference, EN 61000-6-2:2001 for interference immunity
- MTBF: 78.71 y
- CE marking
- Hazardous Environments: EN 60079-0: 2006, EN60079-15: 2005, II 3 (2) G Ex nA [op is] IIC T4, KEMA 07 ATEX 0145 X
- Other: EN 61000-6-2:2001, EN 61000-6-4:2001, C-Tick, KC approval
- Marine Classification Association: American Bureau of Shipping Europe Ltd. (ABS), French marine classification society (BV), Det Norske Veritas (DNV), Germanische Lloyd (GL), Lloyds Register of Shipping (LRS), Nippon Kaiji Kyokai (NK), Polski Rejestr Statkow (PRS), Royal Institution of Naval Architects (RINA) (No railway application in accordance with EN 50155 or EN 50124-1)
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.
- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
We offer worldwide shipping, with the buyer covering shipping costs outside Germany.
Orders received by 2:00 p.m. will be dispatched on the same working day. However, this does not apply to purchases over €1,000 outside Europe, as an export note is required for this, or for shipments sent by a freight forwarder. For particularly urgent deliveries, you can choose express shipping.
For each of our products you can select the condition, with the following categories available:
New (OVP): Unused and undamaged items in the original packaging.
New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
Like New: Items that look like new and show only minimal signs of wear. Very Good: Items that show only light signs of wear and are fully functional. Good: Items that show normal signs of wear but are still fully functional.
Acceptable: Items that show more severe signs of wear but are functional.
Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair. If there are major differences between the condition categories, e.g. broken casing, a separate image is added for the affected category. Otherwise, grades such as "Very Good" and "Good" can only be distinguished from one another by increasing signs of wear.
The E-Stand on Siemens industrial electronics products provides information about the development and modifications of a specific product. It is a classification system that Siemens uses to identify different production and development stages within a product type. Each E-Stand can include technical improvements, adjustments or other changes.
An important point to note is that products with different E-levels are not always directly interchangeable. Technical characteristics may differ between versions, which means that compatibility with your existing plant or system may not always be guaranteed. It is advisable to carefully check whether the new product is compatible with the corresponding E-level for your application before making a replacement.
We attach great importance to transparency in our shop. That's why we list the E-Stand for every Siemens industrial electronics product so that you know exactly which version you are purchasing. This should help you make an informed decision.
