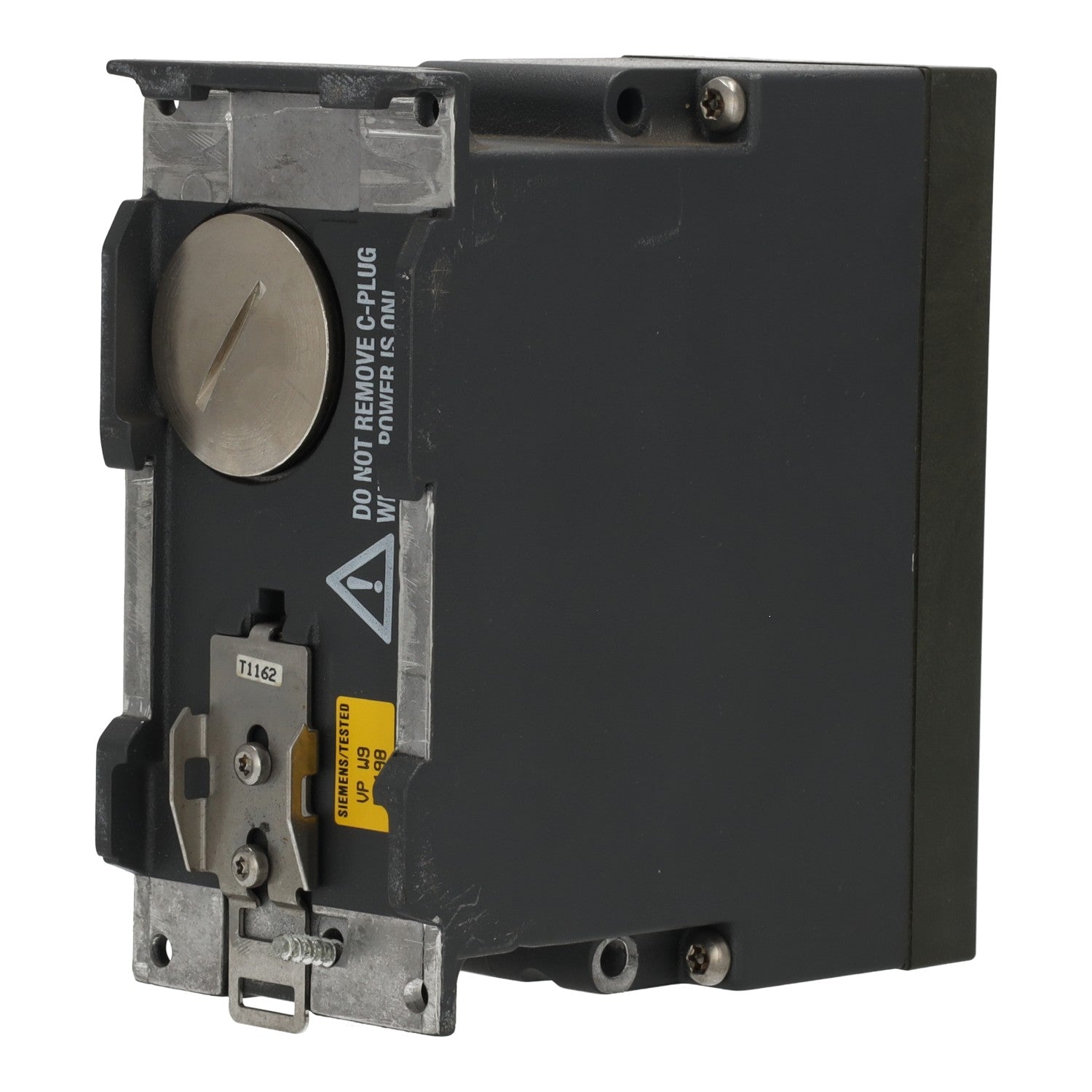

6GK5602-0BA00-2AA3
Free shipping from 49€
worldwide shipping
General:
- Designed for protection of devices and networks in automation and for protection of industrial communication with a firewall.
- Supports address conversion (NAT/NAPT), DHCP-server, Syslog, and symbolic names for IP-addresses.
Interfaces:
- 2 electrical/optical connections for network components or terminal equipment (maximum).
- 1 electrical connection for internal network.
- 1 electrical connection for external network.
- 1 electrical connection for signaling contact.
- 1 electrical connection for power supply.
- 1 electrical connection for redundant voltage supply.
- Type of electrical connections: RJ45 port for internal and external network, 2-pole terminal block for signaling contact, and 4-pole terminal block for power supply.
Signal inputs/outputs:
- Operating voltage of the signaling contacts is 24V DC (rated value).
- Operational current of the signaling contacts is 0.1A DC (maximum).
Supply voltage, current consumption, power loss:
- Supply voltage is 24V DC (rated value) and 20.4-28.8V DC (rated value).
- Consumed current is 0.25A (maximum).
- Power loss is 3.84W (rated value).
Ambient conditions:
- Operating temperature is 0-60°C.
- Storage temperature is -40-80°C.
- Transport temperature is -40-80°C.
- Maximum relative humidity during operation is 95%.
Design, dimensions, and weights:
- Compact design.
- Width is 60mm.
- Height is 125mm.
- Depth is 124mm.
- Net weight is 0.78kg.
- Fastening methods: screw mounting on horizontal and vertical surfaces, 35mm top hat DIN rail mounting, S7-300 rail mounting, and wall mounting.
Product functions:
- Supports symbolic names for IP addresses.
- Includes the Security Configuration Tool (SCT) for configuration.
- Supports SysLog, packet filter log, audit log, and system log for diagnostics.
- Includes DHCP server for internal network.
- Supports static IP routing.
- Includes firewall with stateful inspection.
- Supports password protection, bandwidth limitation, and NAT/NAPT.
- Supports pass on time synchronization using NTP protocol.
- Includes hardware real-time clock with battery backup.
Standards, specifications, approvals:
- FM 3611 certified for FM.
- EN 50021 certified for hazardous zone.
- UL 60950 and CSA C22.2 No. 60950 certified for safety.
- EN 50081-2 Class A certified for emitted interference.
- EN 50082-2 certified for interference immunity.
- AS/NZS 2064 (Class A), EN 61000-6-2, and EN 61000-6-4 certified for suitability.
- CE marking and C-Tick certified.
- American Bureau of Shipping Europe Ltd. (ABS), Det Norske Veritas (DNV), and Nippon Kaiji Kyokai (NK) certified for marine classification.
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.
- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
We offer worldwide shipping, with the buyer covering shipping costs outside Germany.
Orders received by 2:00 p.m. will be dispatched on the same working day. However, this does not apply to purchases over €1,000 outside Europe, as an export note is required for this, or for shipments sent by a freight forwarder. For particularly urgent deliveries, you can choose express shipping.
For each of our products you can select the condition, with the following categories available:
New (OVP): Unused and undamaged items in the original packaging.
New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
Like New: Items that look like new and show only minimal signs of wear. Very Good: Items that show only light signs of wear and are fully functional. Good: Items that show normal signs of wear but are still fully functional.
Acceptable: Items that show more severe signs of wear but are functional.
Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair. If there are major differences between the condition categories, e.g. broken casing, a separate image is added for the affected category. Otherwise, grades such as "Very Good" and "Good" can only be distinguished from one another by increasing signs of wear.
The E-Stand on Siemens industrial electronics products provides information about the development and modifications of a specific product. It is a classification system that Siemens uses to identify different production and development stages within a product type. Each E-Stand can include technical improvements, adjustments or other changes.
An important point to note is that products with different E-levels are not always directly interchangeable. Technical characteristics may differ between versions, which means that compatibility with your existing plant or system may not always be guaranteed. It is advisable to carefully check whether the new product is compatible with the corresponding E-level for your application before making a replacement.
We attach great importance to transparency in our shop. That's why we list the E-Stand for every Siemens industrial electronics product so that you know exactly which version you are purchasing. This should help you make an informed decision.
