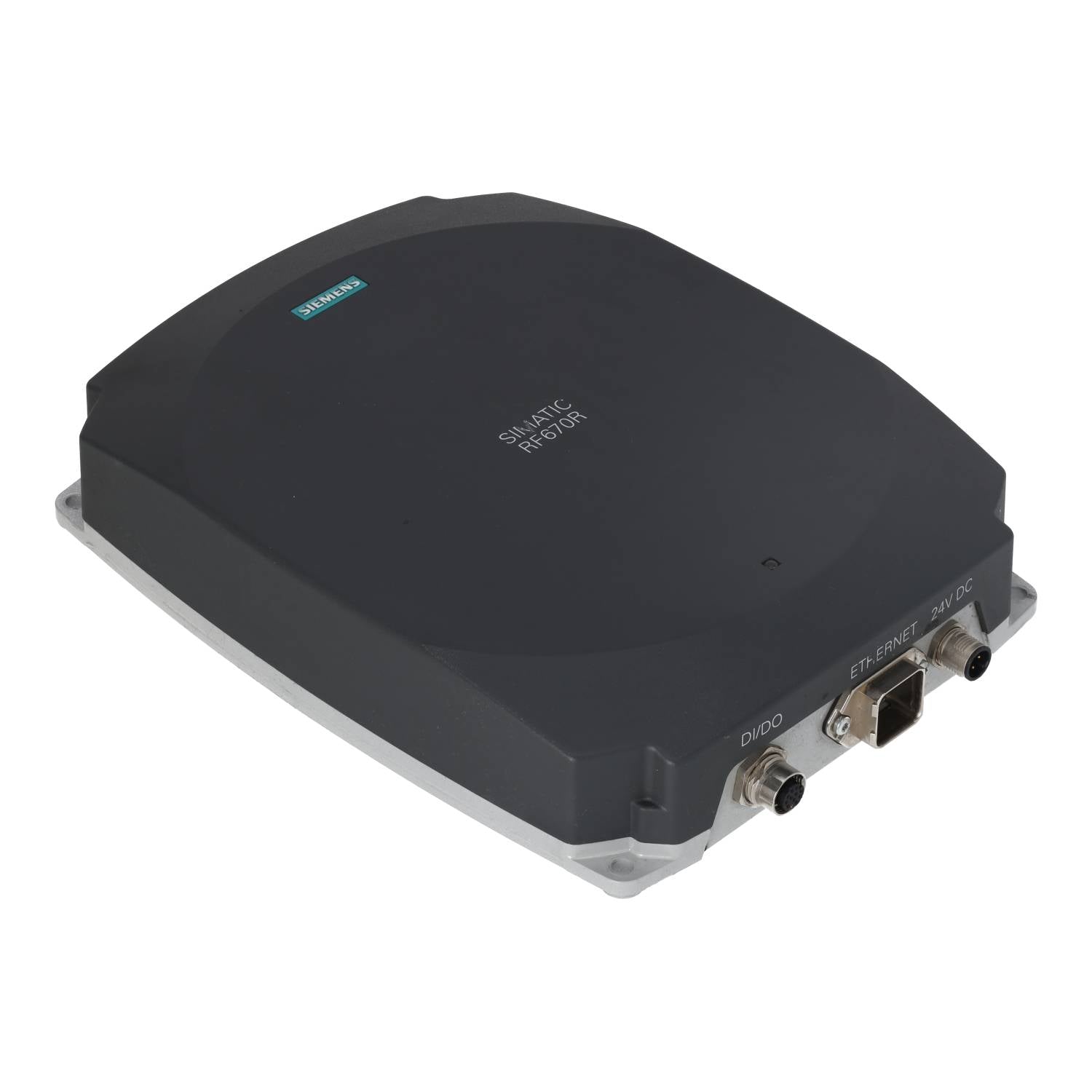

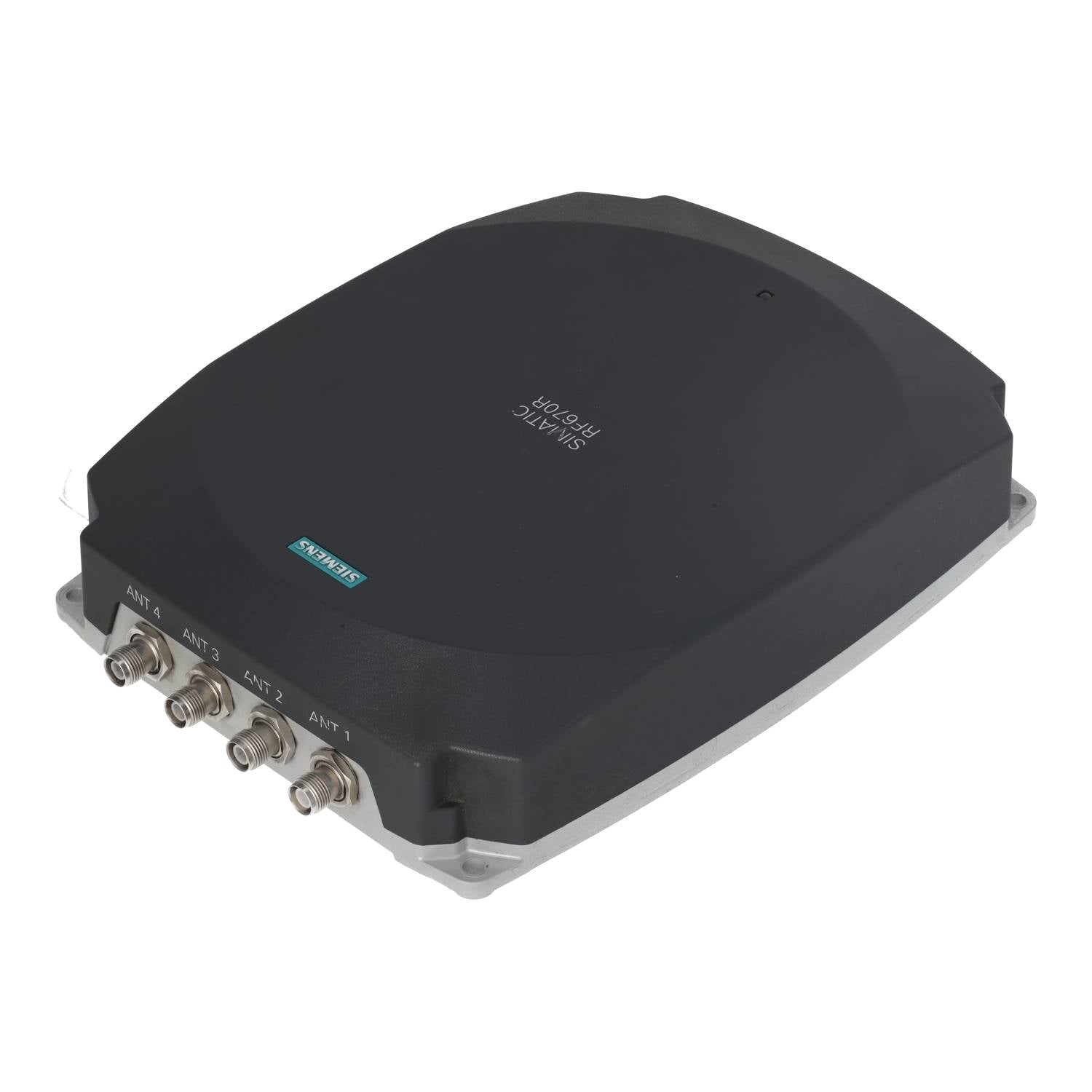

6GT2811-0AB00-0AA0
Free shipping from 49€
worldwide shipping
- Suitability for use: RF600 transponder, for Ethernet network connectivity
- Radio frequencies: Operating frequency 865-868 MHz, transmit power 50-1000 mW, maximum effective radiated power 2000 mW with external antenna
- Range: Maximum 8 m; Overranges possible (see RF600 system manual)
- Protocol for radio transmission: EPCglobal Class 1 Gen 2 / ISO 18000-6C
- Transmission rate for radio transmission: Maximum 320 kbit/s
- Multi-tag capable: Yes
- Electrical data: Transmission time for user data, interfaces (4 external antennas, Ethernet, PROFINET, EtherNet/IP, RS422)
- Mechanical data: Material aluminum, ABS (GF20), color silver/anthracite, recommended minimum mounting distance 0 mm
- Supply voltage: 24 V DC, current consumption at 24 V typical 0.45 A, maximum 2 A
- Environmental conditions: Operating temperature -25 to +55 °C, IP65 protection rating, shock resistance, vibration acceleration
- Dimensions and weights: Width 193 mm, height 252 mm, depth 52 mm, net weight 1.8 kg, mounting type
- Antenna cable length: Minimum 1 m, maximum 40 m
- Product features, functions: 3-color LED display, silicon-free
- Standards, specifications, approvals: Compliance with R&TTE Directive, CE, IEC 60950
- MTBF 14 a
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.
- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
We offer worldwide shipping, with the buyer covering shipping costs outside Germany.
Orders received by 2:00 p.m. will be dispatched on the same working day. However, this does not apply to purchases over €1,000 outside Europe, as an export note is required for this, or for shipments sent by a freight forwarder. For particularly urgent deliveries, you can choose express shipping.
For each of our products you can select the condition, with the following categories available:
New (OVP): Unused and undamaged items in the original packaging.
New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
Like New: Items that look like new and show only minimal signs of wear. Very Good: Items that show only light signs of wear and are fully functional. Good: Items that show normal signs of wear but are still fully functional.
Acceptable: Items that show more severe signs of wear but are functional.
Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair. If there are major differences between the condition categories, e.g. broken casing, a separate image is added for the affected category. Otherwise, grades such as "Very Good" and "Good" can only be distinguished from one another by increasing signs of wear.
The E-Stand on Siemens industrial electronics products provides information about the development and modifications of a specific product. It is a classification system that Siemens uses to identify different production and development stages within a product type. Each E-Stand can include technical improvements, adjustments or other changes.
An important point to note is that products with different E-levels are not always directly interchangeable. Technical characteristics may differ between versions, which means that compatibility with your existing plant or system may not always be guaranteed. It is advisable to carefully check whether the new product is compatible with the corresponding E-level for your application before making a replacement.
We attach great importance to transparency in our shop. That's why we list the E-Stand for every Siemens industrial electronics product so that you know exactly which version you are purchasing. This should help you make an informed decision.
