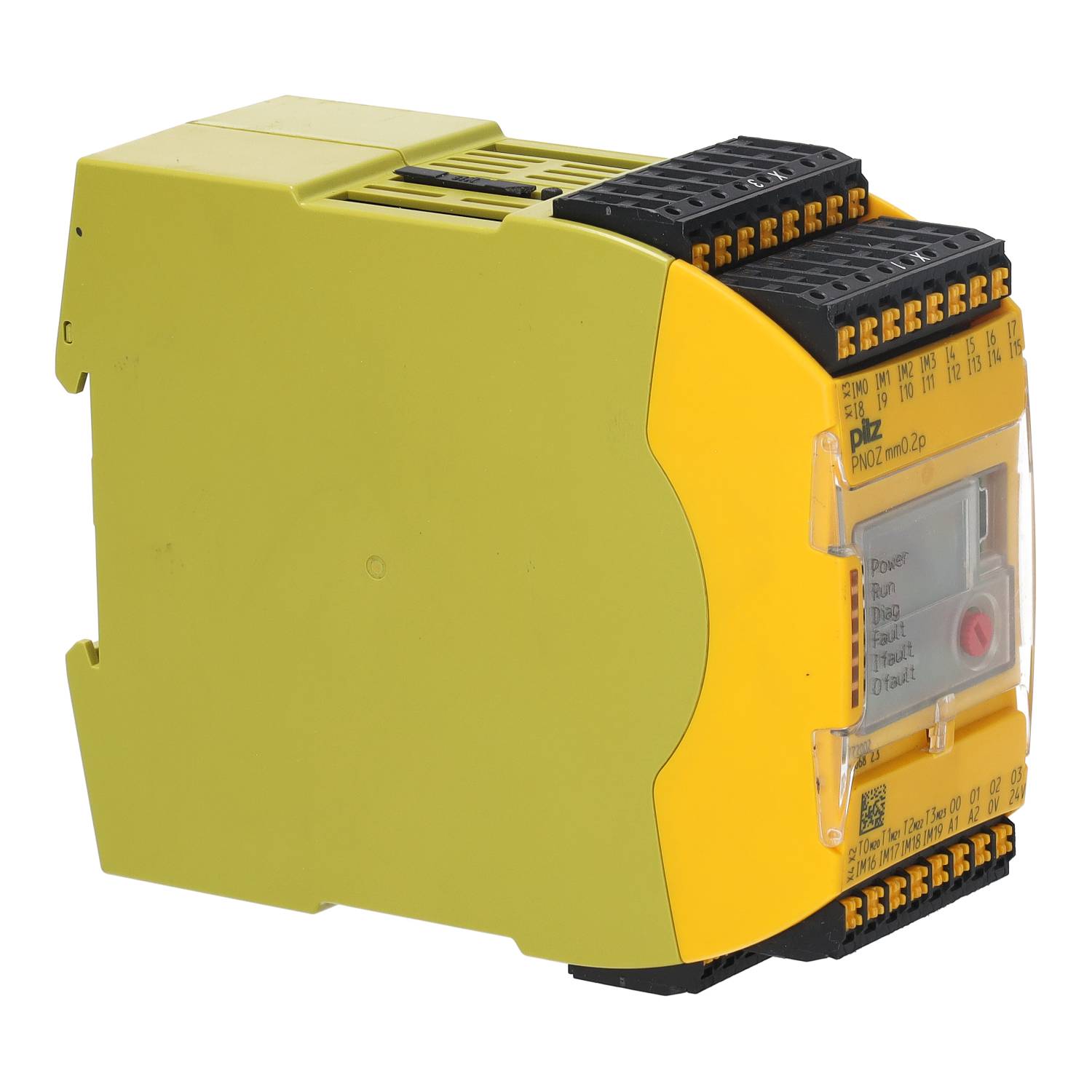

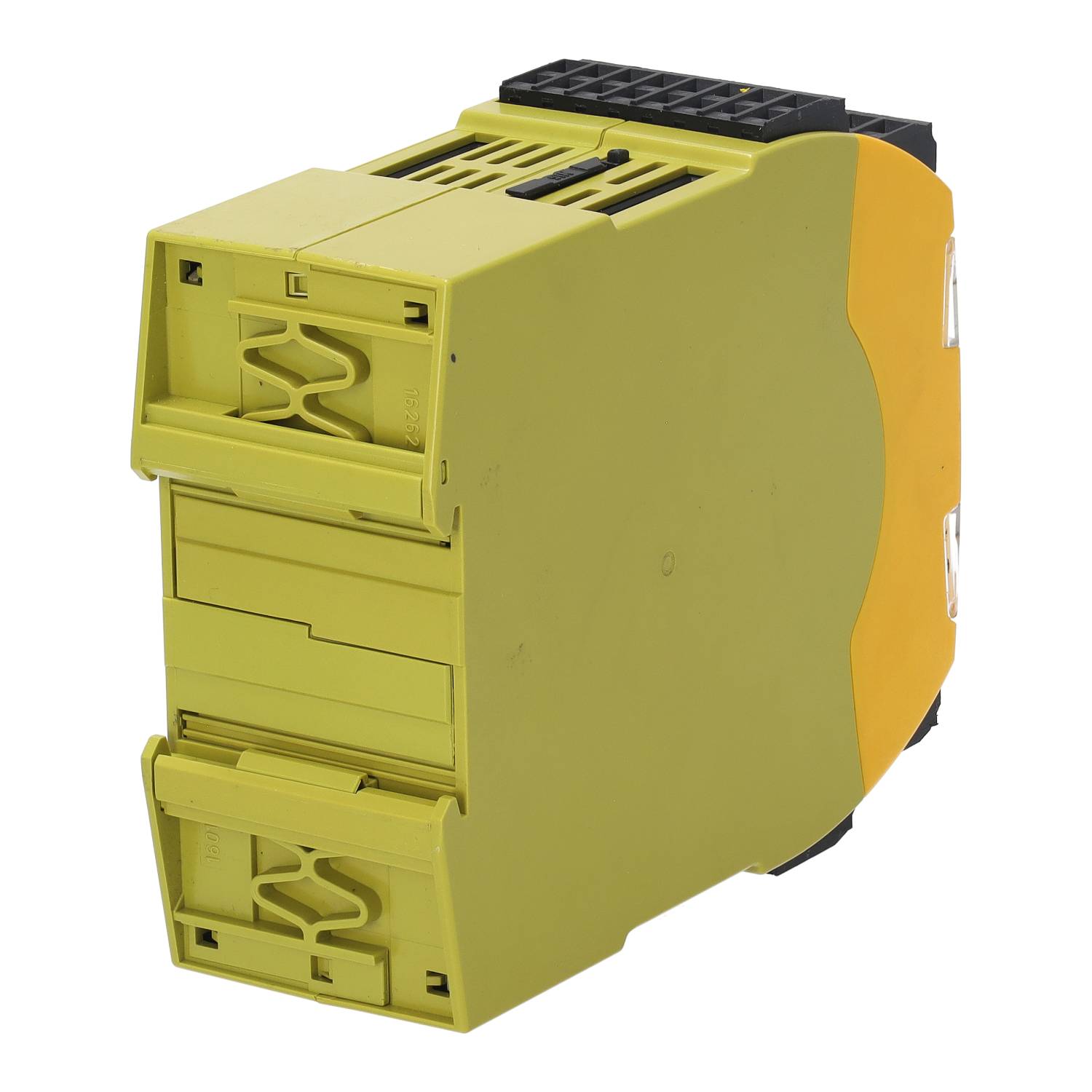

772002
Free shipping from 49€
worldwide shipping
- Supply voltage: 24 V DC, tolerance -15% /+20%
- Power of external power supply:
- With load: 35 W (system), 192 W (HL outputs)
- Without load: 8 W
- Residual ripple: 5%
- Status indicators: Display, LED
- Configurable inputs/outputs: 8, no galvanic isolation
- Inputs: 12, signal level "0" -3 to +5 V DC, "1" 15 to 30 V DC
- Virtual inputs: 32
- Semiconductor outputs: 4, 24 V, 2 A, 48 W
- Short-circuit proof: Yes
- Potential isolation: Yes, basic insulation, rated surge voltage 2500 V
- Environmental conditions: Operating temperature 0 - 60 °C, storage temperature -25 - 70 °C
- EMC, vibrations, shocks: Specifications according to standard
- Protection type: Enclosure IP20, installation space IP54
- Mechanical data: Installation on DIN rail, terminals for various conductor cross-sections
- Dimensions: 100 x 45 x 120 mm, weight 236 g
