774549
Free shipping from 49€
Worldwide shipping

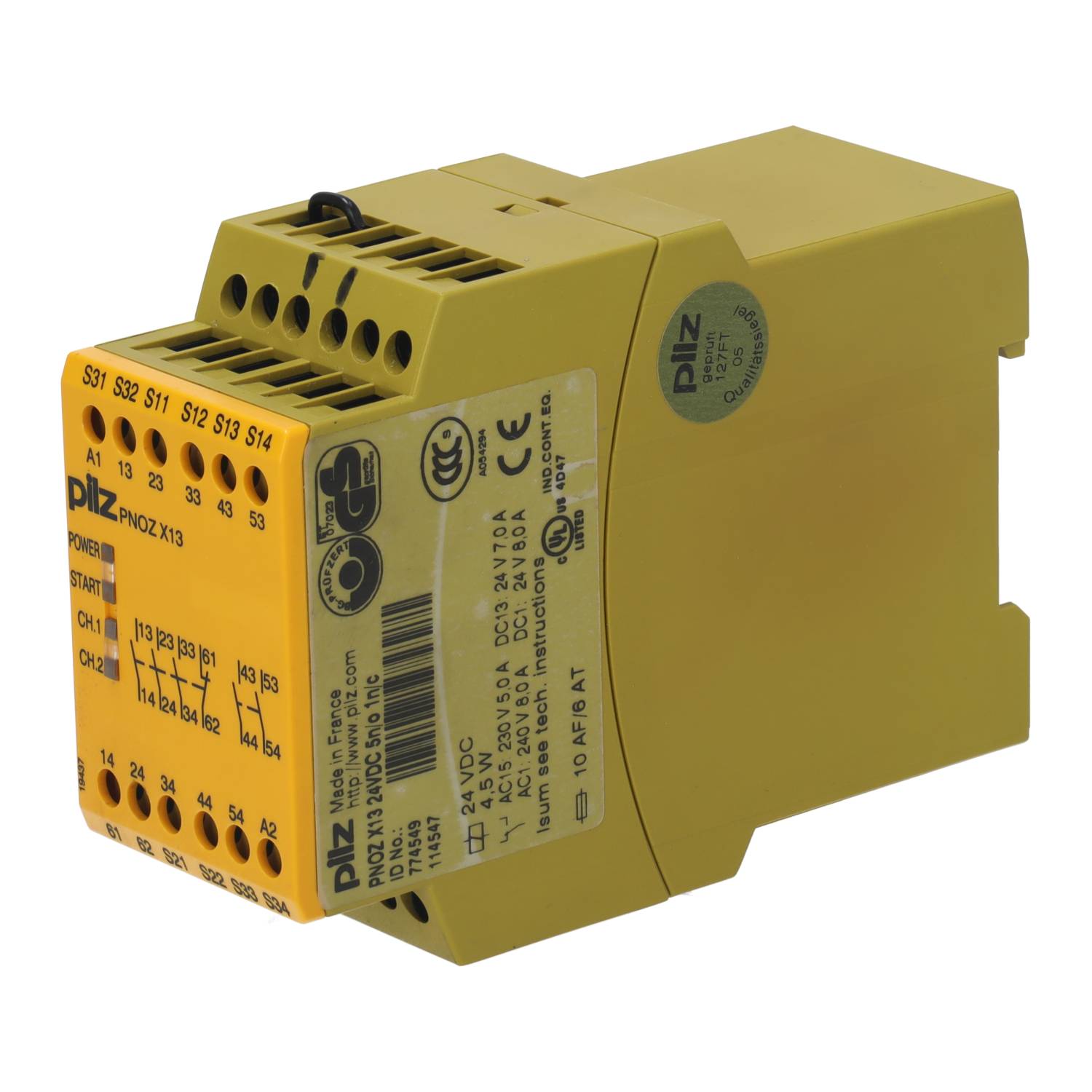

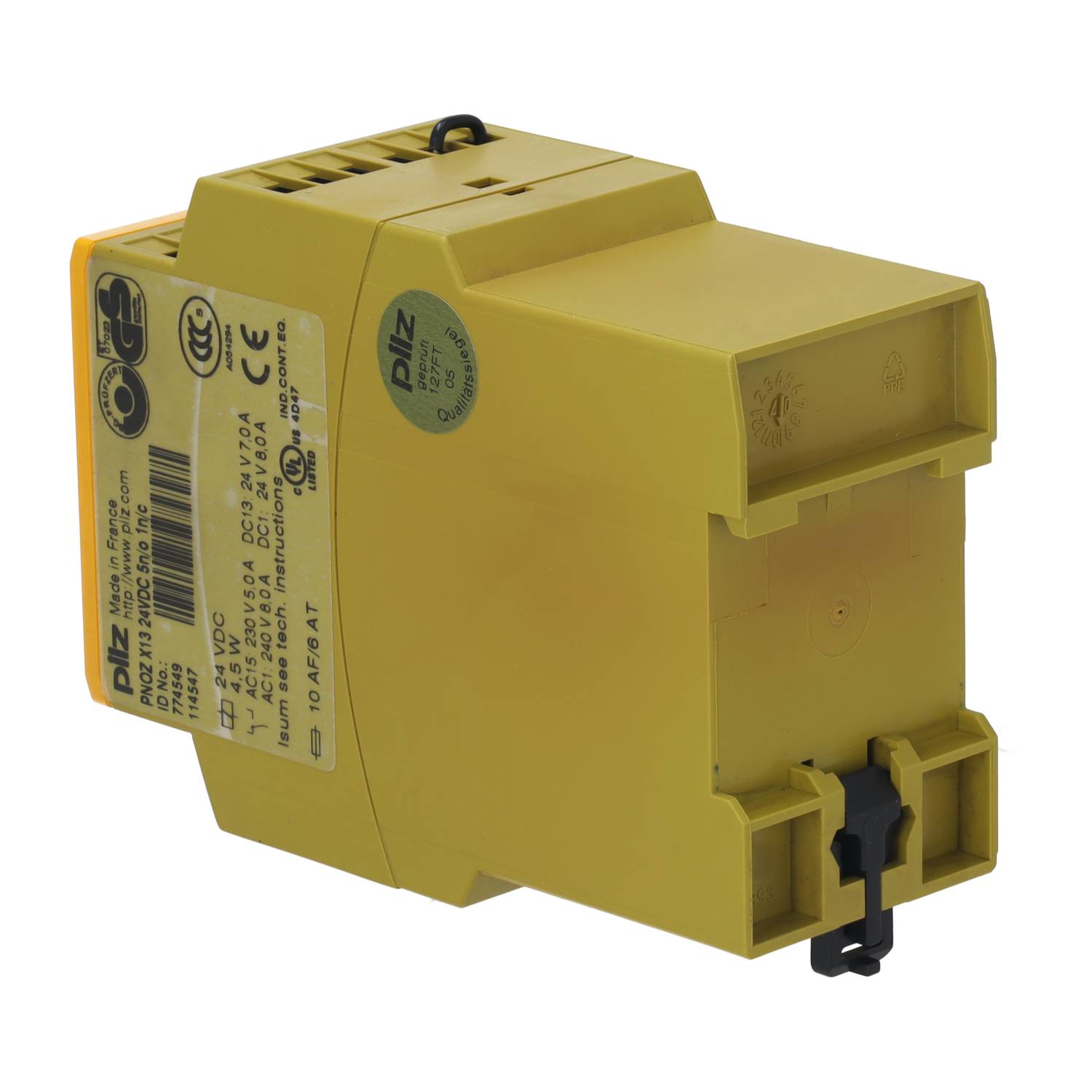

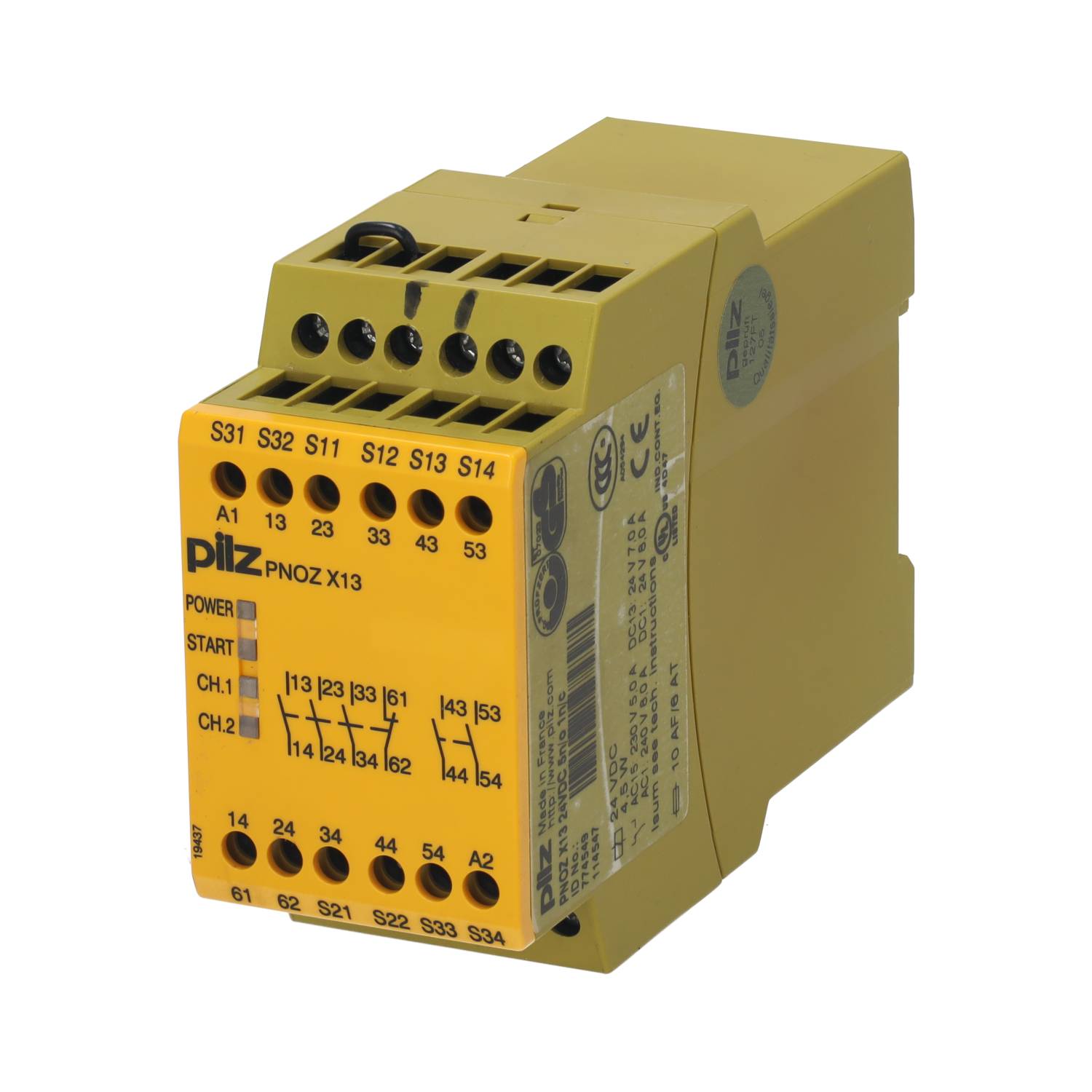

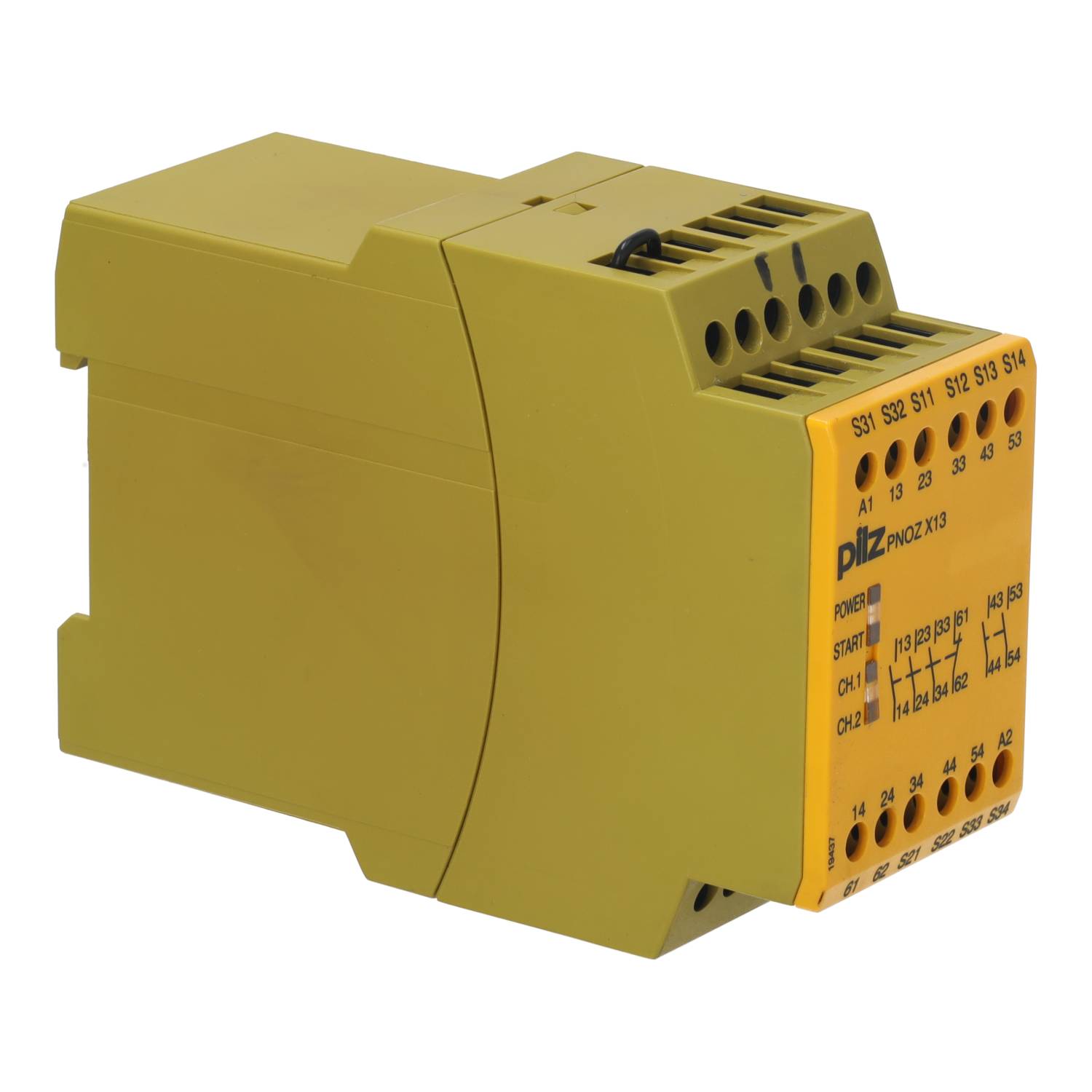

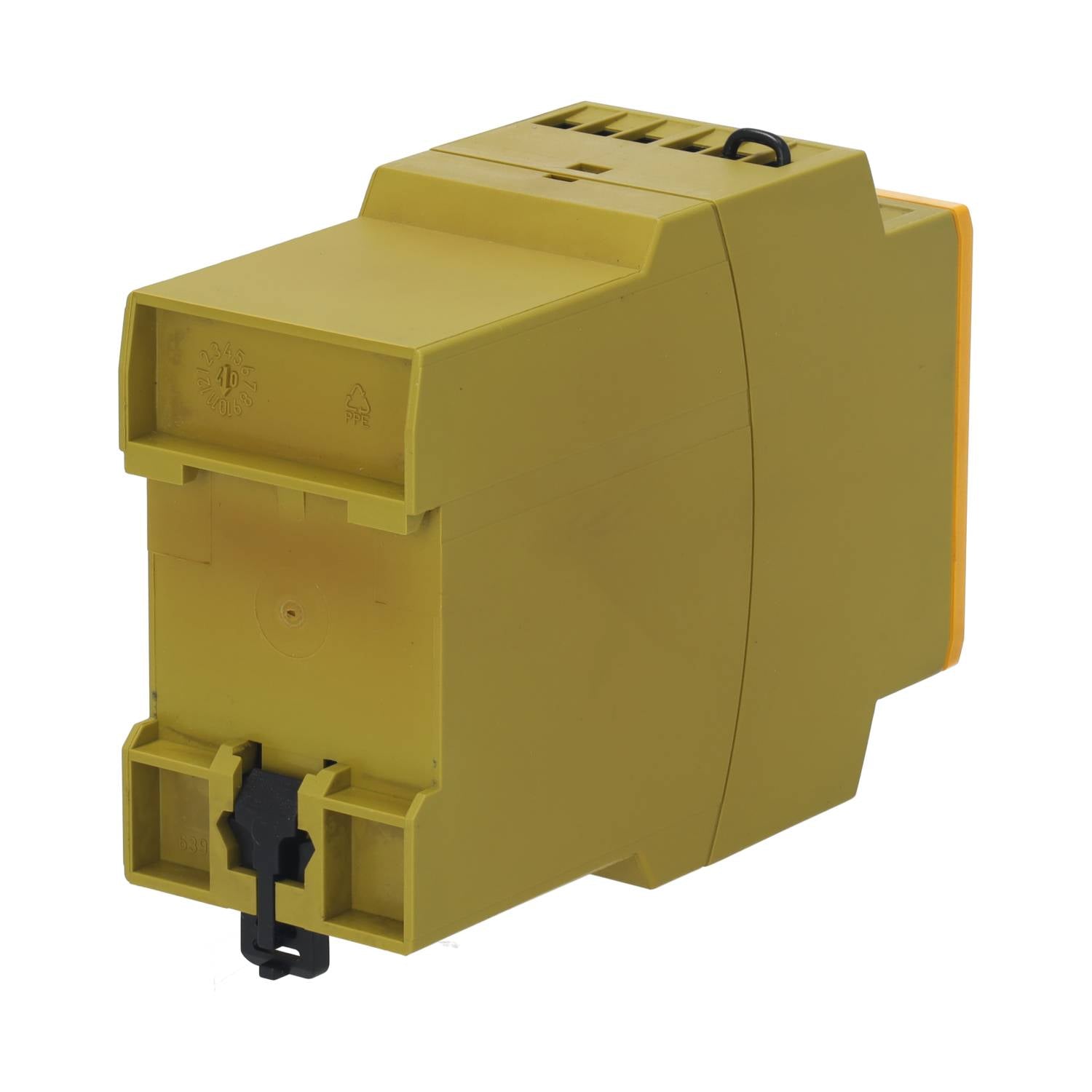

- Manufacturer: Pilz
- Model: PNOZ X13 24VDC 5n/o 1n/c
- Part Number: 774549
- Device Type: Safety Relay
- Function: Monitoring of emergency stop circuits and safety gates
- Supply Voltage: 24 V DC
- Power Consumption: 4.5 W
- Inputs: 2, single- or dual-channel wiring with or without cross-short detection
- Safety Outputs: 5 Normally Open (force-guided)
- Auxiliary Output: 1 Normally Closed (force-guided)
- Semiconductor Outputs: None
- Relay Contact Material: AgSnO₂ with 0.2 µm gold plating
- Safety Contact Rating: 8 A at 240 V AC or 24 V DC
- AC15 Switching Current: 5 A at 230 V AC
- Connection Type: Fixed screw terminals
- Protection Rating: IP40 (housing), IP20 (terminals), IP54 (control cabinet)
- Mounting: Any mounting position
- Housing Material: PPO / ABS UL94 V0/V1
- Dimensions (H × W × D): 87 × 45 × 121 mm
- Weight: Approx. 345 g
