- Manufacturer: Pilz
- Series: PNOZ X

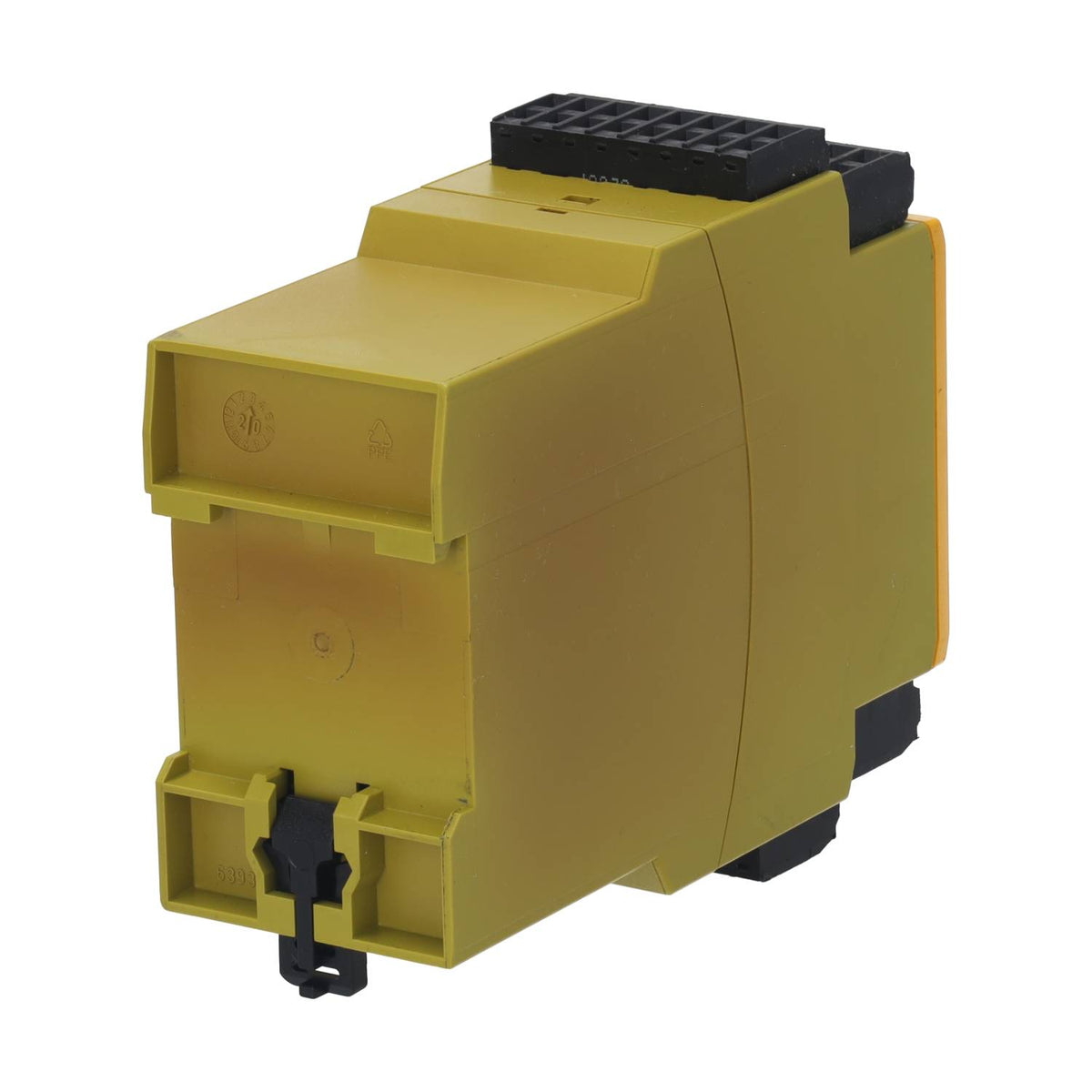

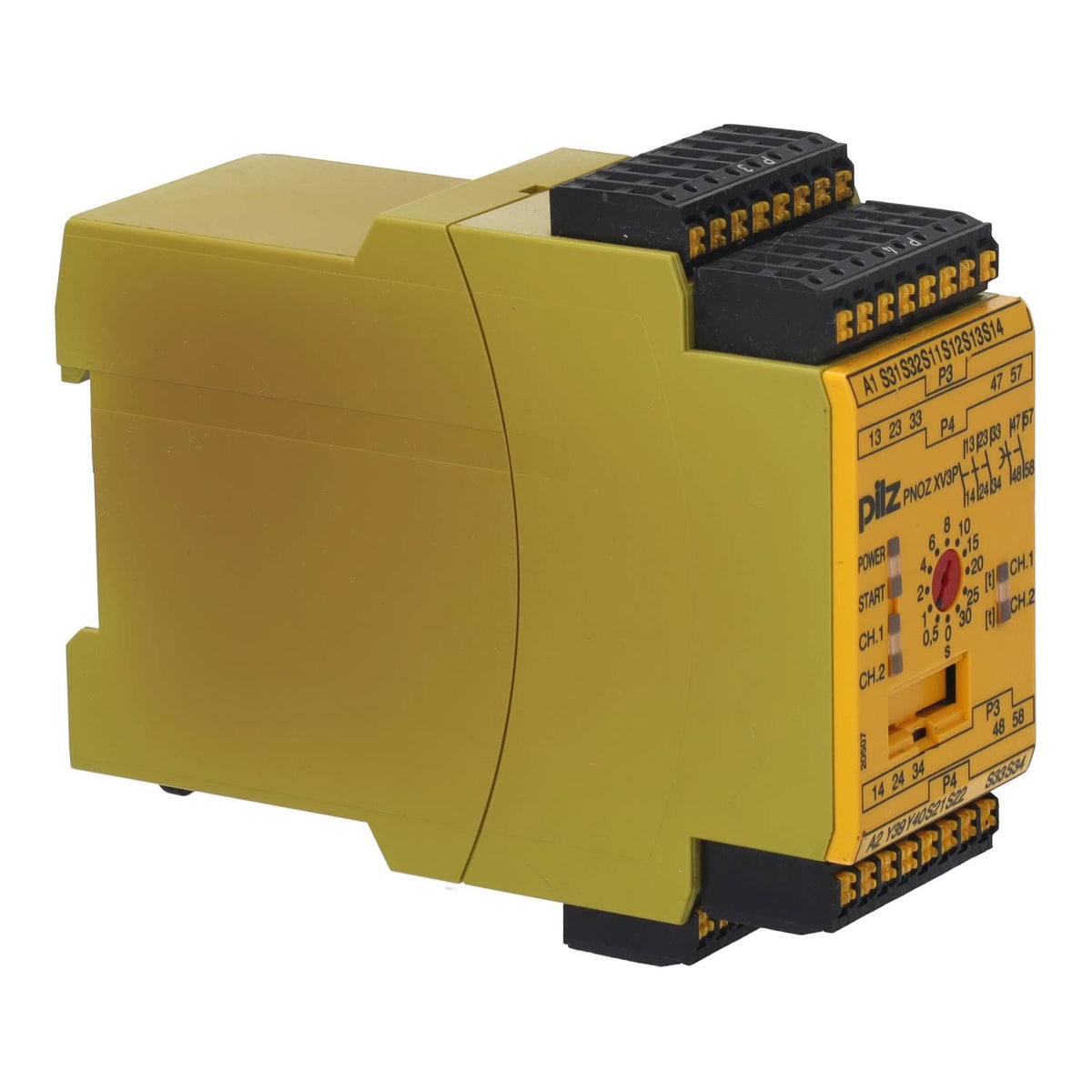

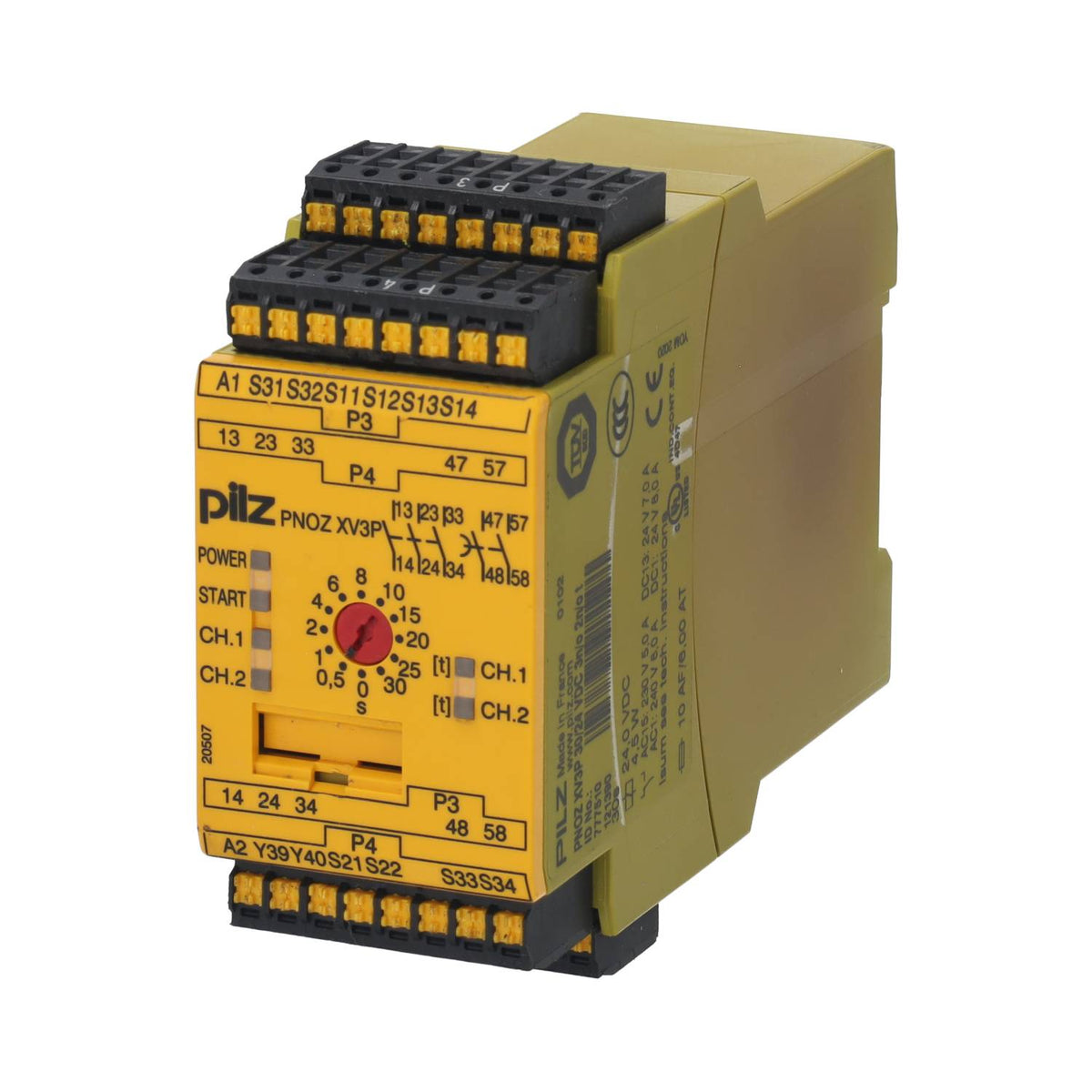

- Model: PNOZ XV3P 30/24 VDC 3n/o 2n/o t
- Item Number: 777510
- Device Type: Safety Relay / Safety Switching Device with Time Delay
- Supply voltage: 24 V DC
- Power consumption: 4,5 W
- Number of entries: 2
- Input circuitry: 1- or 2-channel
- Cross-short detection: With or without short-circuit detection
- Start types: Automatic or supervised startup
- Safety contacts: 3 normally open contacts, non-delayed
- Time-delayed contacts: 2 normally open contacts
- Semiconductor outputs: None
- Time delay: 0.1–30 s, adjustable in 12 steps
- Time stages: 0.1 / 0.5 / 1 / 2 / 4 / 6 / 8 / 10 / 15 / 20 / 25 / 30 s
- Time tolerance: −15% / +15% + 50 ms
- Repeatability: 2 %
- Switching voltage AC-1: 240 V AC
- Maximum switching current AC-1: 8 A
- Switching voltage DC-1: 24 V DC
- Maximum switching current DC-1: 8 A
- Switching voltage AC-15: 230 V AC
- Maximum switching current AC-15: 5 A
- Contact information: AgSnO₂, with a 0.2 µm gold coating
- Enclosure Protection Rating: IP40
- Connection type: Plug-in screw terminals
- Conductor cross-sectional area: AWG 24–12
- Installation orientation: Any
- Dimensions (W × H × D): 45 × 94 × 121 mm
- Net weight: 370 g
