777609
Free shipping from 49€
Worldwide shipping

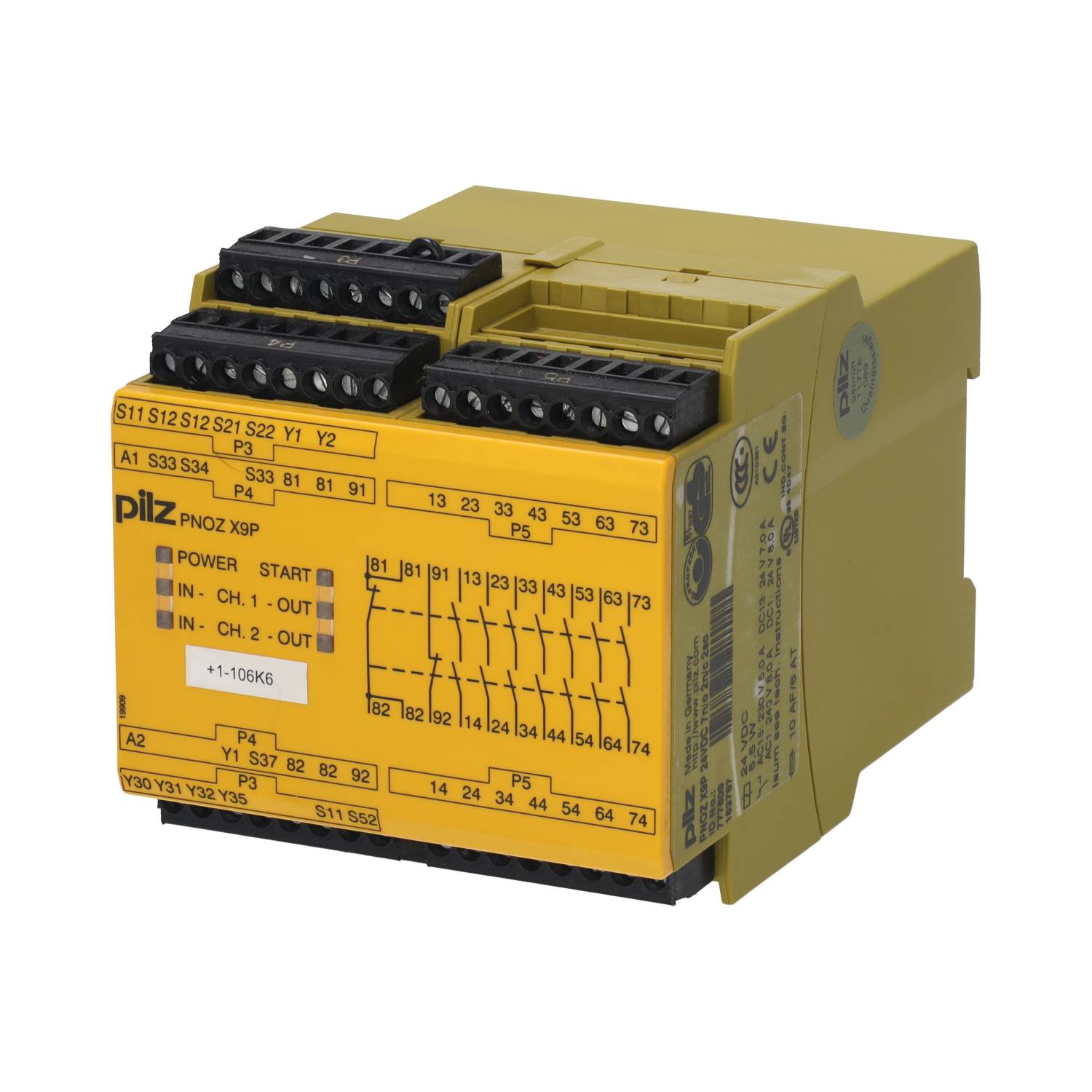

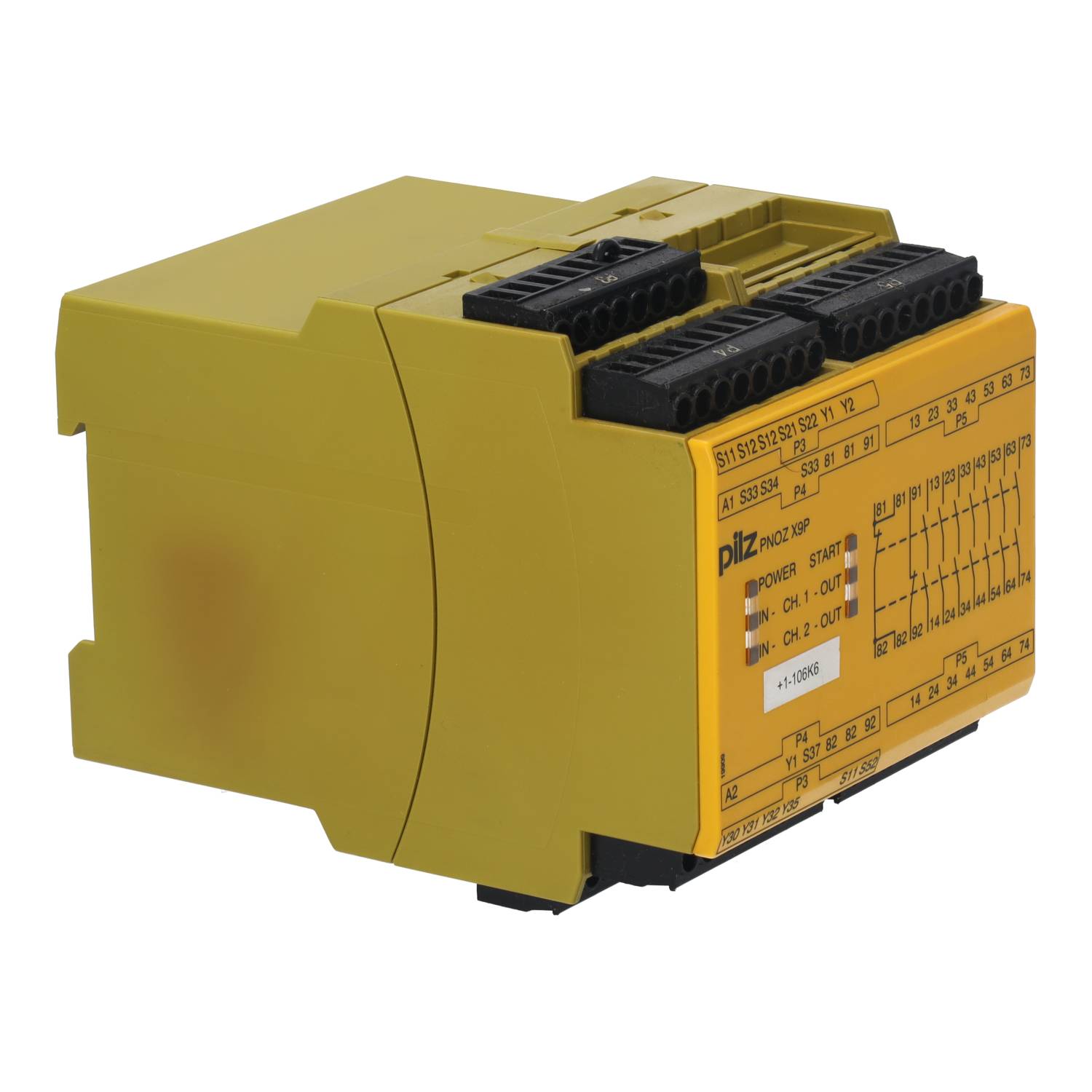

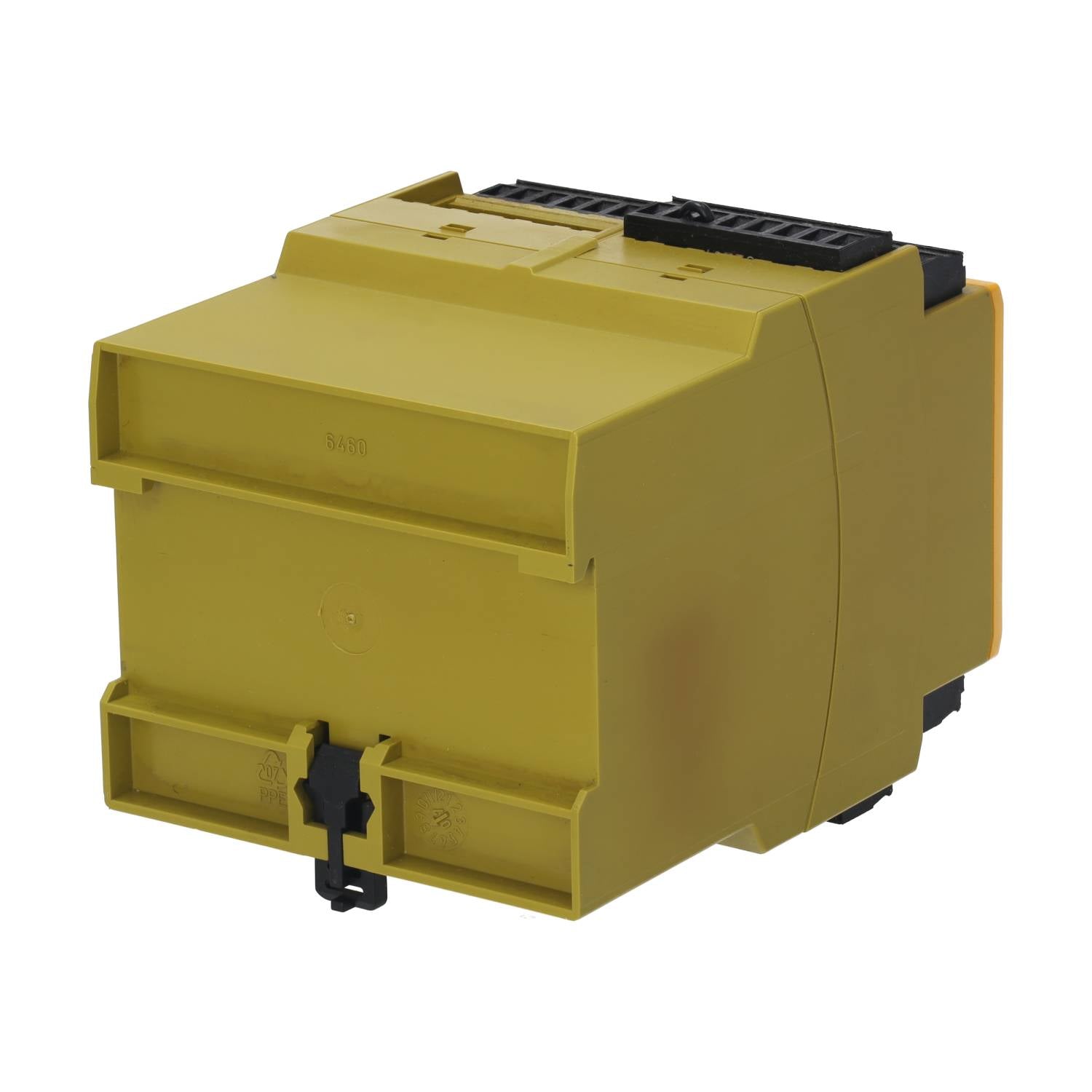

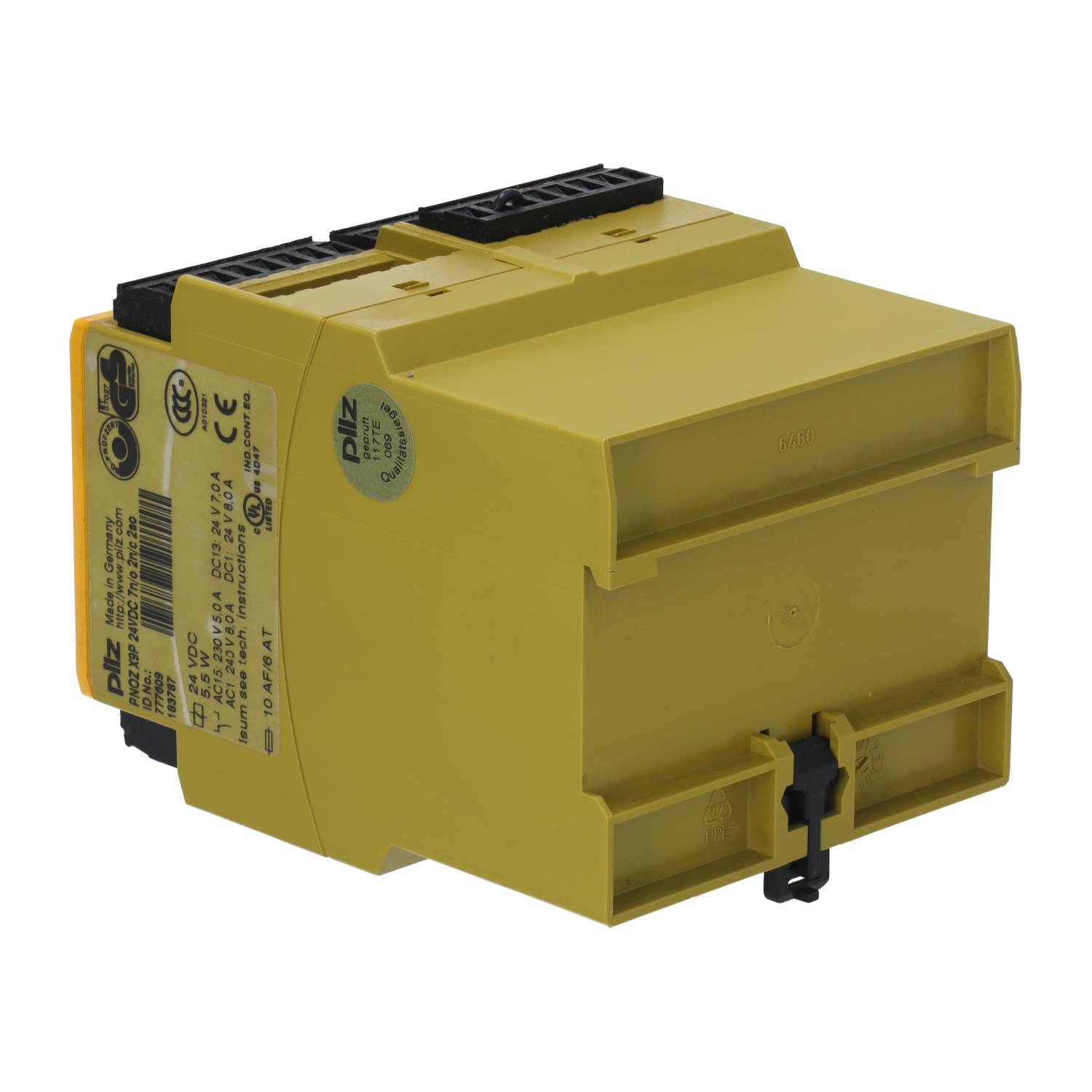

- Manufacturer: Pilz
- Model: PNOZ X9P 24VDC 7n/o 2n/c 2so
- Part Number: 777609
- Device Type: Safety Relay / Safety Monitoring Relay
- Function: Monitoring of emergency stop circuits, safety gates and safety light curtains
- Supply Voltage: 24 V DC
- Power Consumption: 5.5 W
- Inputs: 2 (single- or dual-channel wiring with or without cross-fault detection)
- Safety Outputs: 7 normally open safety contacts (positively guided)
- Auxiliary Outputs: 2 normally closed contacts
- Semiconductor Outputs: 2
- Start Modes: Automatic or monitored start
- Switching Capacity: Up to 8 A at 240 V AC or 24 V DC
- AC15 Switching Current: 5 A at 230 V AC
- Contact Material: AgSnO₂ with 0.2 µm gold plating
- Protection Rating: IP40 (housing), IP20 (terminals), IP54 (installation enclosure)
- Connection Type: Plug-in screw terminals
- Mounting: Any mounting position
- Housing Material: PPO / ABS UL94 V0/V1
- Dimensions (H × W × D): 94 × 90 × 121 mm
- Weight: Approx. 570 g
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.
- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
We offer worldwide shipping, with the buyer covering shipping costs outside Germany.
Orders received by 2:00 p.m. will be dispatched on the same working day. However, this does not apply to purchases over €1,000 outside Europe, as an export note is required for this, or for shipments sent by a freight forwarder. For particularly urgent deliveries, you can choose express shipping.
For each of our products you can select the condition, with the following categories available:
New (OVP): Unused and undamaged items in the original packaging.
New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
Like New: Items that look like new and show only minimal signs of wear. Very Good: Items that show only light signs of wear and are fully functional. Good: Items that show normal signs of wear but are still fully functional.
Acceptable: Items that show more severe signs of wear but are functional.
Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair. If there are major differences between the condition categories, e.g. broken casing, a separate image is added for the affected category. Otherwise, grades such as "Very Good" and "Good" can only be distinguished from one another by increasing signs of wear.
