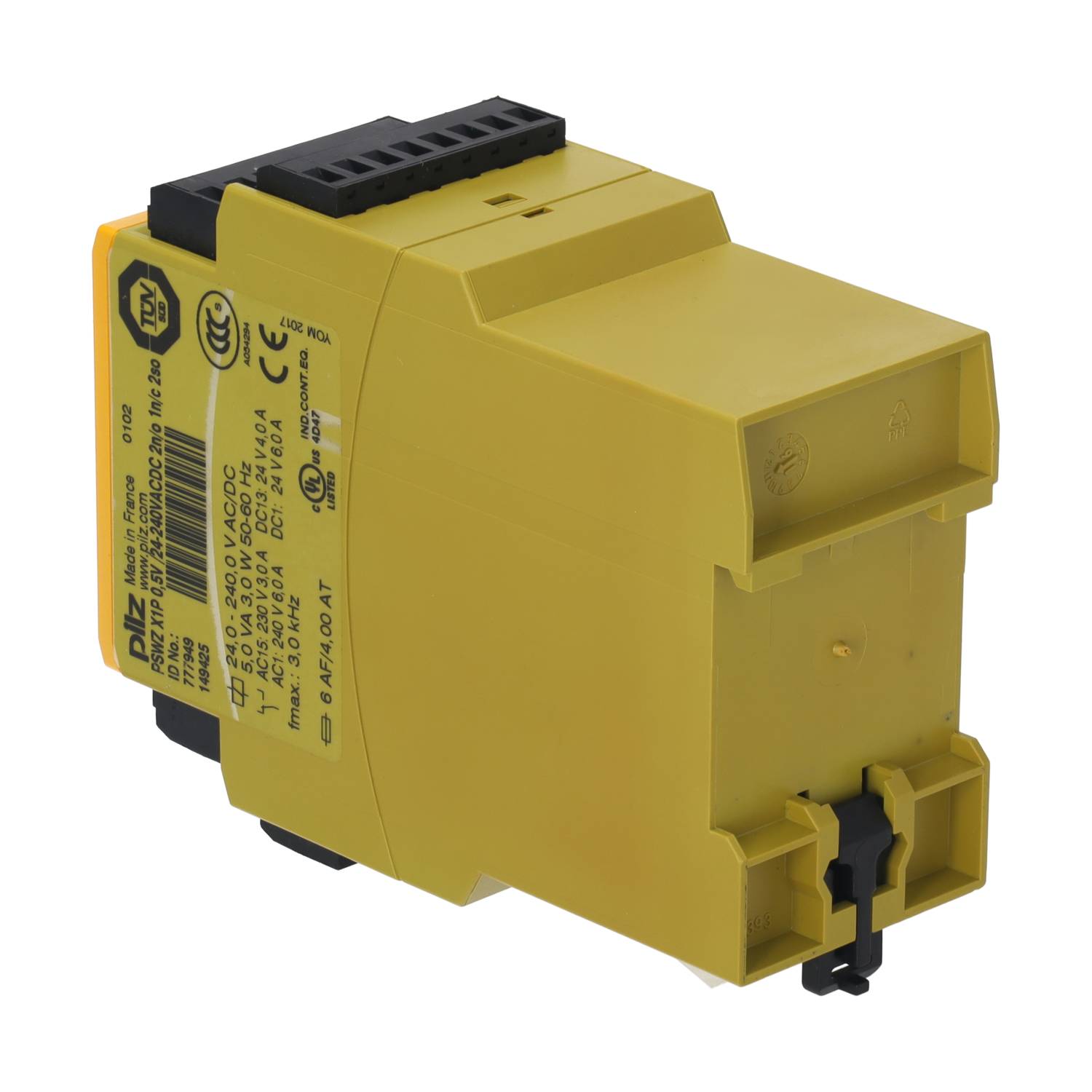

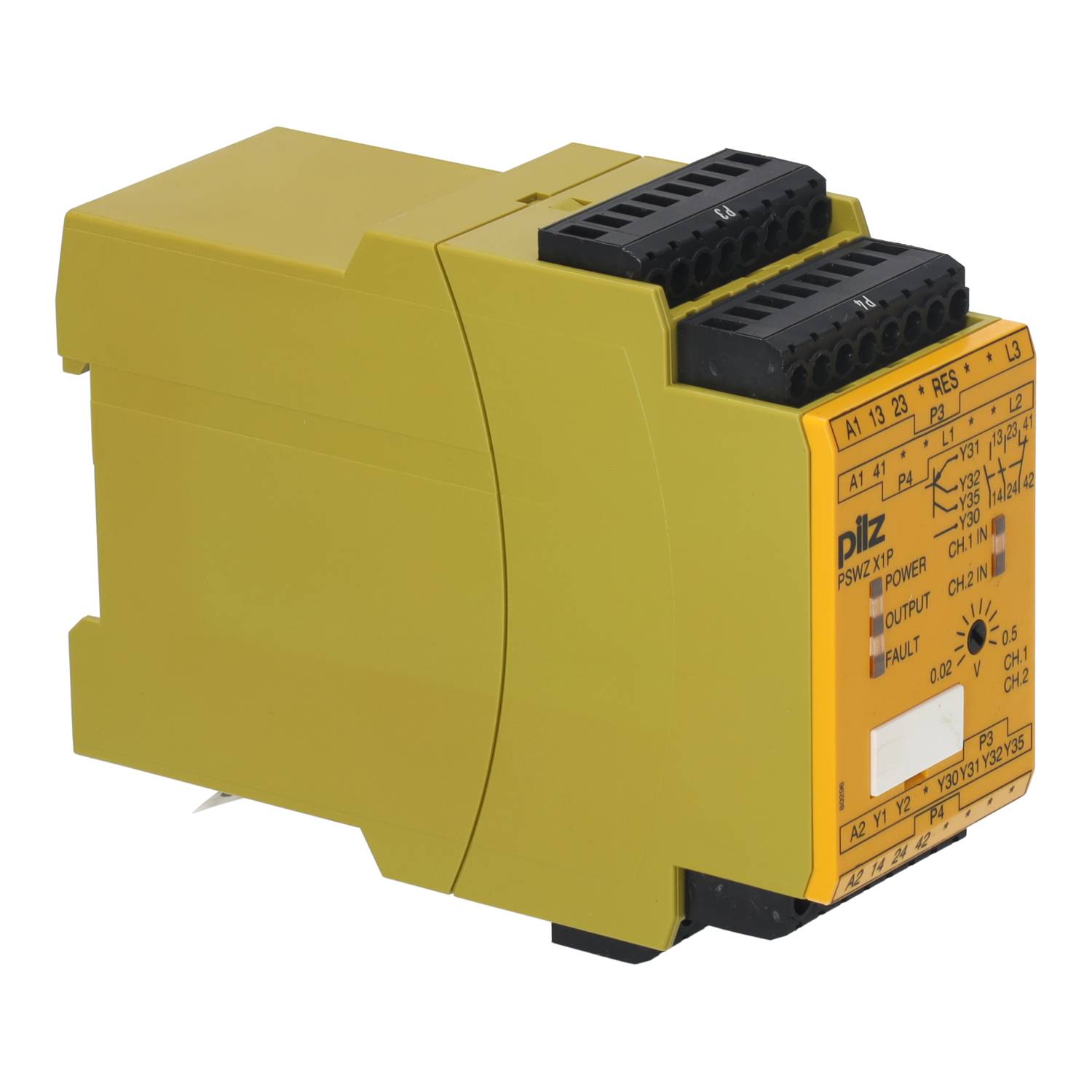

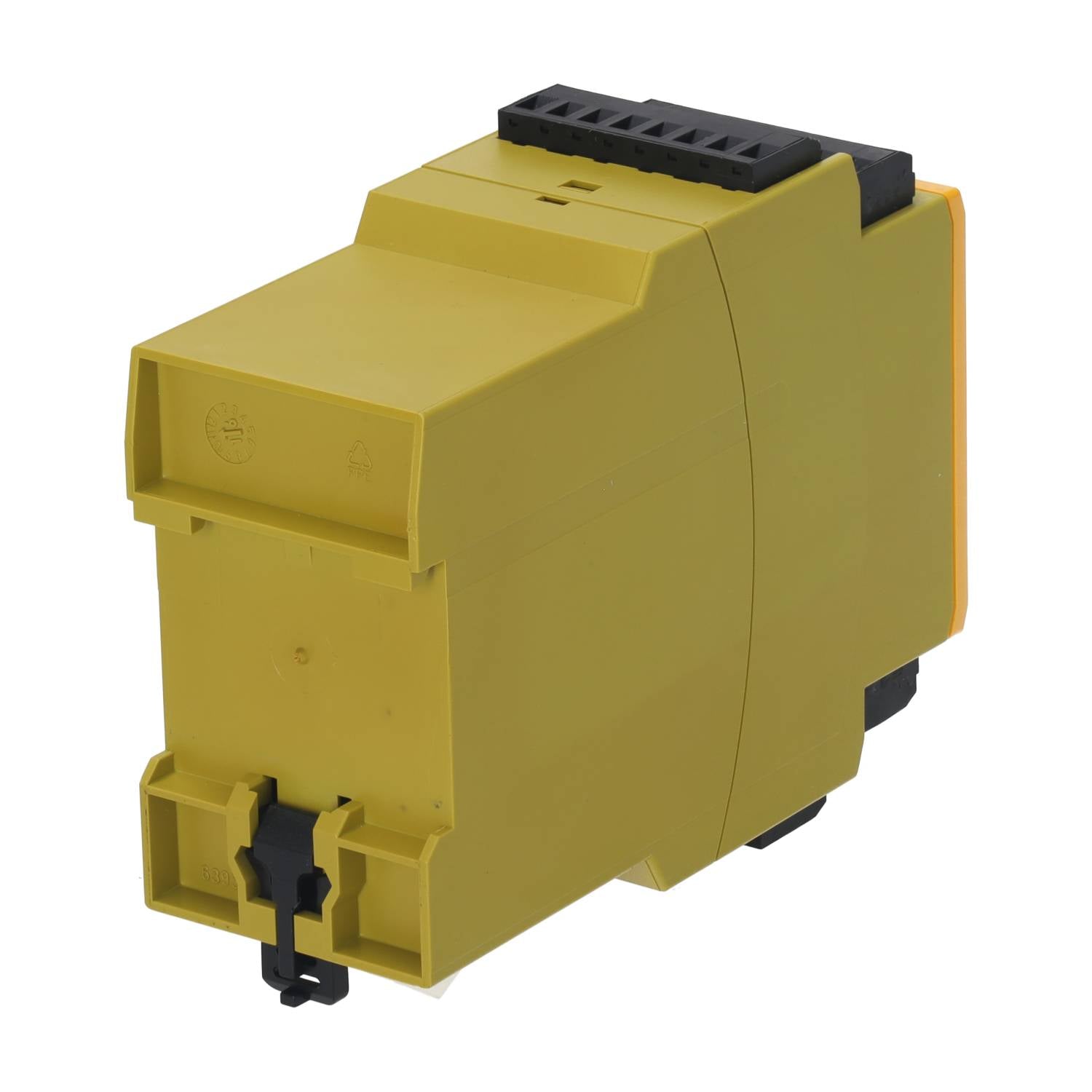

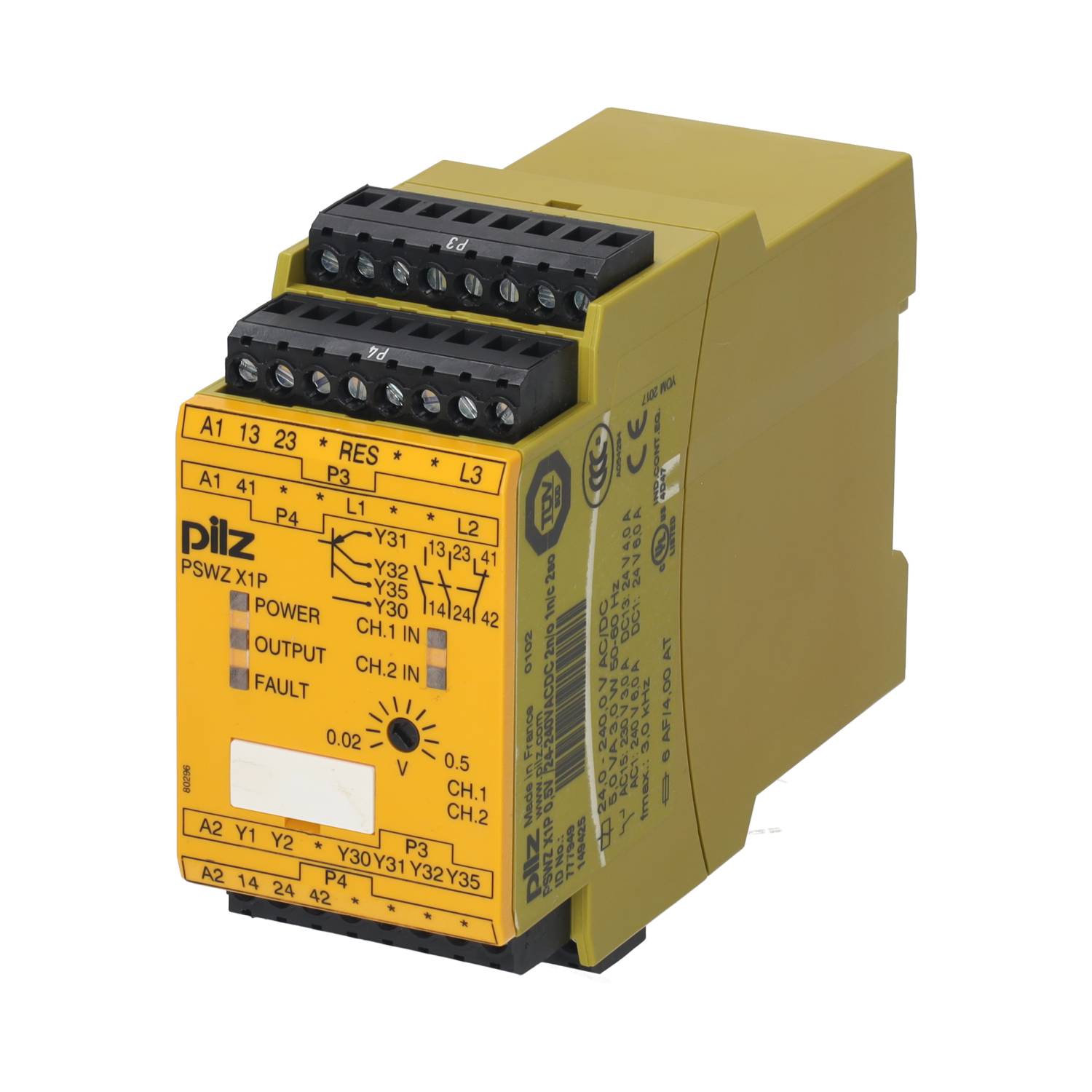

- Manufacturer: Mushroom
- Model: PSWZ X1P 0,5V /24-240VACDC 2n/o 1n/c 2so
- Part number: 777949
- Device class: Safety relays / standstill monitoring
- Function: Monitoring the EMF voltage of coasting motors
- Supply voltage: 24-240 V AC/DC
- Measuring voltage UM: 0.02-0,5 V AC/DC
- Max. Measuring voltage: 690 V
- Measuring frequency range: 0-3000 Hz
- Wiring: 1-/2-channel
- Safety outputs: 2 closers
- Signal outputs: 1 Opener
- Semiconductor outputs: 2
- Relay contact material: AgCuNi + 0.2 µm gold
- Switching capacity safety contacts: 6 A AC/DC
- AC15 Switching current: 3 A at 230 V AC
- DC13 Switching current: 6 A at 24 V DC
- Power consumption: 6.5 VA AC / 4 W DC
- Protection class housing: IP40
- Protection class terminals: IP20
- Protection class Installation space: IP54
- Connection type: pluggable screw terminals
- Assembly: any mounting position
- Housing material: PPO / ABS UL94 V0/V1
- Dimensions: 94 × 45 × 121 mm
- Weight: approx. 325 g
- Operating temperature: -10 to +40 °C
- Humidity: max. 93 % r.h. at 40 °C
- Standards: EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1
- Approvals: CE, TÜV, cULus, EAC, UKCA, CCC
- Field of application: Standstill and motor monitoring in safety applications
