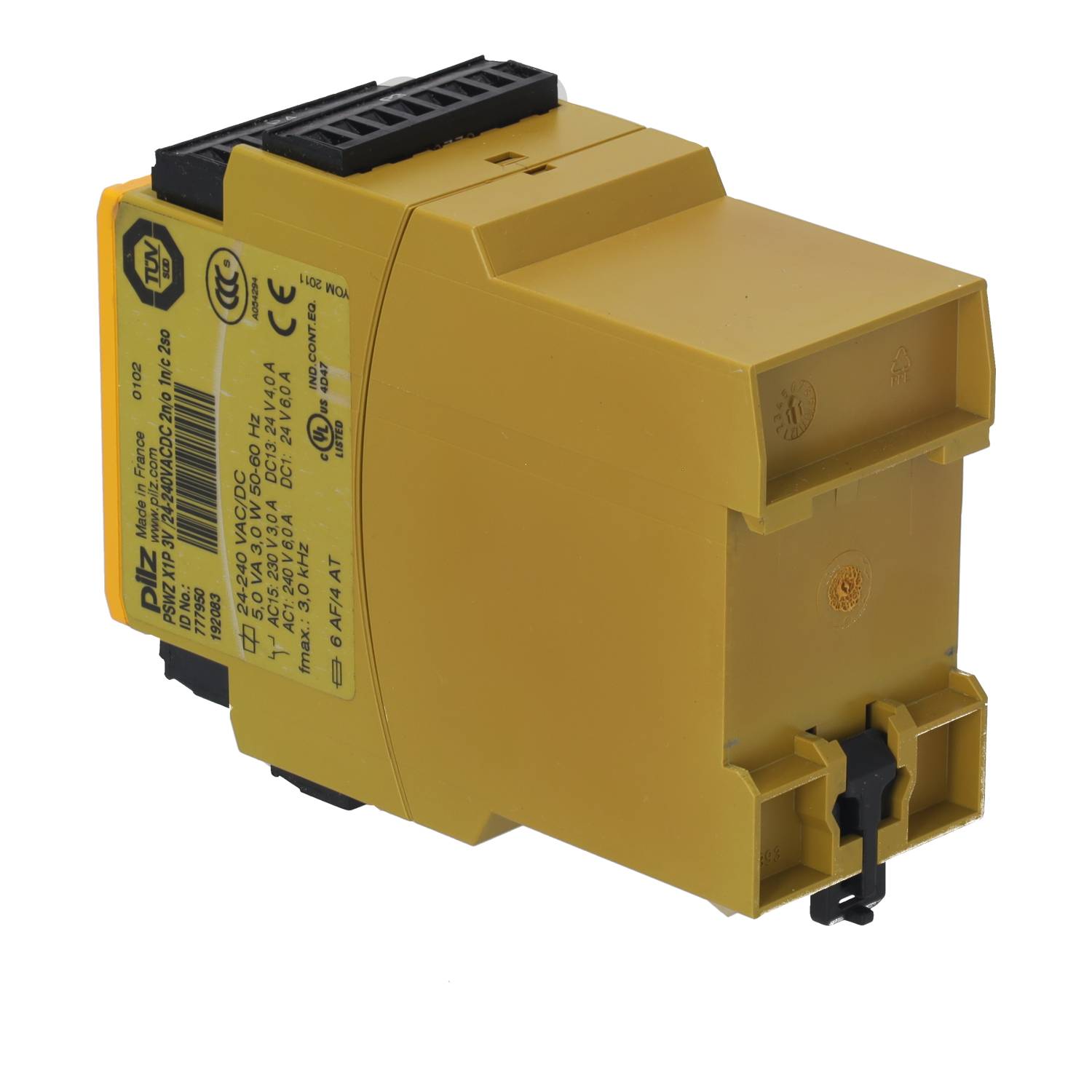

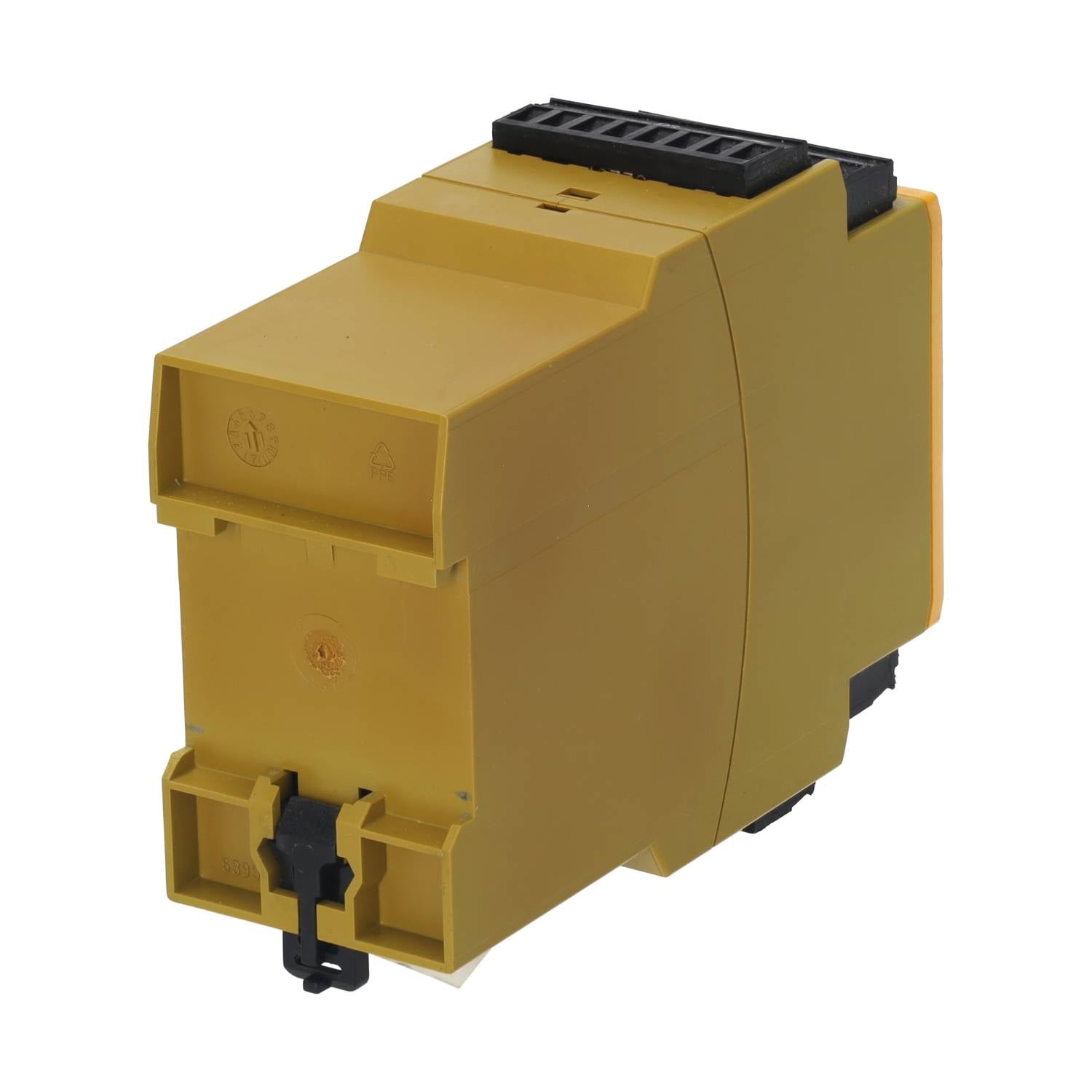

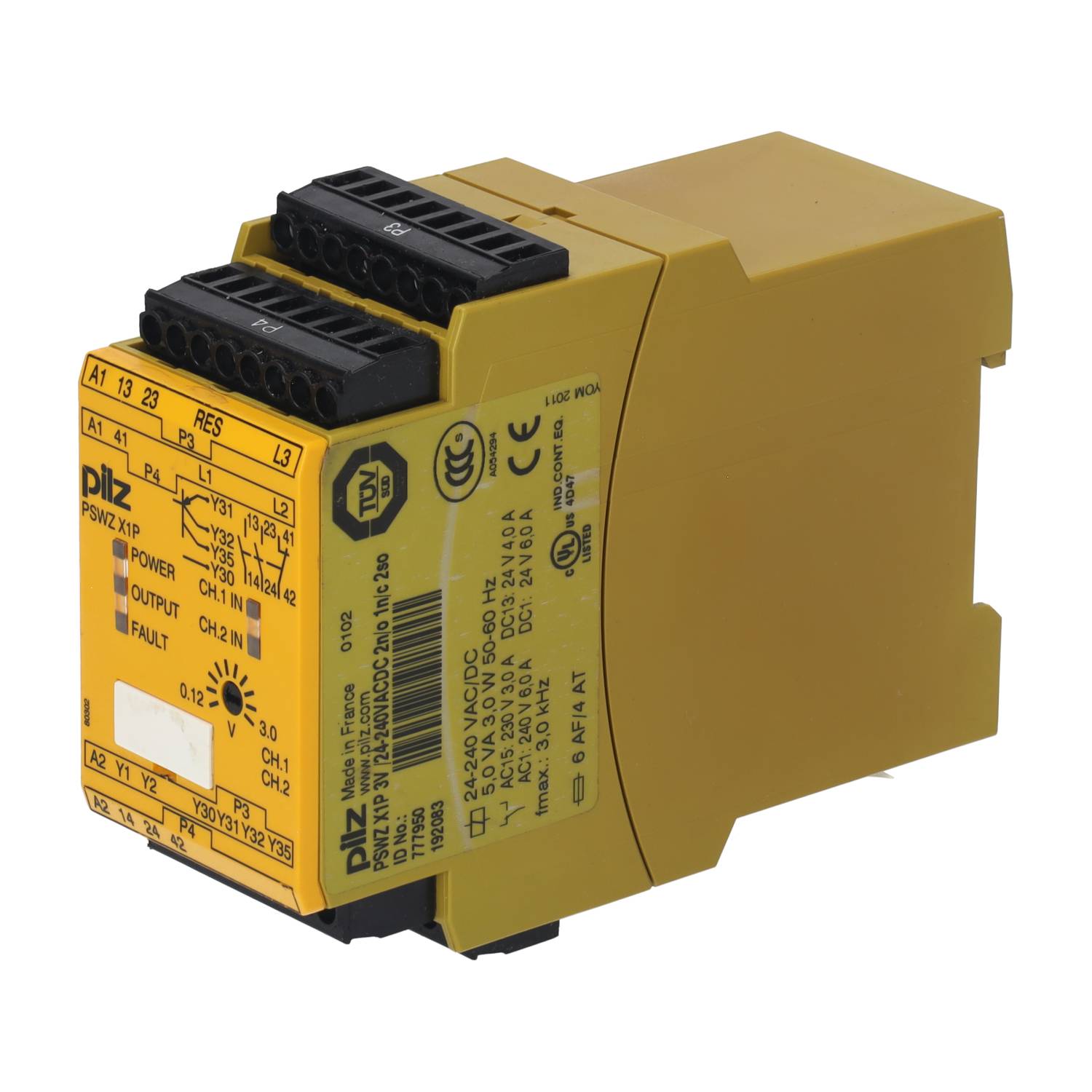

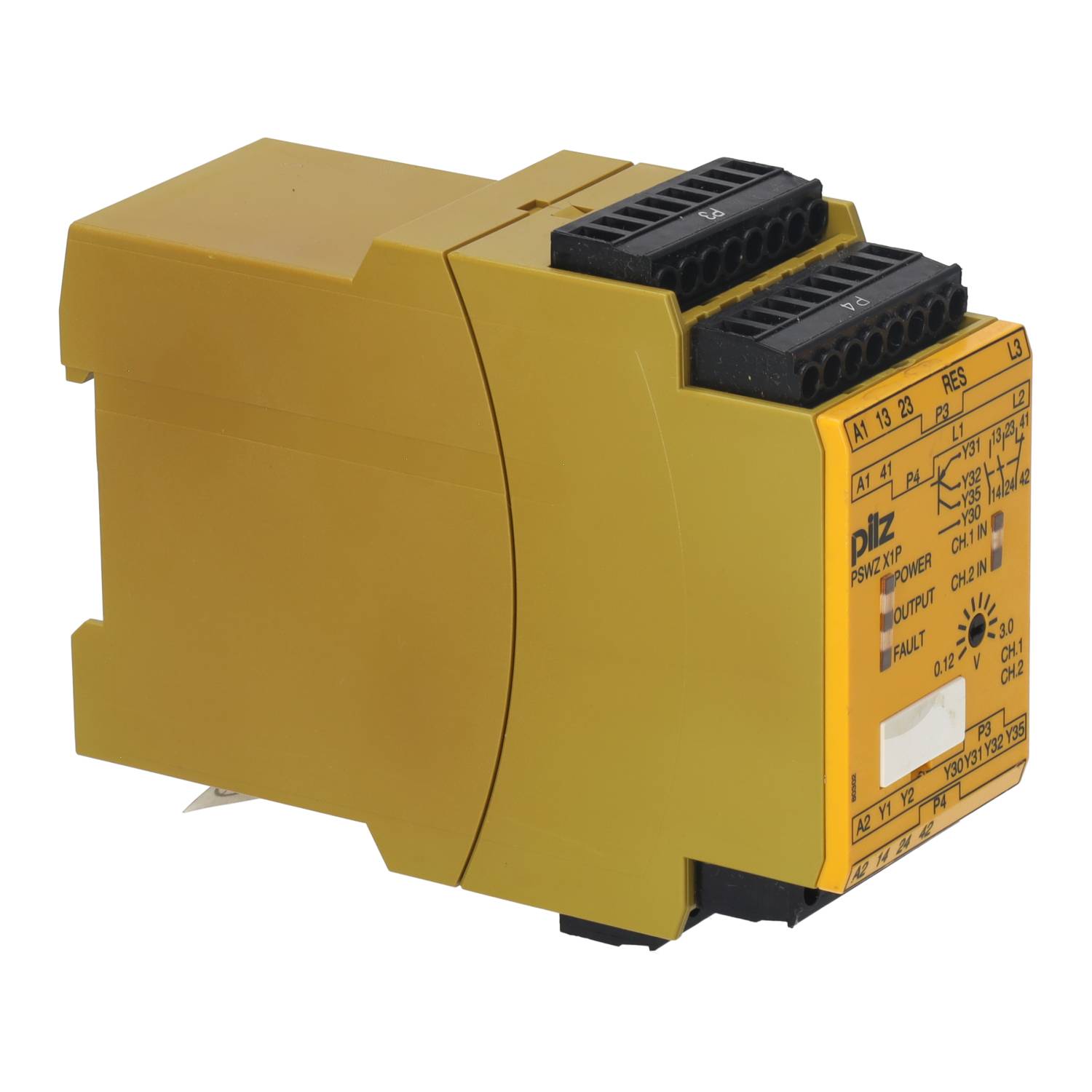

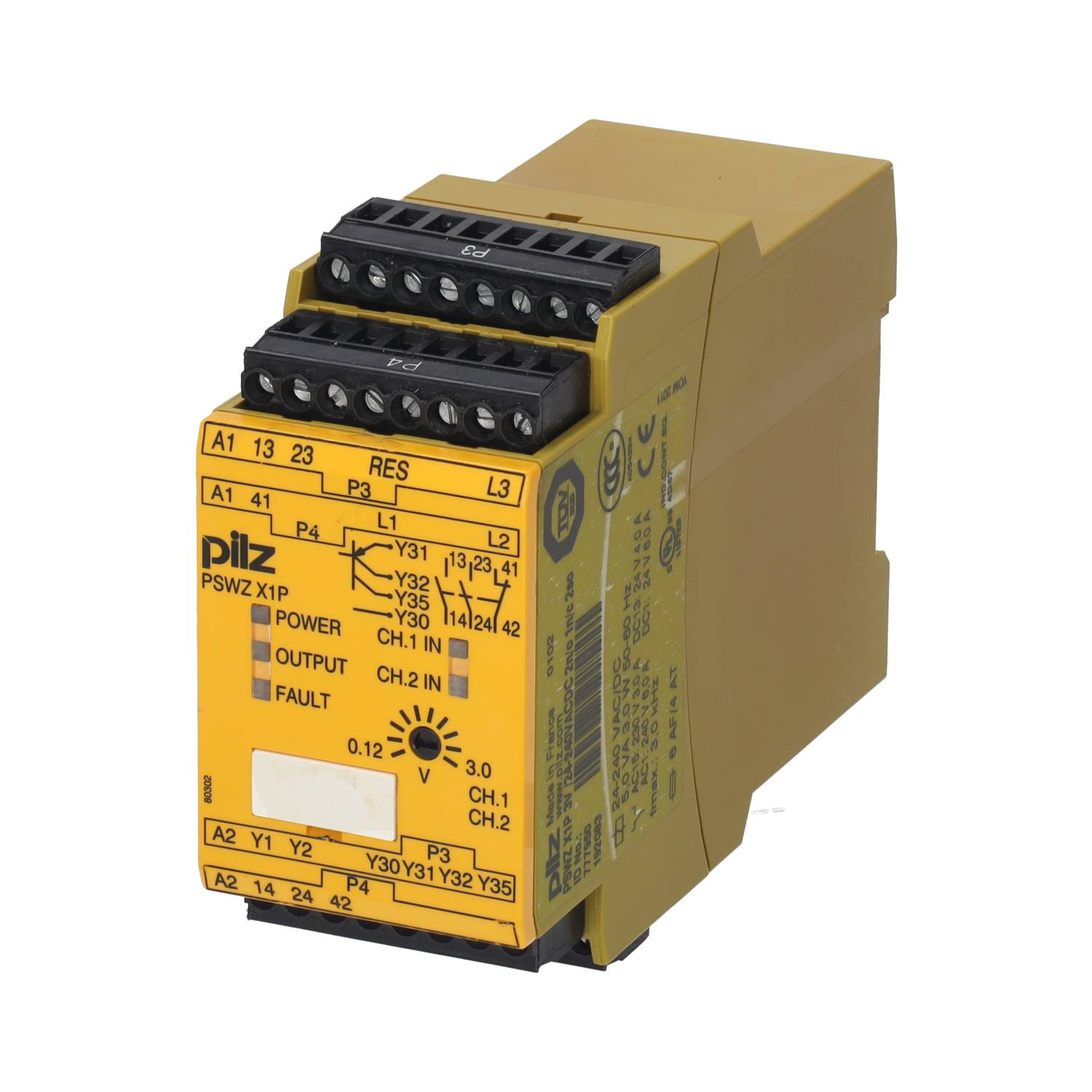

777950
Free shipping from 49€
Worldwide shipping
- Manufacturer: Pilz
- Model: PSWZ X1P 3V /24-240VACDC 2n/o 1n/c 2so
- Part number: 777950
- Device class: safety relay / standstill monitor
- Function: monitoring of back EMF voltage from coasting motors
- Supply voltage: 24–240 V AC/DC
- Measuring voltage UM: 0.12–3 V AC/DC
- Max. measuring voltage: 690 V
- Measuring frequency range: 0–3000 Hz
- Configuration: 1-/2-channel wiring
- Safety outputs: 2 NO contacts
- Signal outputs: 1 NC contact
- Semiconductor outputs: 2
- Relay contact material: AgCuNi + 0.2 µm gold
- Safety contact switching capacity: 6 A AC/DC
- AC15 switching current: 3 A at 230 V AC
- DC13 switching current: 6 A at 24 V DC
- Power consumption: 6.5 VA AC / 4 W DC
- Housing protection rating: IP40
- Terminal protection rating: IP20
- Installation compartment rating: IP54
- Connection type: pluggable screw terminals
- Mounting: any mounting position
- Housing material: PPO / ABS UL94 V0/V1
- Dimensions: 94 × 45 × 121 mm
- Weight: approx. 325 g
- Operating temperature: −10 to +40 °C
- Humidity: max. 93 % RH at 40 °C
- Standards: EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1
- Approvals: CE, TÜV, cULus, EAC, UKCA, CCC
- Application: standstill and motor monitoring in safety applications
