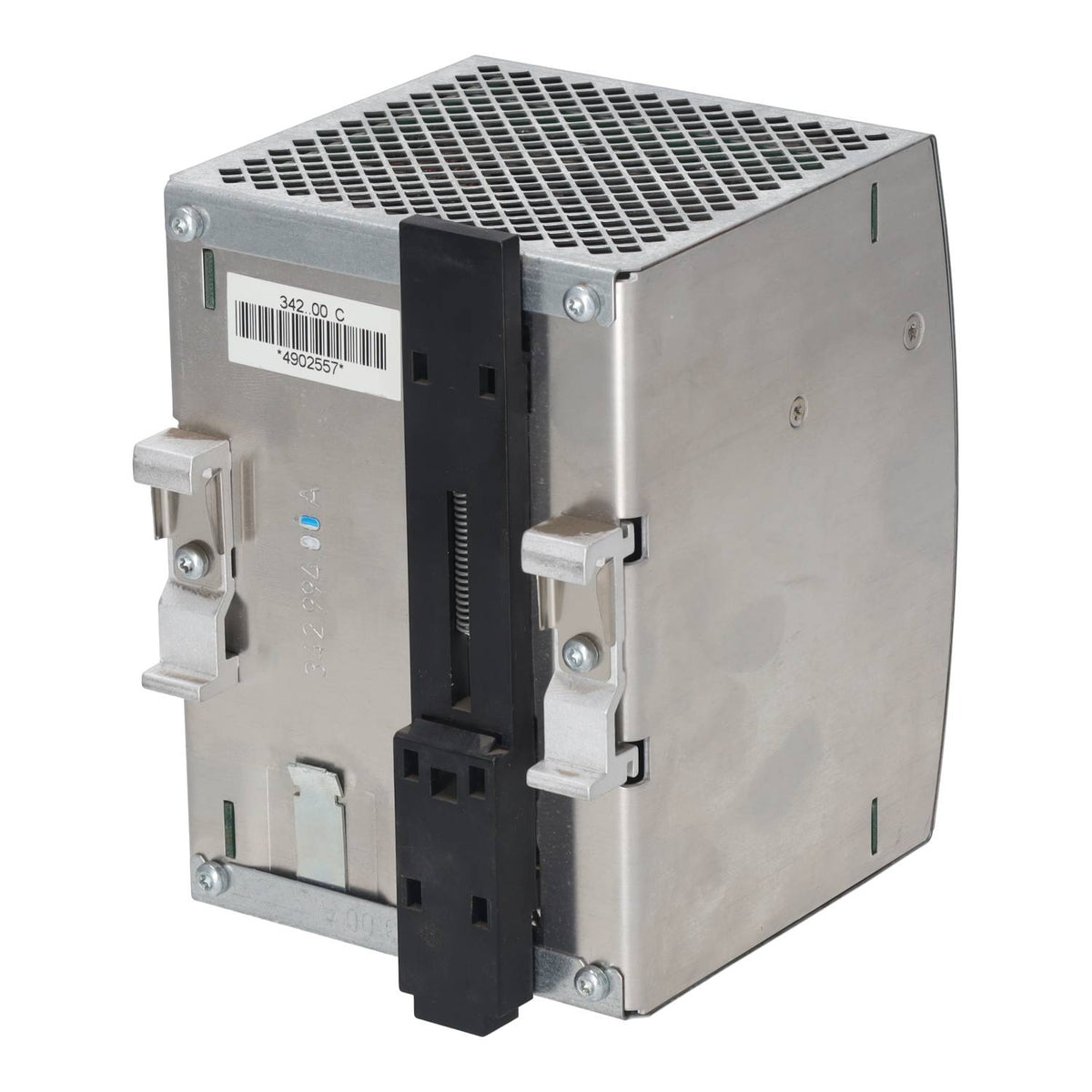

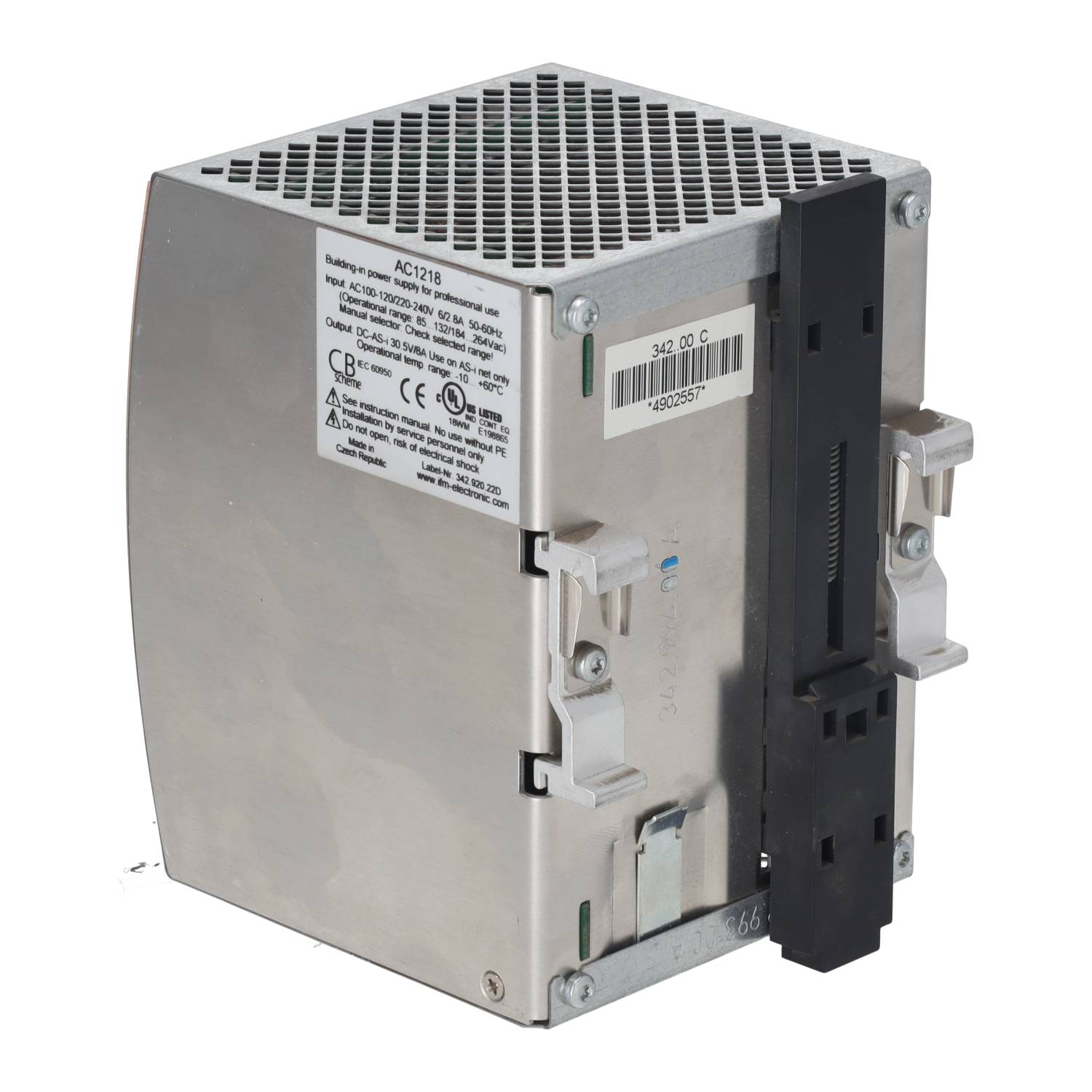

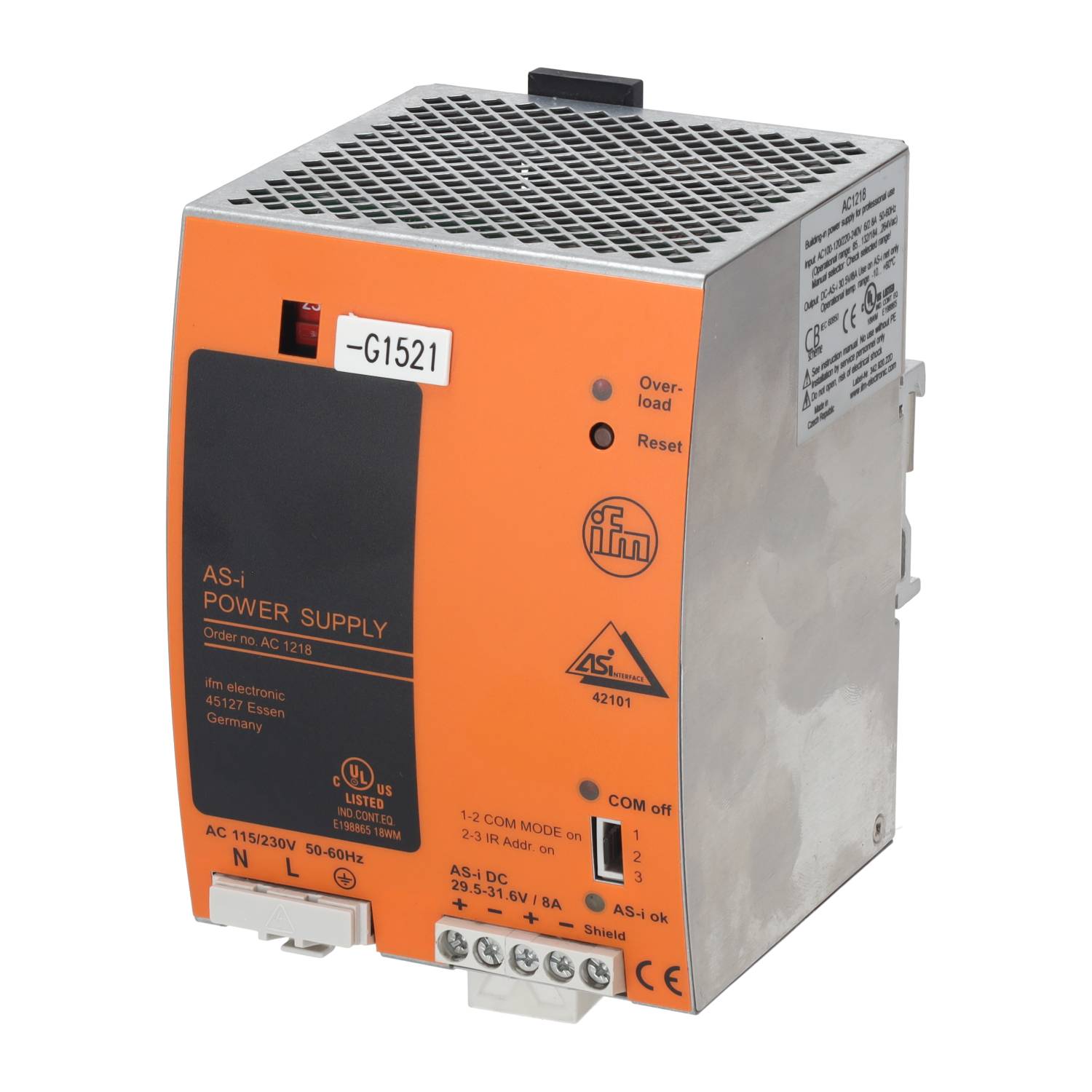

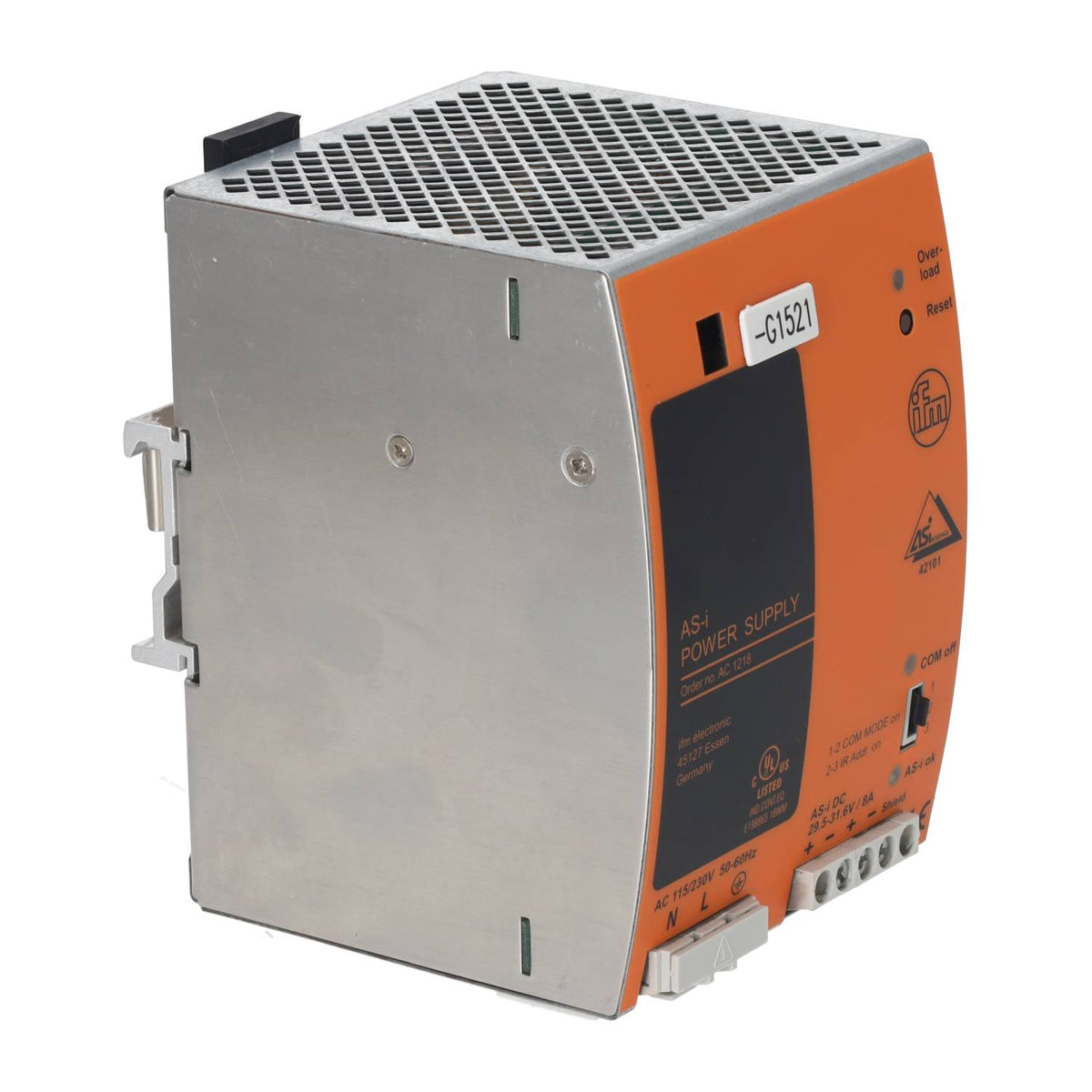

AC1218 (AS-i power supply 115/230 V AC)
Free shipping from 49€
Worldwide shipping
- Manufacturer: ifm electronic
- Model: AC1218
- Device class: AS-i power supply
- Function: Power supply for AS-i masters, sensors, actuators and modules
- Mains voltage: 115 / 230 V AC (switchable)
- Input voltage range: 85-132 V AC / 184-264 V AC
- Power frequency: 47-63 Hz
- AS-i output voltage: 29.5-31,6 V DC (PELV)
- AS-i output current: 8 A
- Output power: 240 W
- Efficiency: 92 %
- Short circuit protection: electronic switch-off after 2-5 s, reset via push-button
- Overload protection: available
- Power-on delay: approx. 100 ms
- Mains buffer time: > 10 ms
- Derating: 6 W/K at +60 to +70 °C
- AS-i data decoupling: integrated
- AS-i communication: can be deactivated via jumper
- Ripple: < 50 mV
- Backup integrated: inert 8 A / 250 V
- Preservation recommended: 10 A or greater
- AS-i certificate: 42101
- Status displays: 3 LEDs (2 × red, 1 × green)
- Connection cross section: to 4 mm²
- Protection class: IP20
- Housing material: Aluminum, galvanized sheet steel
- Operating temperature: -10 to +70 °C
- MTTF: 99 years
- Dimensions (H × W × D): 131 × 91 × 107 mm
- Weight: approx. 1.0 kg
- Assembly: DIN rail mounting
- Field of application: Power supply for AS-Interface networks
