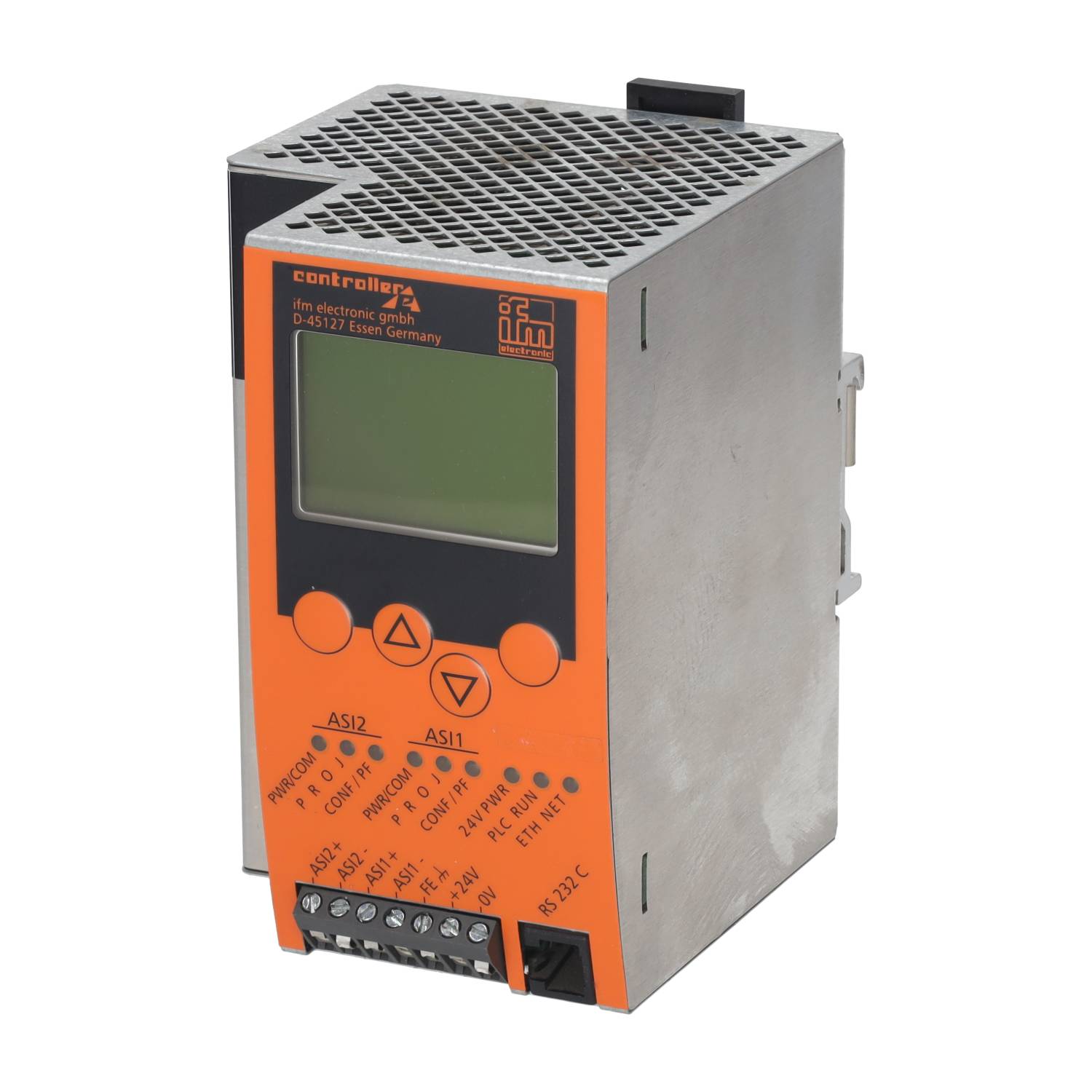

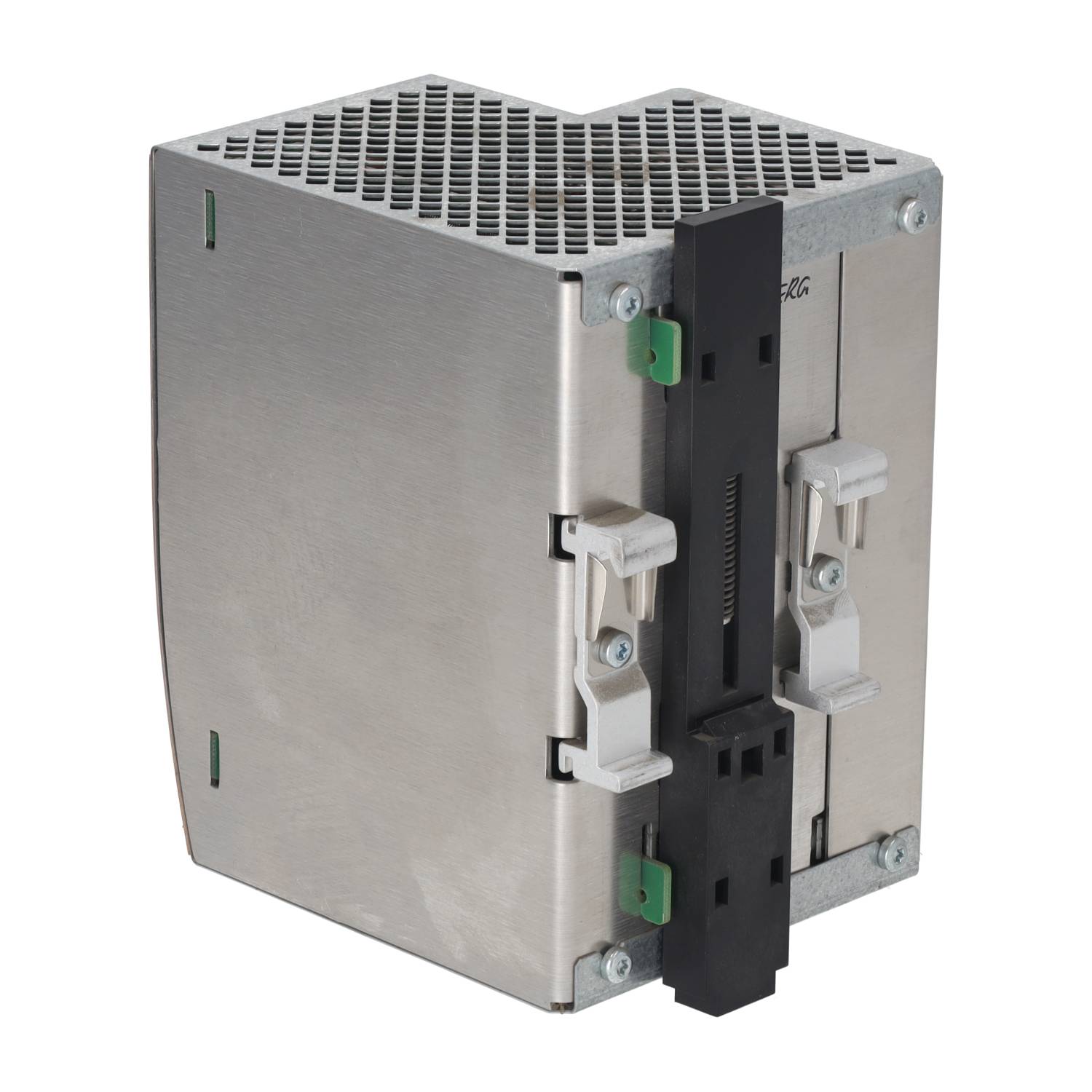

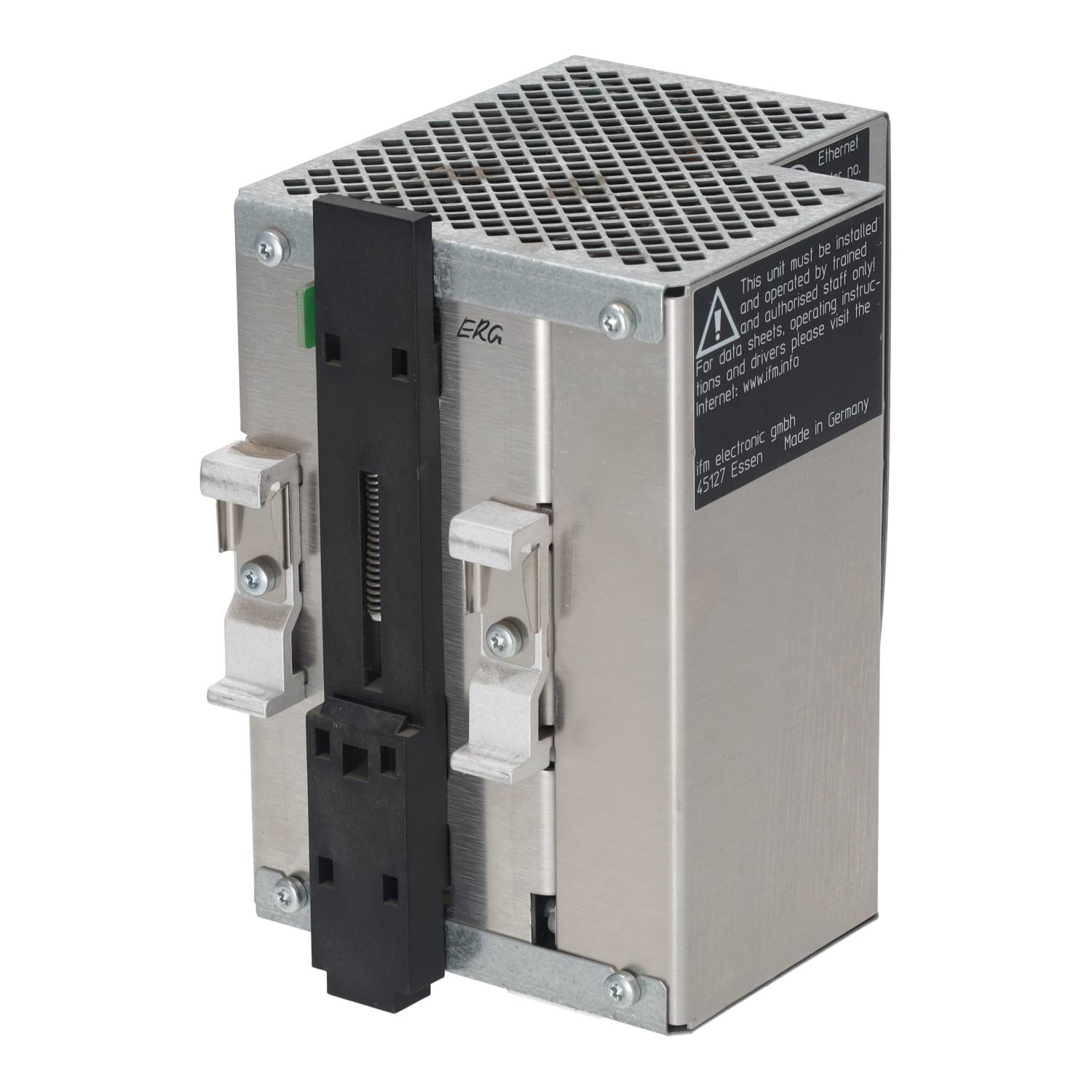

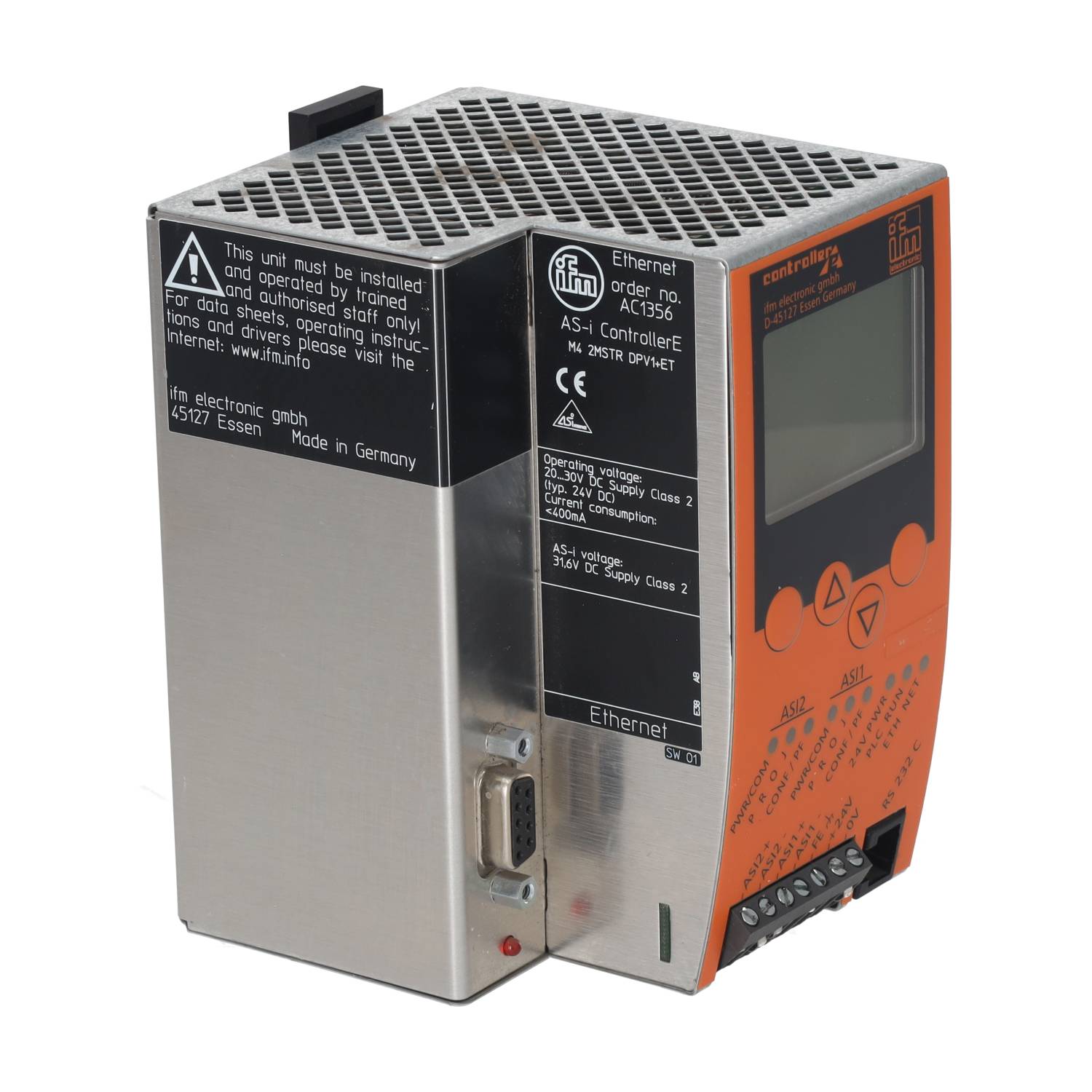

AC1356 (ContrE M4 2Mstr DPV1+ET)
Free shipping from 49€
Worldwide shipping
- Manufacturer: ifm electronic
- Model: AC1356
- Designation: AS-i ControllerE M4 2Mstr DPV1+ET
- Device class: AS-i Controller / Profibus-DP Gateway
- Function: Freely programmable decentralized control with 2 AS-i masters
- AS-i Master: 2
- AS-i Version: 2.1 + 3.0
- AS-i Profile: M4
- Operating voltage: 24 V DC
- Total current consumption from AS-i: < 10 mA
- Current consumption from 24 V DC: < 400 mA
- Power consumption: < 10 VA
- Insulation resistance: 500 V
- Potential separation: Ja
- PLC memory for user program: 128 KWords
- Programming interface 1: RS-232C, RJ11, 9,600-115,200 baud, galvanically isolated
- Programming interface 2: Ethernet CAA, RJ45, 10/100 MBaud
- Data interface: Profibus DP (EN 50170), Modbus/TCP
- Profibus data rate: up to 12 MBaud
- Display: Full graphic LCD
- LED displays: 3 × red, 3 × green, 4 × yellow
- Housing design: Clamp rail housing
- Assembly: DIN rail mounting
- Housing material: Aluminum, galvanized sheet steel
- Protection class: IP20
- Operating temperature: 0 to +60 °C
- Storage temperature: -20 to +70 °C
- Weight: approx. 0.601 kg
- Dimensions (H × W × D): 131 × 86 × 107 mm
- Field of application: Decentralized control and automation tasks in AS-Interface networks
- Special features: Freely programmable, integrated Profibus-DP and Ethernet interface, full AS-i master functionality, graphical display
