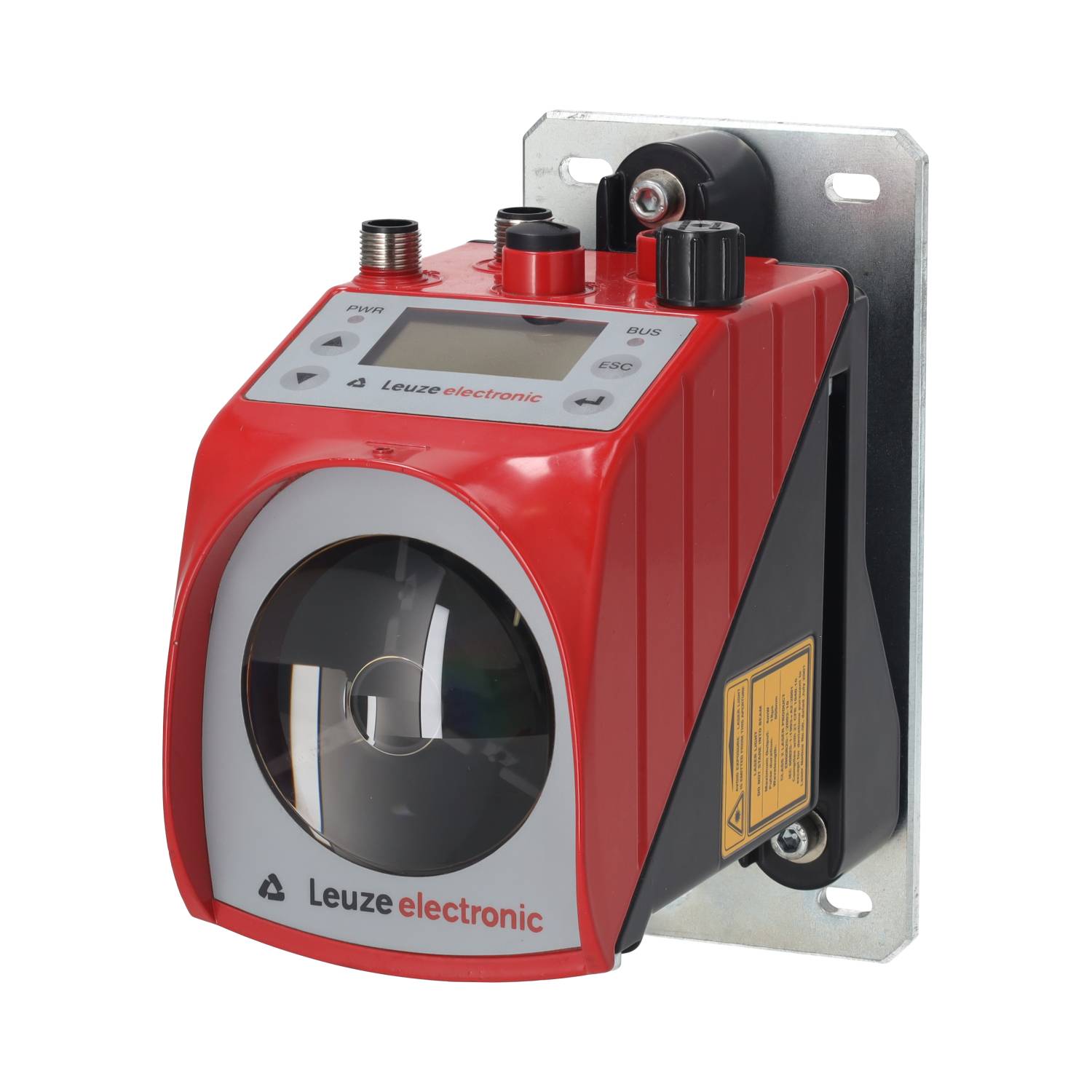

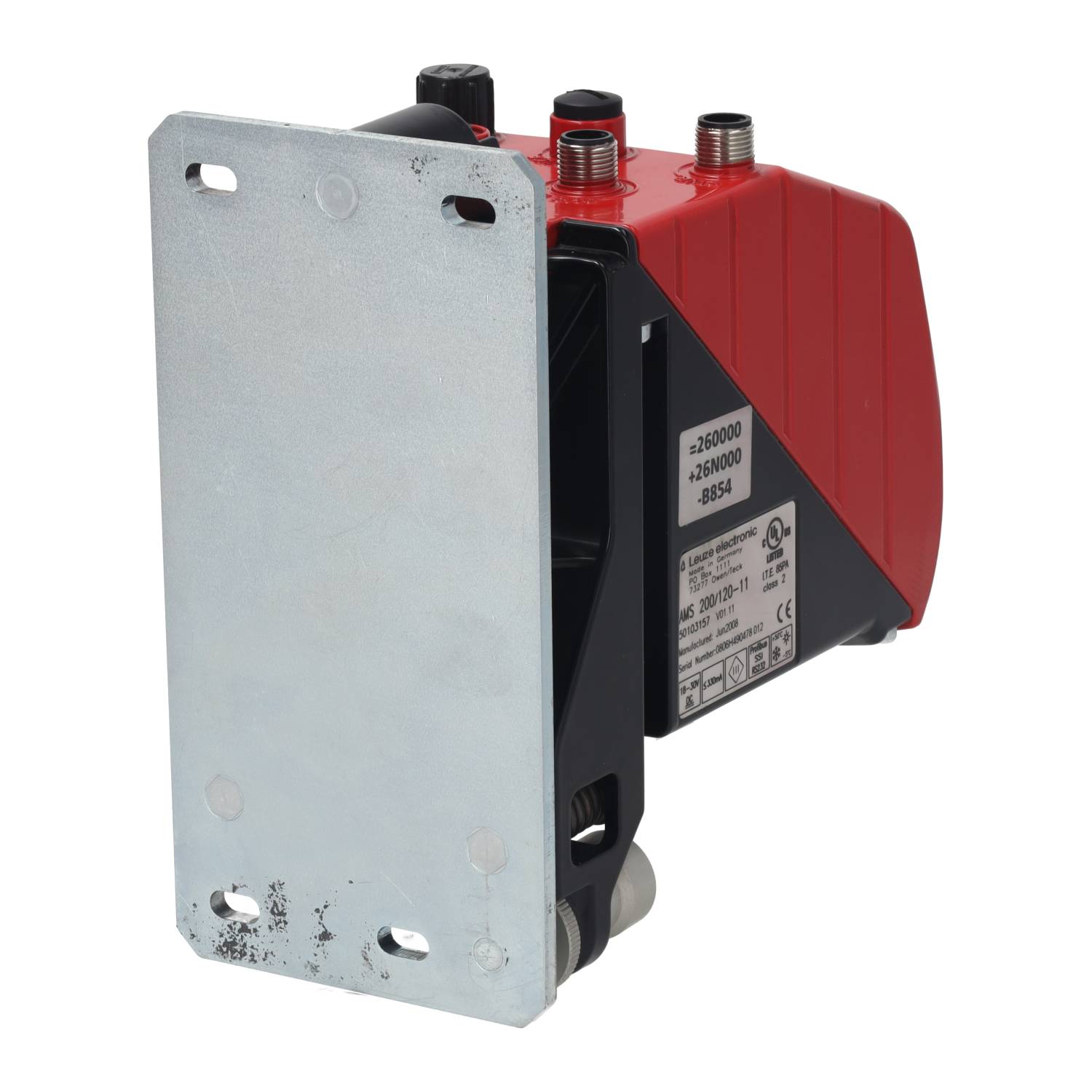

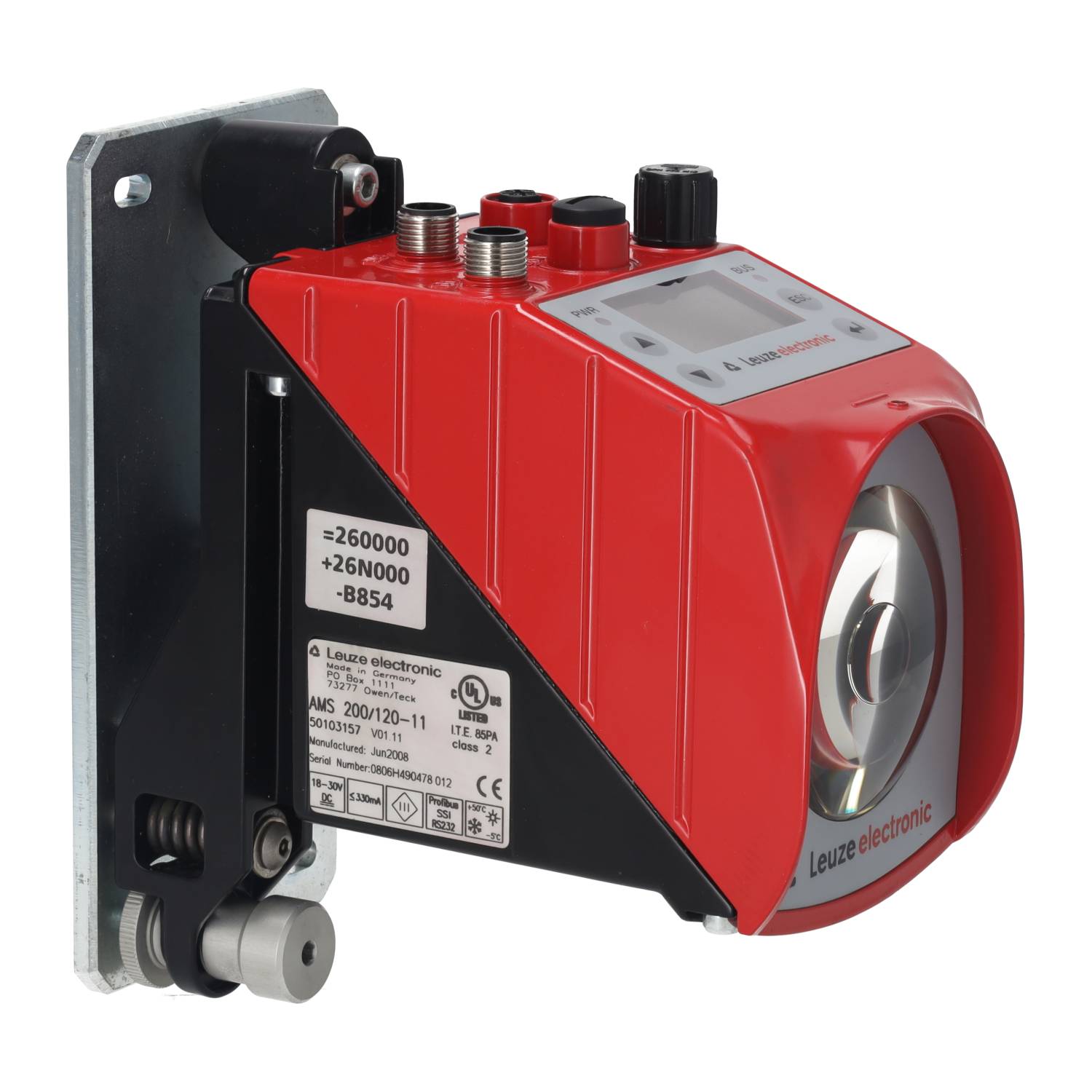

AMS 200/120-11 (50103157)
Free shipping from 49€
Worldwide shipping
Model: AMS 200/120-11
Measuring range: 0.2 … 120 m
Accuracy: ± 2 mm
Repeatability (consistency): 0.5 mm
Measurement output time: 2 ms
Resolution: adjustable; Profibus 1 mm, SSI 0.1 mm
Temperature drift: ≤ 0.1 mm/K
Ambient temperature influence: 1 ppm/K
Air pressure influence: 0.3 ppm/K
Max. traverse speed: ≤ 10 m/s
Supply voltage: 18 … 30 V DC
Current consumption: ≤ 250 mA without optics heating / ≤ 500 mA with optics heating
Laser: Red laser diode, 660 nm
Laser class: Class 2 according to EN 60825
Light spot diameter: ≤ 100 mm at 120 m
Interfaces: Profibus DP (≤ 12 Mbit/s), SSI (50 kHz … 800 kHz)
Protection rating: IP65
Housing material: Die-cast zinc
Weight: approx. 2.8 kg
