C40E-1801AH030 (1022217)
Free shipping from 49€
worldwide shipping

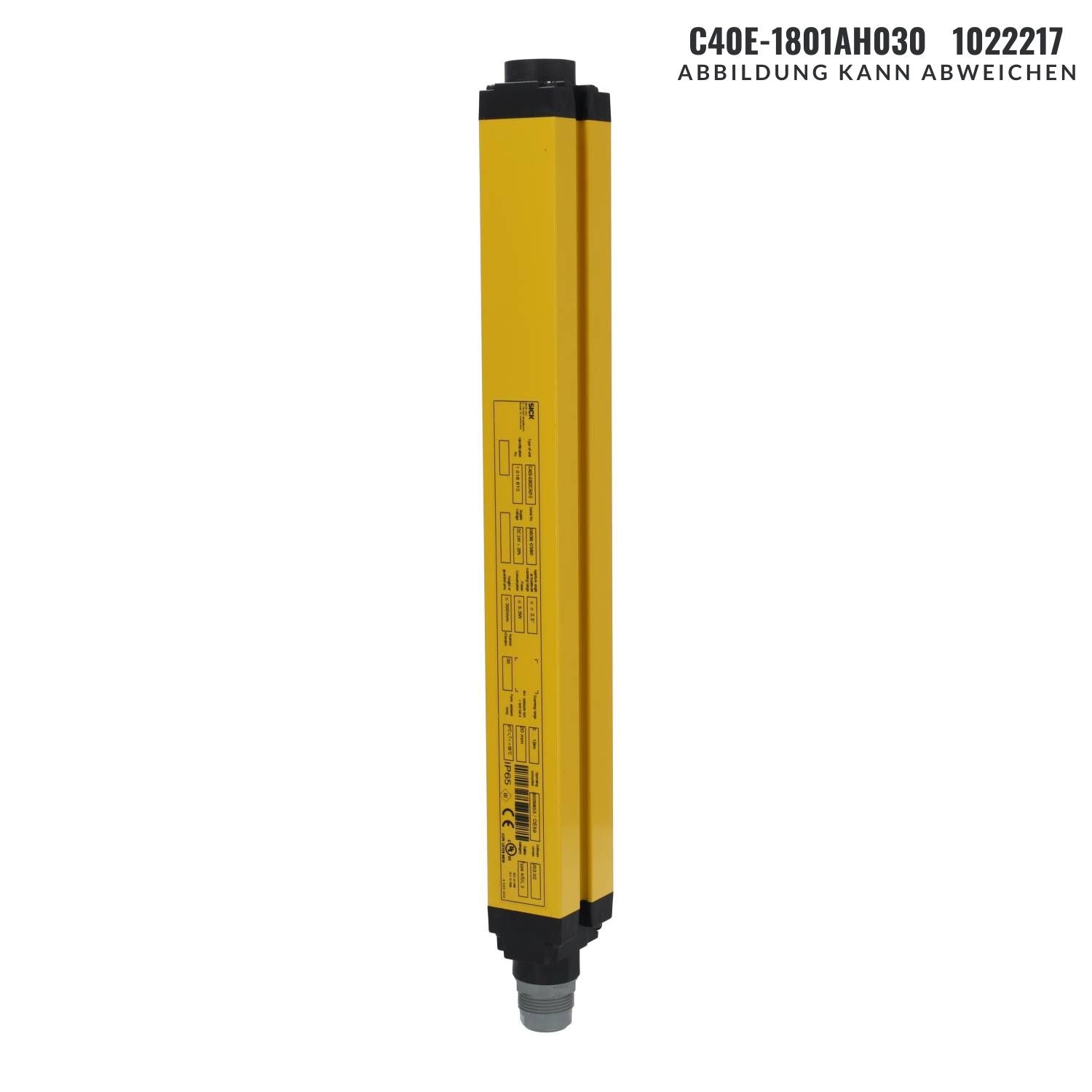

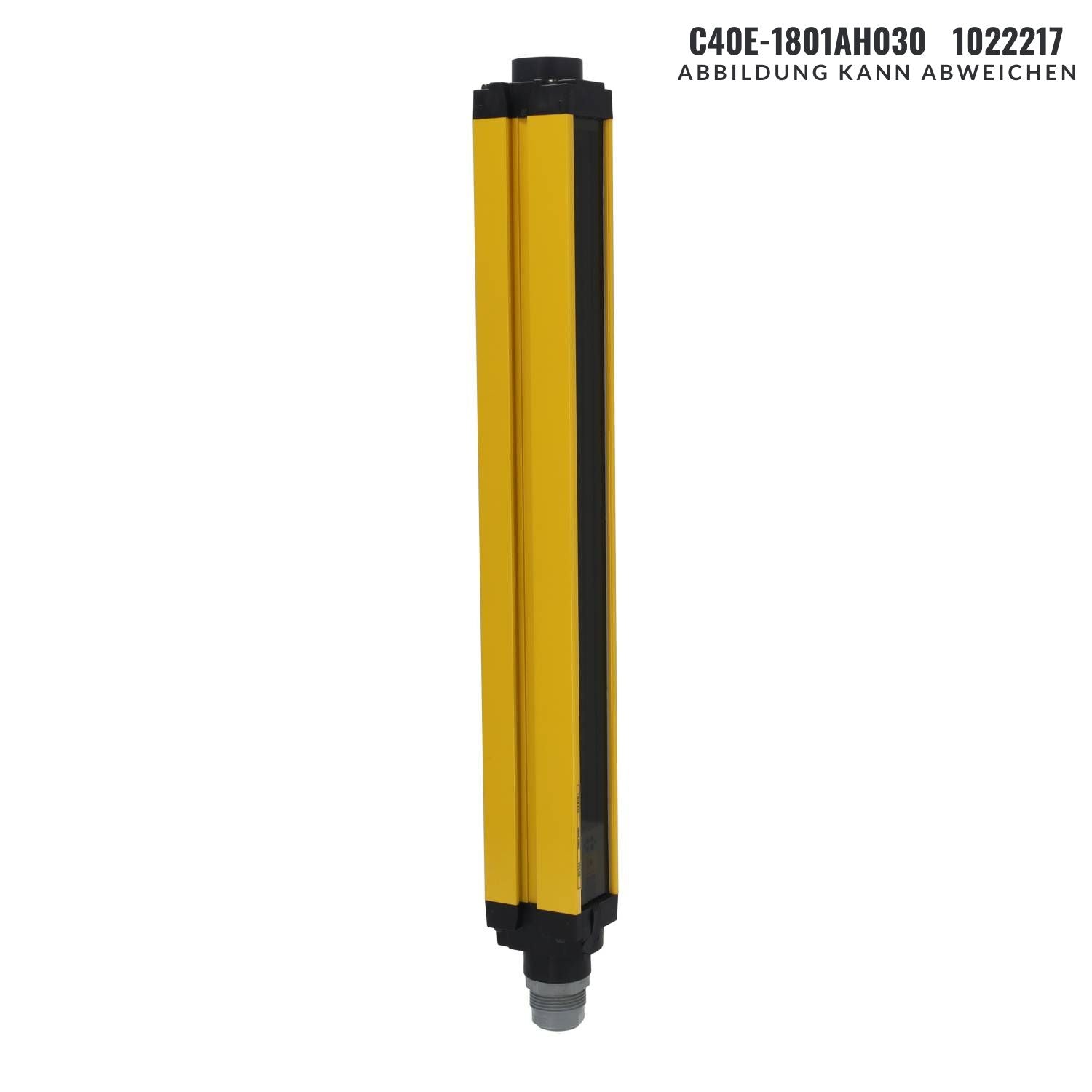

- Product: Safety Light Curtain
- Model: C40E-1801AH030
- Manufacturer: SICK AG
- Resolution: 14 mm
- Protective Field Height: 1800 mm
- Range: 2.5 m
- Type: Type 4 (IEC 61496-1)
- Performance Level: PL e (EN ISO 13849)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Supply Voltage: 24 V DC (19.2 V ... 28.8 V)
- Safety Outputs: 2 PNP semiconductor outputs, short-circuit and cross-circuit protected
- Switching Current per OSSD: ≤ 500 mA
- Degree of Protection: IP65 (IEC 60529)
- Operating Temperature: 0 °C to +55 °C
- Synchronization: Optical synchronization
- System Connection: Hirschmann connector M26, 7-pin, straight
- Housing Material: Extruded aluminum profile
- Housing Dimensions: 48 mm x 40 mm (cross section)
- Weight: 3.71 kg
- Display: 7-segment display
- Functions: Protective operation, contactor monitoring (deactivated)
- Wavelength: 850 nm
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.

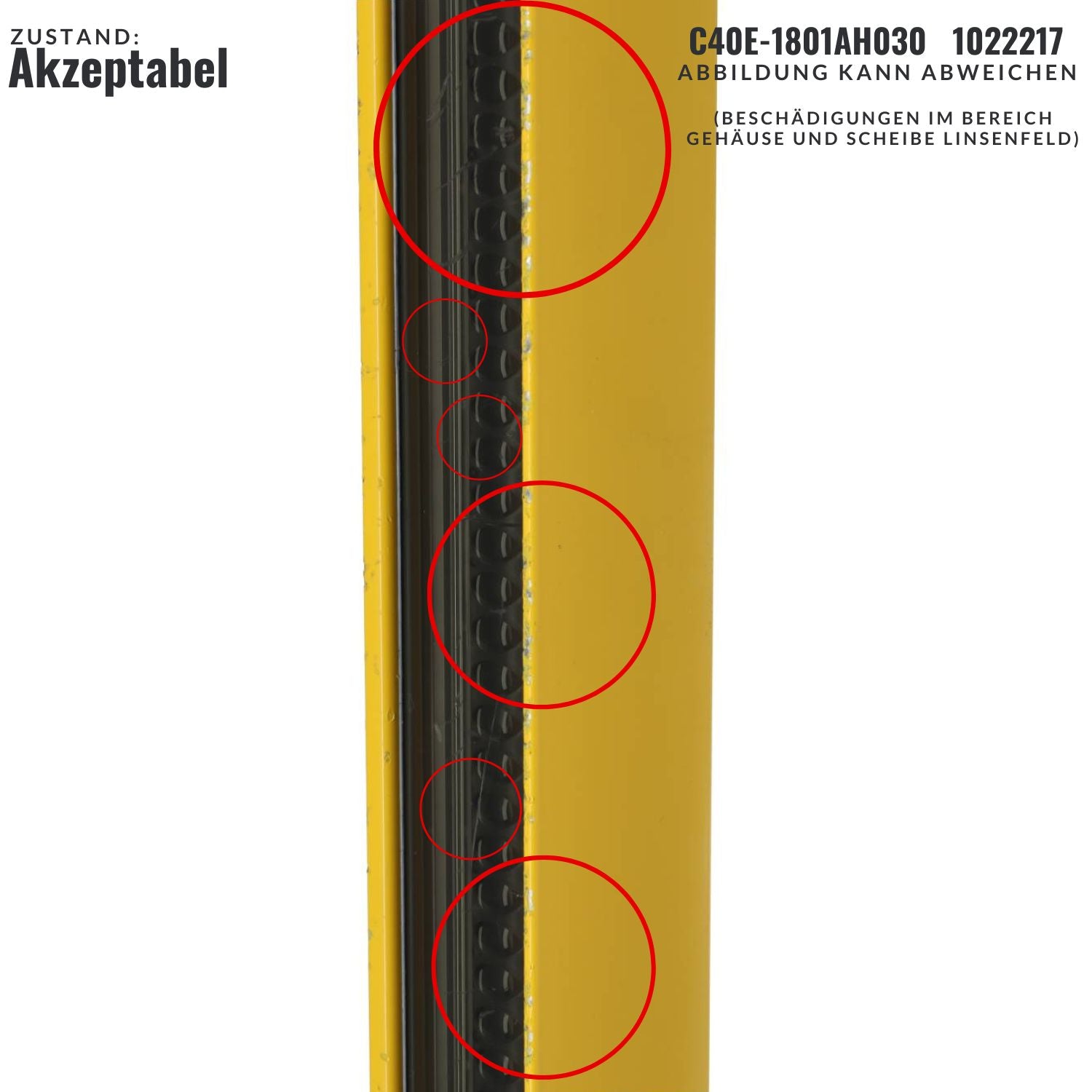

- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
