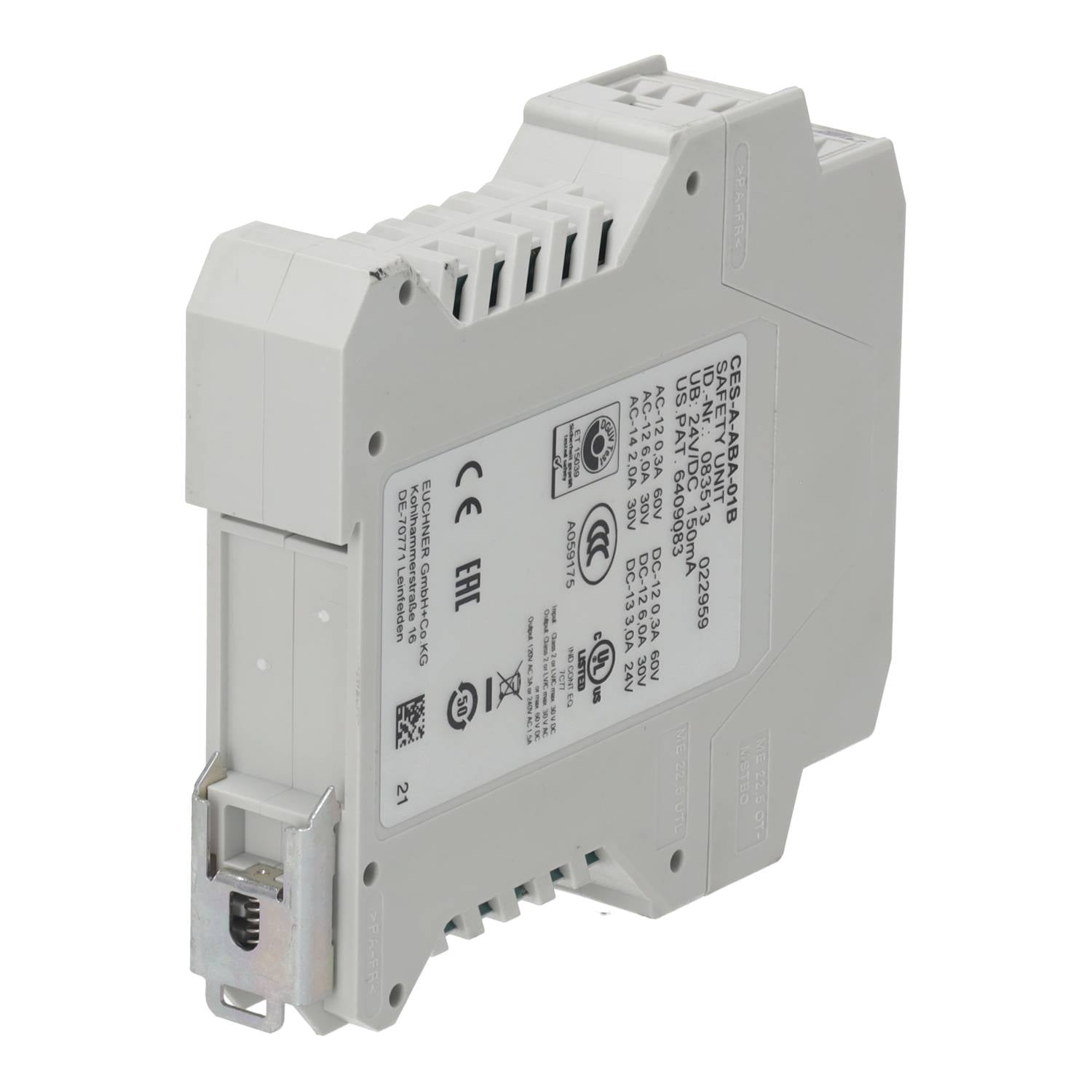

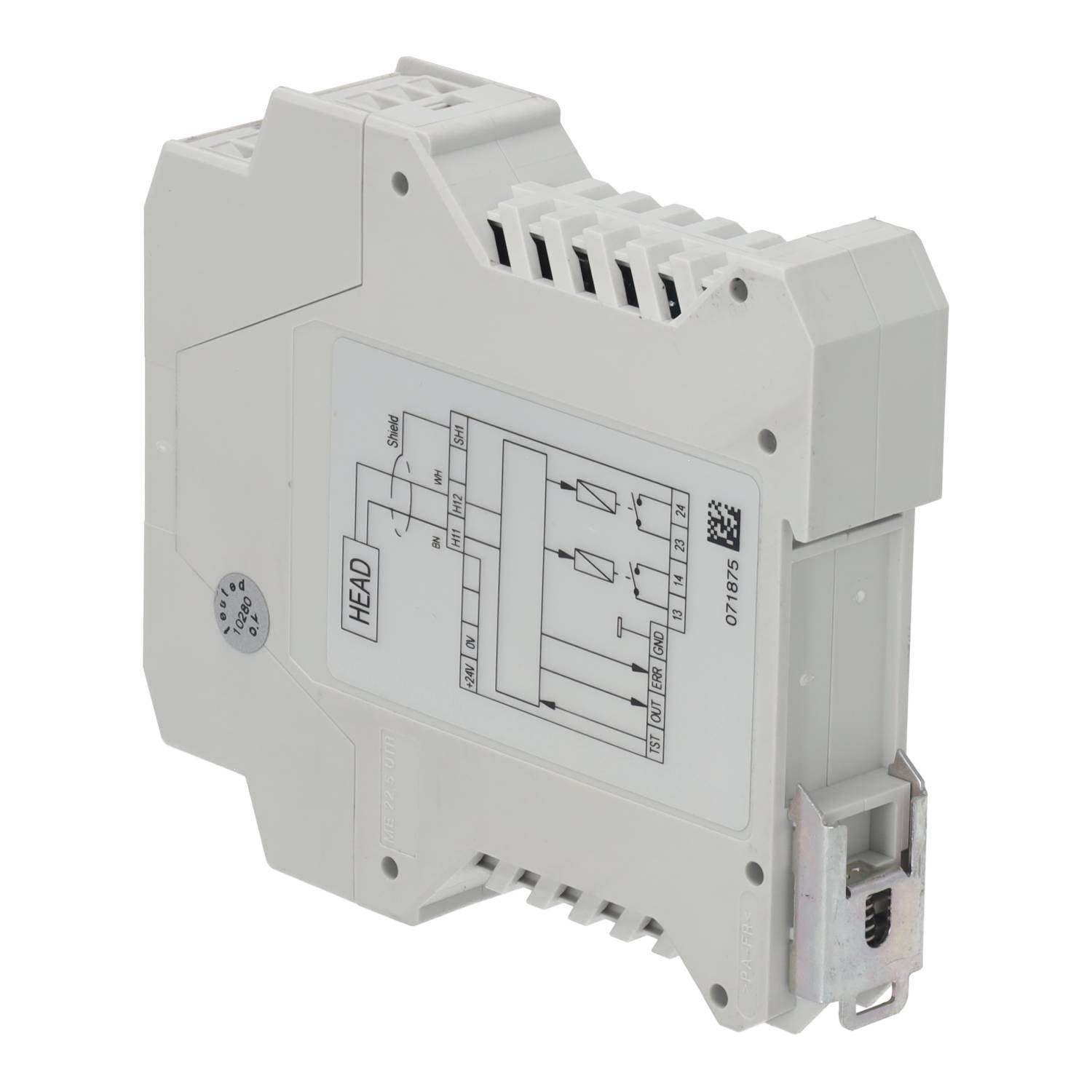

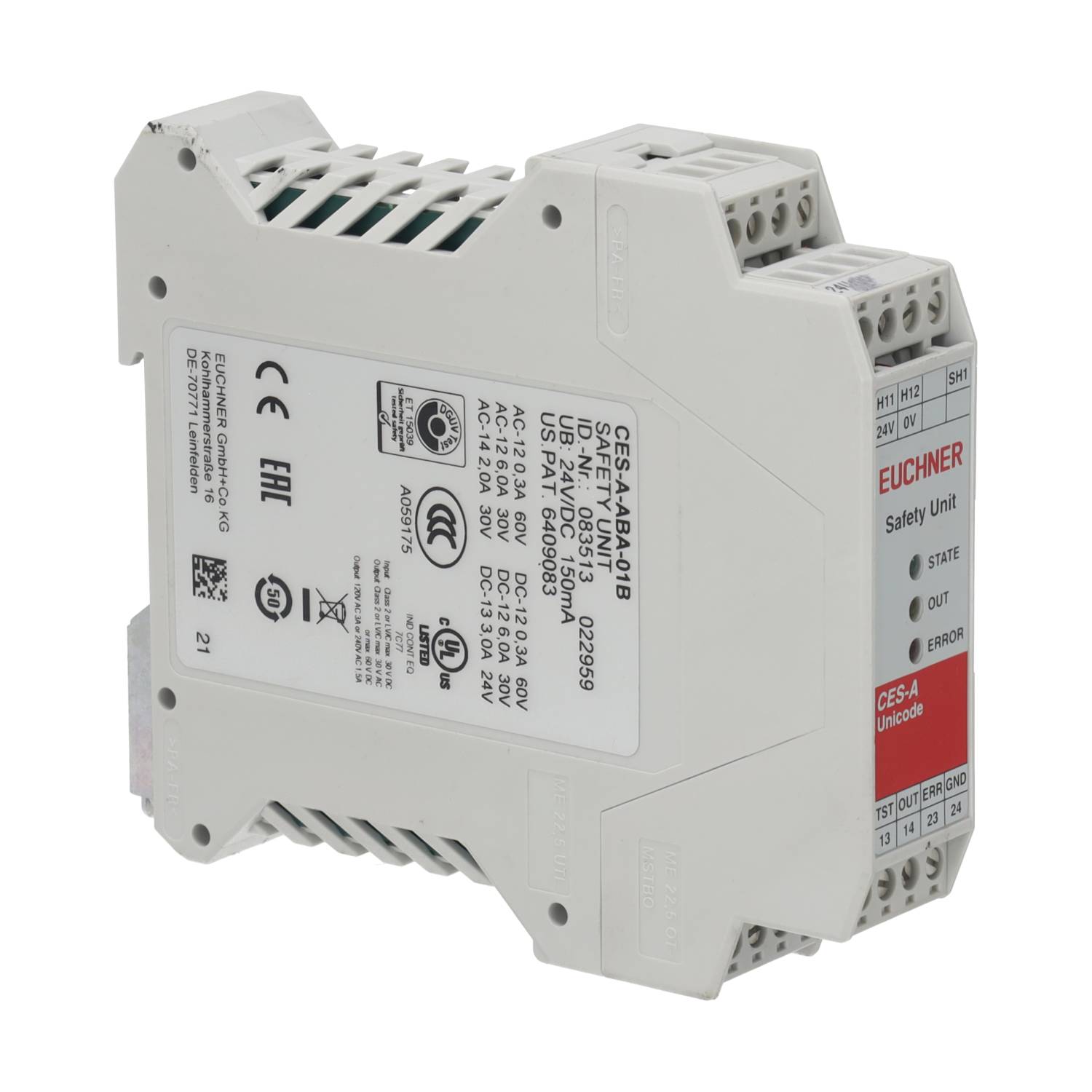

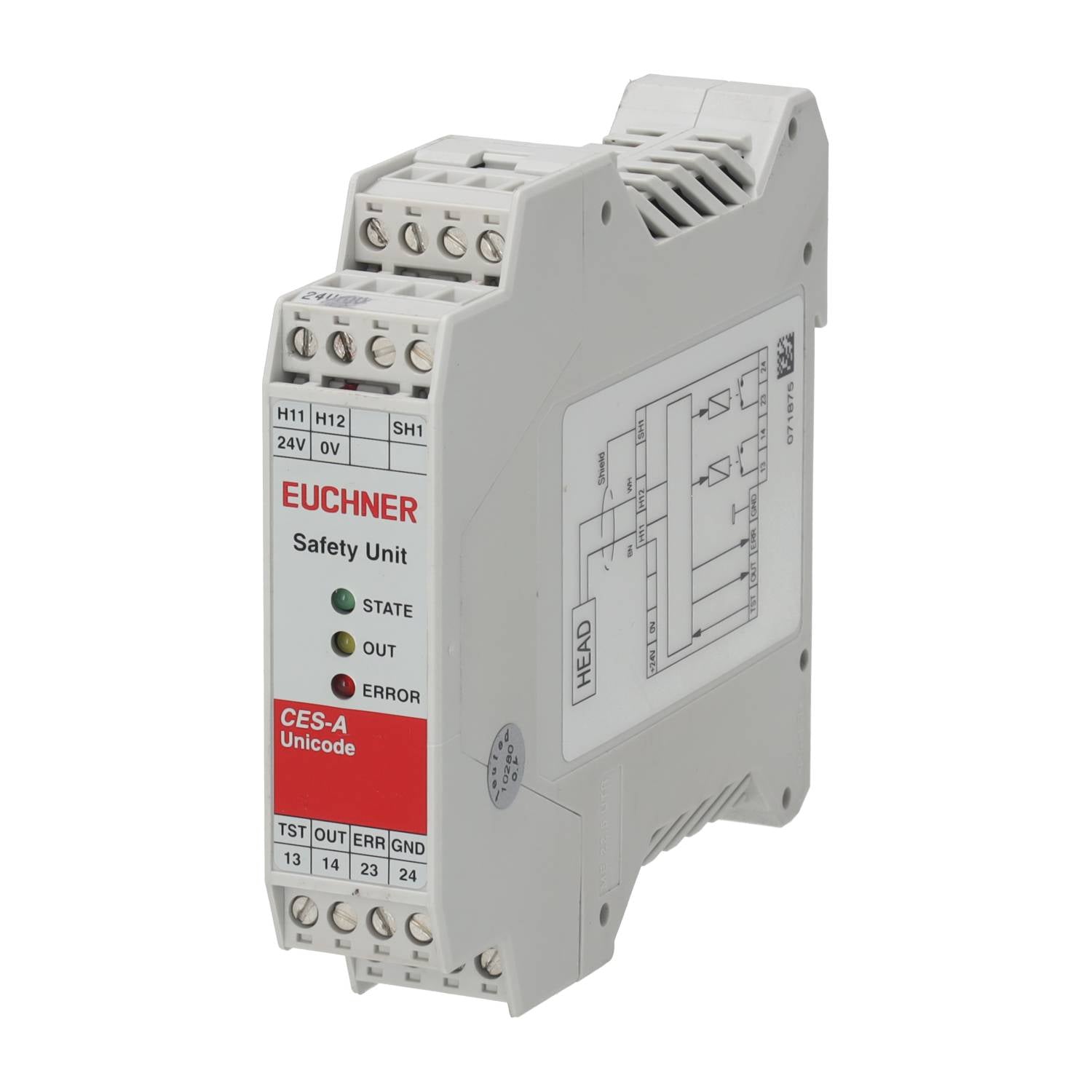

CES-A-ABA-01B (083513)
Free shipping from 49€
Worldwide shipping
- Manufacturer: EUCHNER
- Model: CES-A-ABA-01B
- Item Number: 083513
- Device class: Evaluation unit for non-contact safety switches
- Series: CES (Coded Electronic Safety)
- Function: Evaluation of a CES Safety Sensor for Safety Door and Position Monitoring
- Number of readable heads that can be connected: 1
- Supply voltage: 21–27 V DC (Rated 24 V DC, regulated power supply)
- Current consumption: approx. 150 mA (when the relay is energized)
- Safety outputs: 2 dry, internally monitored relay contacts (13/14 and 23/24)
- Notification outputs: 2 p-channel semiconductor outputs (ERR and OUT), max. 20 mA
- Test entry: 0–2 V DC (LOW), 15 V DC to UB (HIGH)
- Switching current for safety contacts: 6 A at 30 V AC/DC (DC-12), 3 A at 24 V DC (DC-13), 2 A at 30 V DC (DC-14)
- Rated insulation voltage: 63 V
- Rated surge voltage: 1.5 kV
- Conditional short-circuit current: 100 A
- Response time: max. 180 ms
- Readiness delay: max. 3 s
- Switching frequency: max. 1 Hz
- Mechanical service life: 10 million switching cycles
- Connection type: Coded plug-in screw terminals
- Conductor cross-sectional area: 0.25–2,5 mm²
- Installation: 35-mm top-hat rail (DIN EN IEC 60715)
- Protection class: IP20
