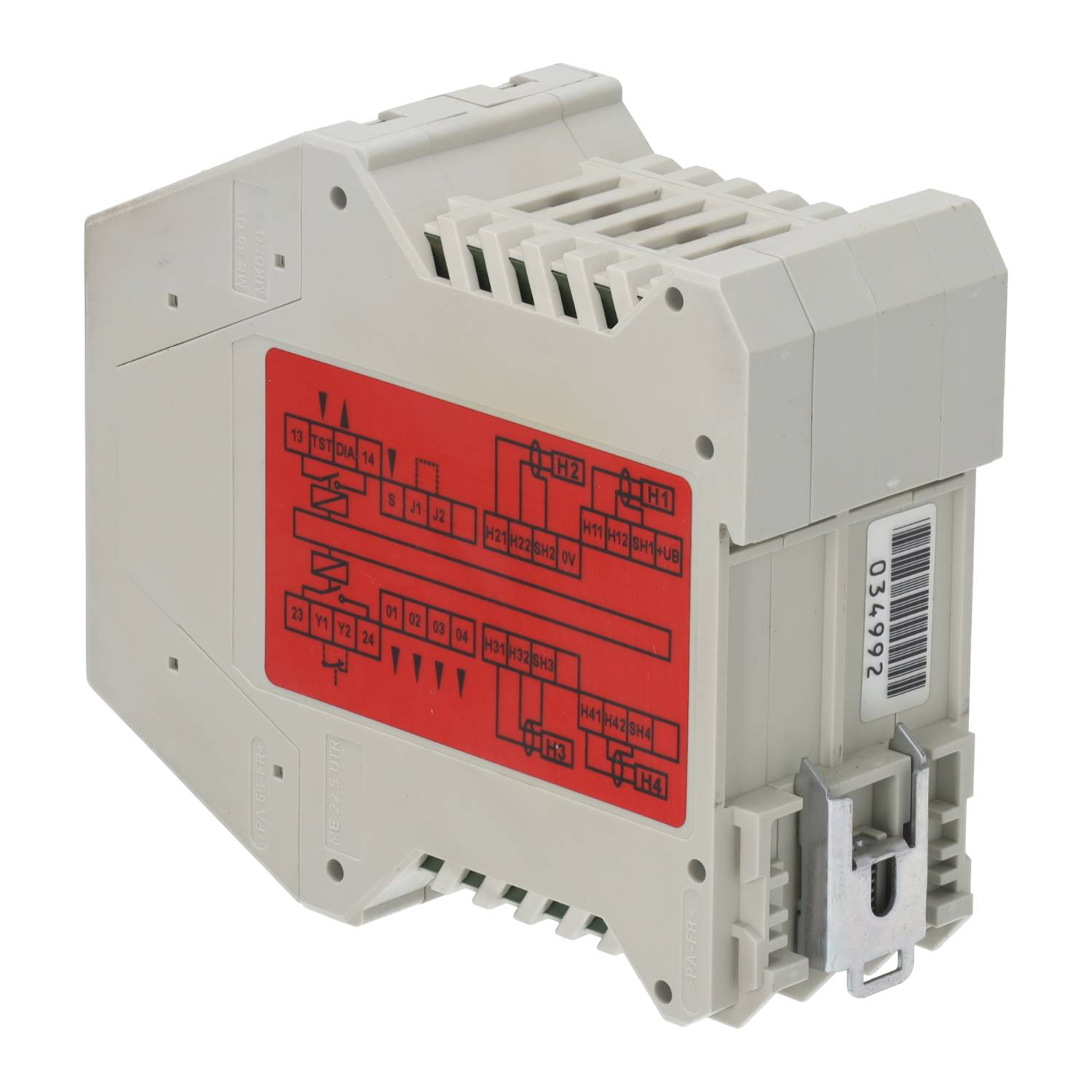

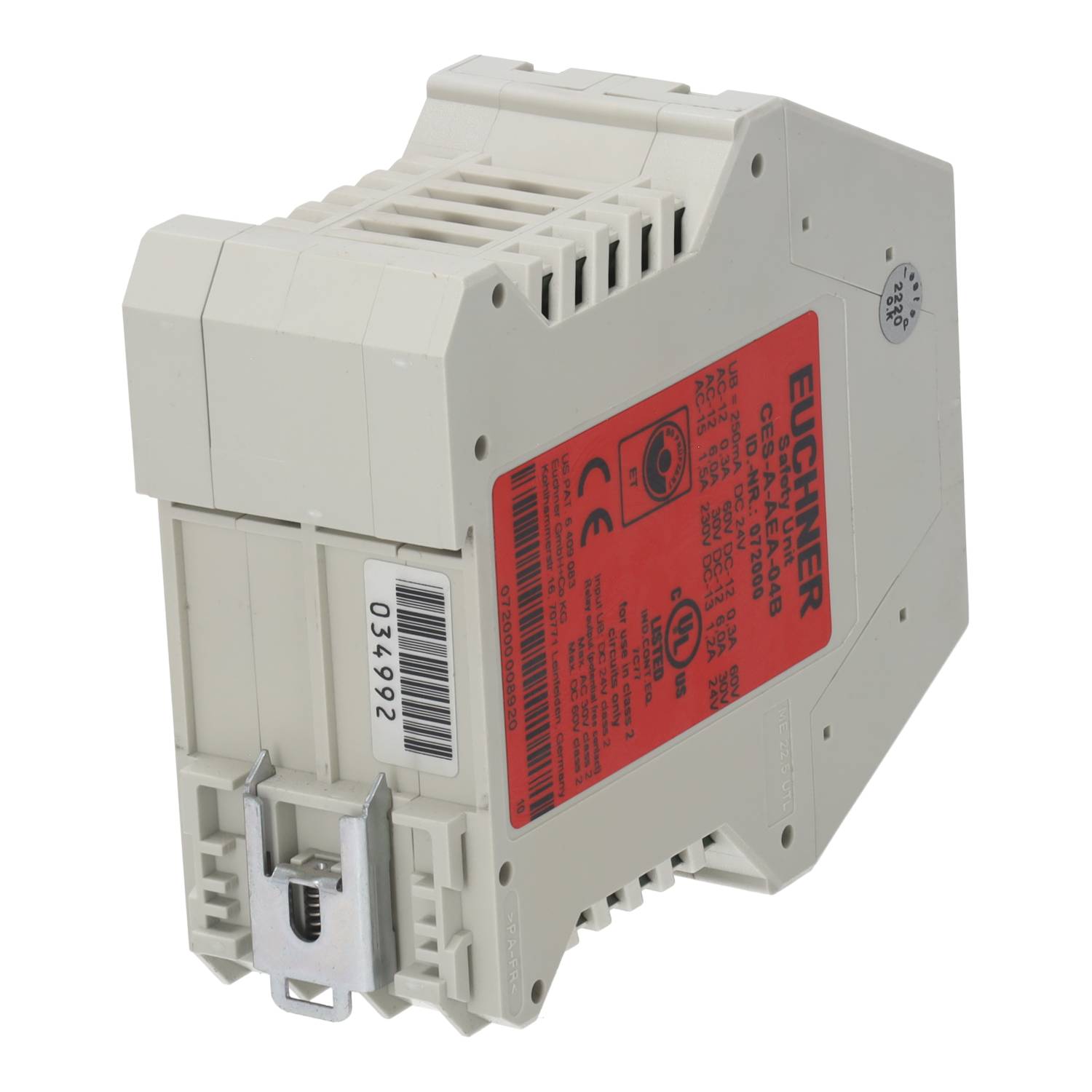

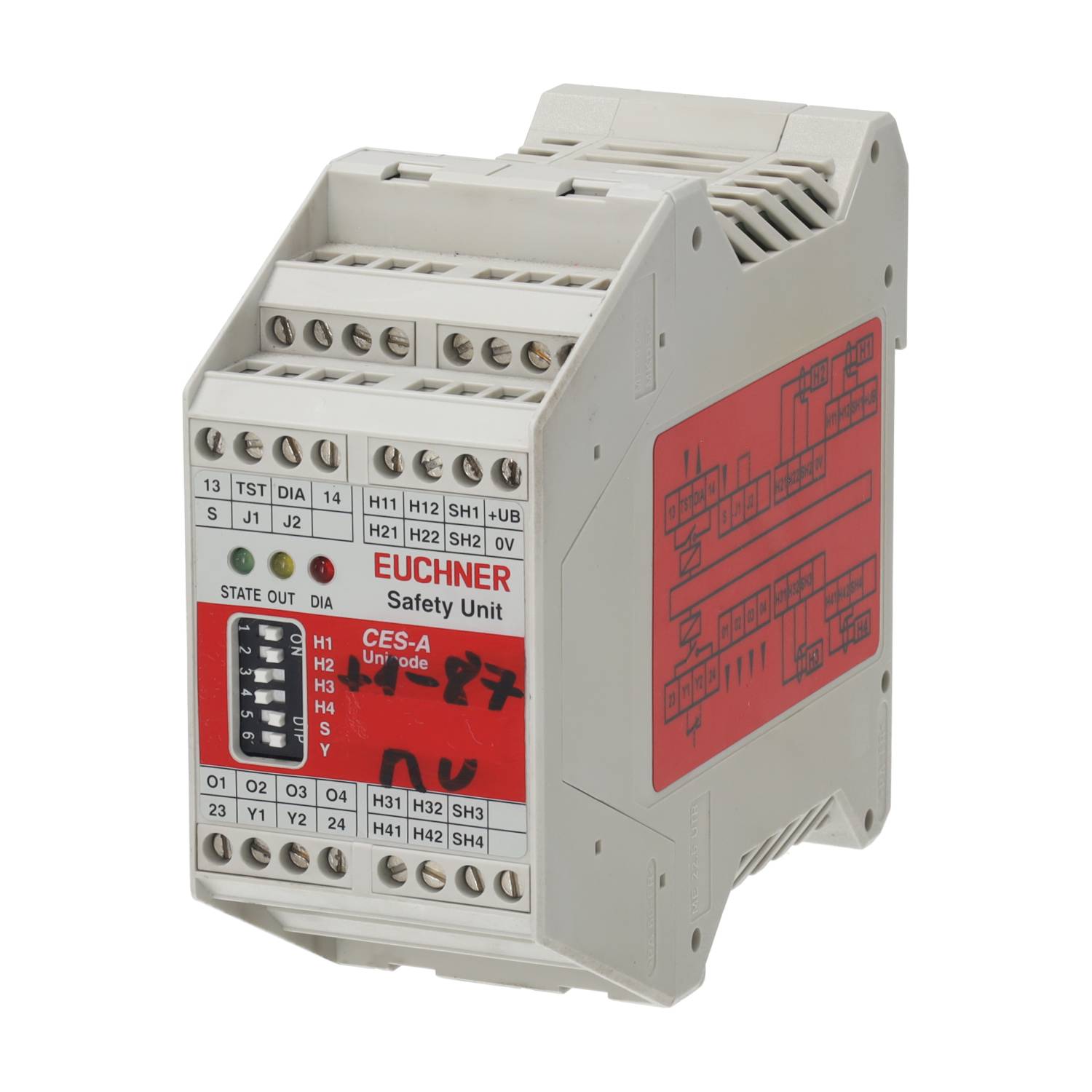

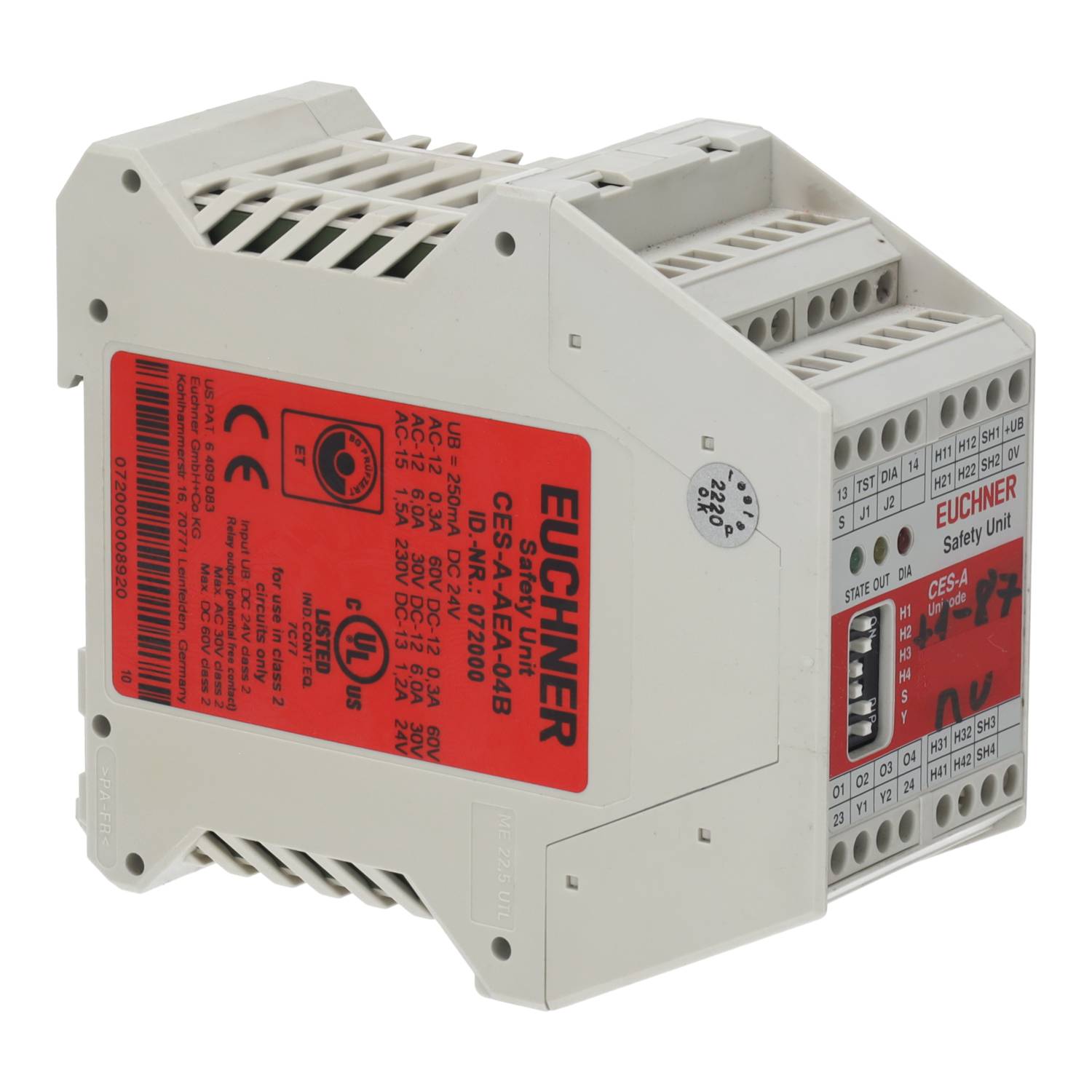

CES-A-AEA-04B (072000)
Free shipping from 49€
Worldwide shipping
- Manufacturer: EUCHNER
- Model: CES-A-AEA-04B
- Item Number: 072000
- Device class: Evaluation unit for non-contact safety switches
- Series: CES (Coded Electronic Safety)
- Function: Control unit for monitoring up to four coded CES sensors for safety doors and safety guards
- Number of readable heads that can be connected: Up to 4
- Supply voltage: 21–27 V DC (Rated 24 V DC, regulated power supply)
- Current consumption: Approx. 250 mA (when the relay is energized)
- Safety outputs: 2 positively driven safety relays
- Notification outputs: 4 p-channel semiconductor outputs (O1–O4) and 1 diagnostic output (DIA), each with a maximum of 20 mA
- Start function: Automatic or manually monitored startup
- Control loop: Supports external contactor and relay monitoring
- Test entry: 0–2 V DC (LOW), 15 V DC to UB (HIGH)
- Switching current for safety contacts: 1–300 mA through 1–60 V AC/DC, 15–6000 mA at 17–30 V AC/DC, up to 1,5 A at 230 V AC
- Safety Circuit Protection: 6,3 A flink
- Switching frequency: Max. 1 Hz
- Response time: Max. 210–450 ms (depending on the number of active read heads)
- Risk period: Max. 500 ms
- Readiness delay: Approx. 10–12 s
- Installation: Top-hat rail 35 mm (DIN 46277)
- Connection type: Screw terminals
- Conductor cross-sectional area: 0.14–2,5 mm²
- Protection class: IP20
- Dimensions (W × H × D): 45 × 99 × 114 mm
- Weight: Approx. 0.25 kg
