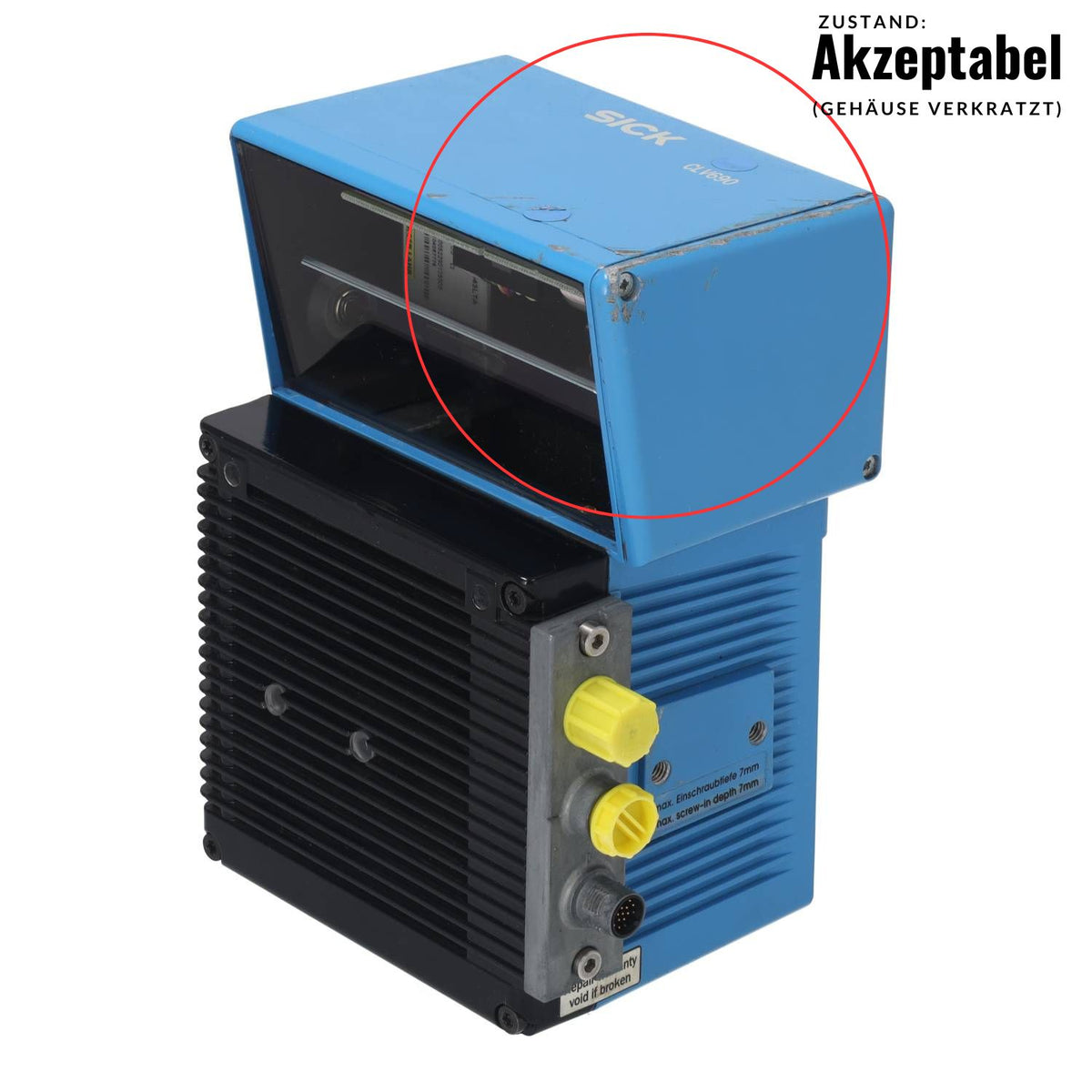

CLV690-1000 (1056601)
Free shipping from 49€
Worldwide shipping
- Manufacturer: SICK
- Series: CLV69x
- Model: CLV690-1000
- Part Number: 1056601
- Device Type: Stationary Barcode Scanner
- Version: Standard Density
- Sensor Type: Oscillating Mirror
- Reading Window: Oscillating Mirror
- Optical Focus: Autofocus, alternatively Dynamic Focus Control
- Number of Distance Configurations: ≤ 8
- Focus Adjustment Time: ≤ 20 ms
- Focus Trigger Source: Data Interface / Digital Inputs
- Light Source: Visible Red Laser, 660 nm
- Laser Class: 2
- Aperture Angle: ≤ 50°
- Reading Distance: 500–2,100 mm
- Scanning Frequency: 400–1,200 Hz
- Code Resolution: 0.3–1 mm
- Oscillating Frequency: 0.5–4 Hz
- Deflection Angle: −20° to +20°, Software Adjustable
- Oscillating Mirror Functions: Fixed Position, Oscillating with Variable or Fixed Amplitude, One-Shot
- Supply Voltage: 18–30 V DC
- Power Consumption: 17 W
- Housing Material: Die-Cast Aluminum
- Housing Color: Light Blue, RAL 5012
- Front Screen Material: Glass
- Enclosure Rating: IP65
- Dimensions (L × W × H): 182 × 128 × 97 mm
- Weight: 2.2 kg
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.
- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
