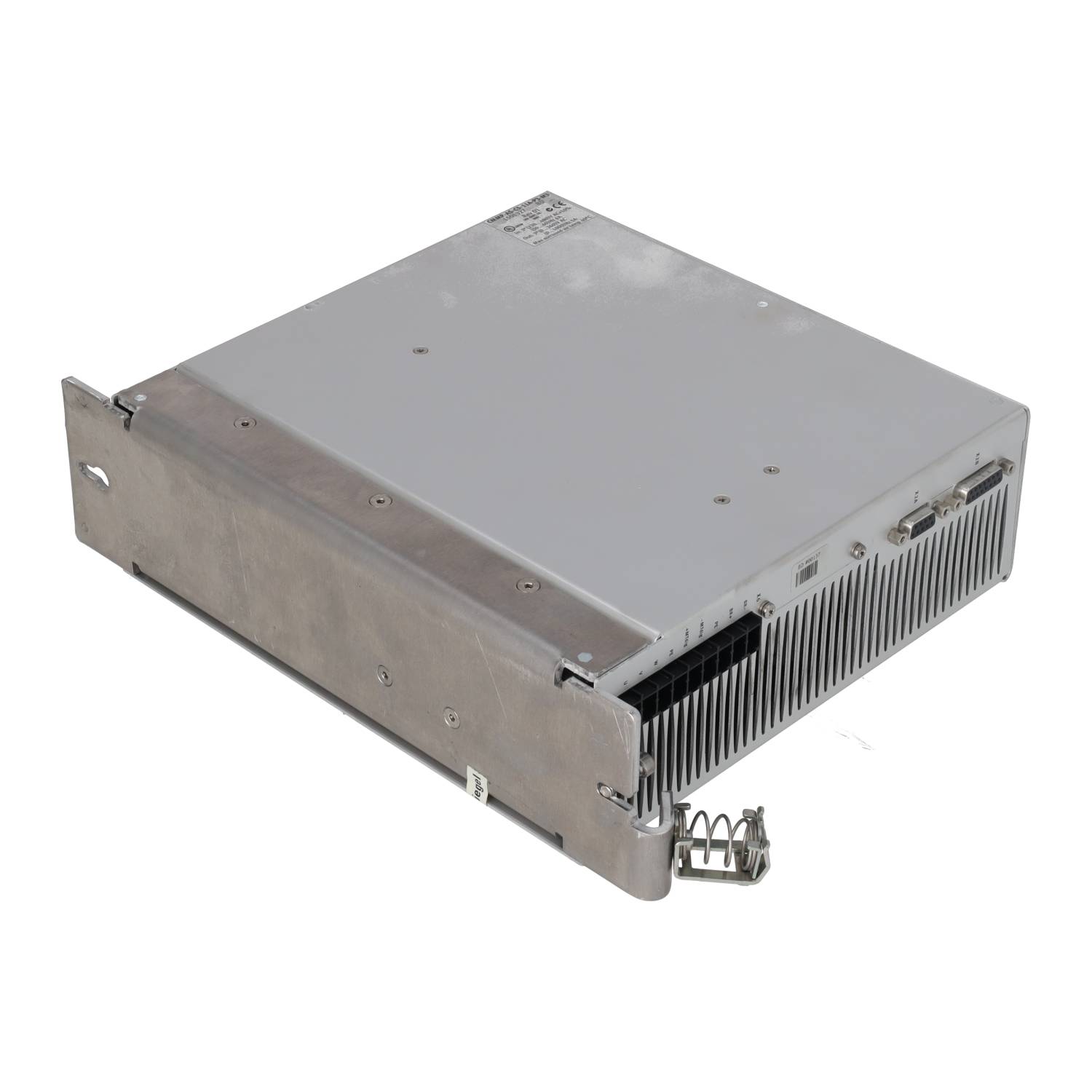

CMMP-AS-C5-11A-P3-M3
Free shipping from 49€
worldwide shipping
- Mounting type: on connection plate, screwed
- Product weight: 3450 g
- Display: seven-segment display
- Approvals: CE, UKCA, RCM, c UL us - Listed (OL)
- Storage temperature: -25 °C to 70 °C
- Ambient temperature: 0 °C to 40 °C
- Relative humidity: 0 - 90 %
- Protection class: IP10, IP20
- Pollution degree: 2
- Nominal operating voltage: 400 V AC, 3-phase
- Nominal current: 5.5 A
- Network filter: integrated
- Max. DC link voltage: 560 V
- Braking resistor: 68 Ohm, pulse power 8.5 kVA
- Logic supply: 24 V DC, current consumption 1 A
- AC output voltage range: 3x 0 - 360 V
- Nominal output current: 5 A
- Effective peak current per phase: 15 A
- Max. peak current duration: 5 s
- Nominal controller power: 3000 VA, peak power 6000 VA
- Output frequency: 0 Hz to 1000 Hz
- Parameter interface: USB, Ethernet
- Fieldbus coupling: CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET, Profibus DP
- Communication profile: DS301/DSP402, FHPP
- Encoder interface: Resolution 16384 ppr, 3-phase encoder signals, EnDat, HIPERFACE, RS422, SINCOS
- Number of digital logic inputs: 10, galvanically isolated, operating range 8 V to 30 V
- Number of digital logic outputs 24 V DC: 5, galvanically isolated, max. current 100 mA
- Number of analog setpoint inputs: 2, differential inputs, operating range ± 10 V, impedance 20 k
