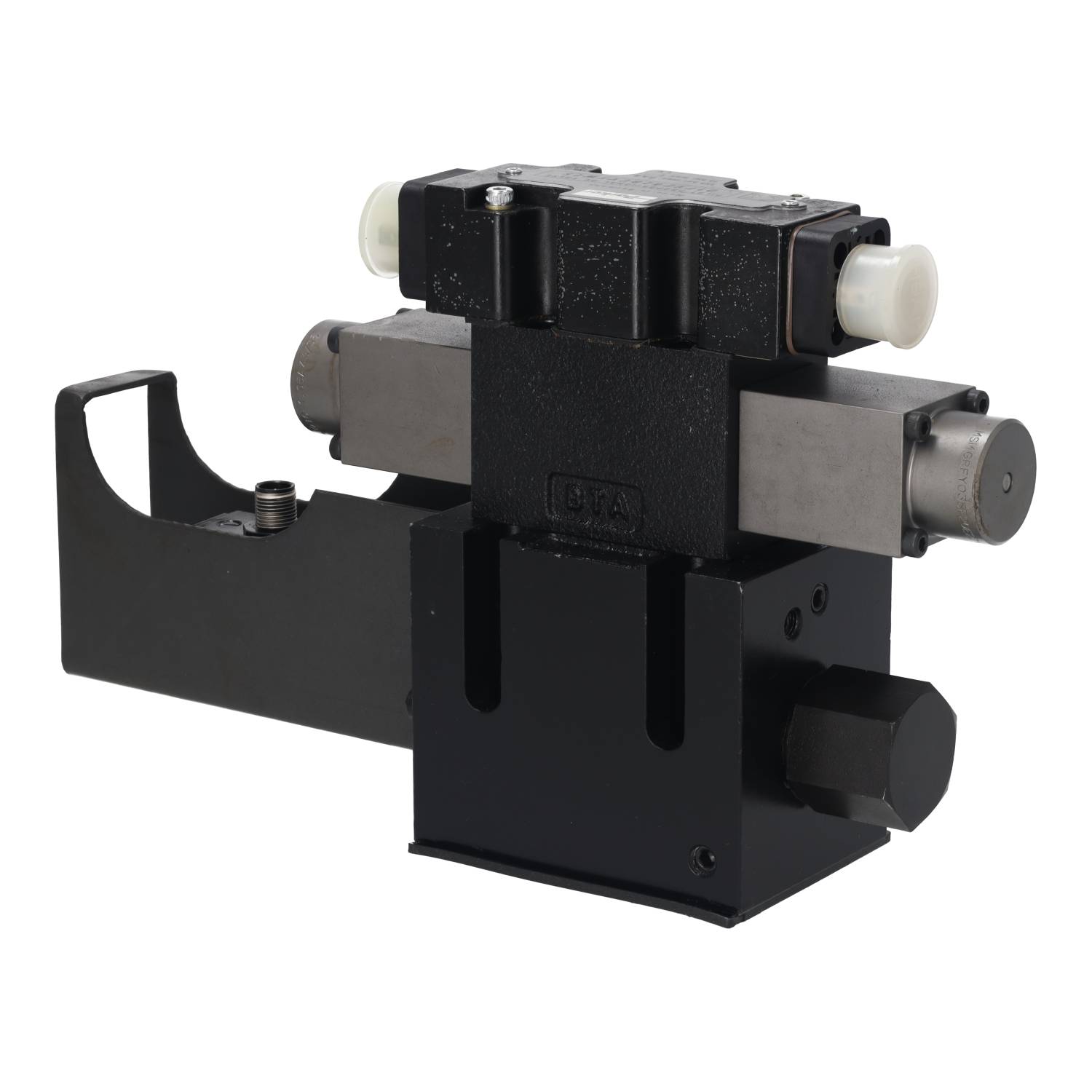

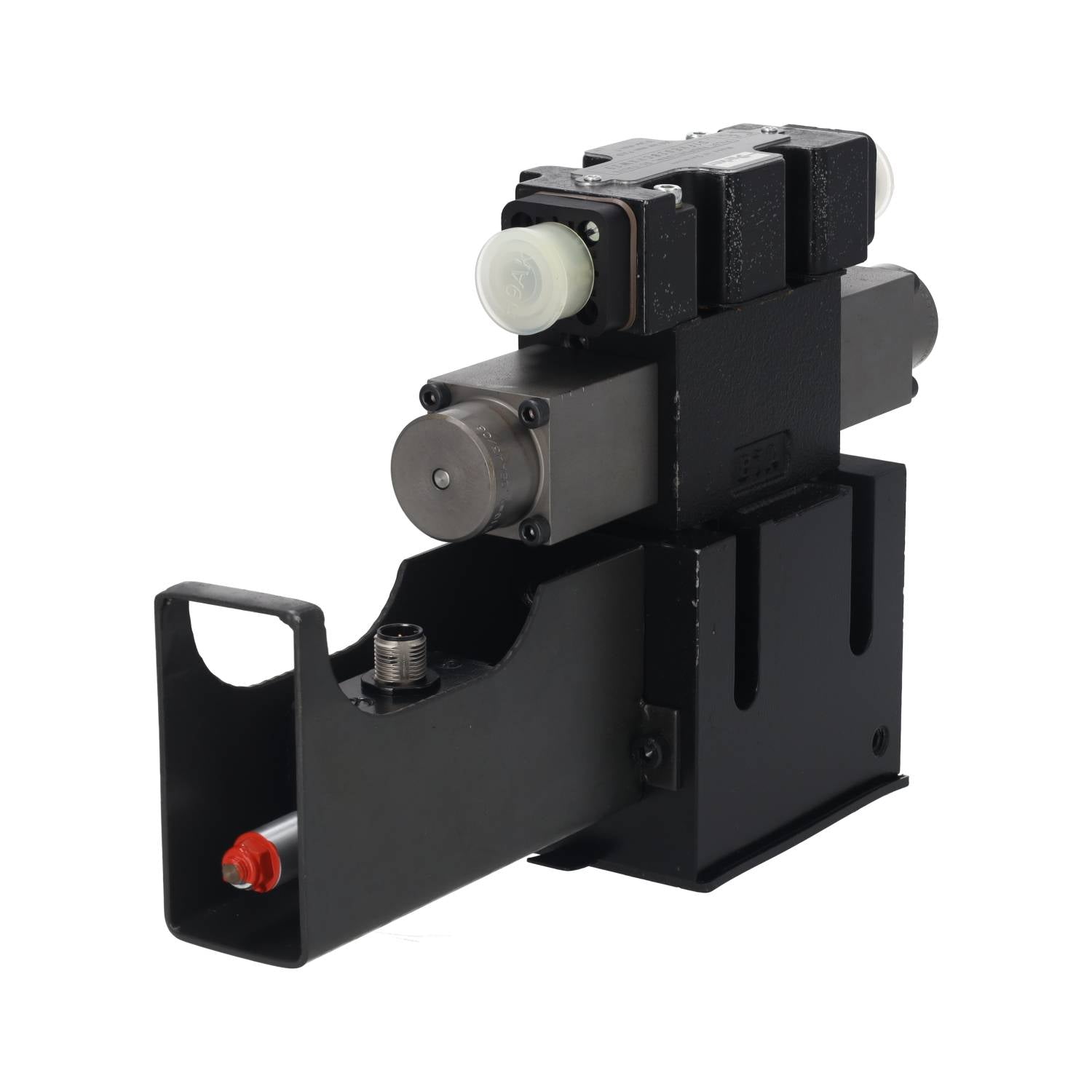

31FSE80B5NXW036 + D1FVE02BCVXW25
Free shipping from 49€
worldwide shipping
Model: Proportional pressure reducing valve D1FVE
Valve size: NG6 / CETOP 3
Pressure range: 25 bar
Max. pressure P/A/B: 350 bar
Max. pressure T: 185 bar
Flow rate: 10 l/min
Hysteresis: < 4 %
Hydraulic fluid: Oils per DIN 51524–51535
Temperature: –20 … +40 °C
Viscosity: 20 … 380 cSt
Seal type: FKM
Electrical connector: W-type (IP65)
Supply voltage: 12 V
Current consumption: 2.2 A
D31FSE80B5NXW036
Model: Proportional directional valve D31FS
Valve size: NG10 / CETOP 5
Design: 2-stage, pilot-operated
Rated flow: 45 l/min @ 10 bar
Spool type: 80B5
Hysteresis: < 0,5 %
Repeatability: < 0,5 %
Max. pressure P/A/B: 345 bar
Max. pressure T internal/external: 10 / 345 bar
Fluid temperature: 0 … +60 °C
Ambient temperature: –20 … +60 °C
Feedback: LVDT position sensor (M12, 5-pin)
Electrical connector: DIN 43650, IP54
Supply: 24 V (via PWD driver)
Dimensions: 280 × 188 × 70 mm
Port spacing: 152 mm
