- Article number: DACBWEH6AA3000010010DE

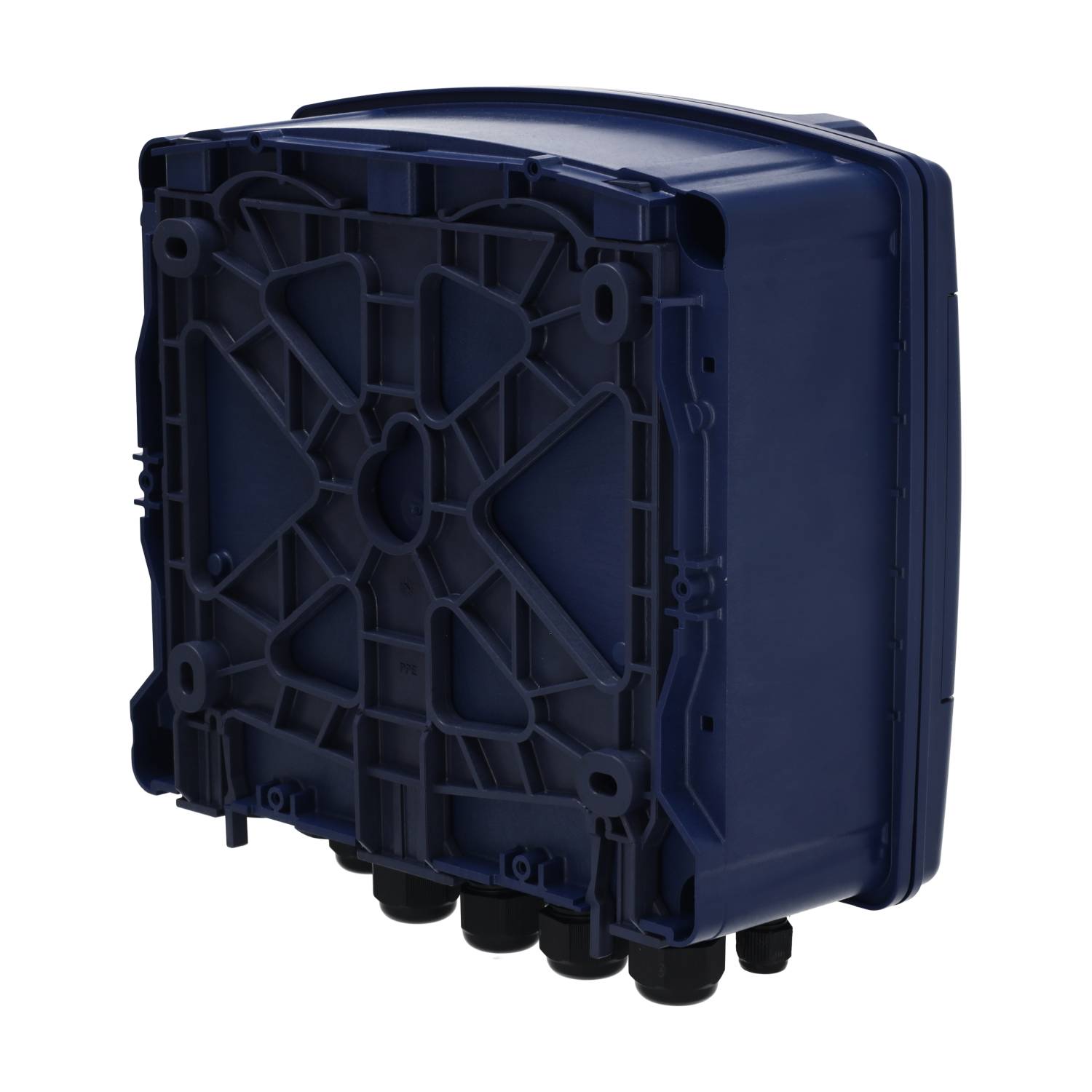

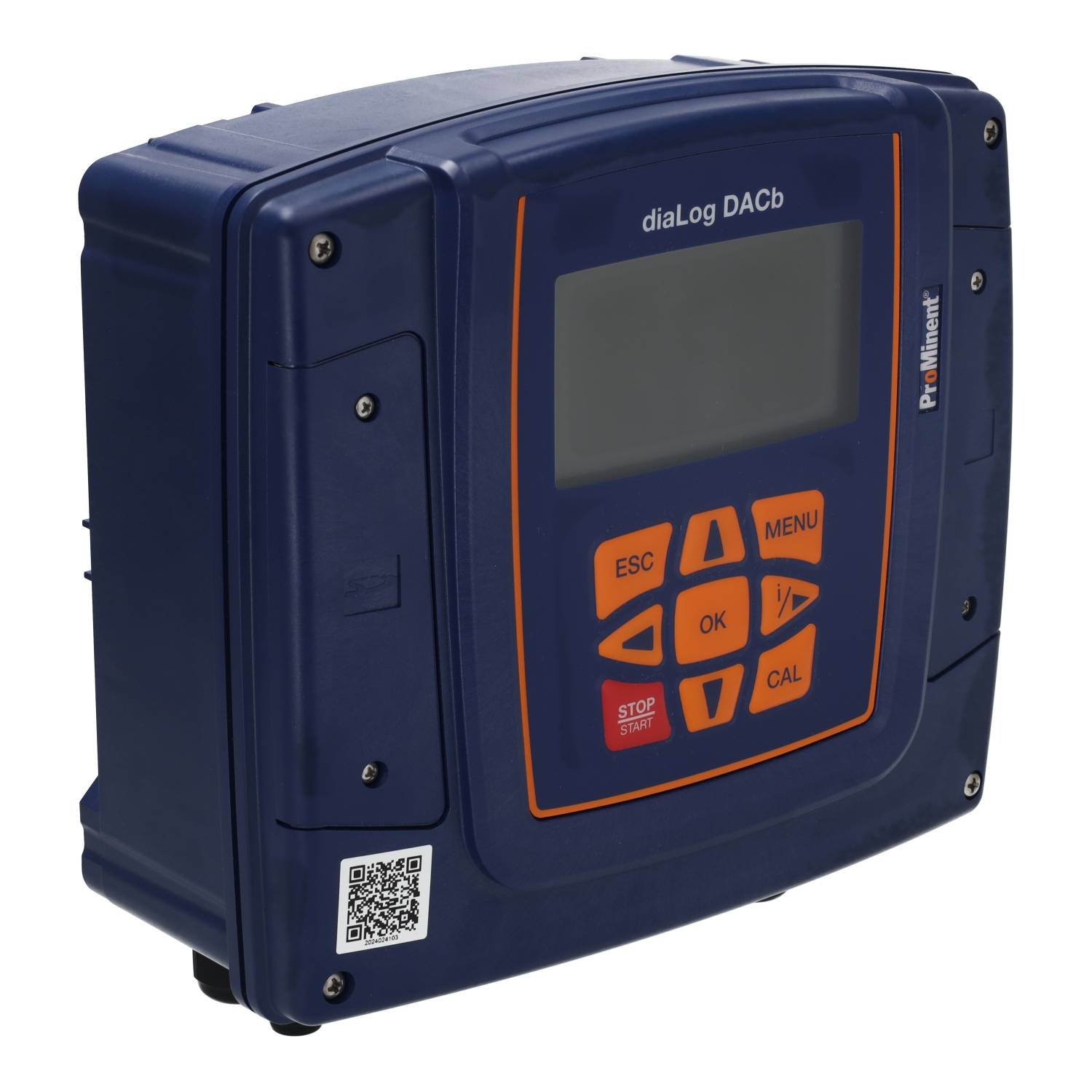

- Product name: DULCOMETER® diaLog DACb
- Measurable parameters: pH, Redox potential (ORP), chlorine, chlorine dioxide, chlorite, bromine, ozone, hydrogen peroxide, peracetic acid, dissolved oxygen, fluoride, conductivity, temperature
- Measuring ranges: pH: 0.00 – 14.00 / ORP: –1500 – +1500 mV / Temperature: 0 – 150 °C
- Resolution: pH: 0.01 / ORP: 1 mV / Temperature: 0.1 °C
- Accuracy: ±0.3 % of full scale
- Inputs: 2 (optionally 3) sensor inputs for mV/mA signals, Pt100/Pt1000 for temperature compensation
- Analog outputs: 2 (optionally 3) x 0/4–20 mA
- Pulse frequency outputs: 2 (optionally 4) for dosing pumps
- Relay outputs: 2 for limit/time control, 1 alarm relay
- Digital inputs: 4 (optionally 7) for sample water fault, pause control, parameter switching
- Communication: LAN (Web server), PROFIBUS® DP, Modbus RTU, PROFINET
- Power supply: 100–230 V AC, 50/60 Hz, 25 VA; optional 24 V DC
- Protection rating: IP66/IP67 (wall mounting), IP54 (panel mounting)
- Dimensions (W x H x D): 250 × 220 × 122 mm
- Weight: 2 Kg
