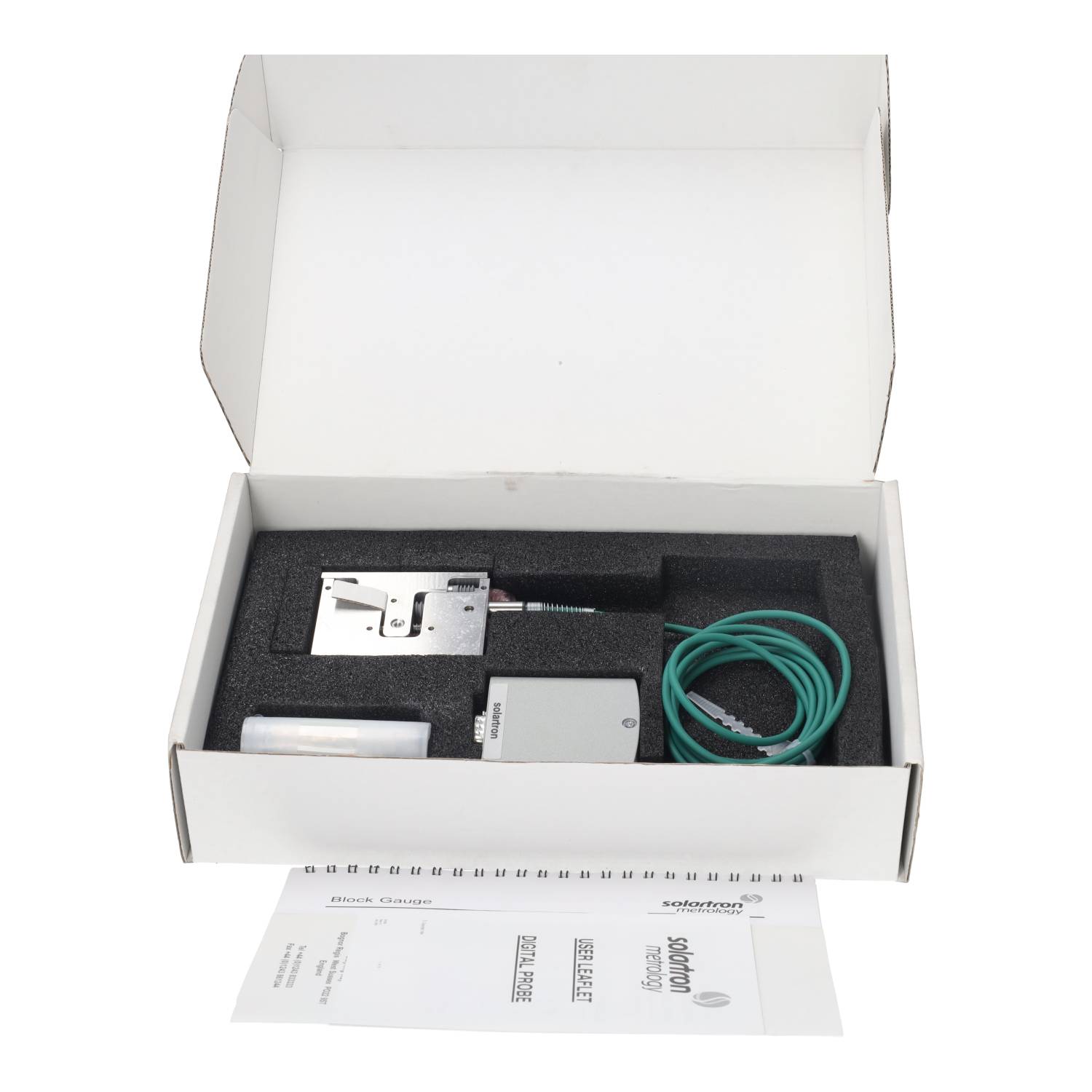

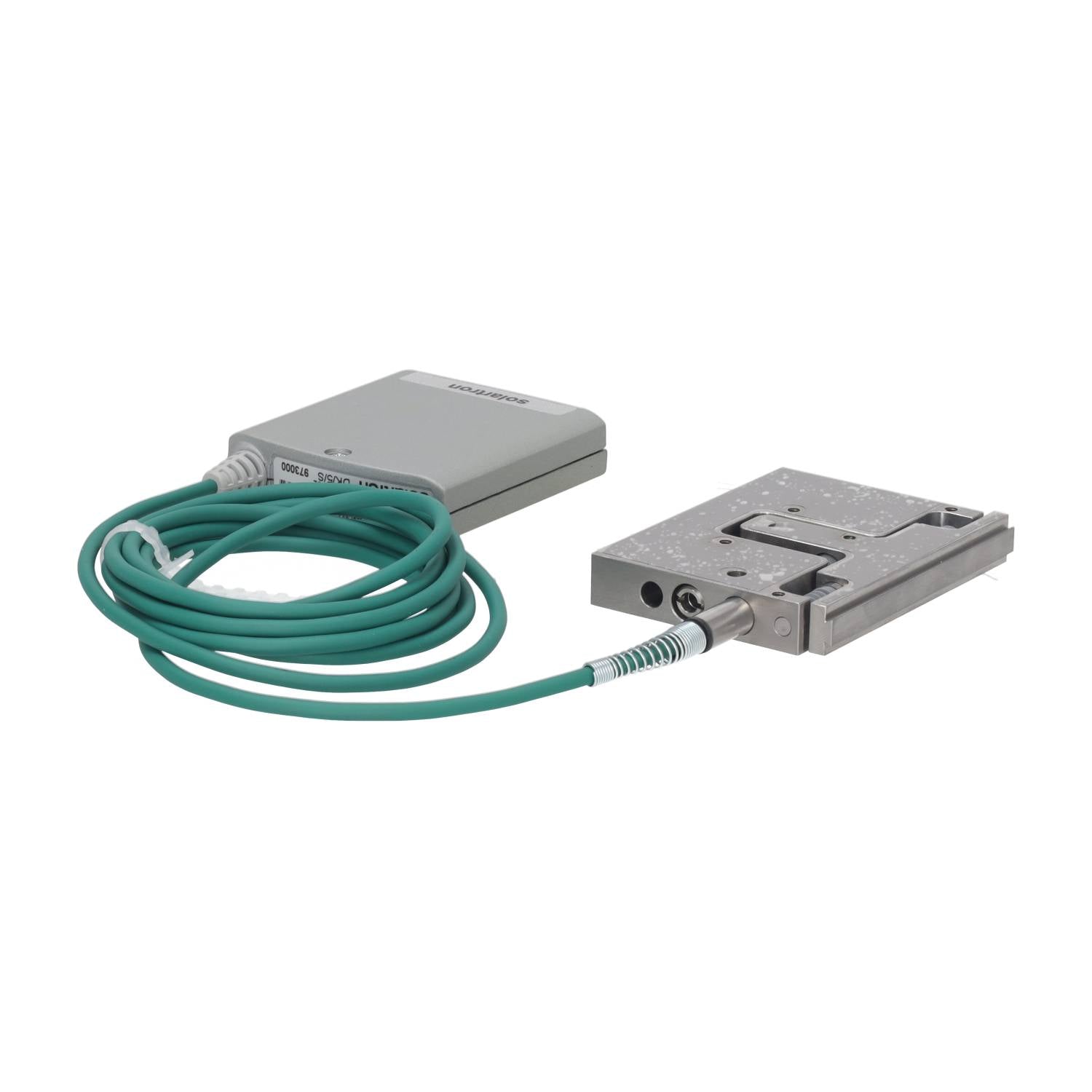

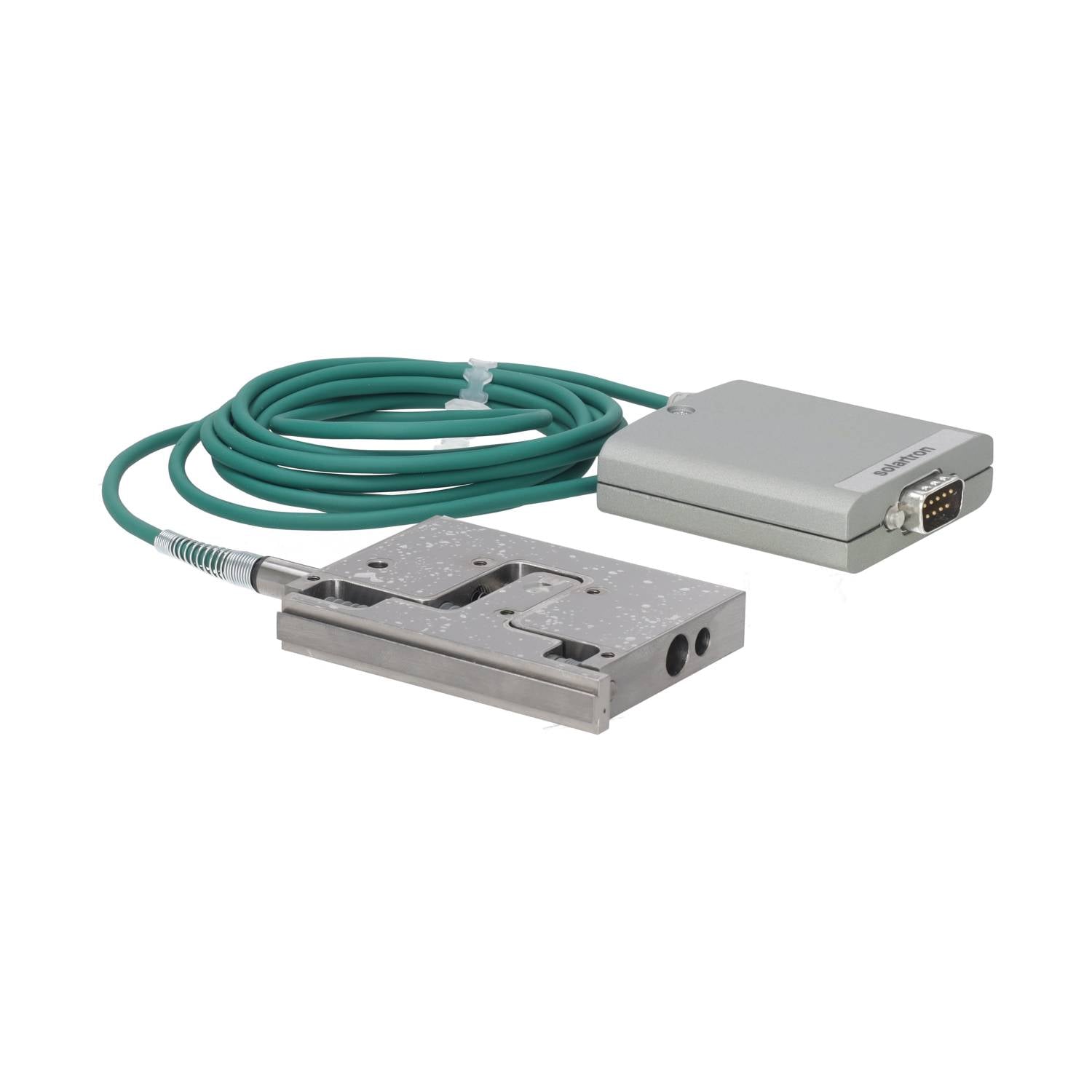

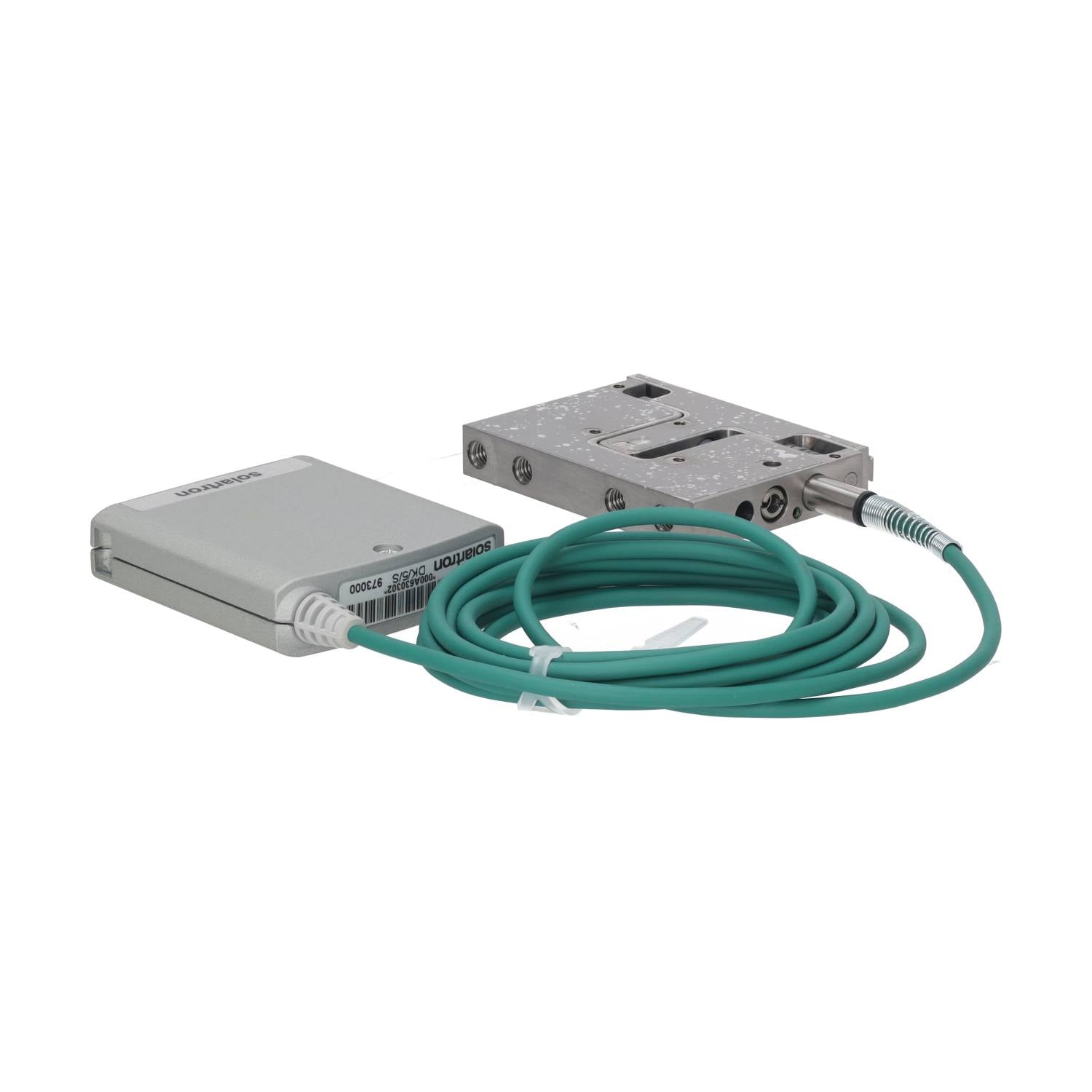

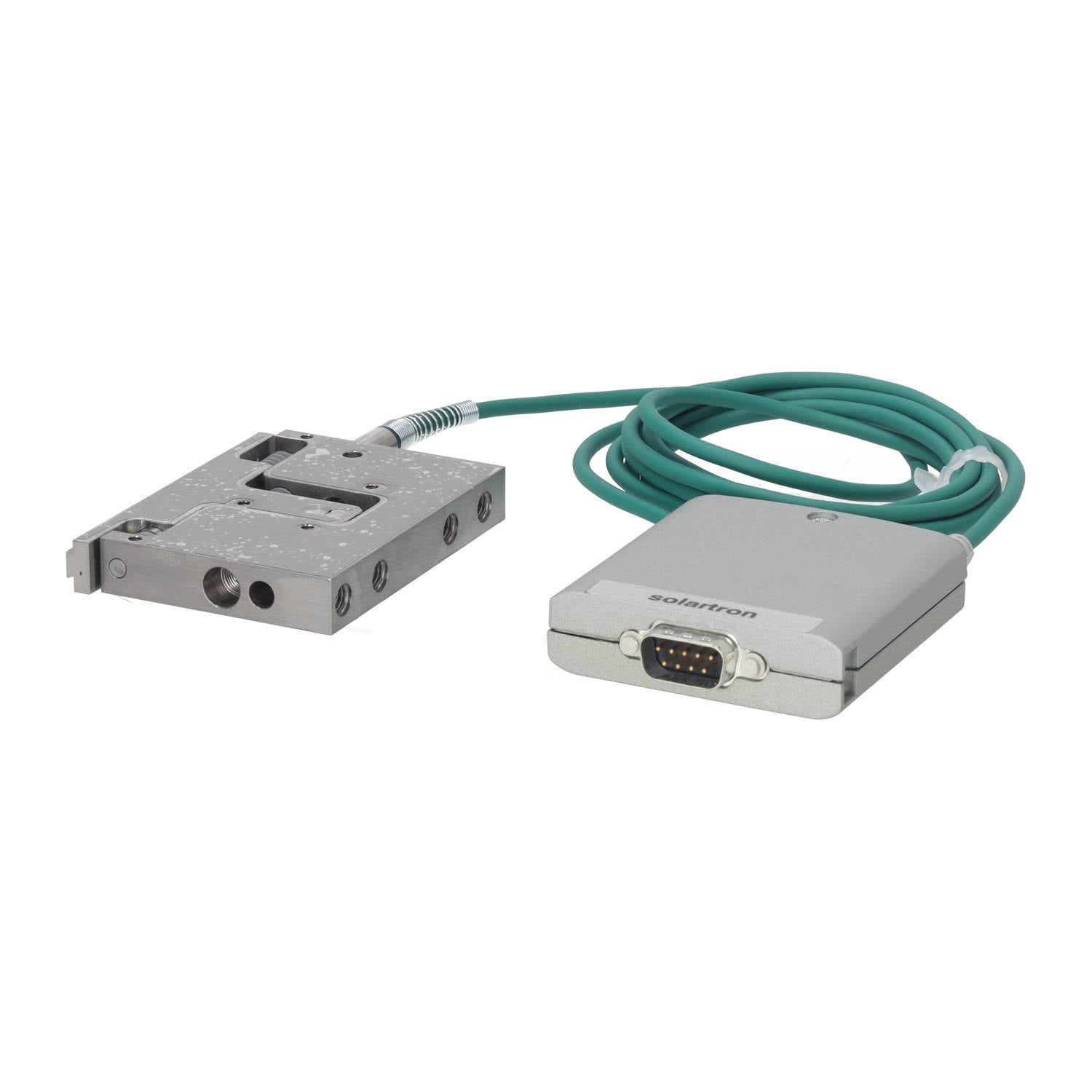

DK/5/S (M973000)
Free shipping from 49€
worldwide shipping
Measuring Principle: Digital block gauge with parallel flexure guide
Measuring Range: 5 mm
Accuracy: ±0.05 % of reading (min. 0.1 µm)
Repeatability: < 0.25 µm
Resolution: 0.02 µm
Measuring Force: approx. 1.5 N
Pre-/Overtravel: 0.15 mm / 0.85 mm
Runout/Straightness: per Solartron Orbit specification
Measurement Rate: up to 3906 readings/s
Actuation: Spring push
Housing Width: approx. 12 mm
Housing Material: Stainless steel
Contact Tip: M2.5 interchangeable
Mounting Options: Tip holders, tool carriers, stops
Applications: Bore, cavity, precision contour measurement
Interface: Orbit digital module (PIE)
Compatible Interfaces: USB, Ethernet, RS232, RS485, Modbus TCP, EtherNet-IP, Profinet, EtherCAT, CC-Link
Supply Voltage: 5 V DC ± 0.25 V, 60 mA
Electronics Bandwidth: 460–4 Hz
