DUS 630ti
Free shipping from 49€
worldwide shipping

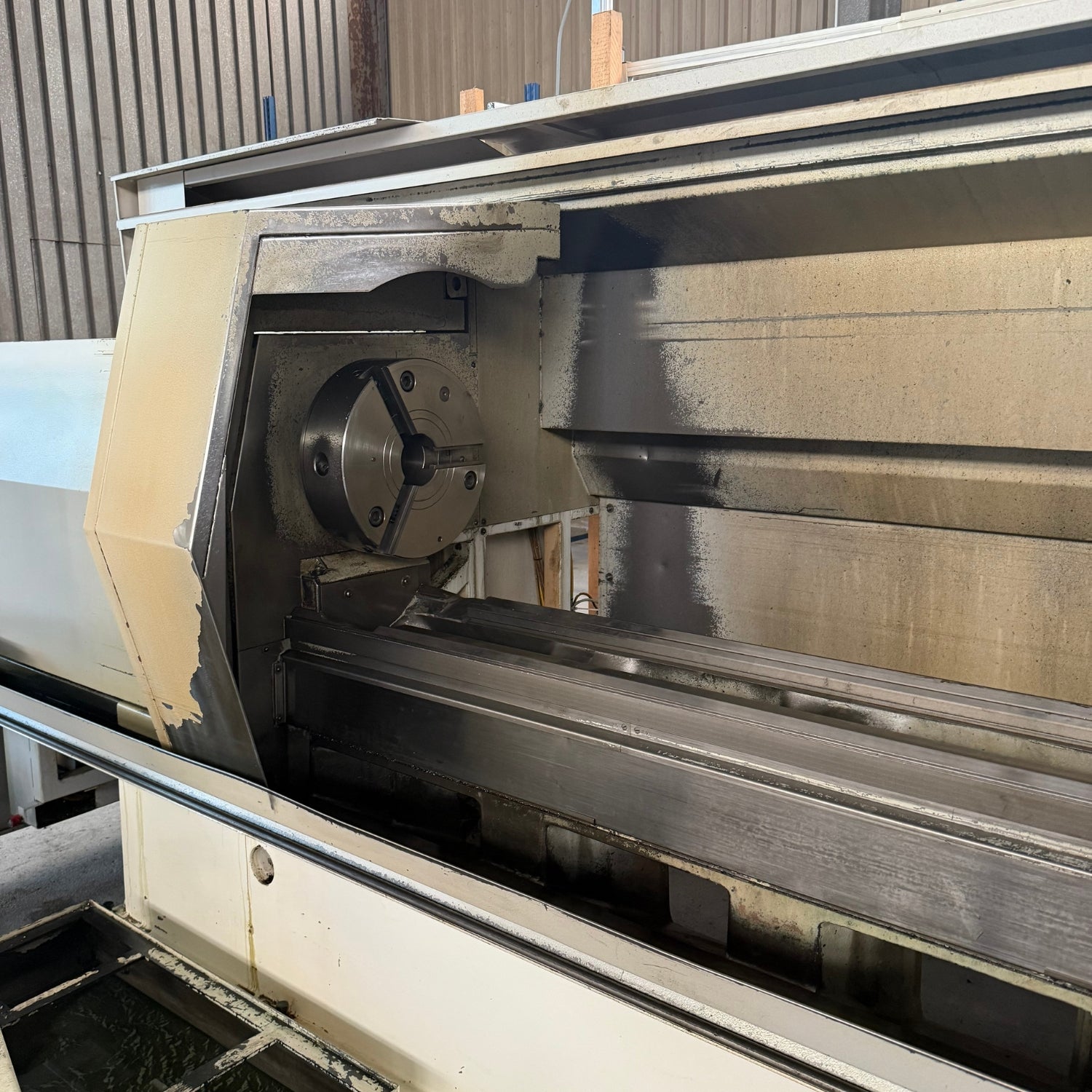

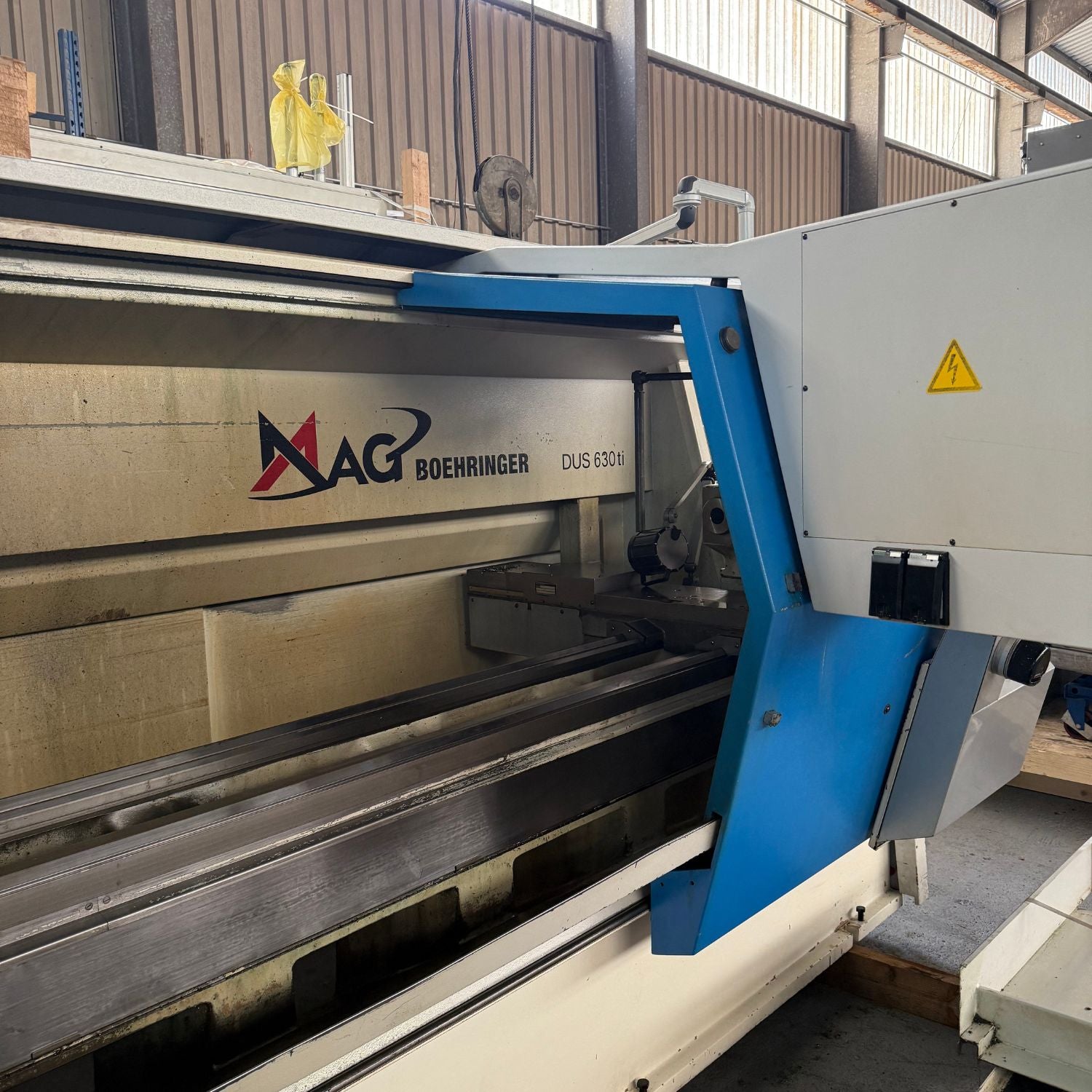

Model: VDF Boehringer DUS 630ti
Swing over bed: 640 mm
Swing over cross slide: 435 mm
Travel (cross slide / top slide): 365 mm / 145 mm
Center height over bedway: 320 mm
Center distance: 1500 mm
Cross slide dimensions (W x L): 265 x 630 mm
Top slide dimensions (W x L): 220 x 425 mm
Tool cross-section: 32 x 25 mm
Spindle bore: 70 mm
Spindle diameter front bearing: 100 mm
Max. torque (40% / 100% duty): 1600 / 640 Nm
Speed range (total): 3–2500 rpm
Gear steps: 2
Constant cutting speed: 1–9999 m/min
Feed rate traverse/longitudinal: 0.01–50 mm/rev
Max. feed speed traverse/longitudinal: 10 m/min
Rapid traverse traverse/longitudinal: 5 m/min
Feed force traverse/longitudinal: 12500 N
Metric thread pitch: 0.1–400 mm
Tailstock quill Ø / stroke / taper: 100 mm / 190 mm / MK5
Faceplate: Ø 630 mm
Centre sleeve diameter: 150 mm
Max. workpiece weight:
Between centers (unsupported): 400 kg
With tailstock & 2 steadies: 1600 kg
Display: 10.4″ color LCD, showing speed, feed, position, tool, load etc.
