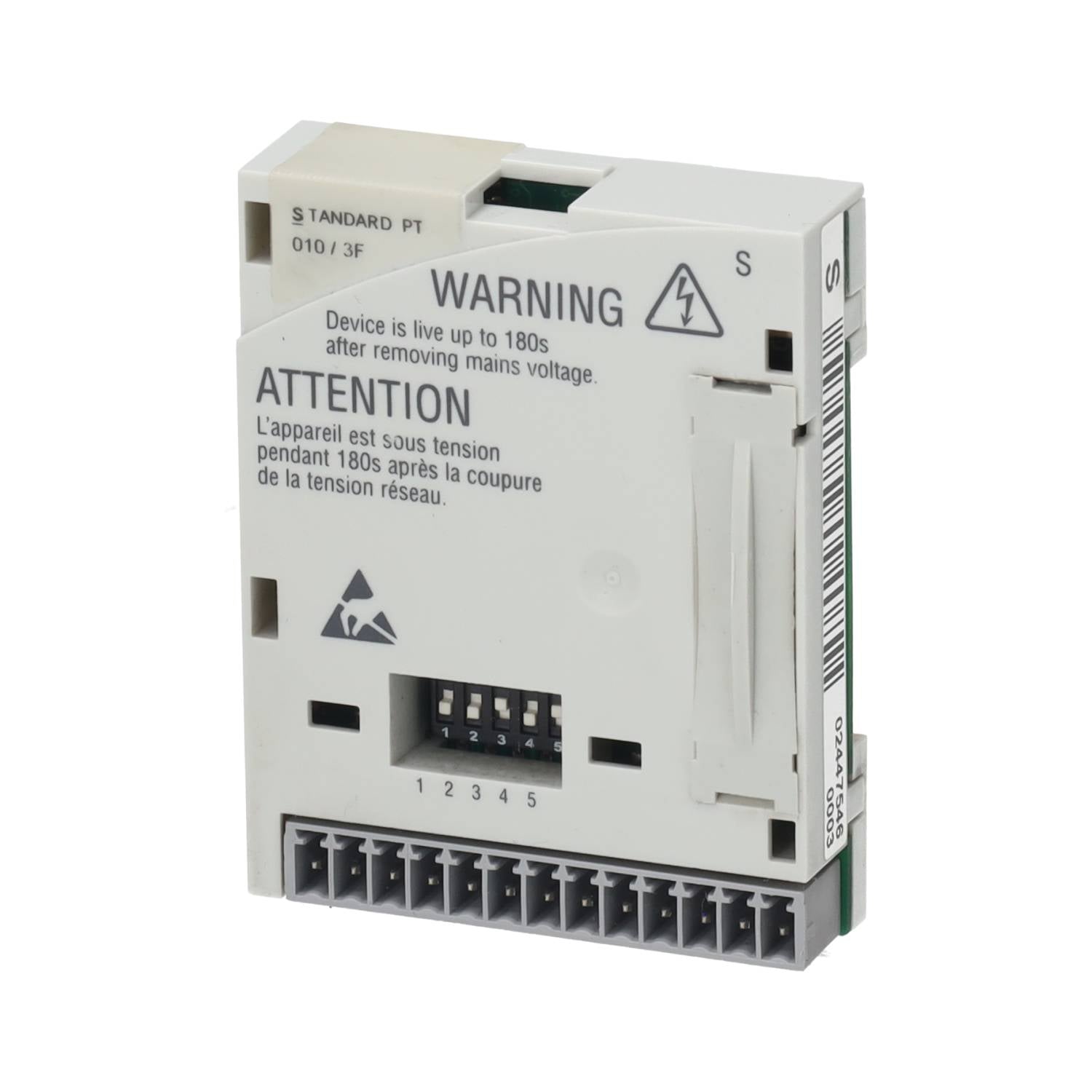

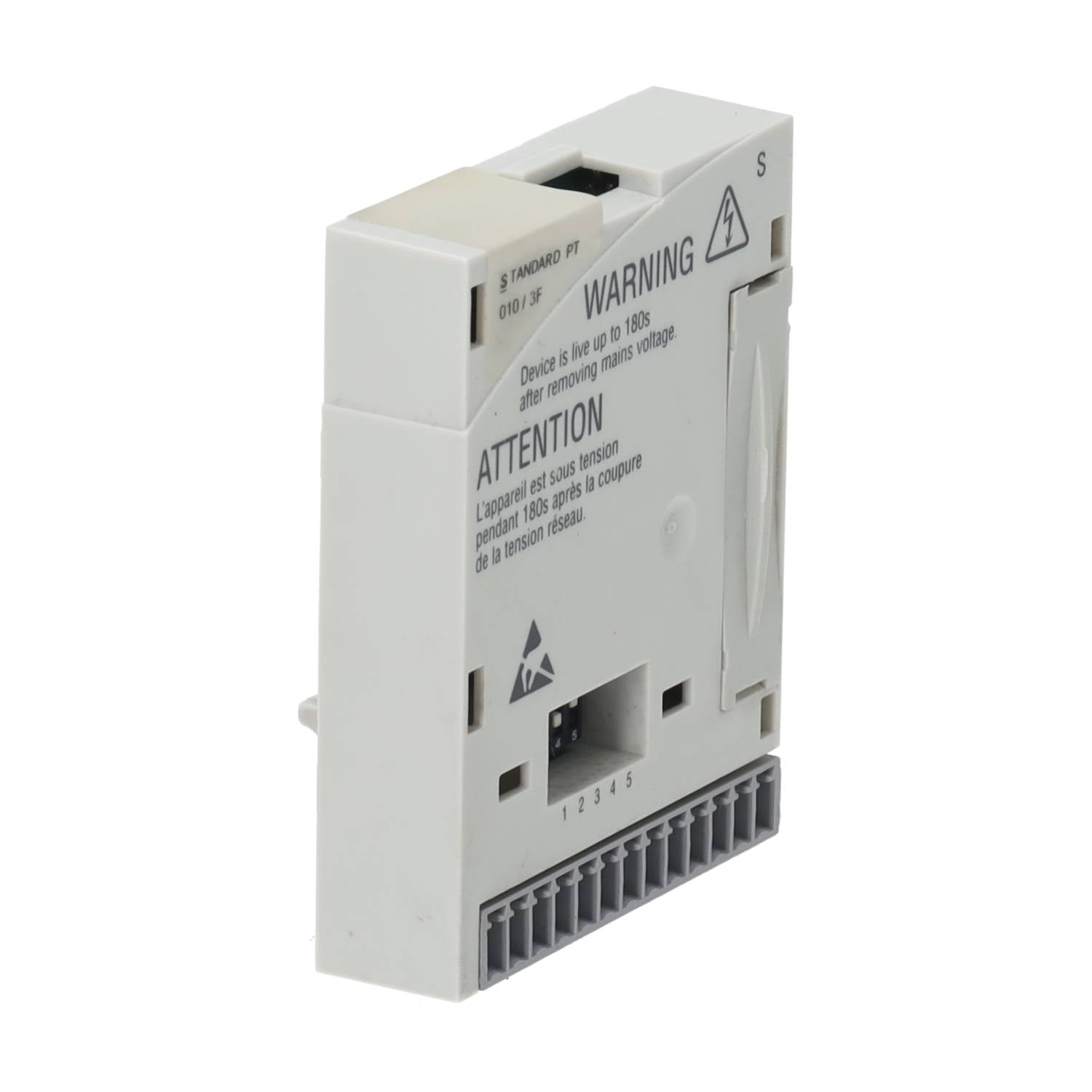

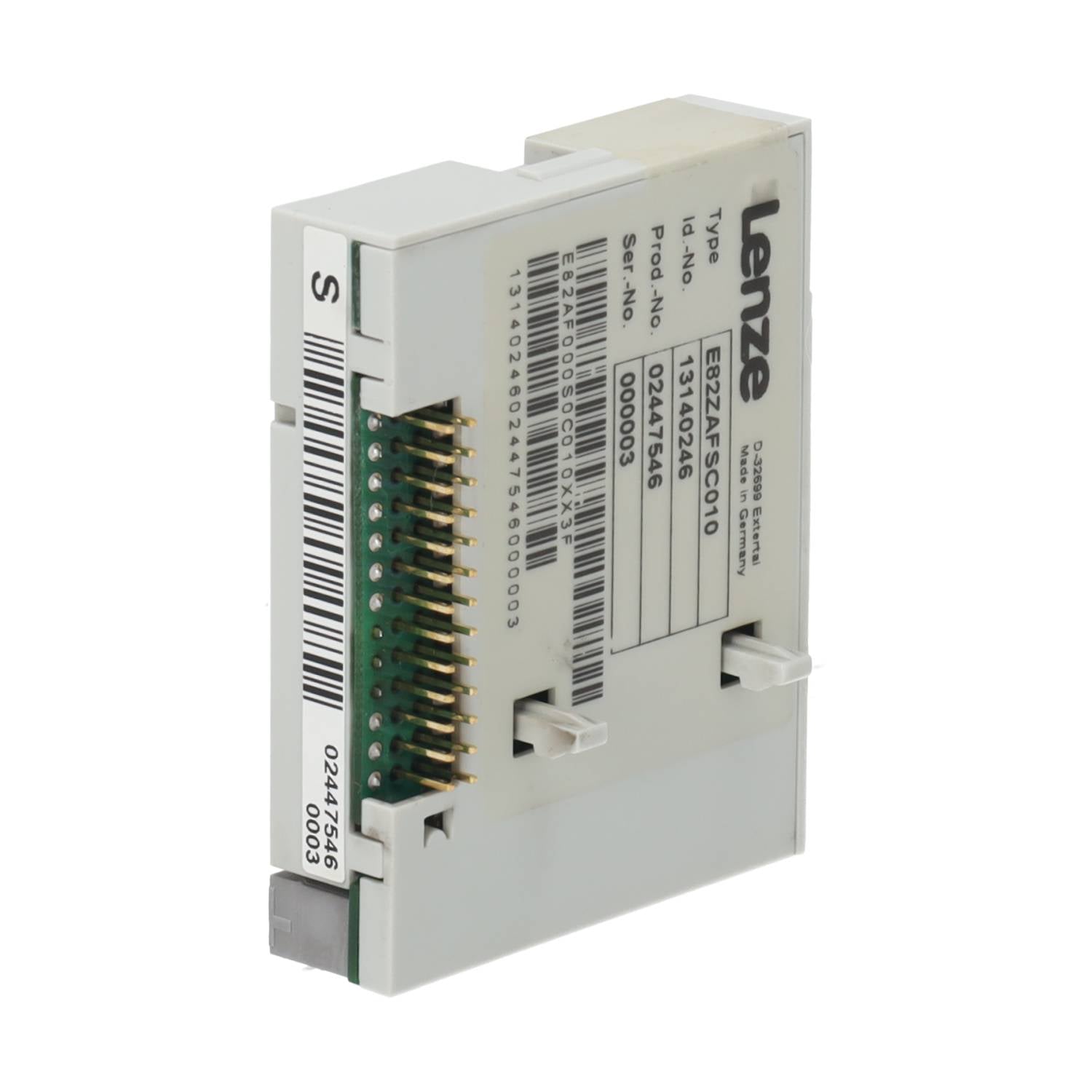

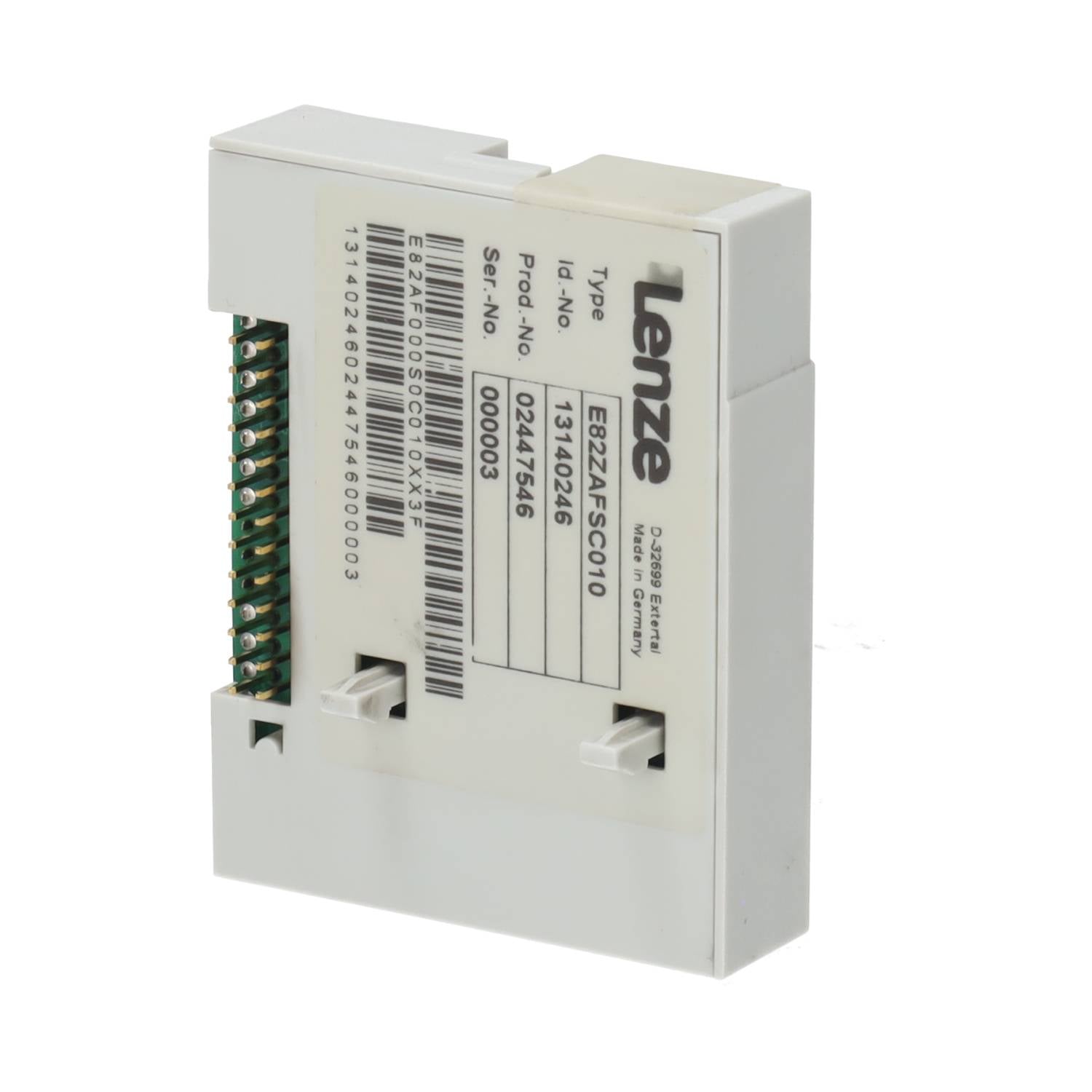

E82ZAFSC010 13140246
Free shipping from 49€
worldwide shipping
- Article number: E82ZAFSC010
- Product name: Lenze Standard I/O Function Module
- Compatibility: Lenze 8200 vector frequency inverters
- Function: Control of drive PLCs via analog and digital signals

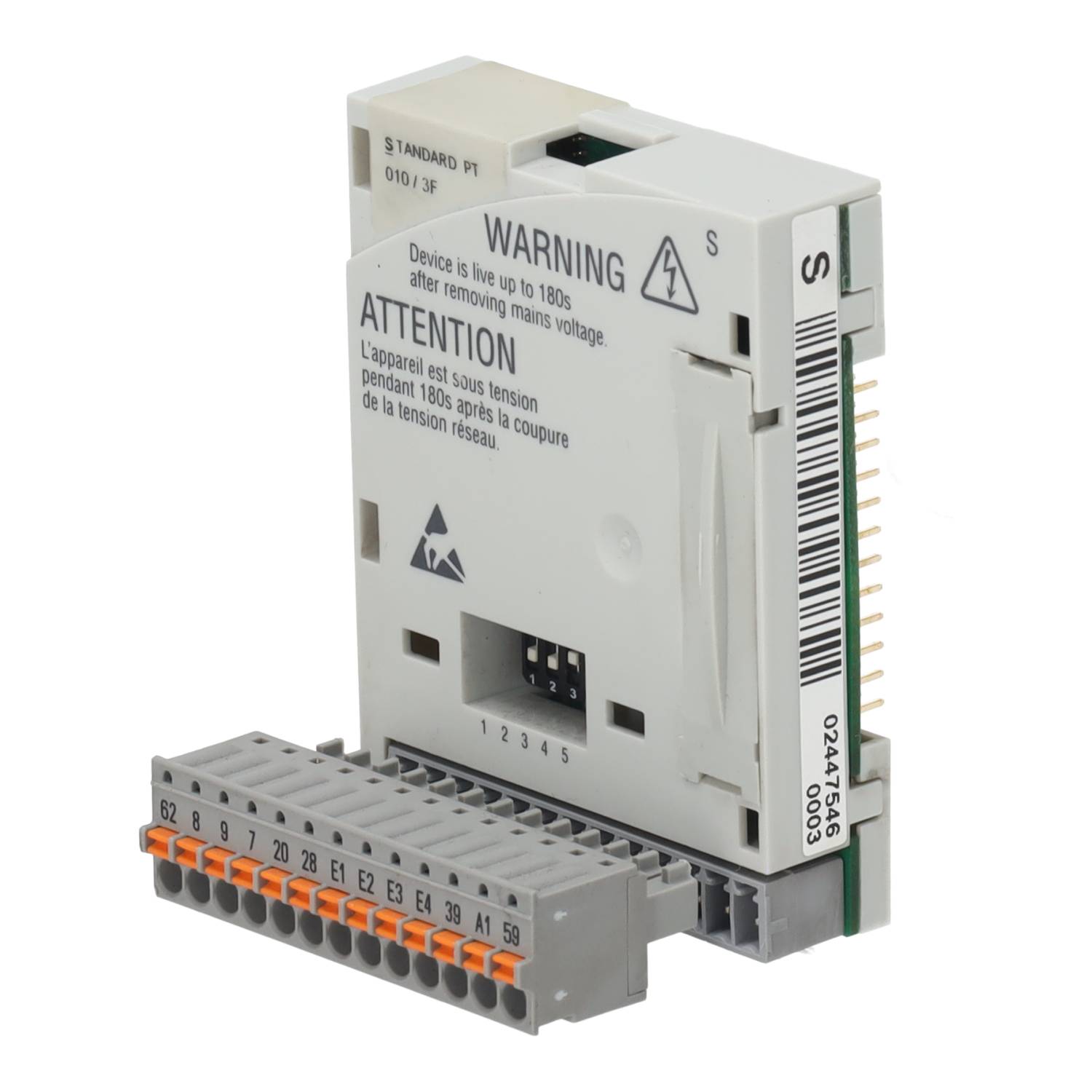

- Variant: 010 – PT (Plug Terminal) with spring-force connectors
- Digital inputs: 4 (E1–E4), HTL level, 12–30 V
- Analog input: 1 channel, 0–10 V or 0(4)–20 mA (configurable)
- Resolution: 10 Bit
- Linearity error: ±0.5 %
- Analog input max load: 2 mA
- Digital outputs (relays): 2 potential-free contacts
- Max. total output current: 40 mA
- Input resistance (digital): 3.3 kΩ
- Frequency input (optional): 0–10 kHz (single track), 0–1 kHz (dual track)
- Internal supply: 10 mA
- External supply: up to 50 mA
- Operating temperature: –25 °C to +60 °C
- Pollution degree: 2 (according to EN 61800-5-1)
- Dimensions (W×H×D): 51 × 64 × 28 mm
- Weight: 0,2 kg
- Mounting: direct installation on 8200 vector base unit
- Protection class: inherits base unit’s rating (IP20)
