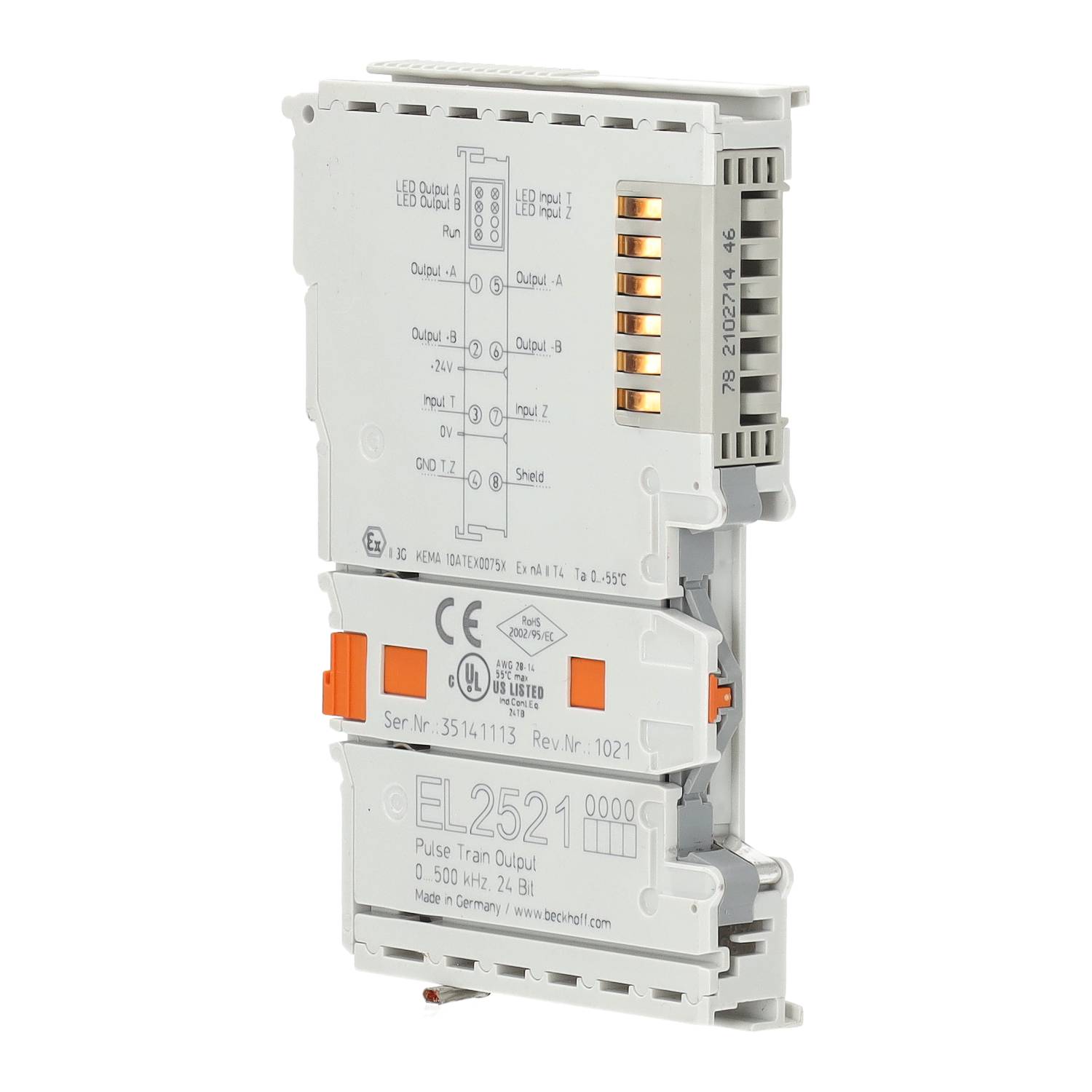

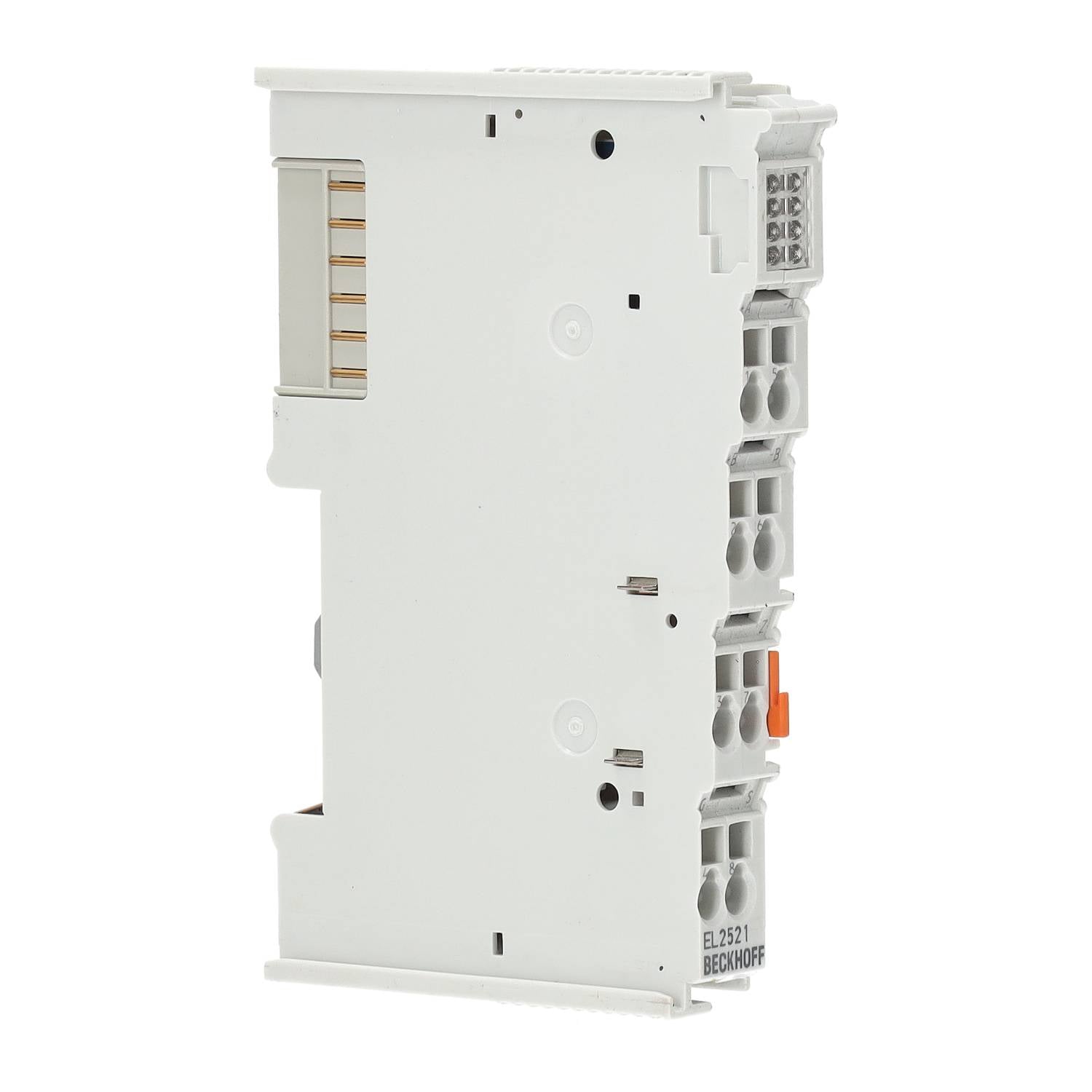

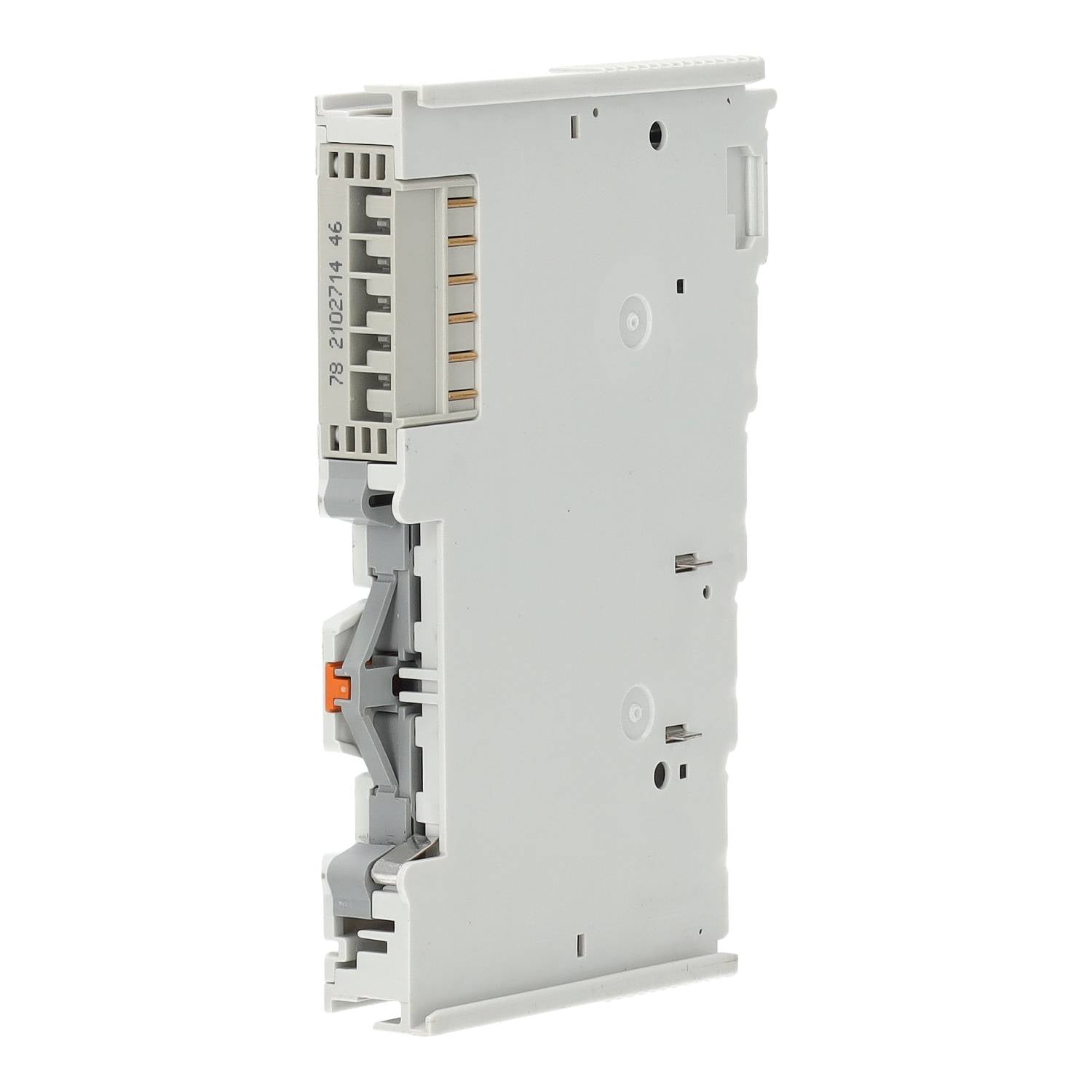

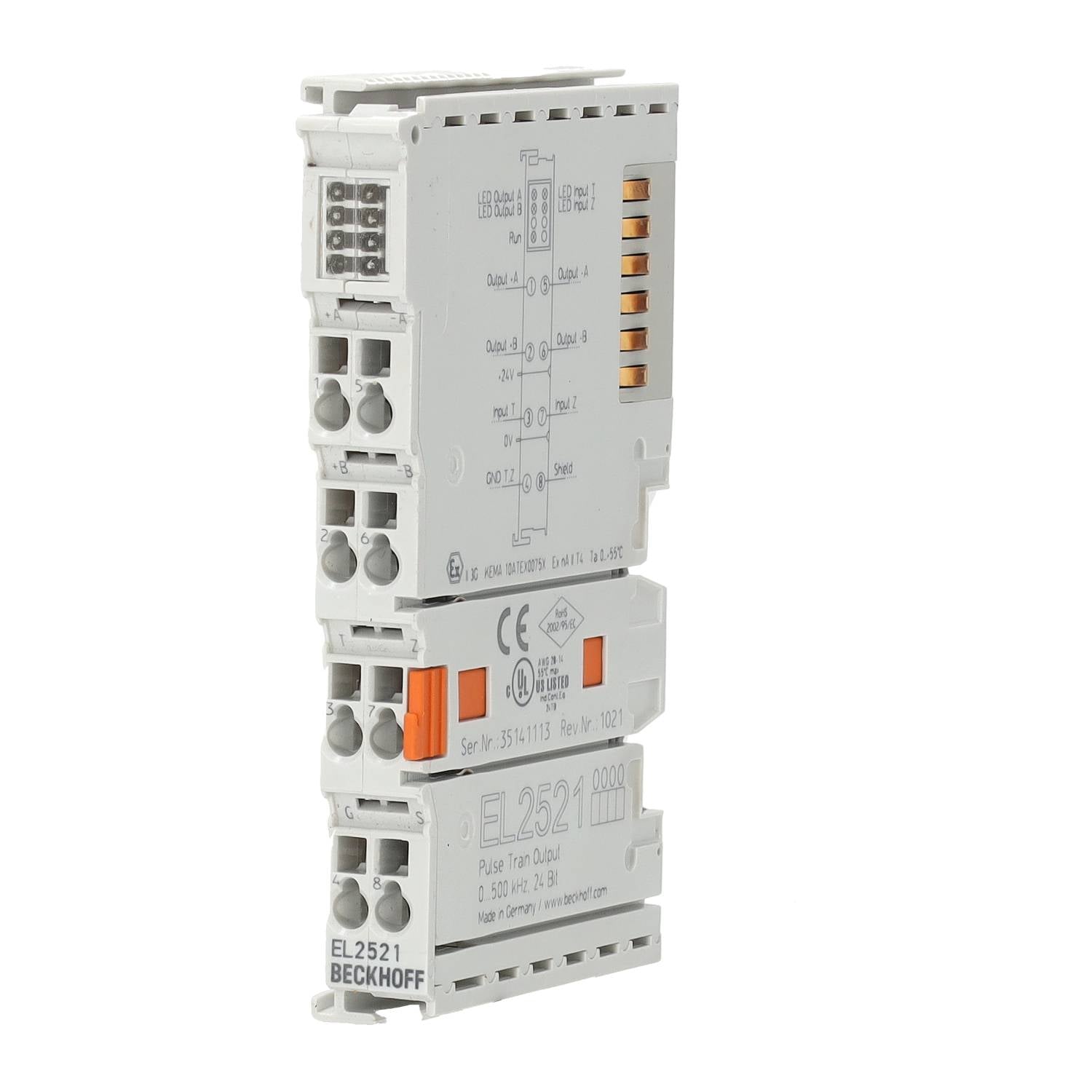

EL2521
Free shipping from 49€
worldwide shipping
- Connection technology: Pulse Train (frequency output)
- Number of outputs: 1 channel (2 differential outputs A, B)
- Number of inputs: 2 (+T, +Z)
- Load type: min. 120 Ω
- Distributed Clocks: yes
- Input specification: 24 V DC
- Output specification: RS422, differential
- Signal voltage: RS422 level
- Max. output current: RS422 specification, 50 mA
- Short-circuit current: short-circuit proof
- Base frequency: 0…500 kHz, default: 50 kHz
- Resolution: max. 15-bit
- Step size: 10 mHz
- Current consumption E-bus: 280 mA typ. (load-dependent)
- Electrical isolation: 500 V (E-bus/field voltage)
- Process image width: 14-byte output, 8-byte input
- Configuration: configuration via controller
- Special features: various operating modes, ramp function, travel control
- Weight: approx. 50 g
- Operating/storage temperature: 0…+55 °C / -25…+85 °C
- Relative humidity: 95% without condensation
- Protection class/installation position: IP20 / any
- Pluggable wiring: for all ESxxxx terminals
Structure of the Serial Number: KK YY FF HH
- KK - Production Week (Calendar Week)
- YY - Production Year
- FF - Firmware Version
- HH - Hardware Version
Example with Serial Number 12 06 3A 02:
- 12 - Production Week 12
- 06 - Production Year 2006
- 3A - Firmware Version 3A
- 02 - Hardware Version 02
