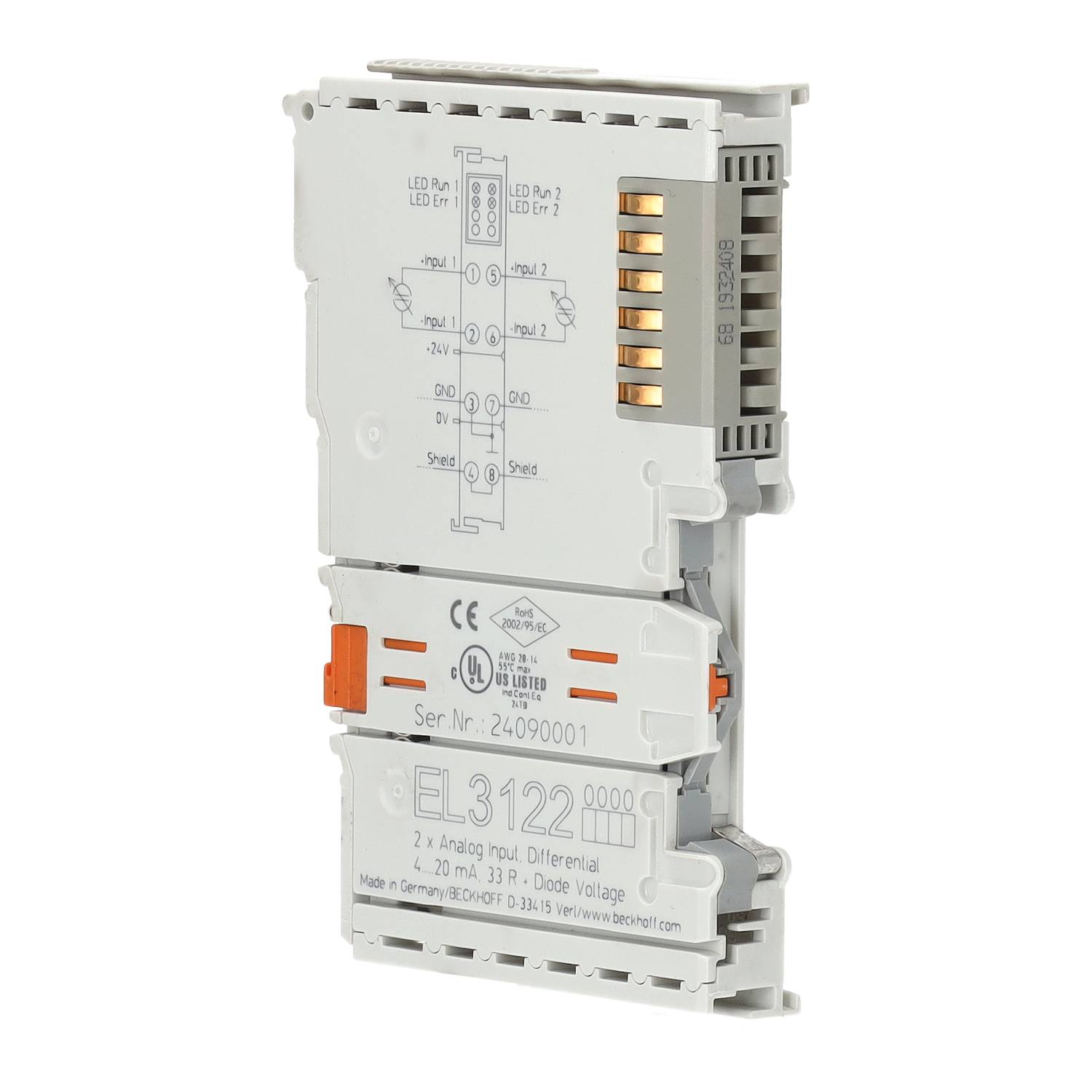

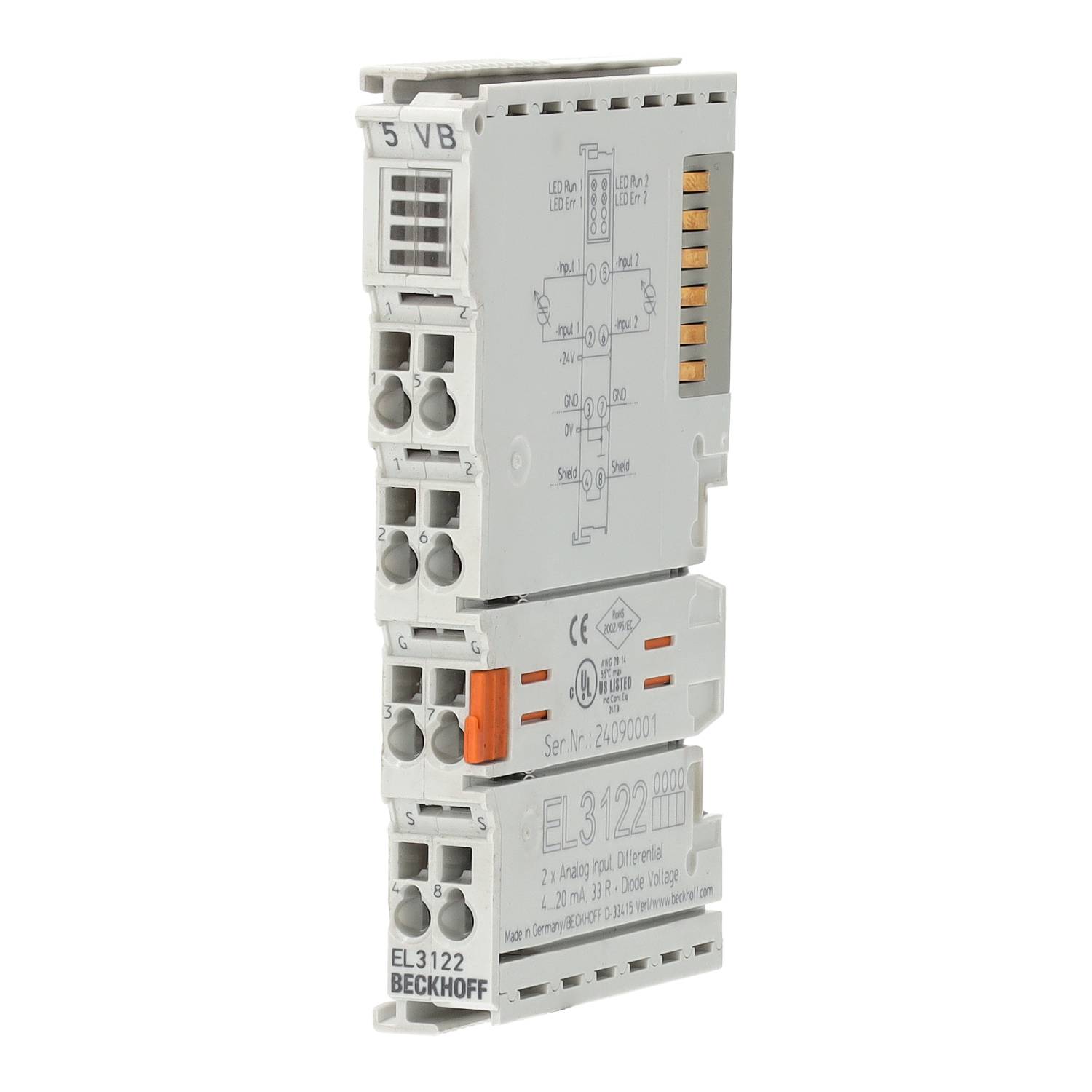

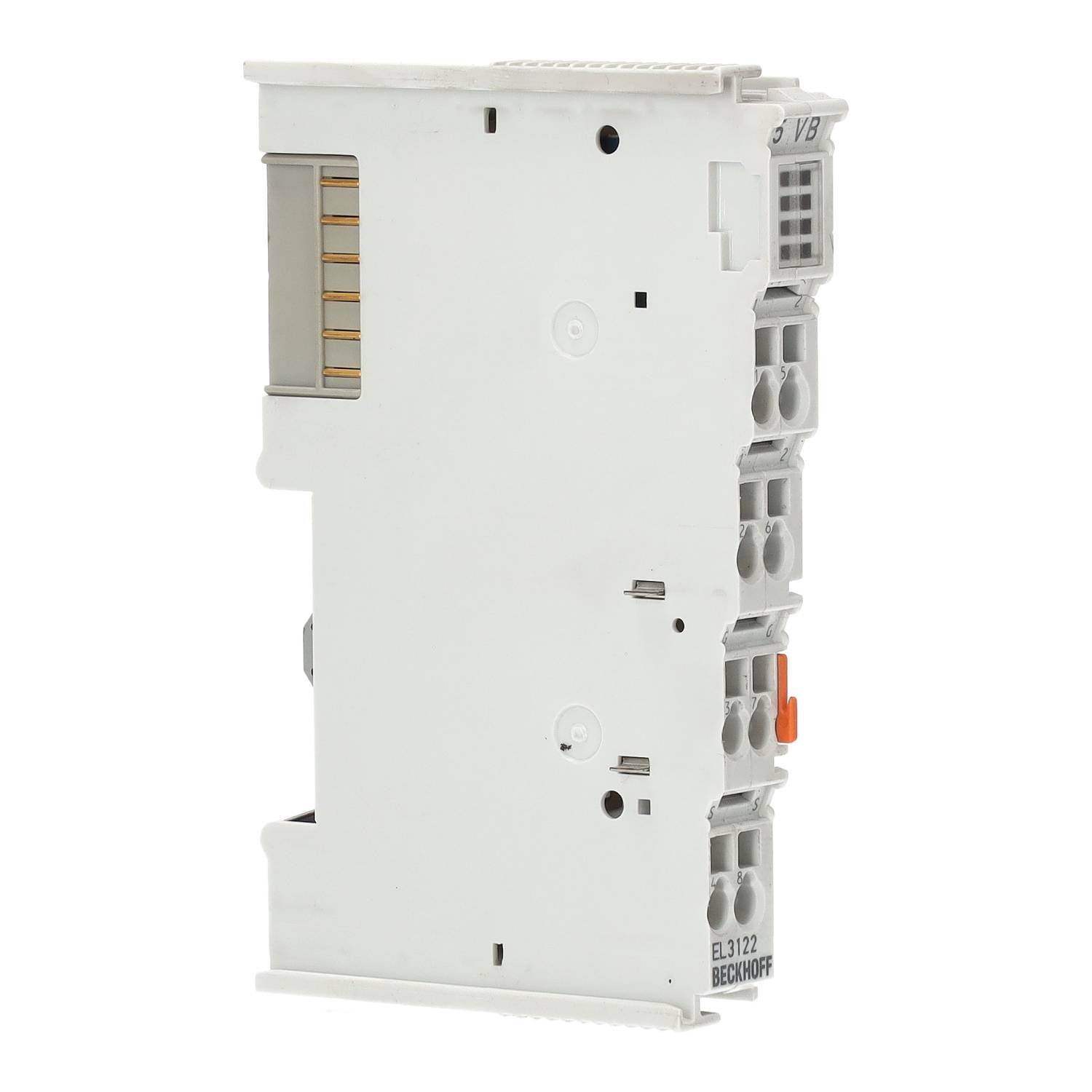

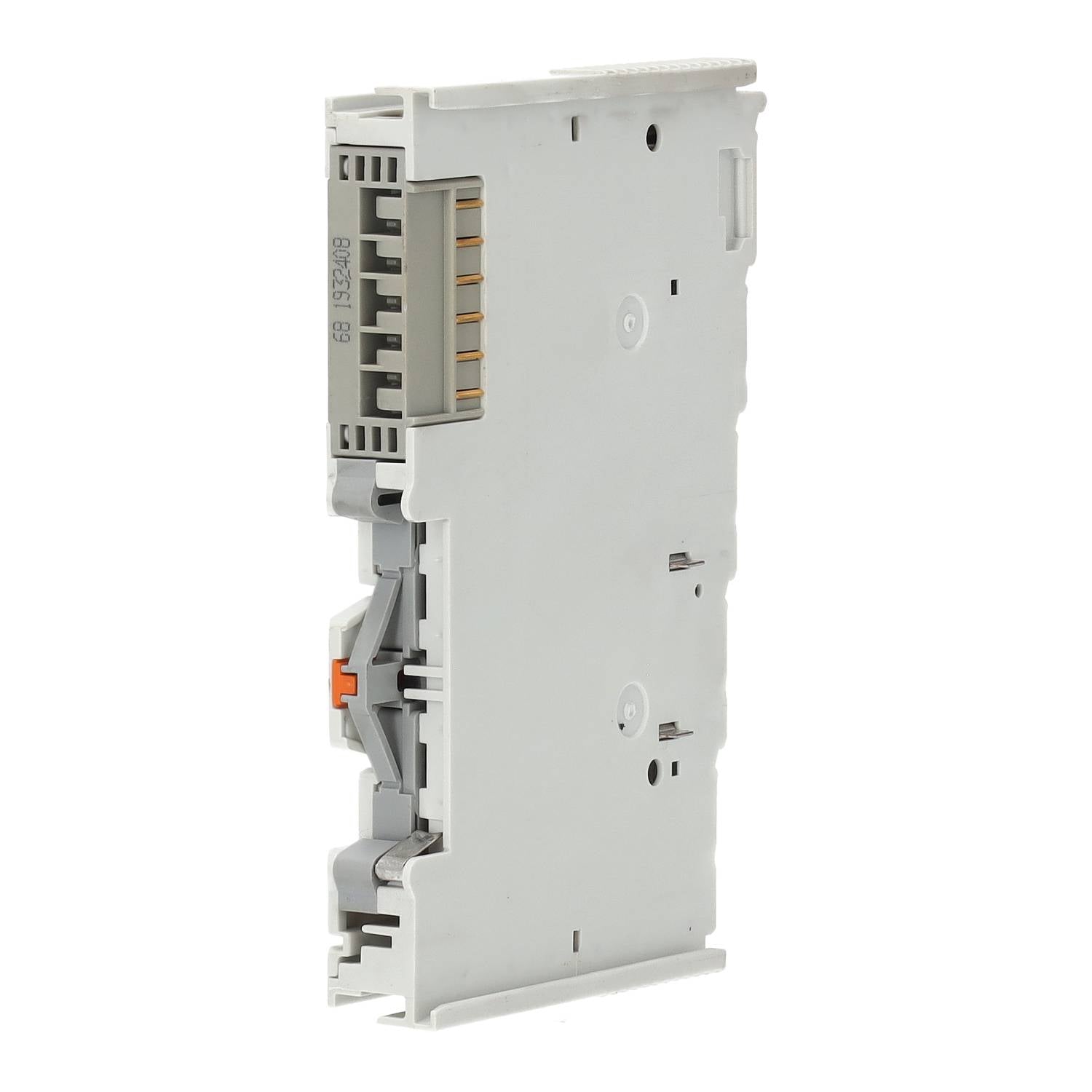

EL3122
Free shipping from 49€
worldwide shipping
- Inputs: 2 (differential)
- Voltage supply: via E-Bus
- Signal current: 4…20 mA
- Distributed Clocks: yes
- Input resistance: 85 Ω + diode voltage
- Cut-off frequency: 5 kHz
- Common-mode voltage: max. 10 V
- Conversion time: ~50 µs (Fast Mode ~35 µs)
- Resolution: 16-bit (including sign)
- Measurement error: < ±0.3 %
- Overvoltage protection: max. 35 V
- Isolation: 500 V (E-Bus/signal voltage)
- E-Bus current: 170 mA
- Process image: 8 bytes
- Features: standard/compact process image, FIR/IIR filter, limit monitoring
- Temperature: -25…+60 °C / -40…+85 °C
- Weight: approx. 55 g
- Relative humidity: 95% without condensation
- Vibration/shock resistance: EN 60068-2-6 / EN 60068-2-27
- EMC immunity/emission: EN 61000-6-2 / EN 61000-6-4
- Protection class/installation: IP20 / any
- Pluggable wiring: ESxxxx terminals
Structure of the Serial Number: KK YY FF HH
- KK - Production Week (Calendar Week)
- YY - Production Year
- FF - Firmware Version
- HH - Hardware Version
Example with Serial Number 12 06 3A 02:
- 12 - Production Week 12
- 06 - Production Year 2006
- 3A - Firmware Version 3A
- 02 - Hardware Version 02
