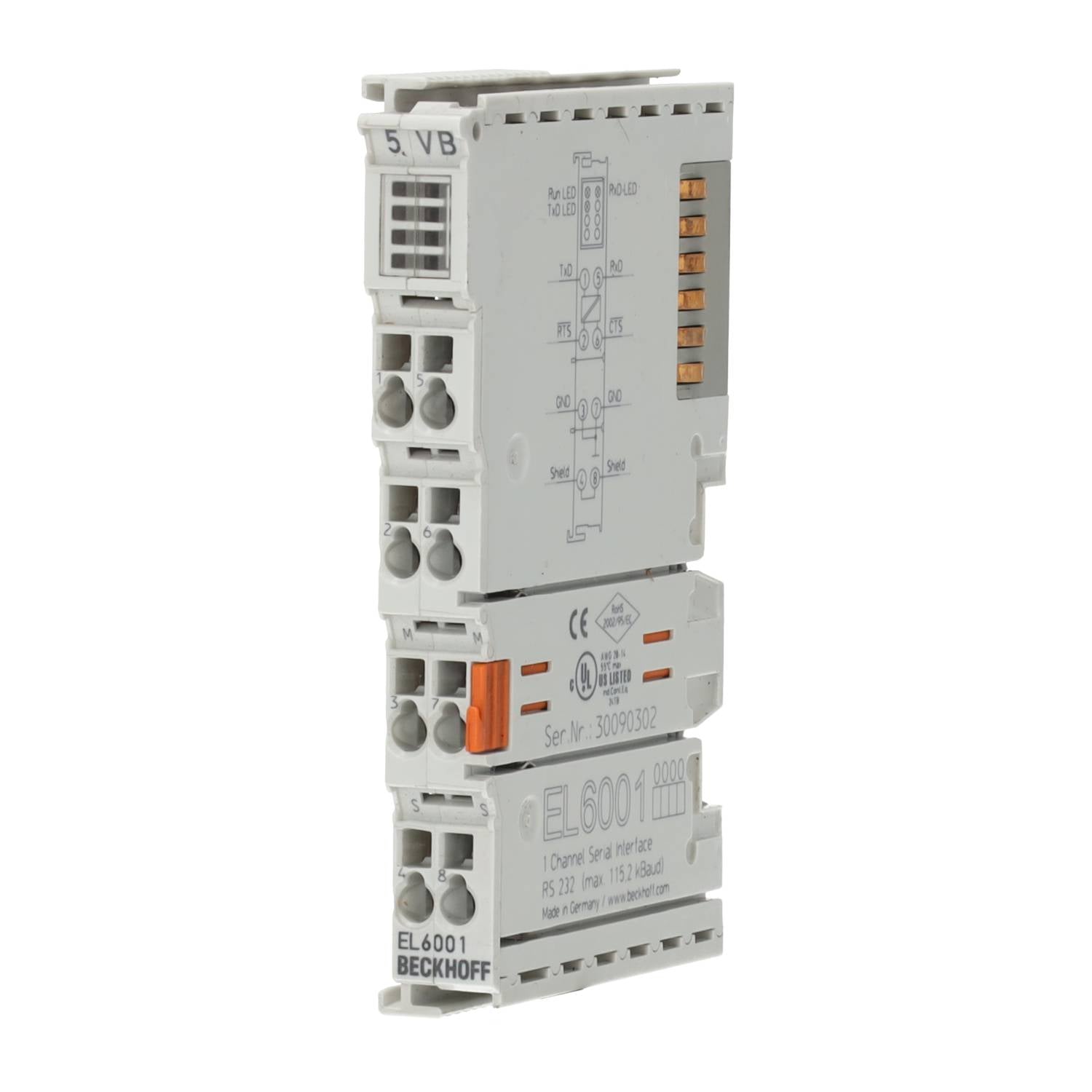

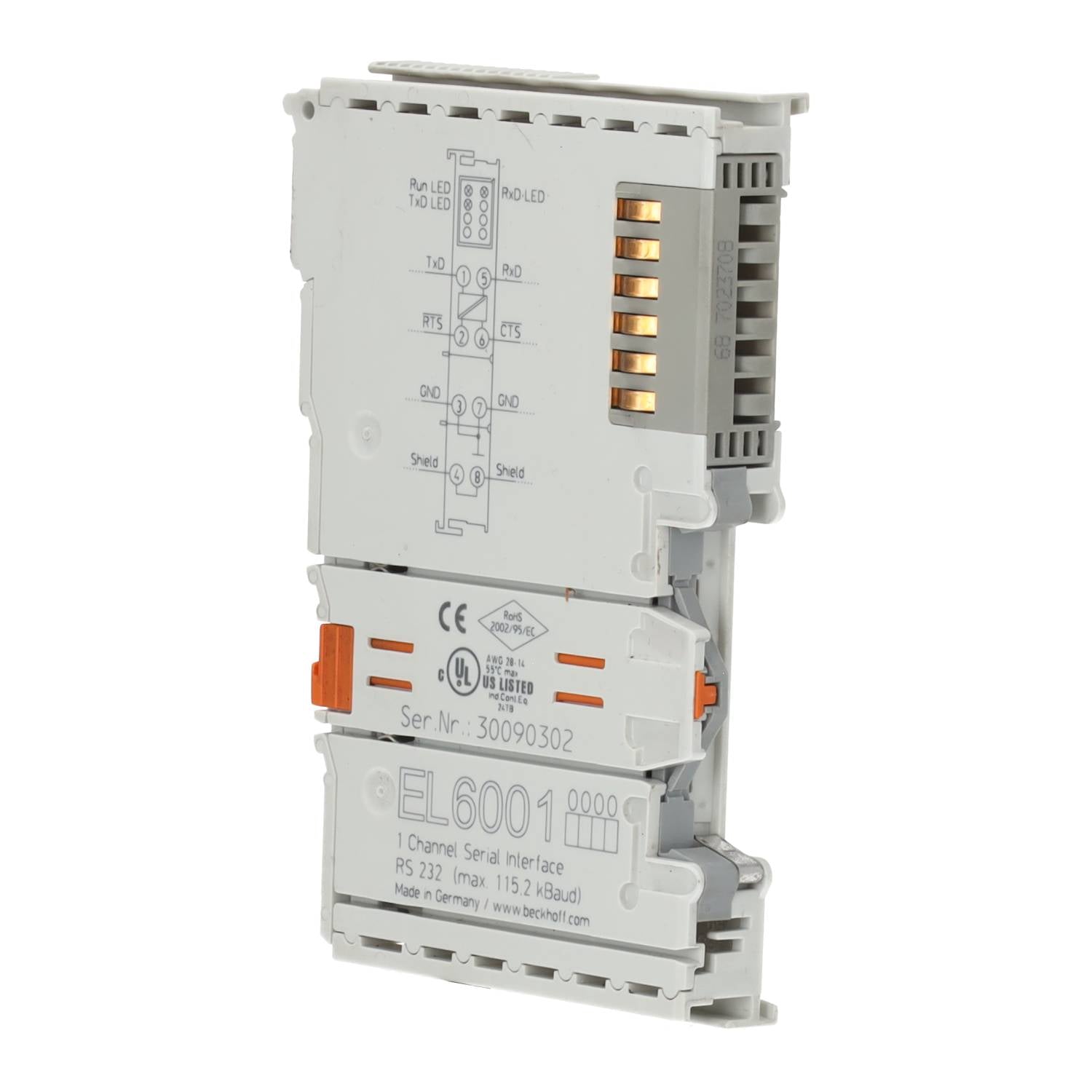

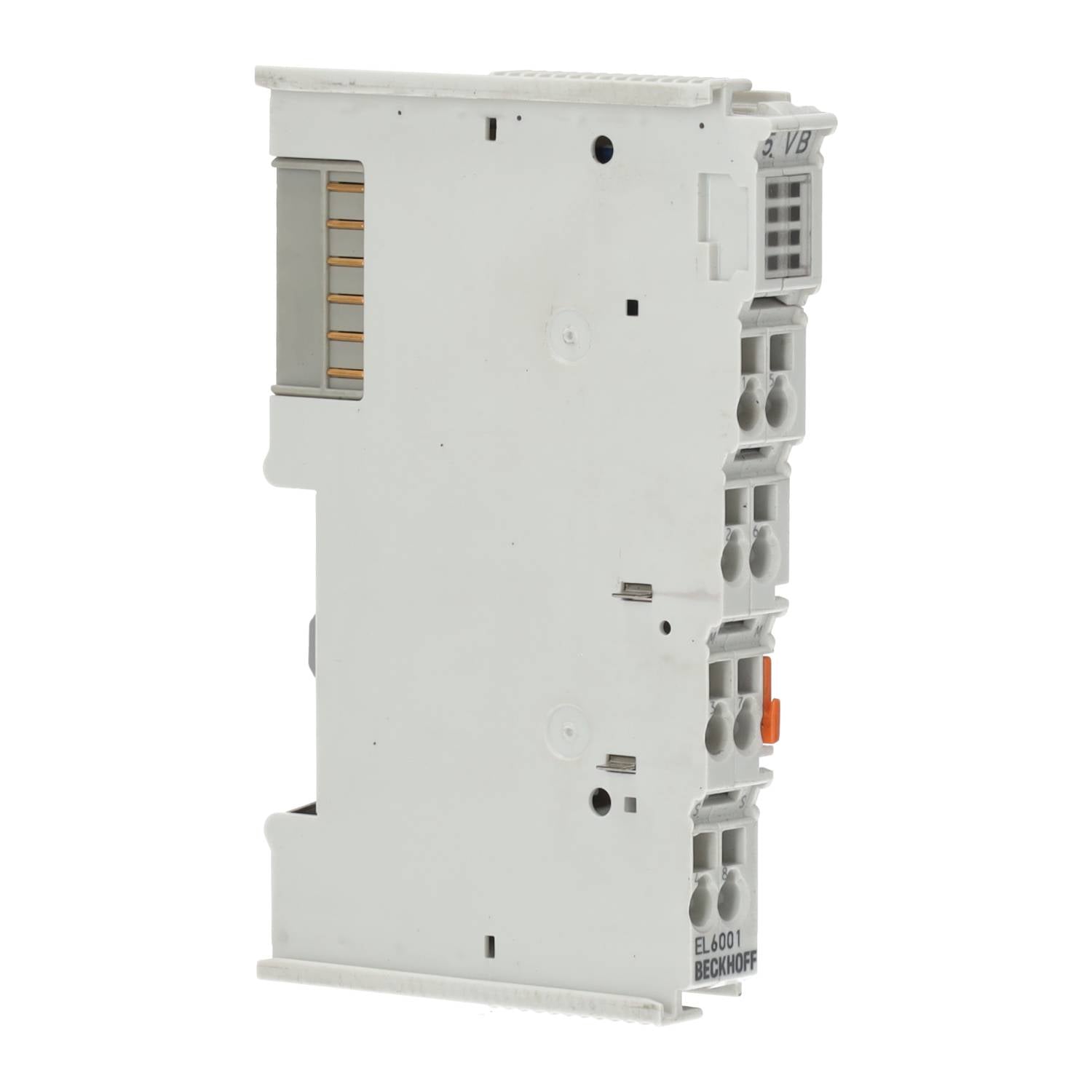

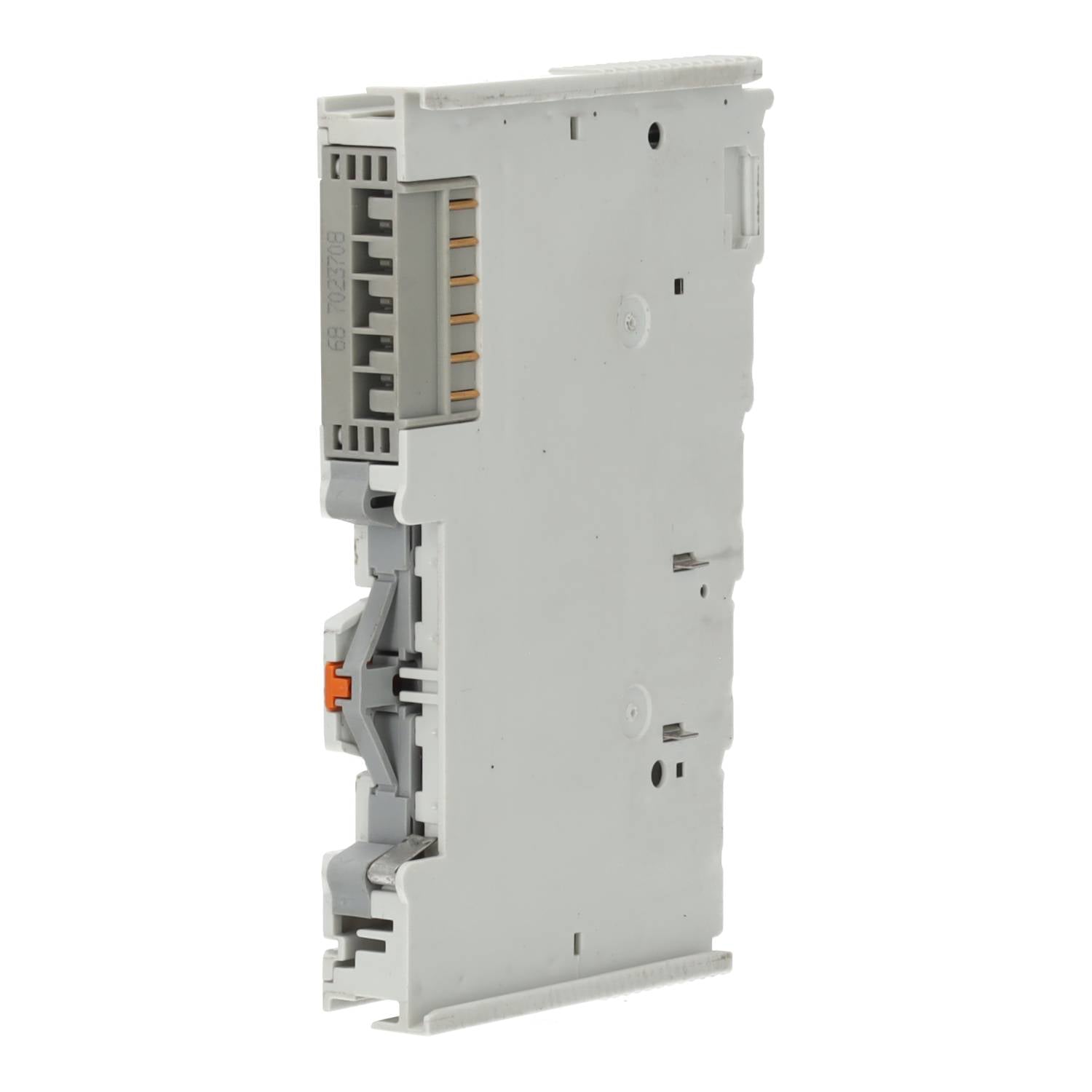

EL6001
Free shipping from 49€
worldwide shipping
- Connection technology: terminal contact
- Transmission channels: 2 (1/1), TxD and RxD, full duplex
- Transmission rates: 2400…115,200 baud; Default: 9600 baud, 8 data bits, no parity, one stop bit
- Bit distortion: < 3%
- Interfaces: 1 x RS232
- Cable length: max. 15 m
- Voltage supply: via E-bus
- Electrical isolation: 500 V (E-bus/signal voltage)
- Data buffer: 864-byte receive buffer, 128-byte send buffer
- Configuration: no address setting, configuration via controller
- Current consumption E-bus: 120 mA typ.
- Weight: approx. 55 g
- Operating/storage temperature: -25…+60 °C / -40…+85 °C
- Relative humidity: 95% without condensation
- Vibration/shock resistance: according to EN 60068-2-6 / EN 60068-2-27
- EMC immunity/emission: according to EN 61000-6-2 / EN 61000-6-4
- Protection class/installation position: IP20 / any
- Pluggable wiring: for all ESxxxx terminals
Structure of the Serial Number: KK YY FF HH
- KK - Production Week (Calendar Week)
- YY - Production Year
- FF - Firmware Version
- HH - Hardware Version
Example with Serial Number 12 06 3A 02:
- 12 - Production Week 12
- 06 - Production Year 2006
- 3A - Firmware Version 3A
- 02 - Hardware Version 02
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.
- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
We offer worldwide shipping, with the buyer covering shipping costs outside Germany.
Orders received by 2:00 p.m. will be dispatched on the same working day. However, this does not apply to purchases over €1,000 outside Europe, as an export note is required for this, or for shipments sent by a freight forwarder. For particularly urgent deliveries, you can choose express shipping.
For each of our products you can select the condition, with the following categories available:
New (OVP): Unused and undamaged items in the original packaging.
New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
Like New: Items that look like new and show only minimal signs of wear. Very Good: Items that show only light signs of wear and are fully functional. Good: Items that show normal signs of wear but are still fully functional.

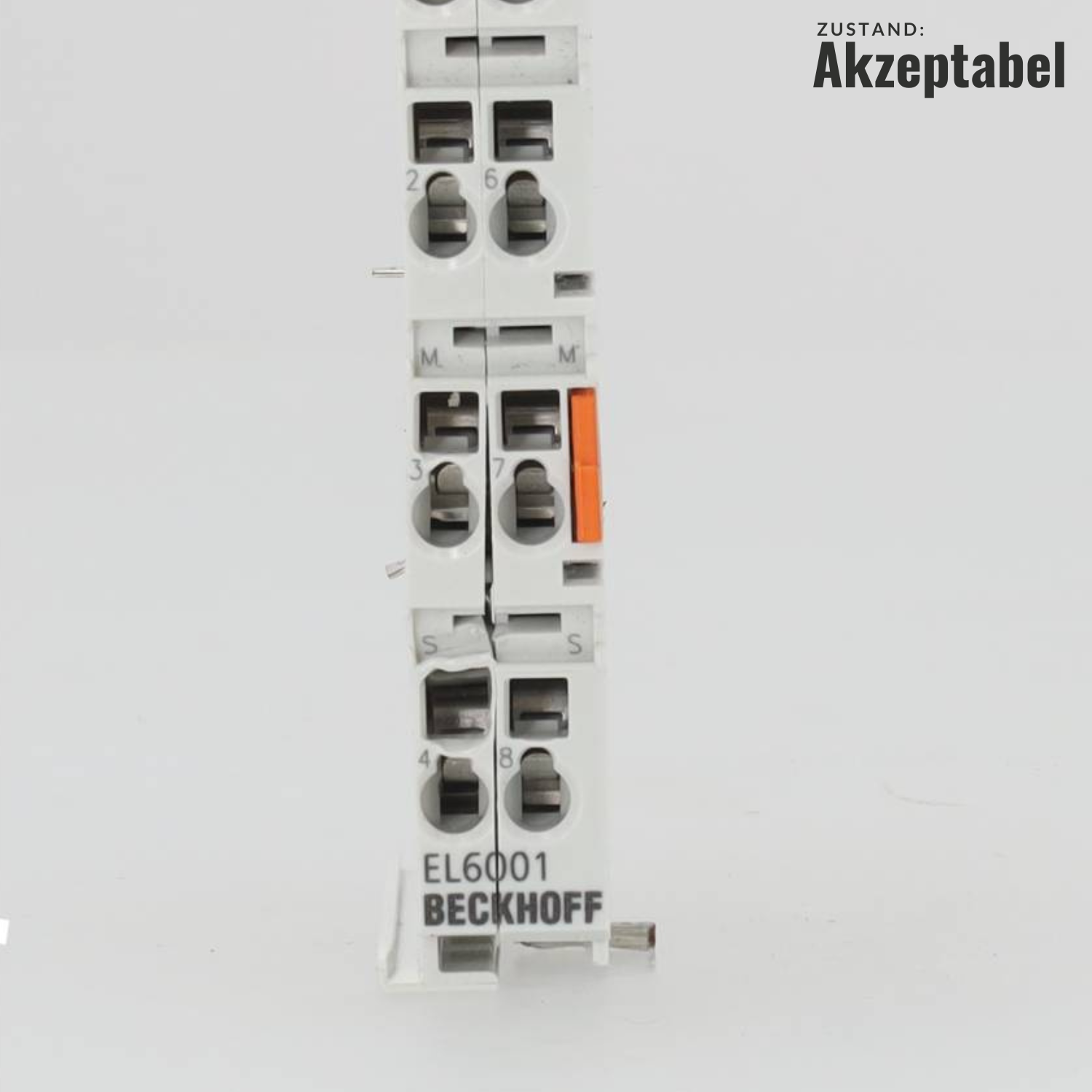

Acceptable: Items that show more severe signs of wear but are functional.
