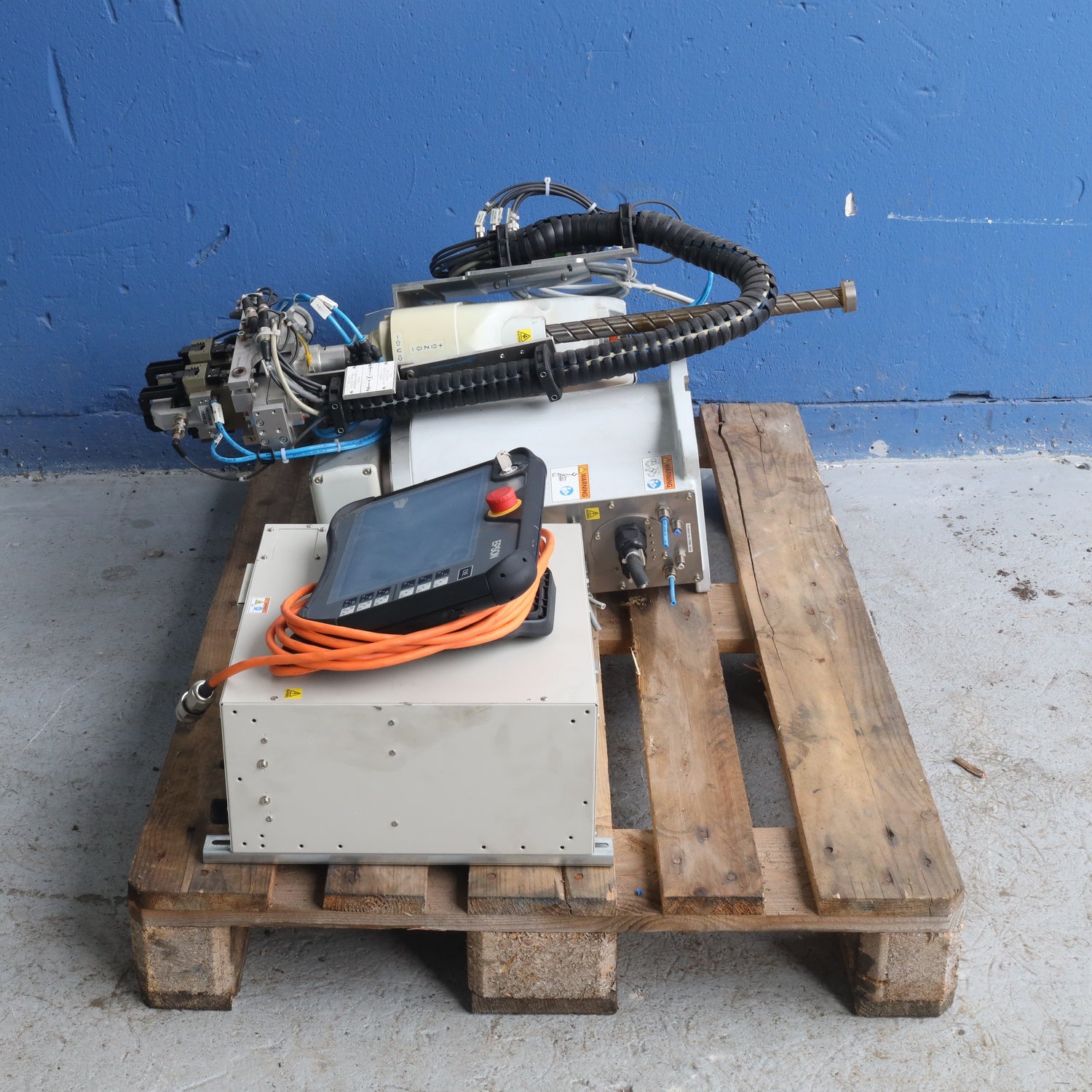

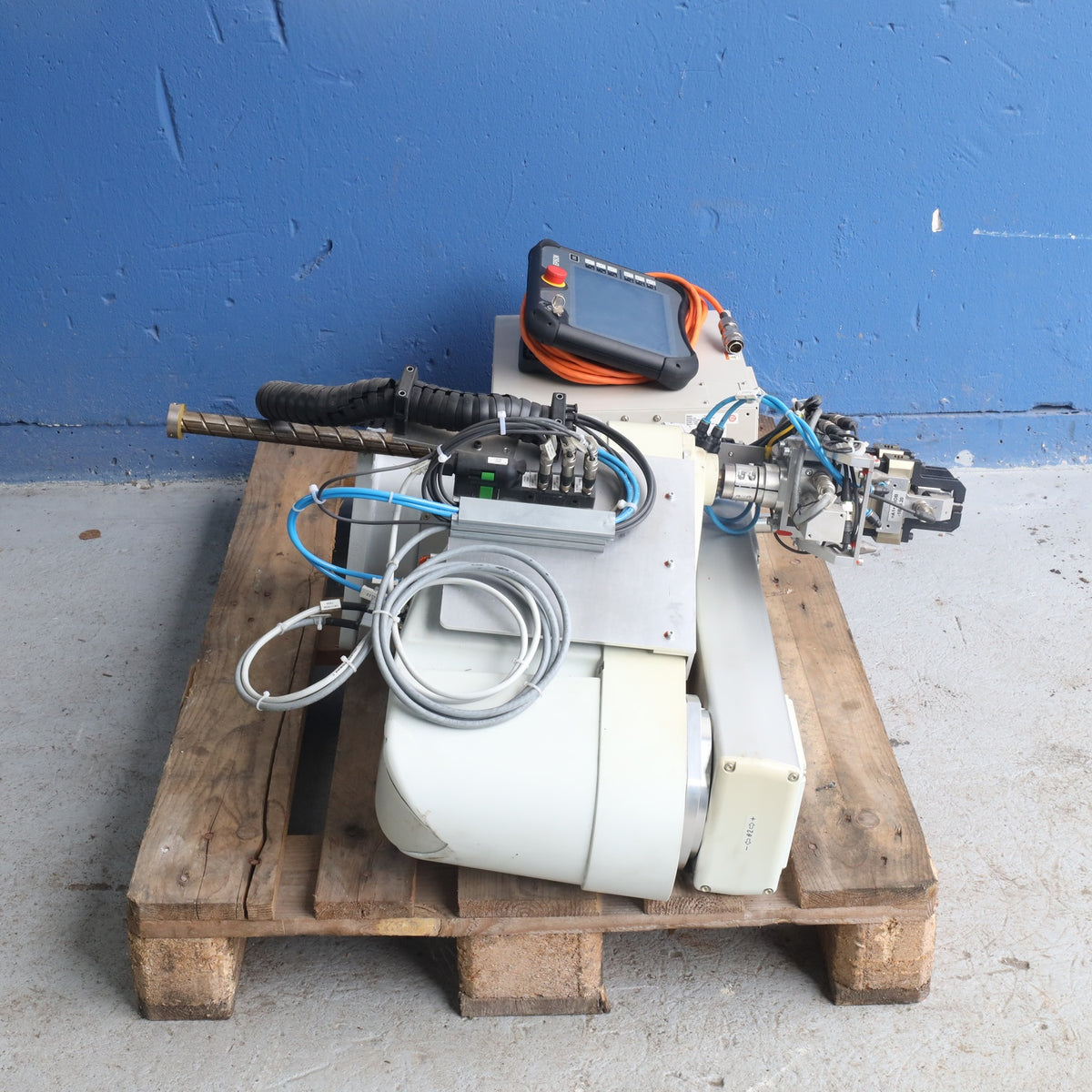

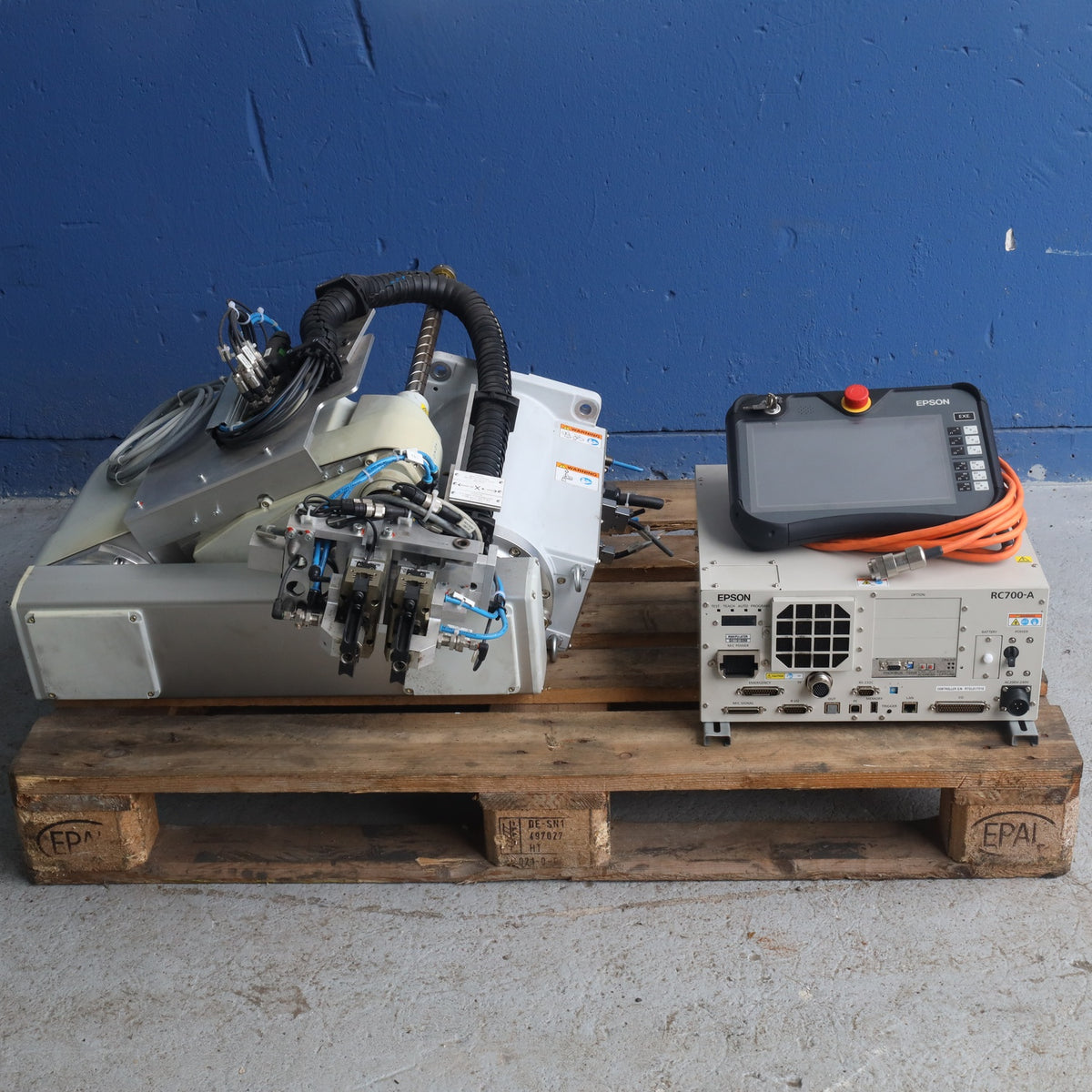

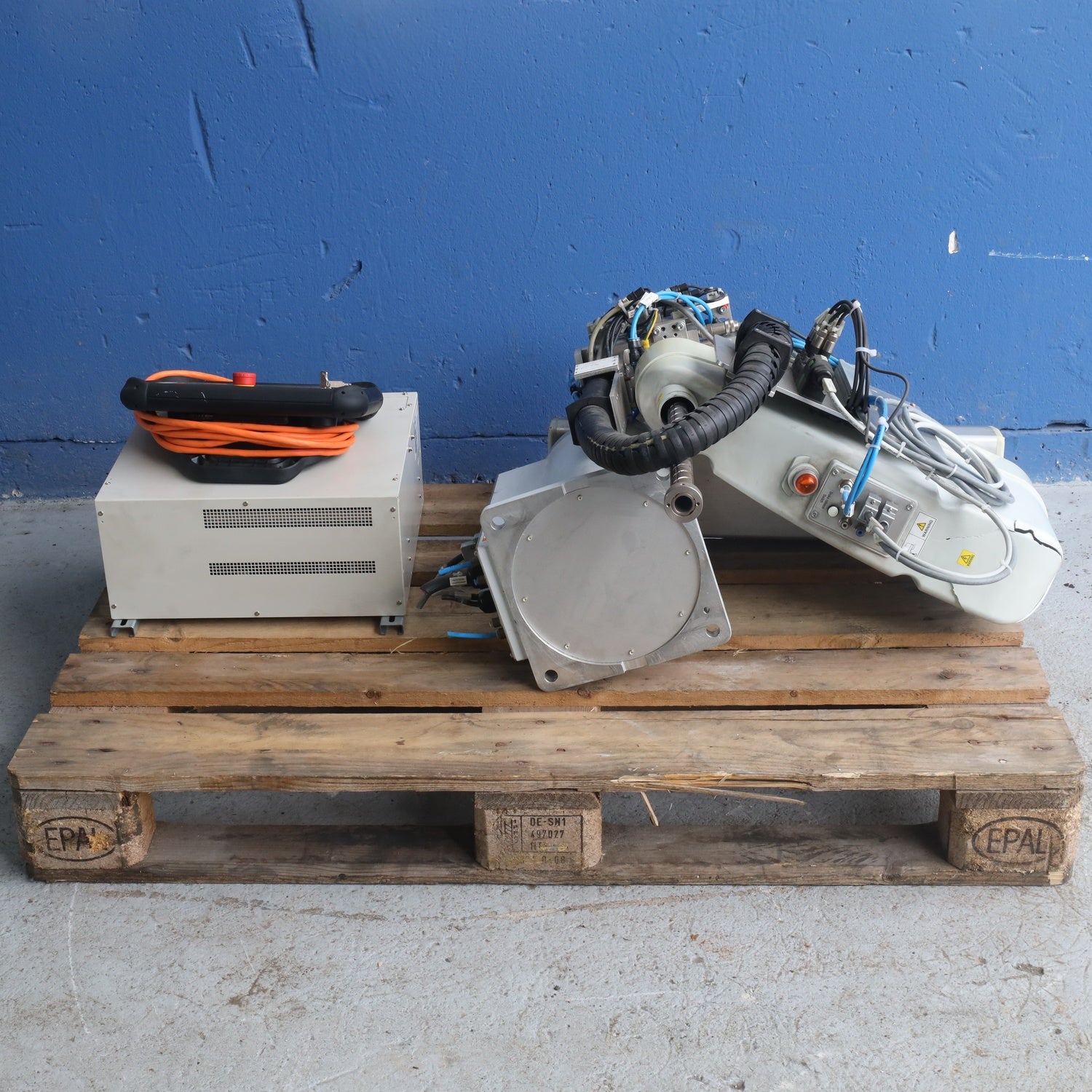

EPSON SCARA G10-854SR +EPSON RC700-A + EPSON TP3 Teach Pendant
Free shipping from 49€
Worldwide shipping

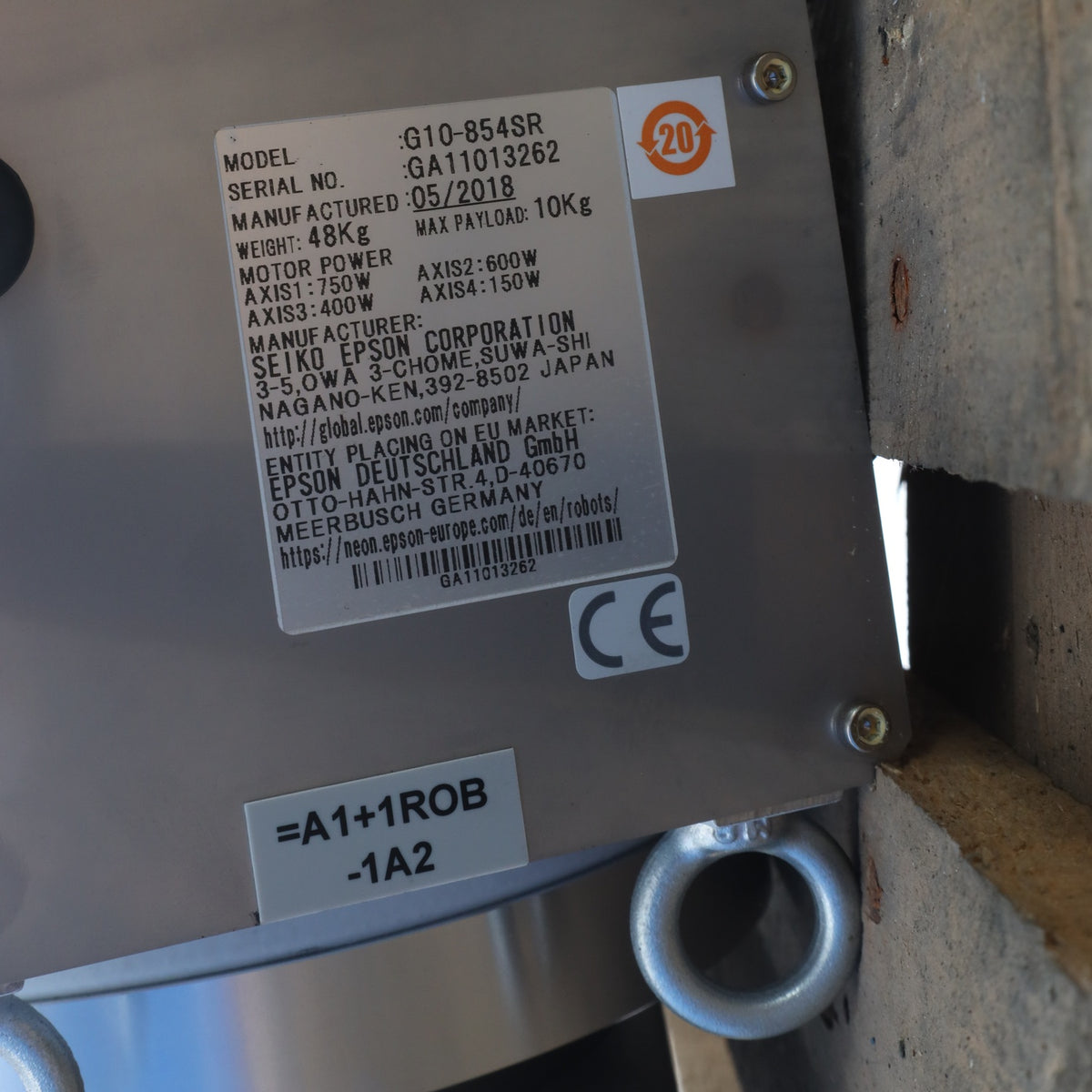

EPSON SCARA G10-854SR
Manufacturer: Seiko Epson Corporation (Japan)
Model: G10-854SR
Design: 4-axis SCARA, outward-oriented horizontal articulated arm
Weight: 48 kg
Payload (nom./max.): 5 / 10 kg
Reach: 850 mm (450 + 400 mm)
Z stroke: 420 mm (standard) / 390 mm (cleanroom/IP)
Repeatability (J1+J2 / J3 / J4): ±0.025 mm / ±0.010 mm / ±0.005°
Press force (continuous): 250 N
Motor power (A1 / A2 / A3 / A4): 750 W / 600 W / 400 W / 150 W
Protection classes: IP20 / IP54 / IP65 / ISO3 & ESD
Mounting options: Floor / Ceiling / Wall
Certification: CE

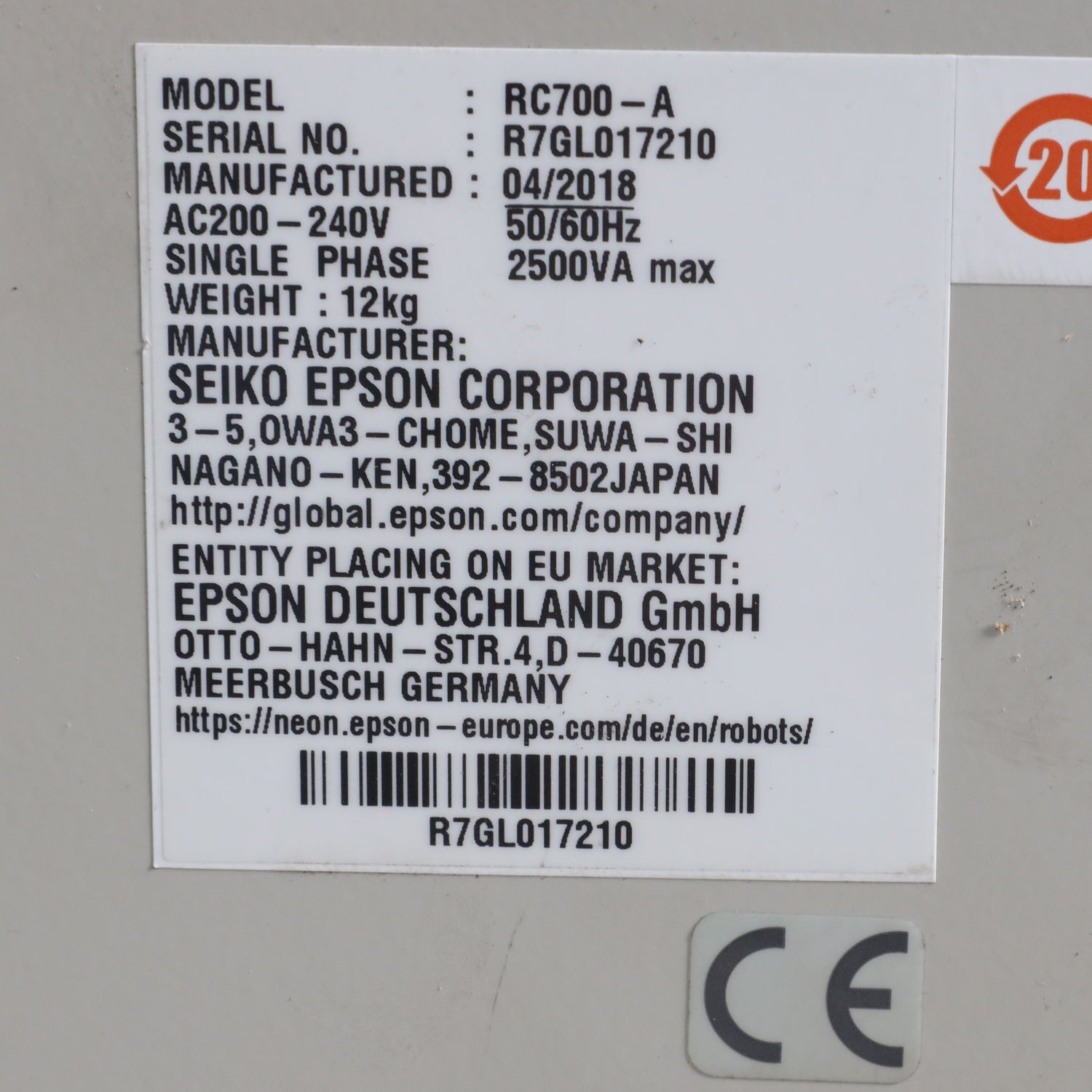

EPSON RC700-A Controller
Manufacturer: Epson
Model: RC700-A
Power supply: AC 200–240 V, 50/60 Hz, single phase
Power consumption: 2500 VA max
Weight: 12 kg
Multitasking capability: up to 48 tasks
Features: Conveyor Tracking / Vision Guide 7.0 / Multi-robot control
Interfaces: Fieldbus systems / Expansion modules
Compatible teach pendant: TP3
Certification: CE

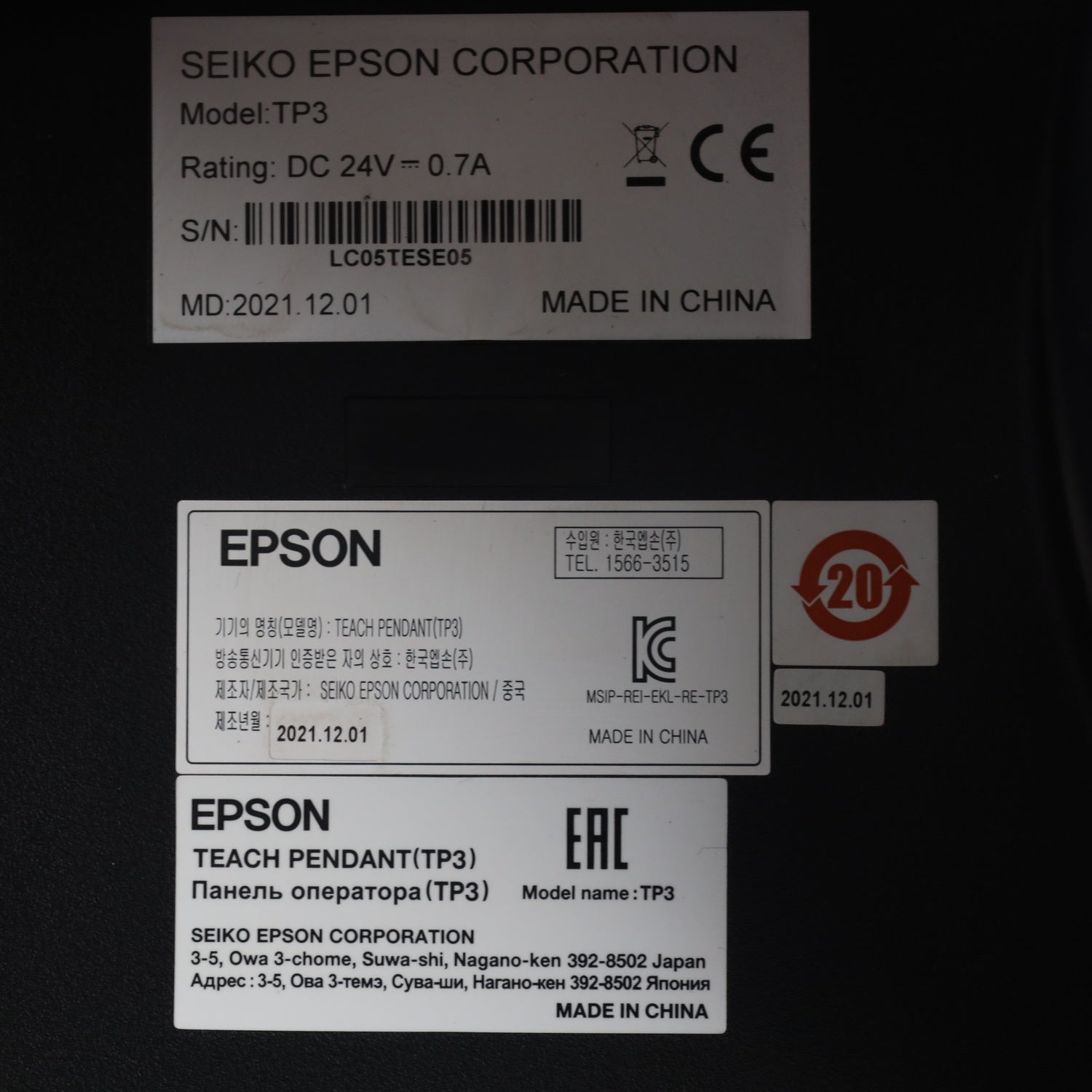

EPSON TP3 Teach Pendant
Manufacturer: Epson
Model: TP3
Power supply: DC 24 V
Current consumption: 0.7 A
Display: HD capable
Integration: fully integrated with RC700-A
Applications: Programming / Diagnostics / Maintenance / Visualization
Certifications: CE / EAC / KC
Origin: Made in China
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.

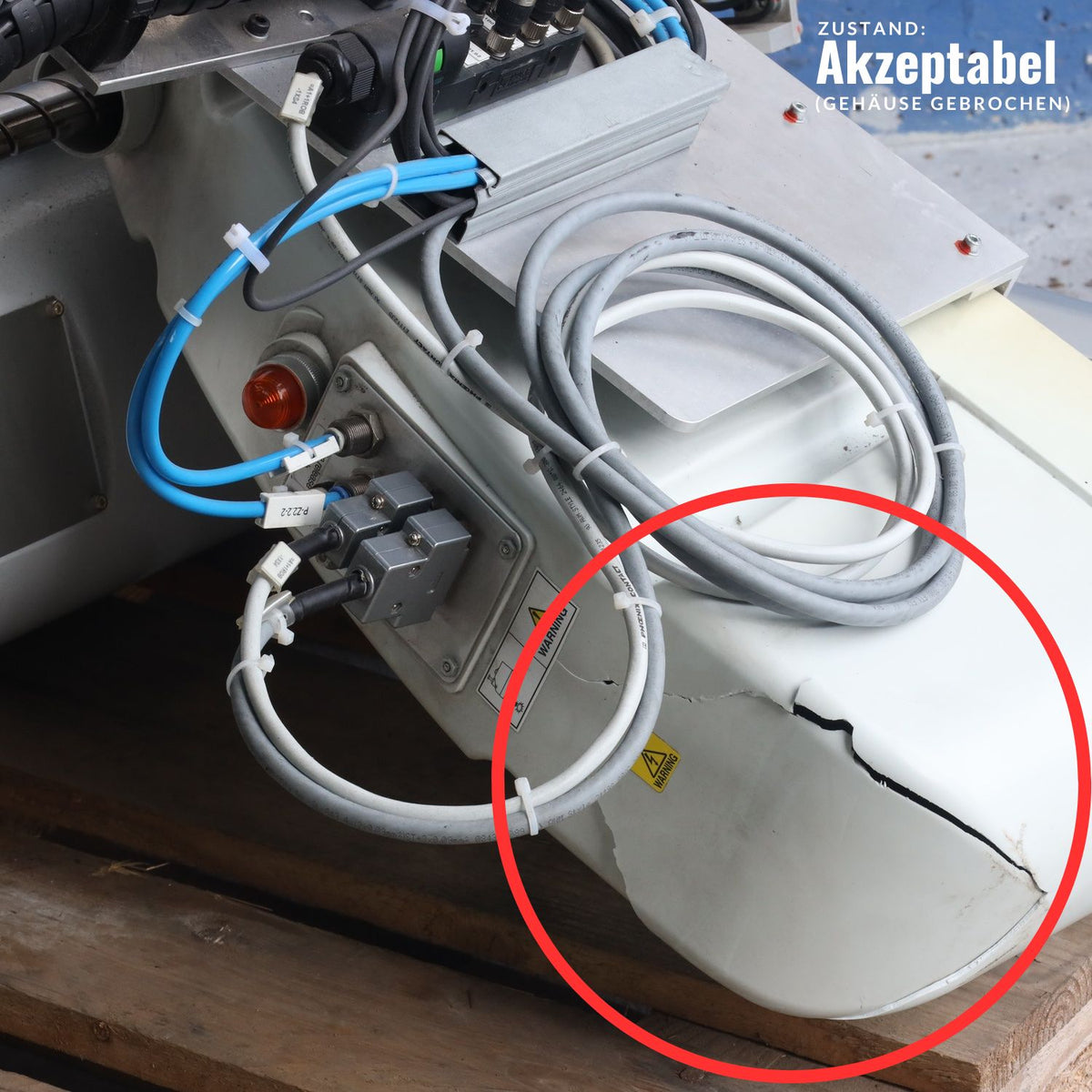

- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
