EPW 400.002.02.03 (417316)
Free shipping from 49€
worldwide shipping

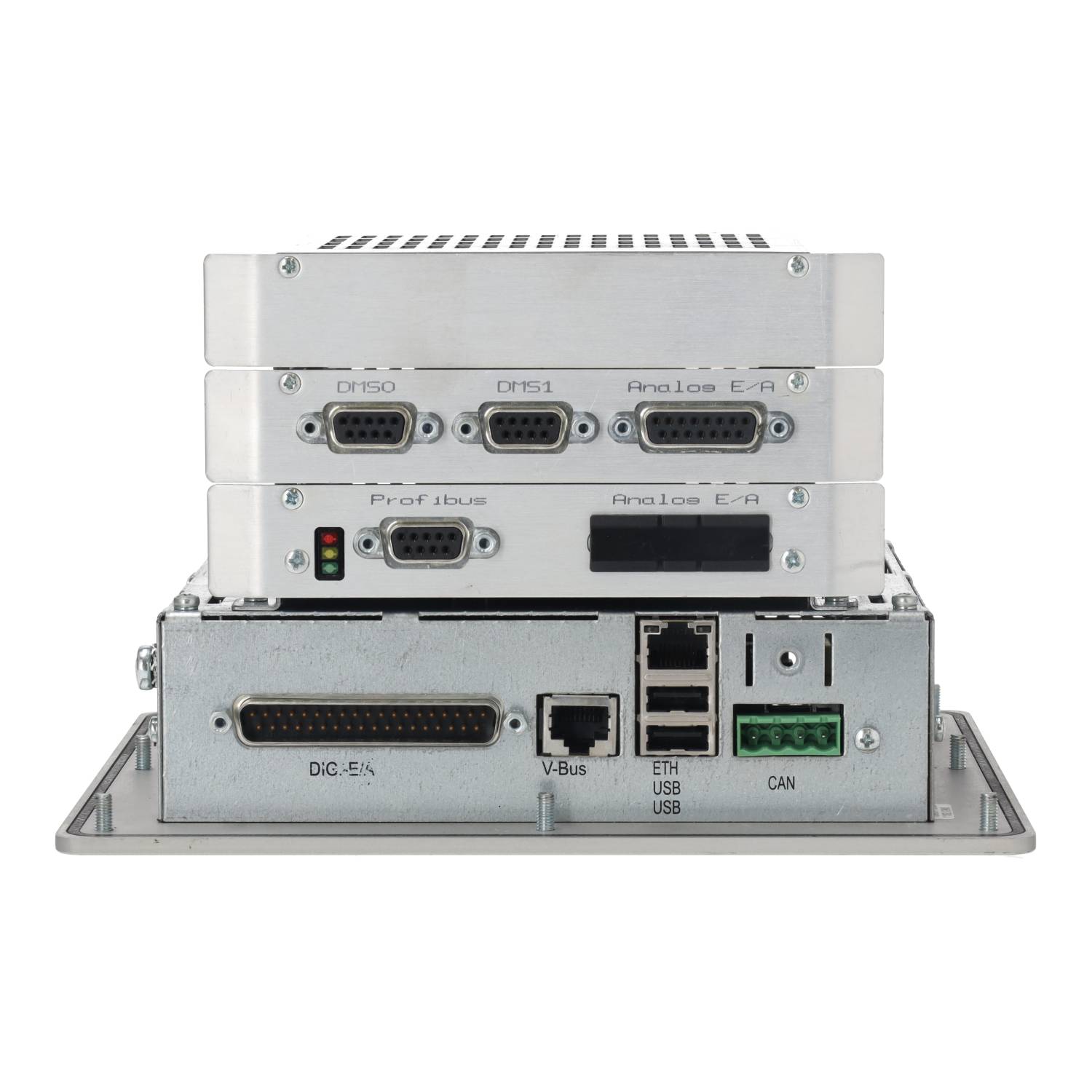

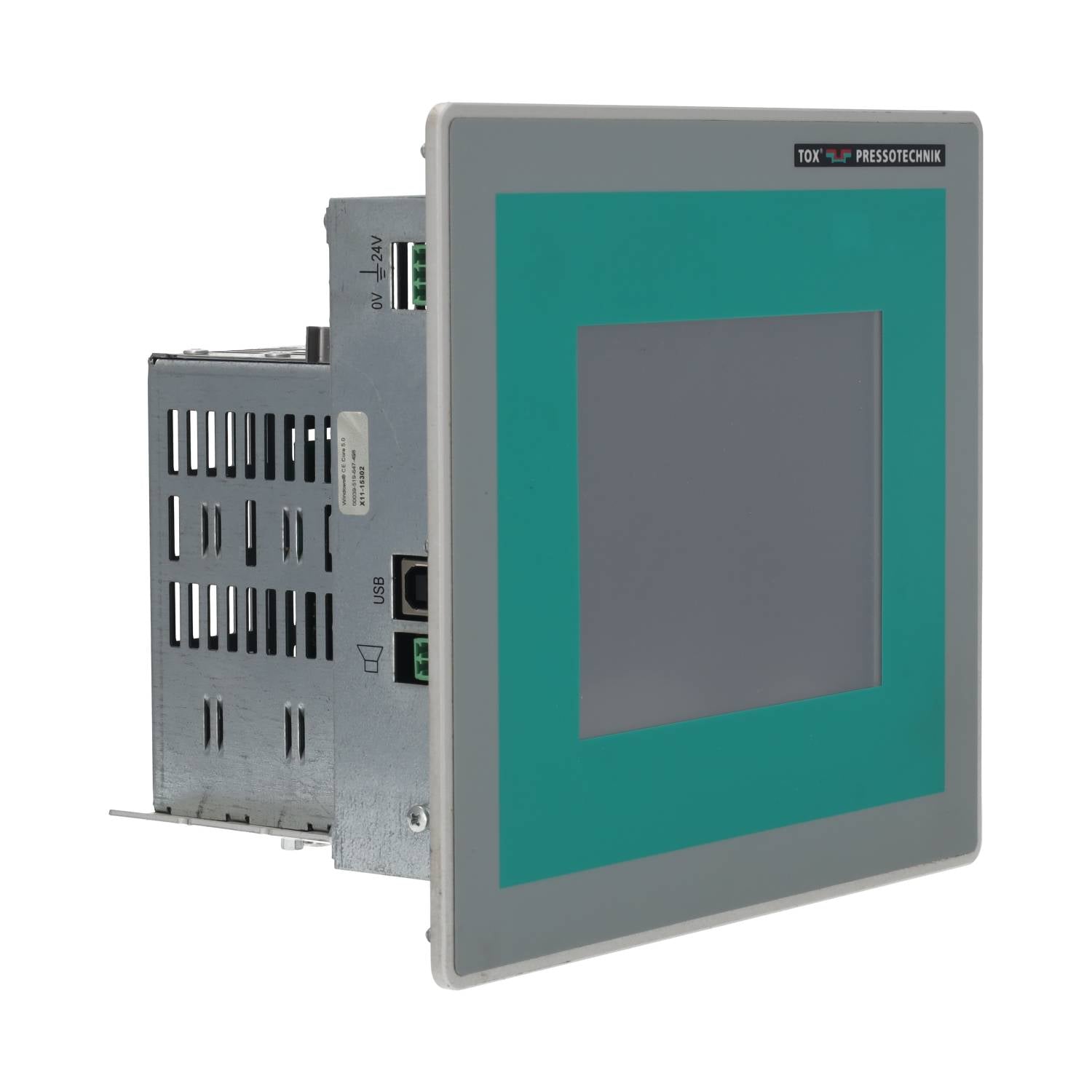

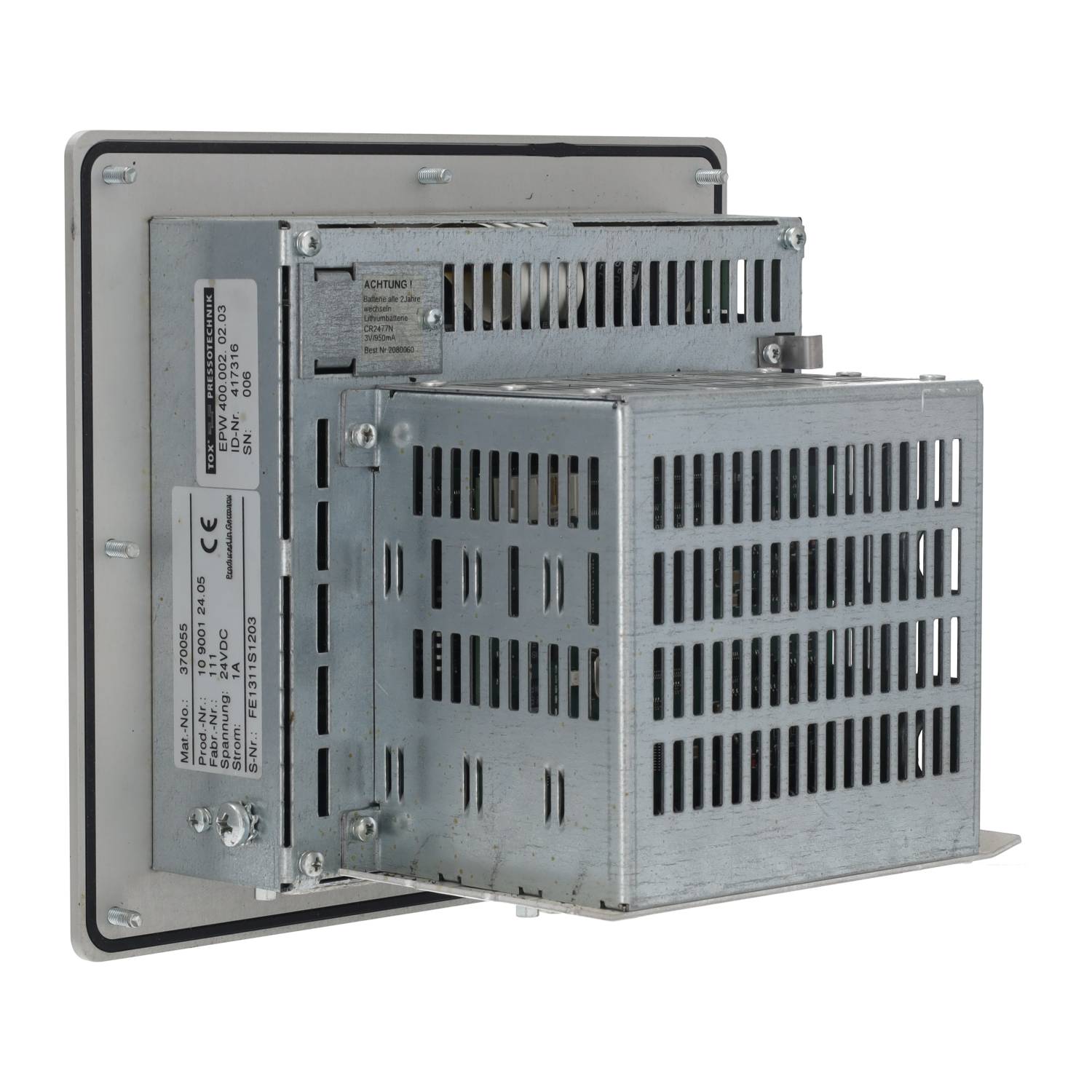

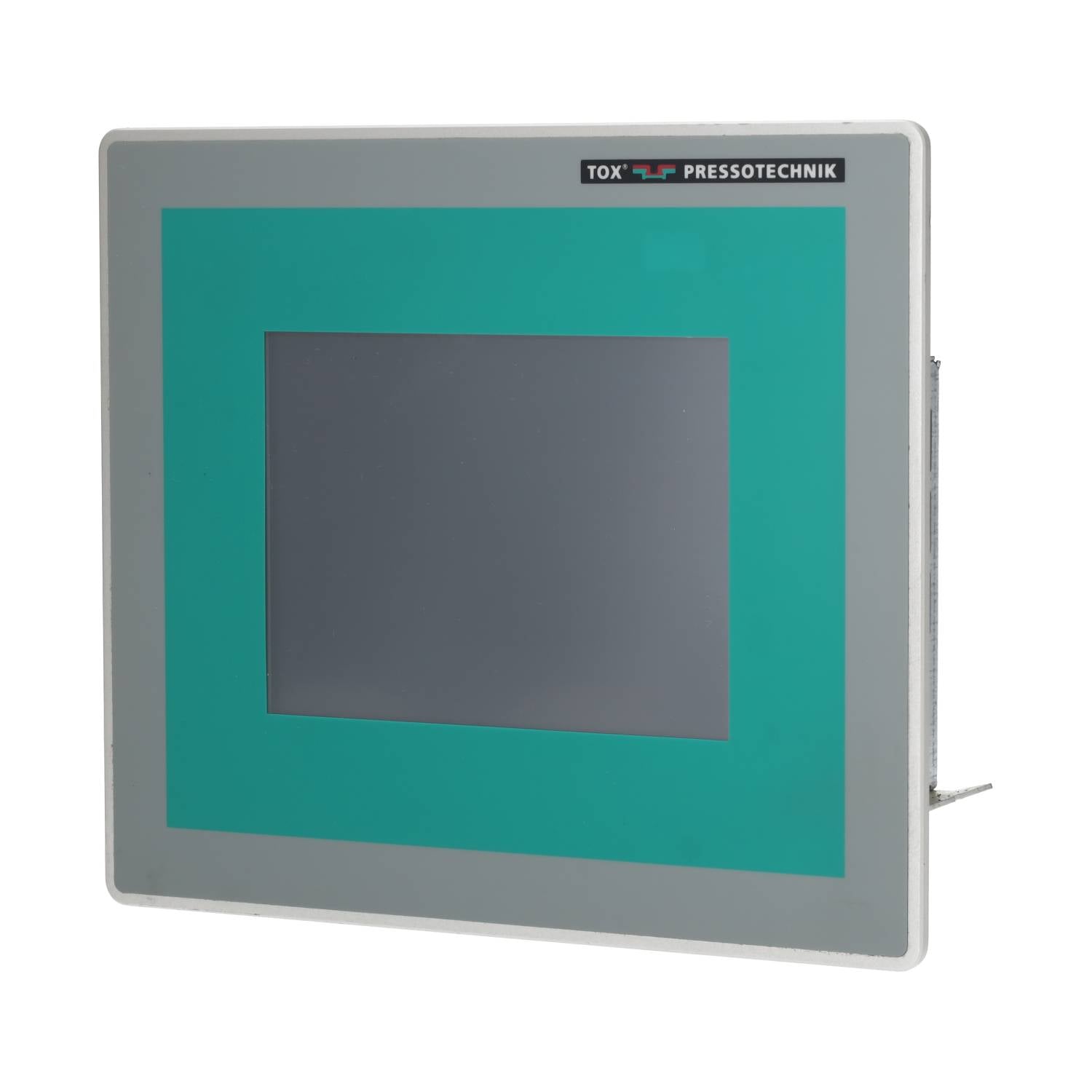

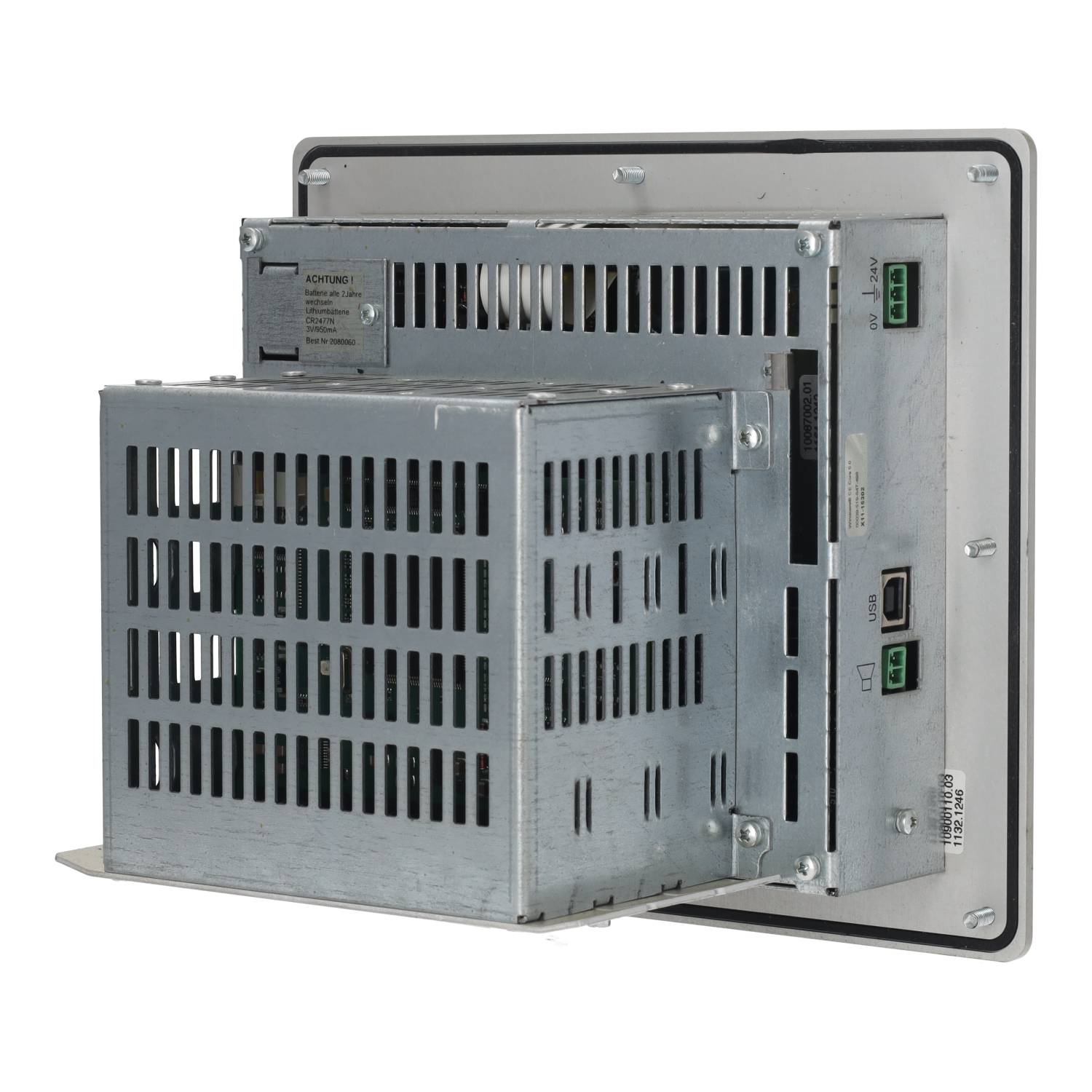

Type: TOX® Pressing Monitor EPW 400 (built-in version)
Supply voltage: 24 V DC
Current consumption: ≤ 1 A
Display: 5.7" color touchscreen (TFT LCD, 640 × 480 VGA, 16 bit)
Digital I/O: 16 inputs / 8 outputs
Analog outputs: 2
Measuring programs: 64
Dimensions (W × H × D): 210 × 185 × 123.5 mm
Weight: 1.5 kg
Interfaces: Ethernet, USB, Digital In/Out
Optional fieldbus interfaces: PROFIBUS DP, PROFINET CU, DeviceNet, Ethernet IP, CANopen, PROFINET LWL, EtherCAT
Protection class: IP54 front / IP20 housing
Measuring channels: Force (DMS, standard signal), Path (standard signal)
Channel resolution: 16 bit
Max. sampling rate: 2000 Hz
Monitoring: up to 10 windows / envelope functions
Curve display: last 10 curves shown in diagram
Memory: 1000 final values and 100 measuring curves
Backup: up to 100 curves + 1000 final values exportable as CSV to USB stick
