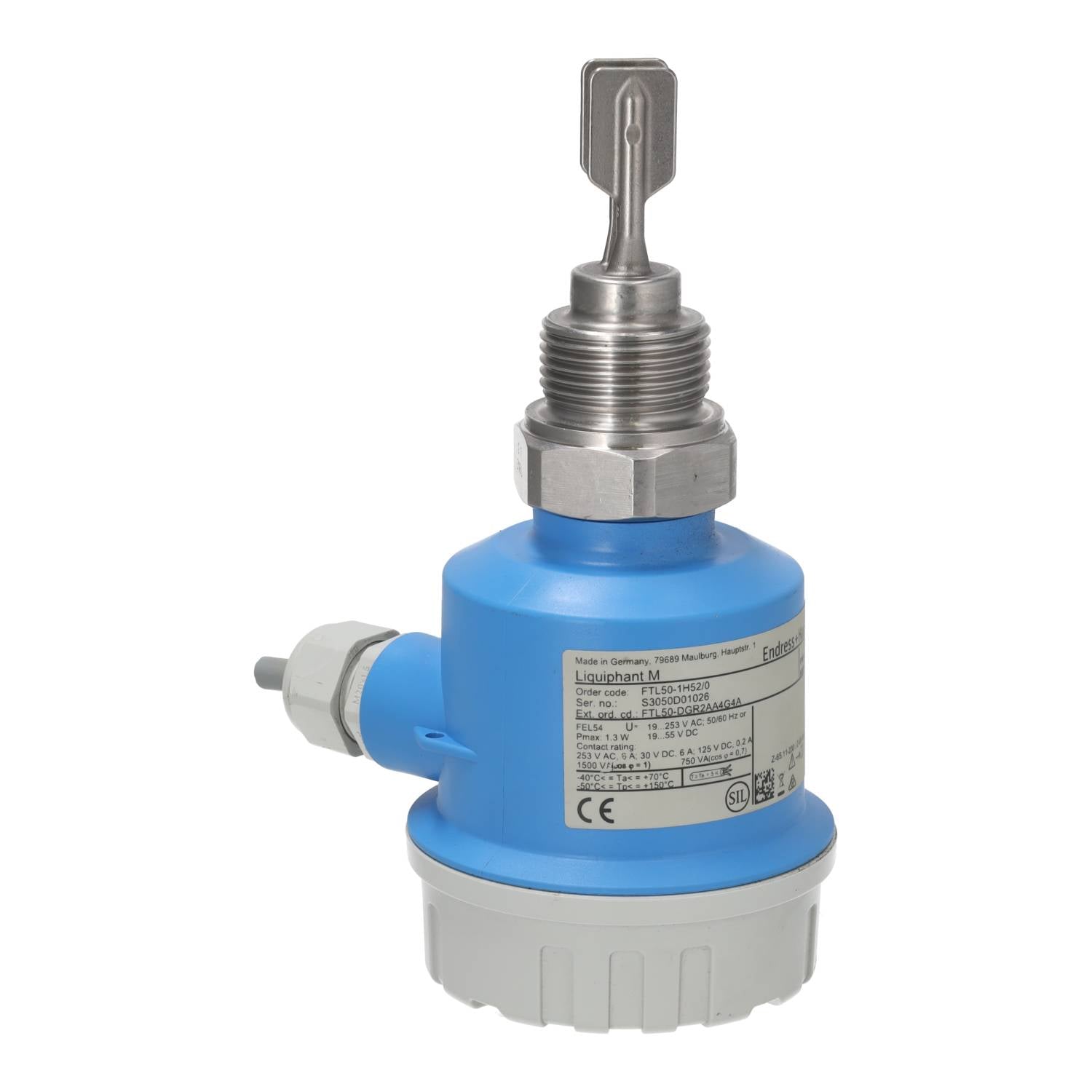

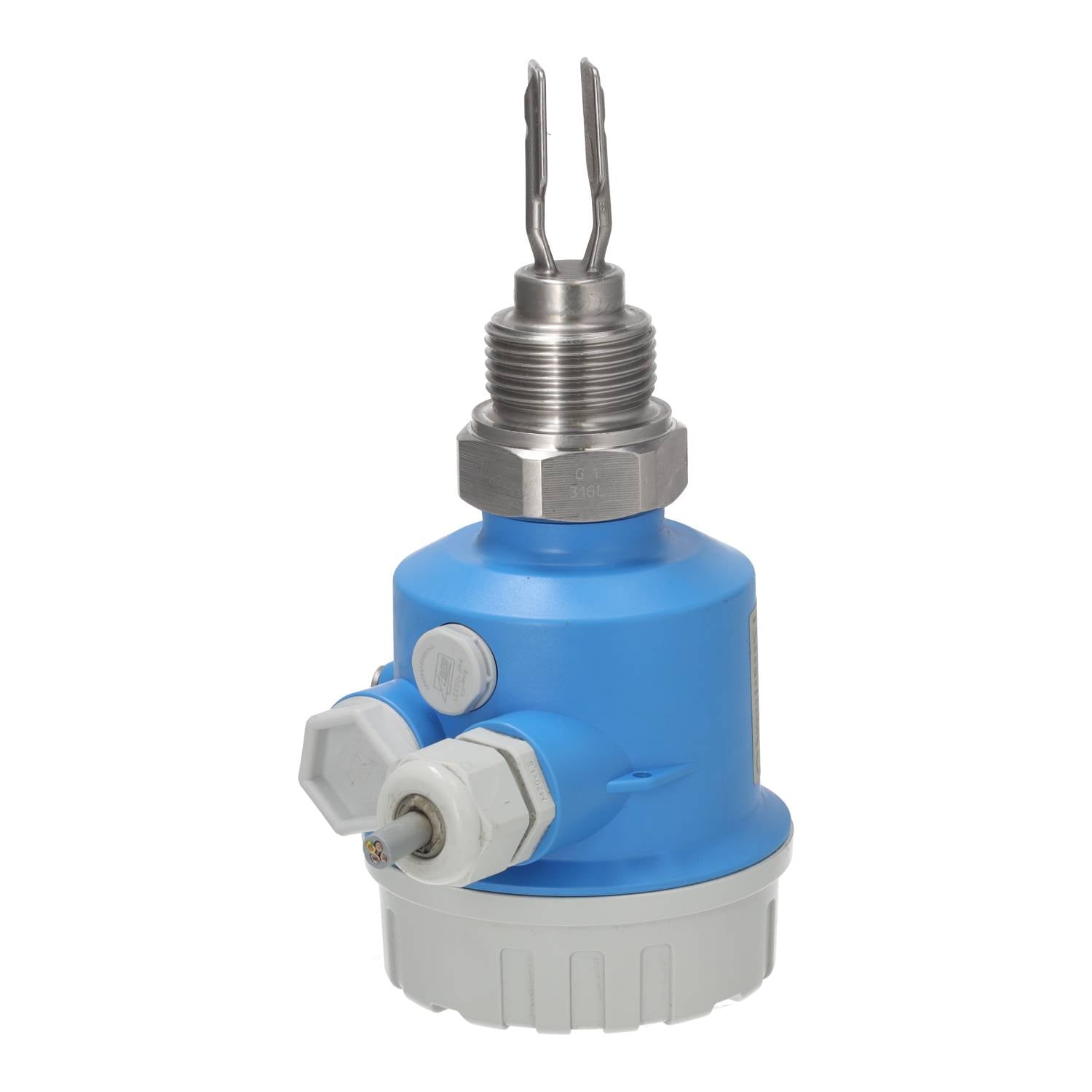

FTL50-DGR2AA4GA4A (FTL50-1H52/0)
Free shipping from 49€
worldwide shipping
Device type: Compact level switch for liquids
Functional safety: up to SIL2/SIL3 (IEC 61508/61511-1)
Explosion protection: International certificates (ATEX, FM, CSA, IECEx, TIIS, INMETRO, NEPSI) + WHG
Process temperature: –50 °C to +150 °C
Process pressure: vacuum to 64 bar
Medium density: ≥0.5 g/cm³ (optional ≥0.4 g/cm³)
Materials: Stainless steel 316L, Alloy
Process connections: Thread (G/NPT/R), Flanges (DN25–DN100, ASME, JIS), hygienic (Tri-Clamp)
Power supply/communication: PROFIBUS PA, 19–253 V AC, 10–55 V DC, 8/16 mA, NAMUR, PFM
Ambient temperature: –50 °C to +70 °C
Special features: second line of defense, foam detection, density change detection
Approvals: GL/ABS/DNV, EN 10204-3.1, NACE MR0175/MR0103, ASME B31.3, AD2000
