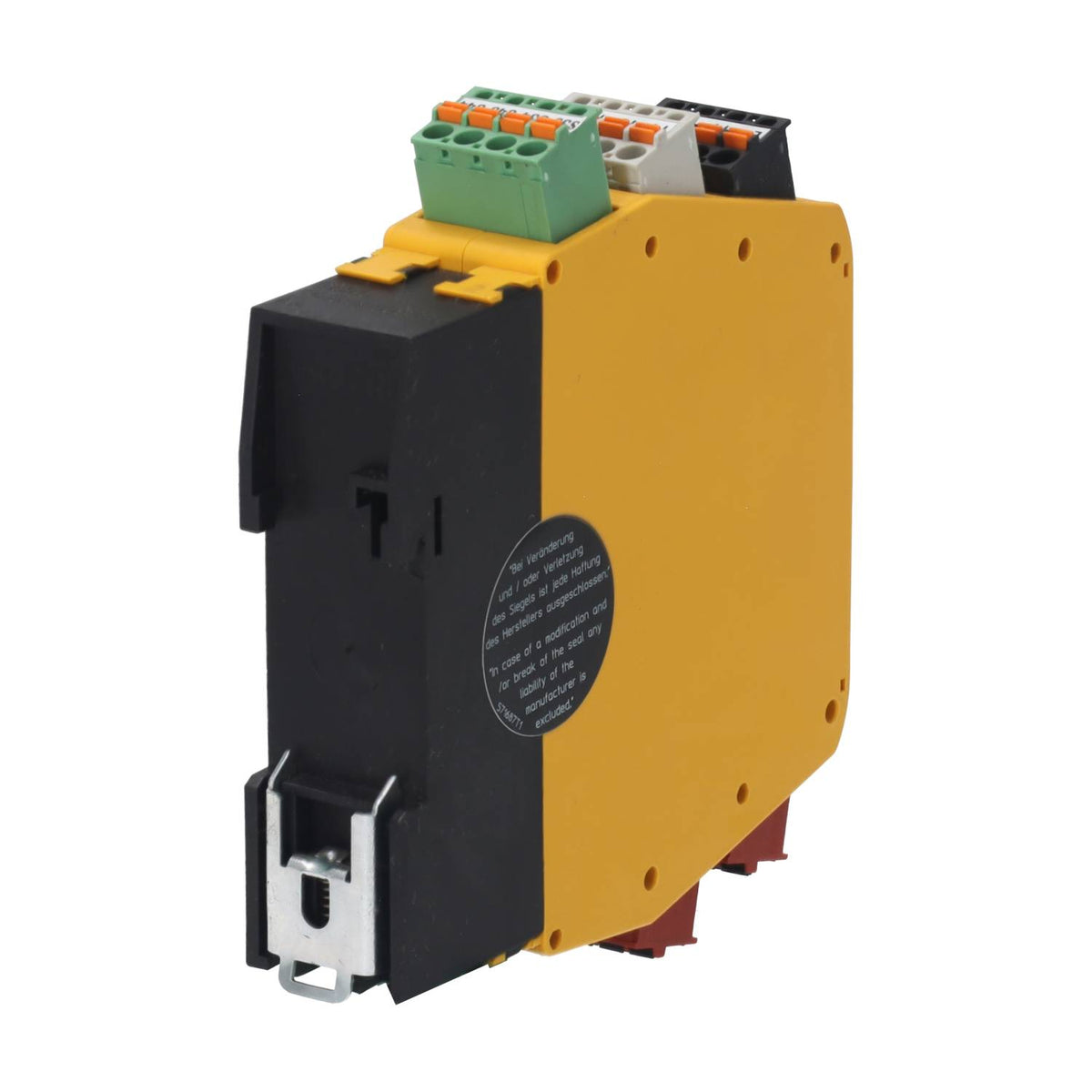

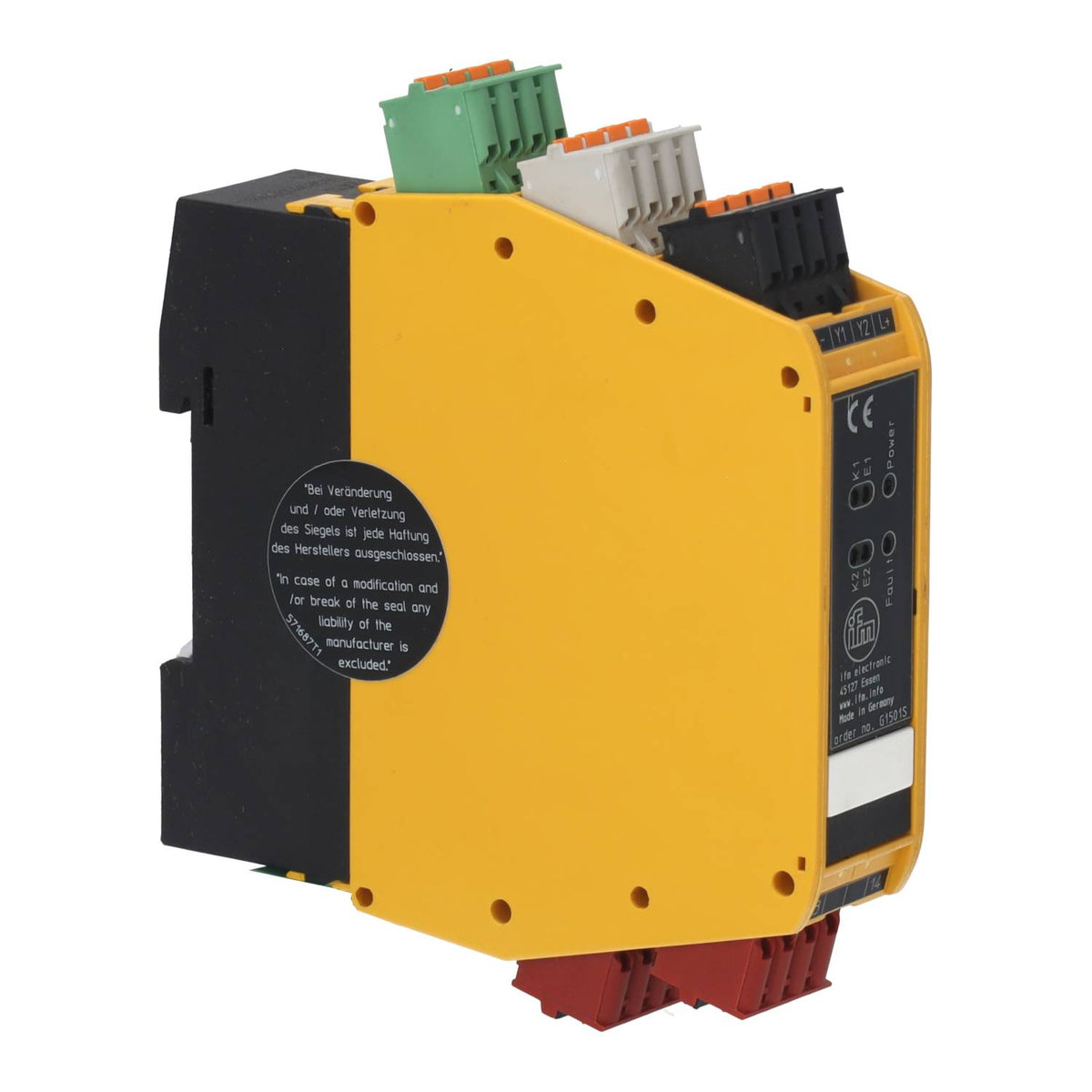

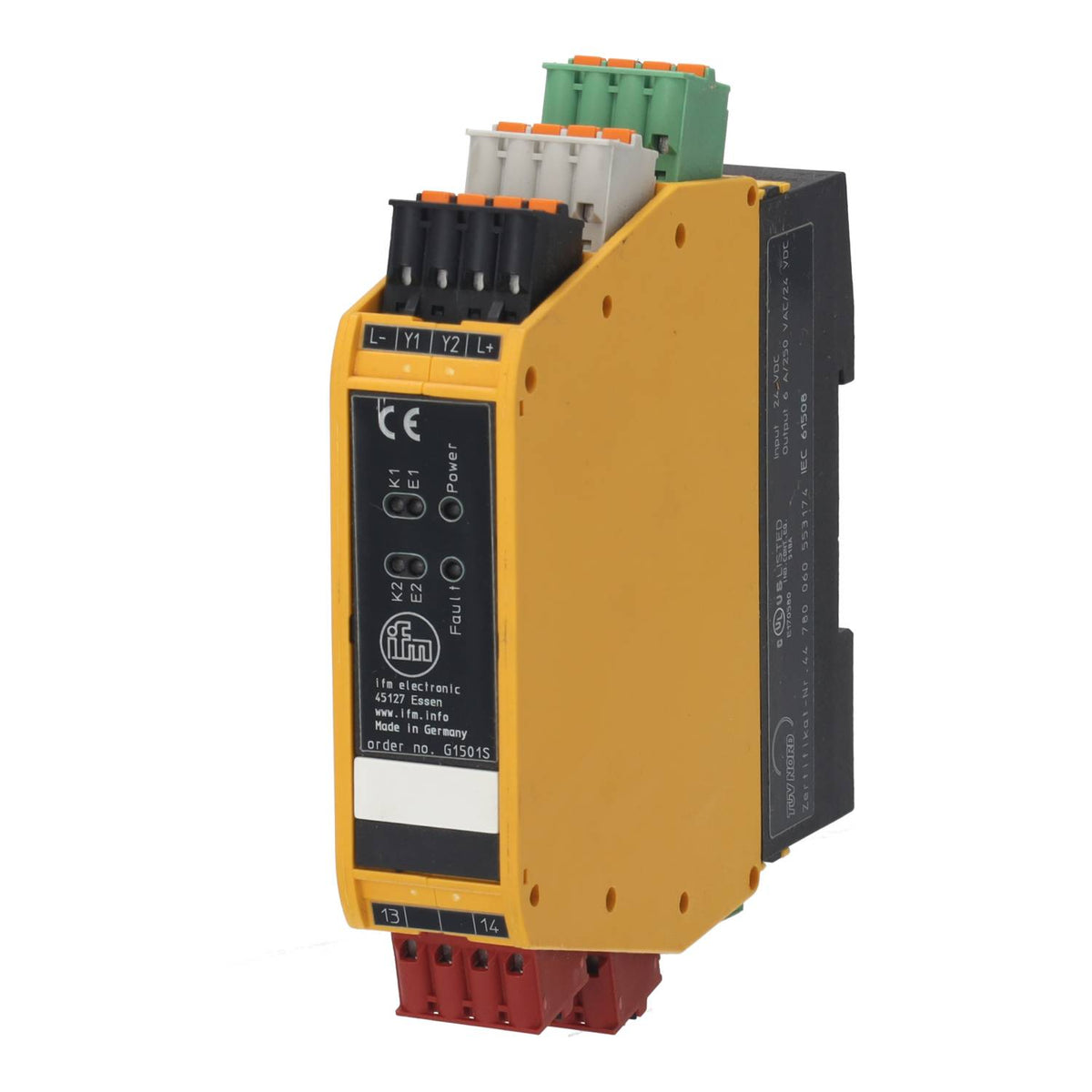

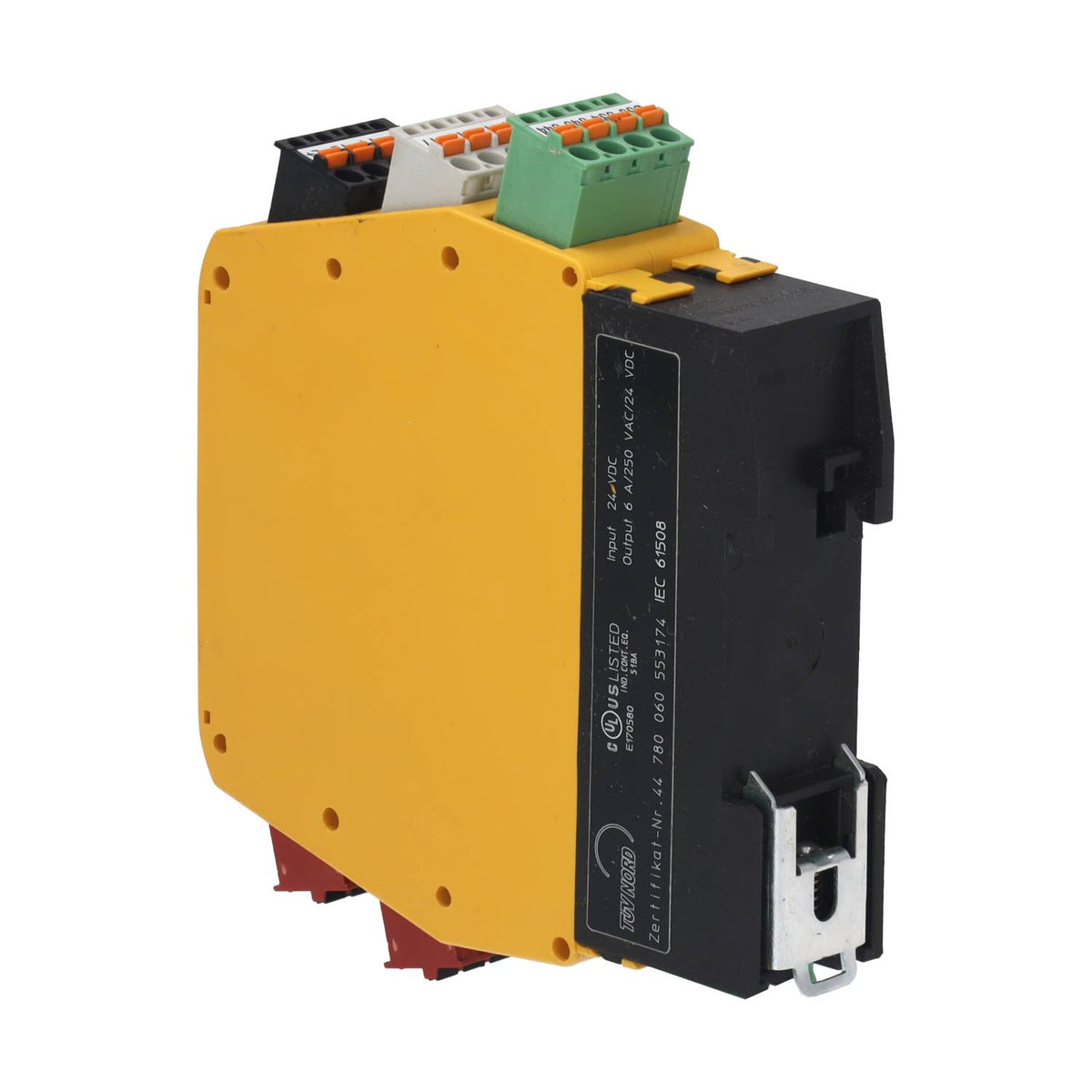

G1501S
Free shipping from 49€
Worldwide shipping
- Manufacturer: ifm electronic
- Series: Safety / Evaluation Systems Safety
- Model: G1501S
- Device type: Safety Switch / Safety Relay
- Electrical Specifications: Relays
- Usage: Connection of electronic and mechanical safety switches, as well as use as a two-hand control
- Security category: Category 4
- Performance Level: PL e
- Safety Integrity Level: SIL 3
- Two-hand control: Type IIIC
- Operating voltage: 24 V DC (19.2–30 V DC)
- Permissible residual ripple: 5 %
- Current consumption: < 200 mA
- Current through feedback contacts: > 6 mA
- Security inputs S34 / S43: “1” > 11 V / 6 mA; “0” < 5 V / < 500 µA
- Safety outputs: 2 × safety-related normally open contacts, potential-free
- Signal output: 1 × P-switching
- Contact rating: 6 A at 250 V AC / 24 V DC
- Protecting contacts: Fuse with rated current < 3,6 A
- Standby delay time: 6 s G1501S-04
- PFHd: < 2.2 × 10⁻⁹ 1/h
- MTTFd: 136 years
- DC: 99 %
- CCF: 80 %
- B10d: ≤ 780.000
- Service Life TM: ≤ 175,200 h
- Protection class: IP20
- Housing material: PA (polyamide)
- Operating Voltage Display: Green
- Error message: Red
- Switch Status Indicator: 2 × Yellow
- Input Signal Display: 2 × Yellow
- Electrical Connection: Combicon connectors with screw terminals
- Product list: Phoenix Contact MSTBO
- Installation: Mounting rail
- Width: 25 mm
- Height: 100 mm
- Depth: 105 mm
- Weight: 0.28 kg
