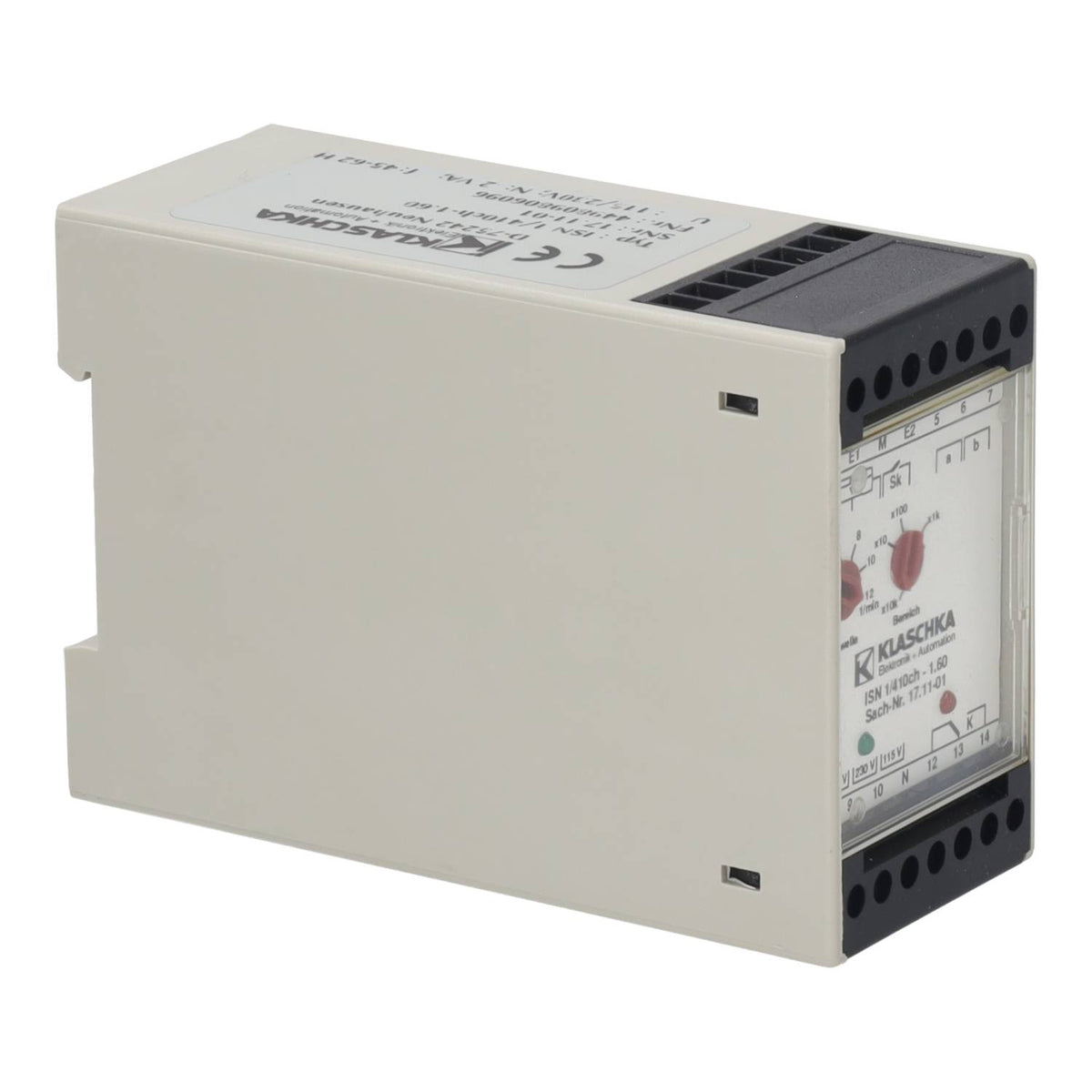

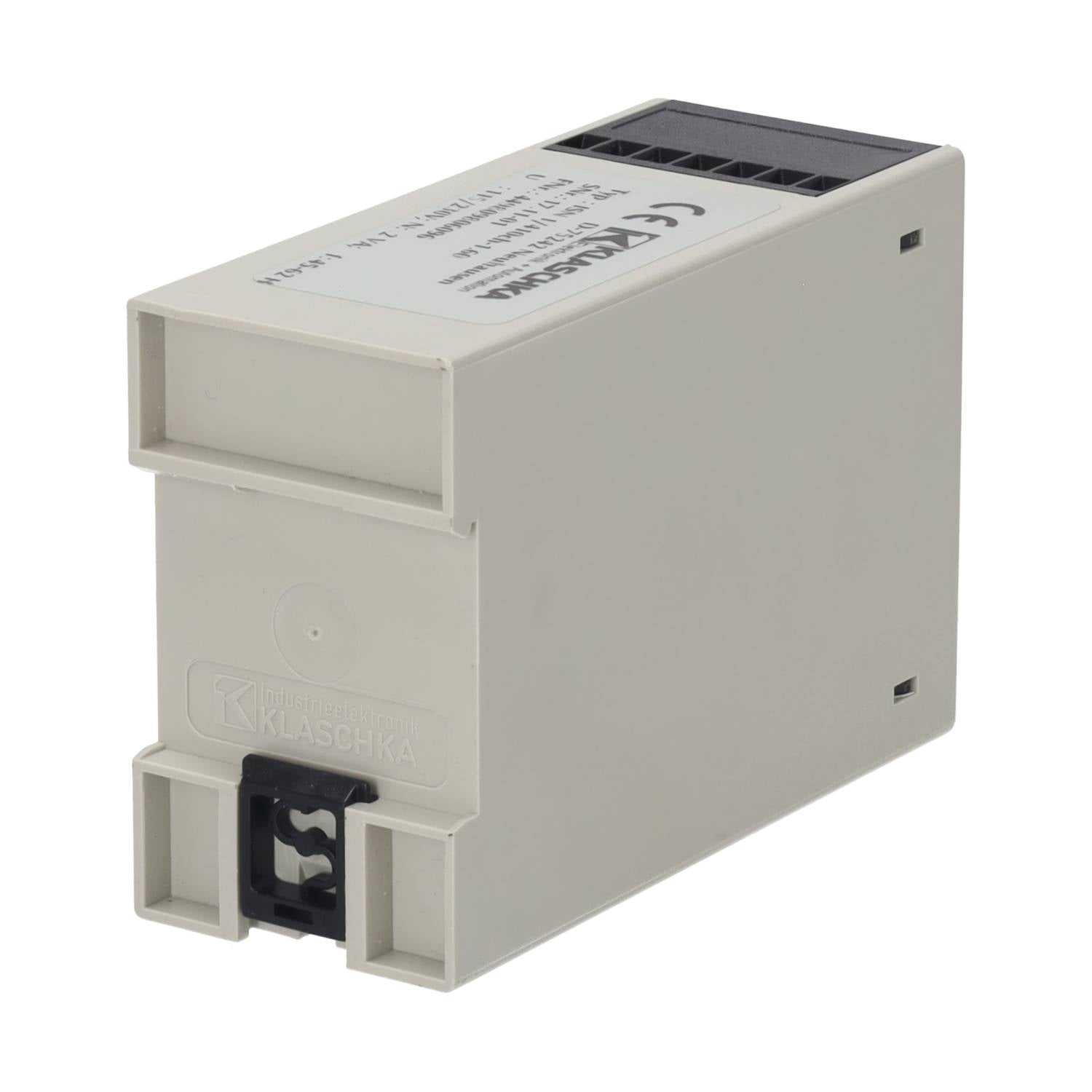

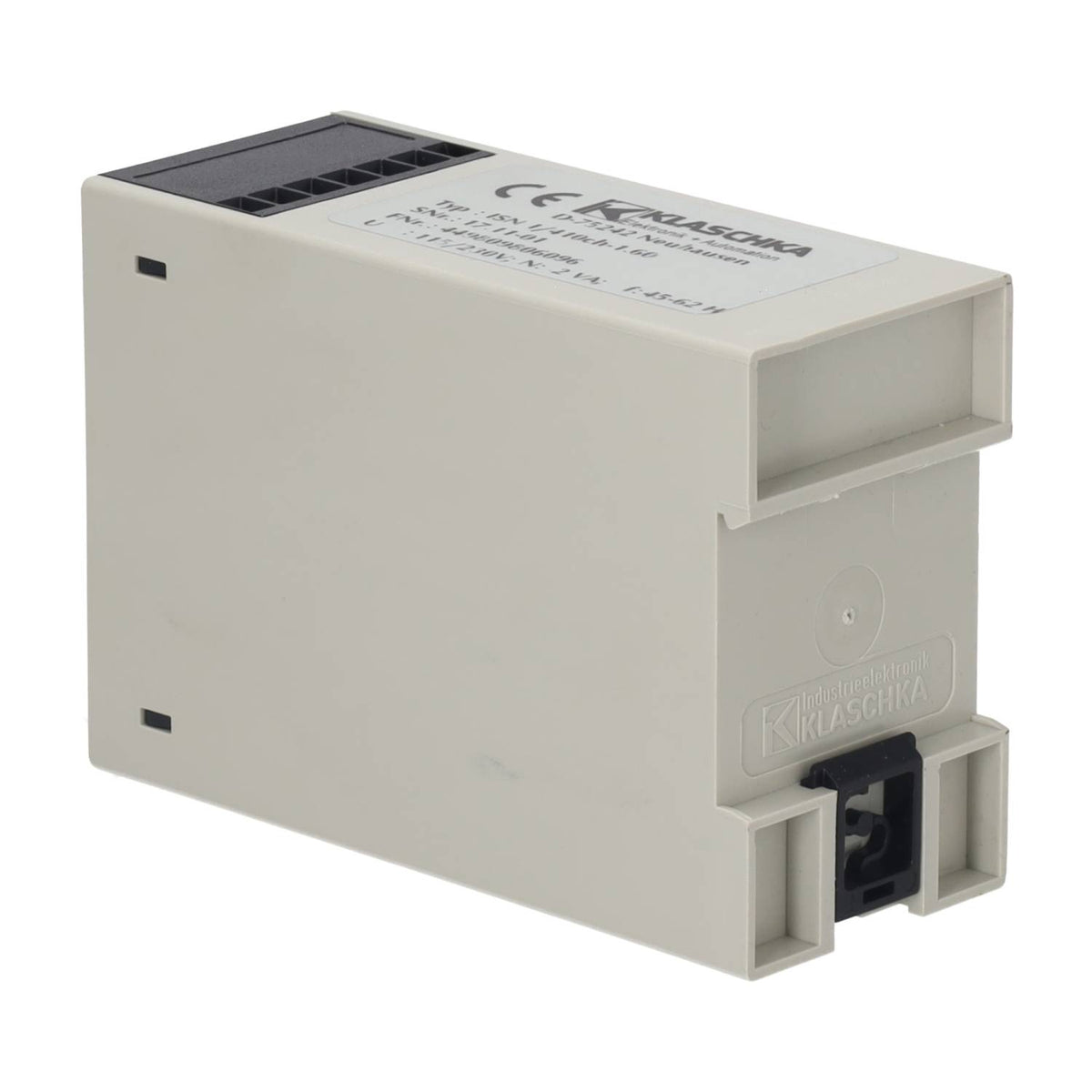

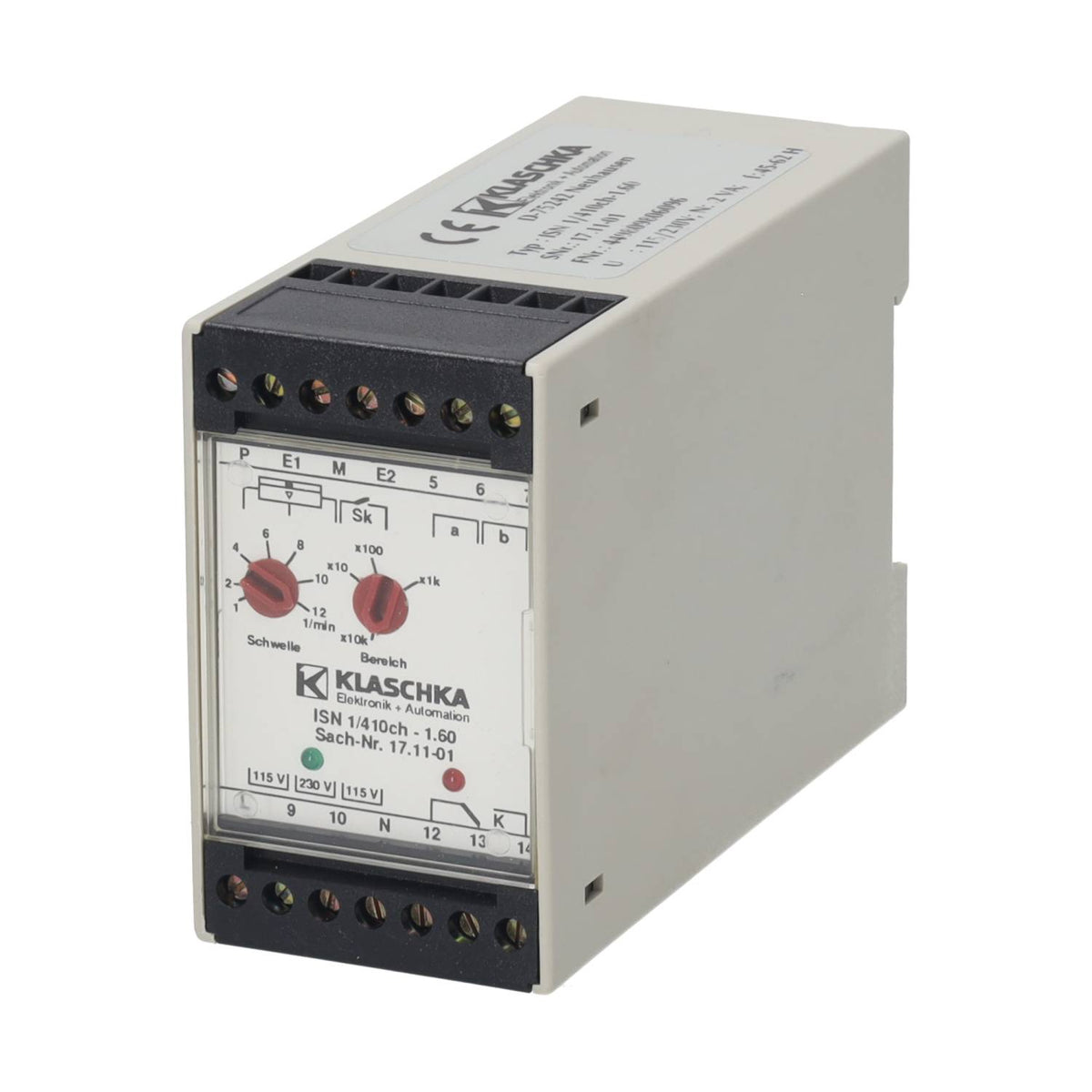

ISN/14/10ch/1-60-(Uv) (17.11-01)
Free shipping from 49€
worldwide shipping
Product Name: Pulse Counter Relay ISN
Model: ISN/14/10ch/1-60-(Uv)
Operating Voltage: 115 / 230 / 42 or 24 V AC, 24 V DC
Tolerance: ±10 %
Frequency: 50–60 Hz
Ripple (DC): max. 10 %
Power Consumption: approx. 4 VA
Housing Width: 60 mm (see housing data)
Weight: approx. 300 g
Operating Temperature: 0…+55 °C
Input Signal: Pulse generator according to ALSEN TK1/TK2 catalog
Input Frequency: 0.1 Hz–1 kHz
Duty Cycle: 1:7…1:3
Threshold Level: adjustable 1.2 Imp/min up to kHz range
Level 1: 10–14 V
Level 2: 12–36 V
Hysteresis: approx. 5.6 % of S
Pulse Supply Output: 15 V / 35 mA max.
Output: Relay output, 1 potential-free changeover contact
Switching Capacity: 24…250 V / 0.05…6 A
Max. Switching Power: 1250 VA AC / 50 W DC
Indicators: 1 red LED for power ON, 1 red LED for output active
Accuracy: ±5 %
Setting Accuracy: ±5 %
Temperature Influence: ±3 %
Voltage Influence: ±0.2 %
Dimensions (W×H×D): approx. 60 × 75 × 115 mm
Function: Counts pulses and monitors speed, frequency, or motion
Mounting: DIN rail mounting
Protection Class: IP20
Application: Monitoring of rotational or pulse-based movements in industrial systems
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.
- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
