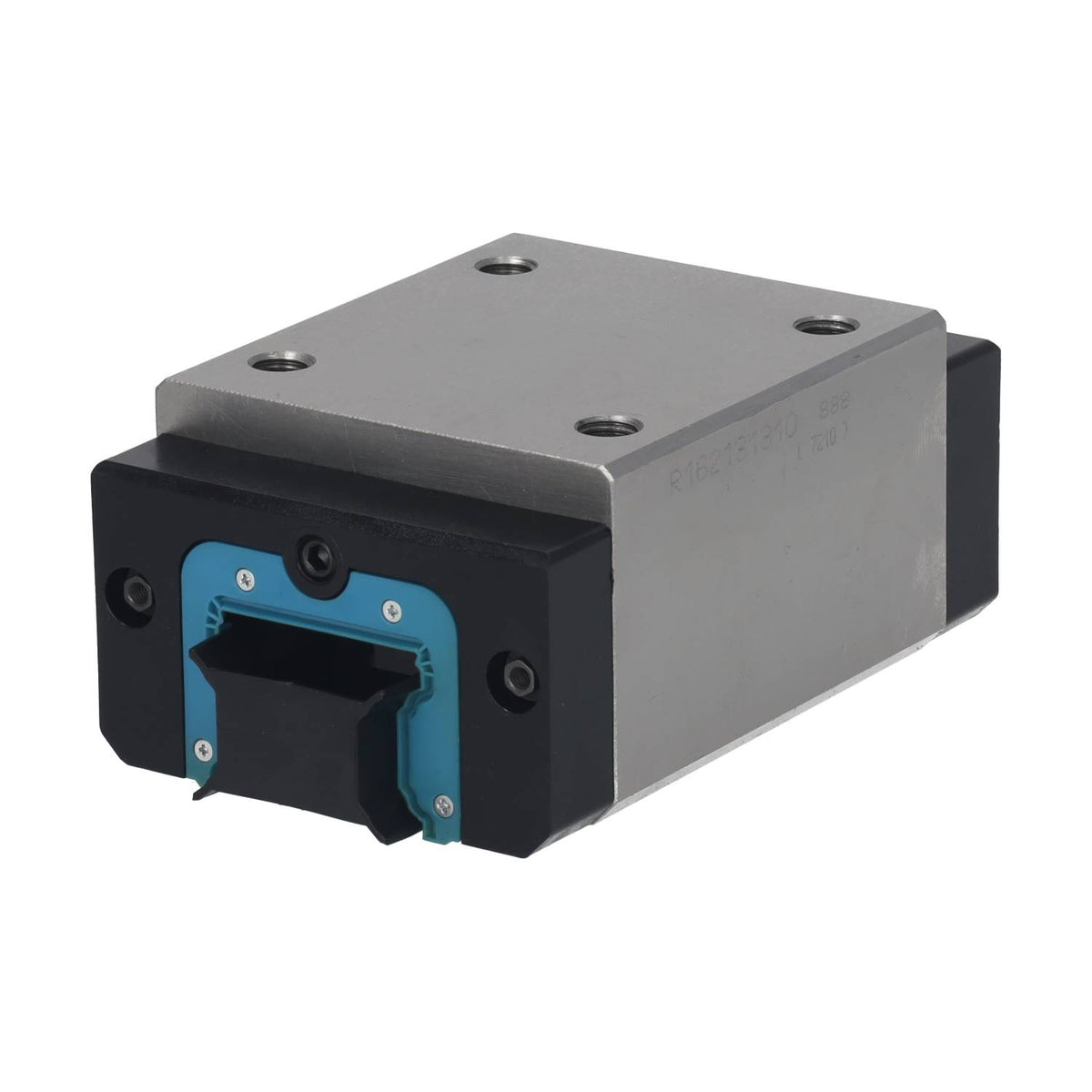

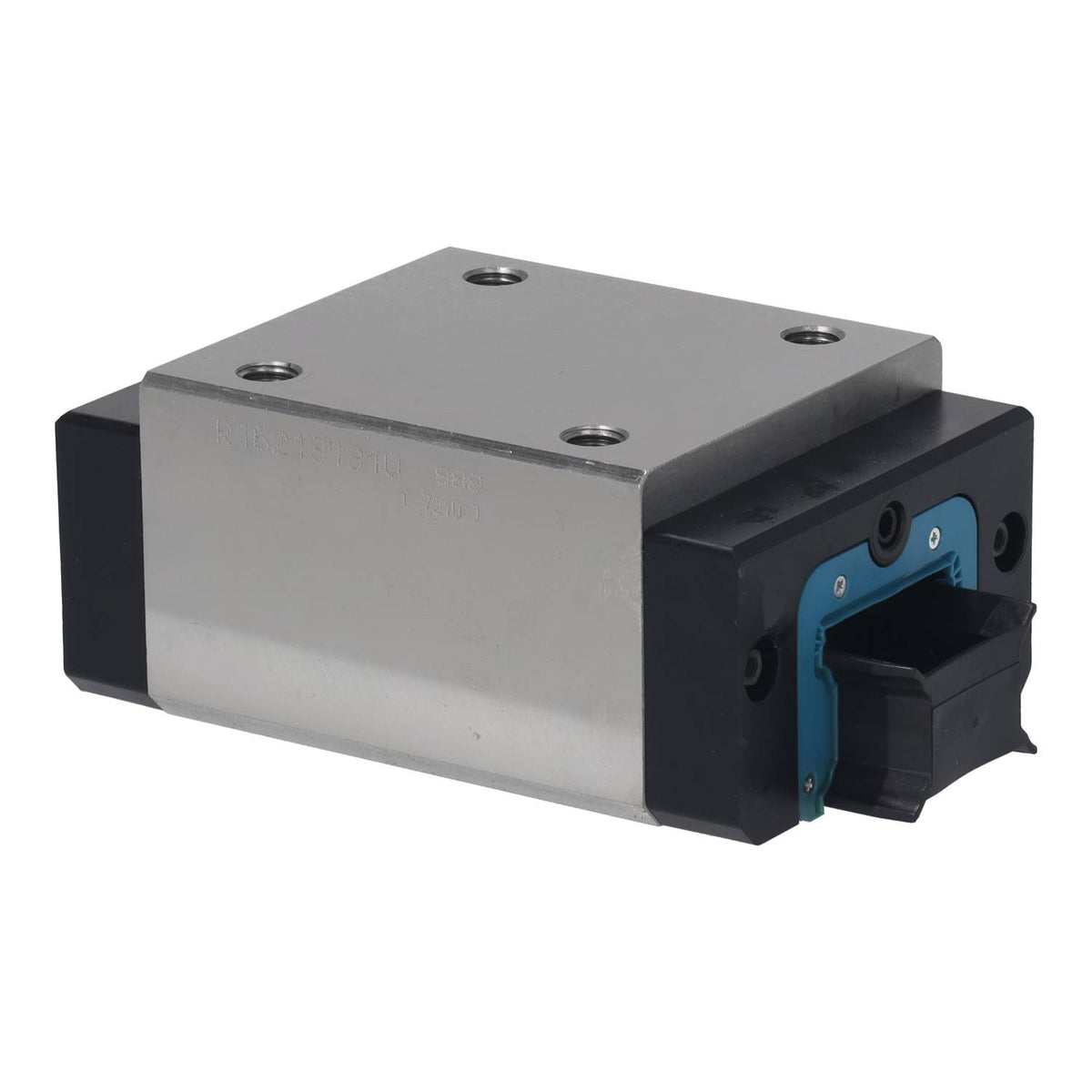

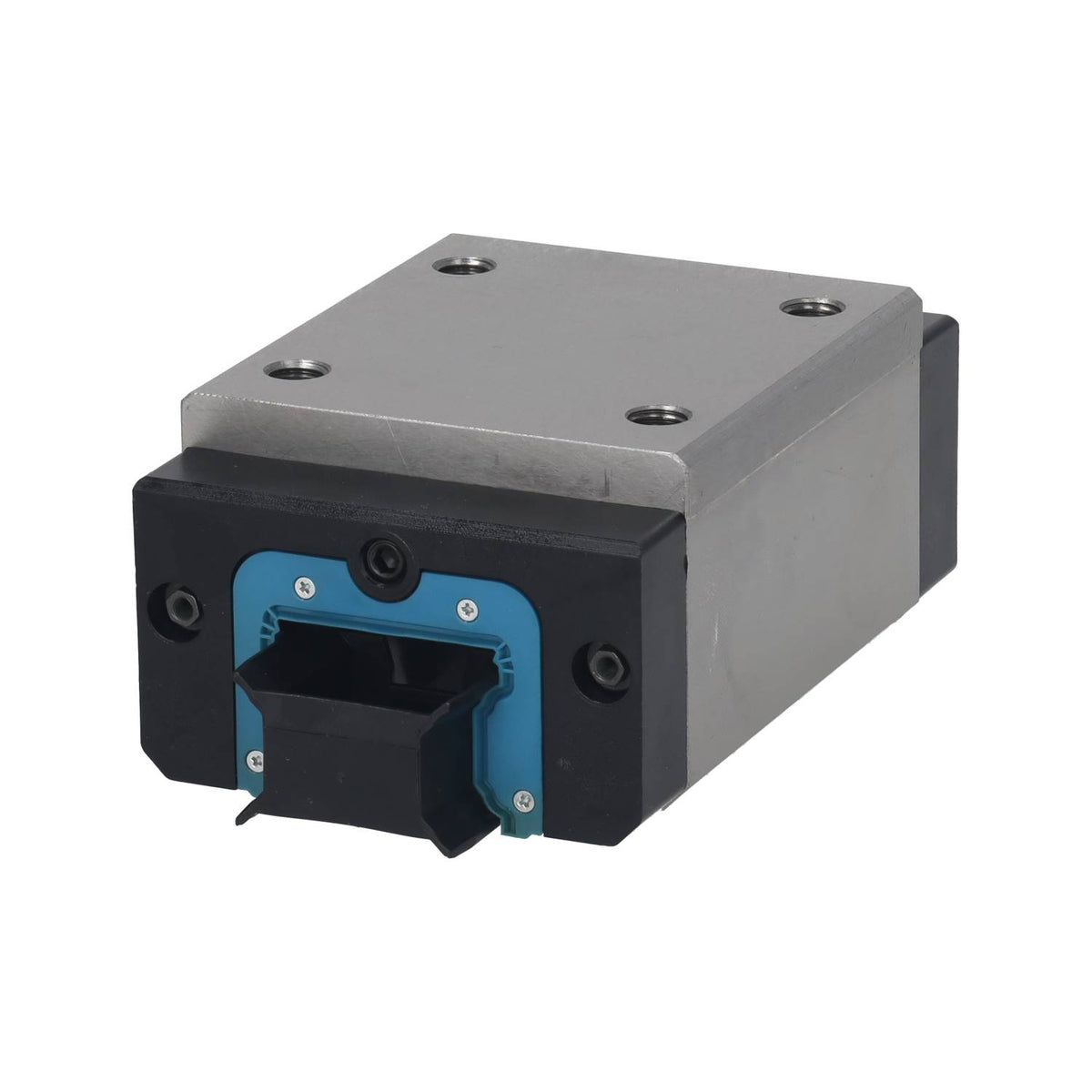

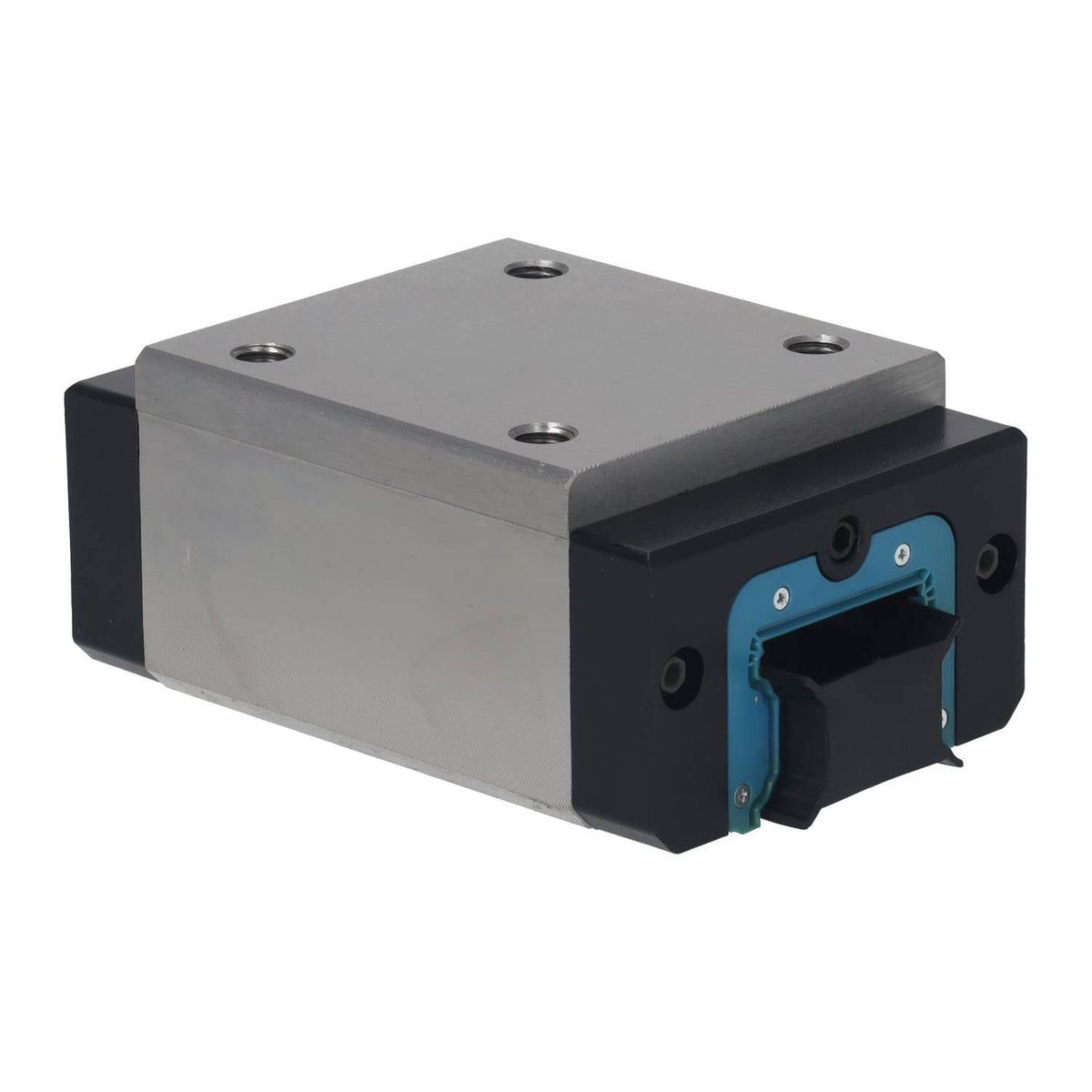

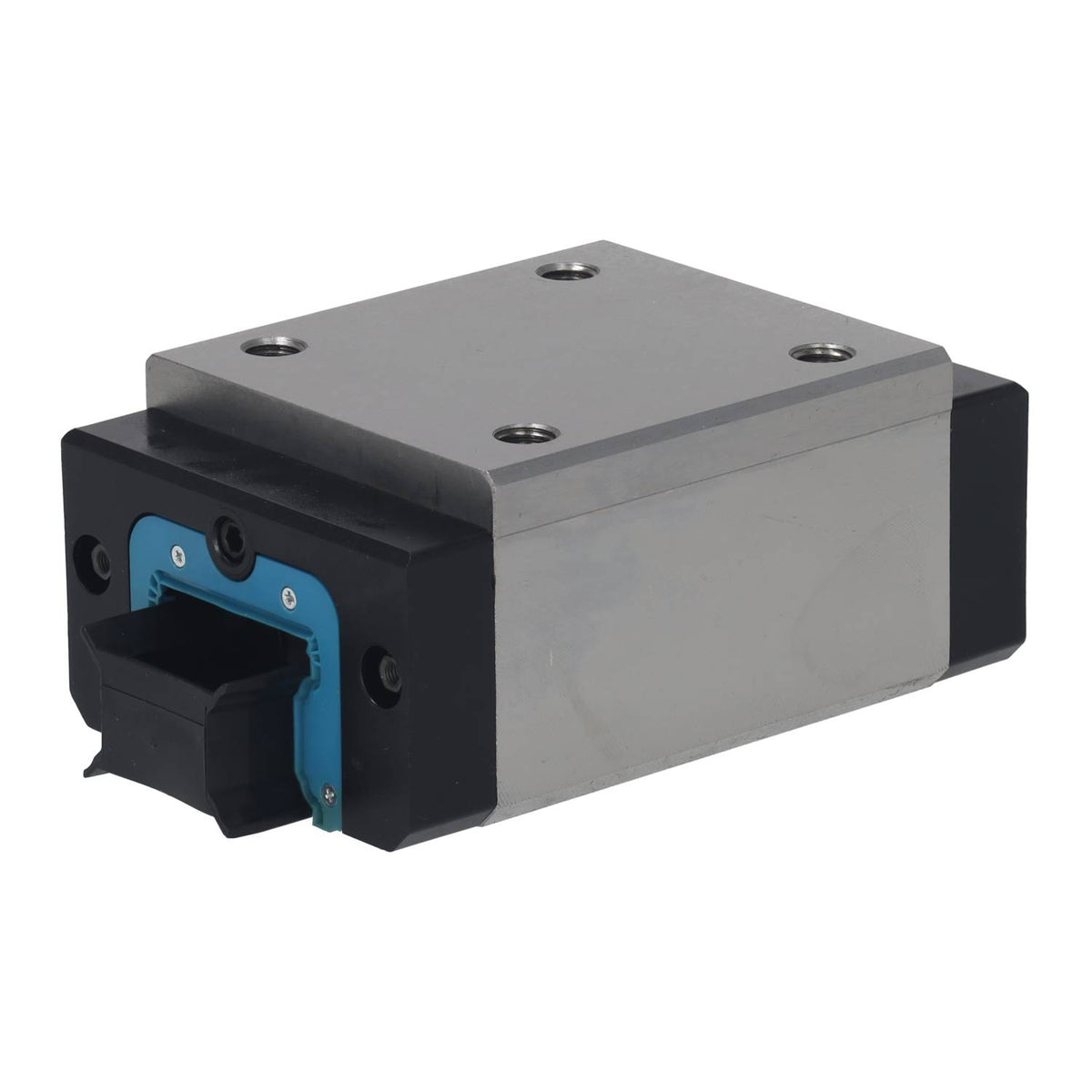

KWC-035-SNH-C1-H-2 (R162131310)
Free shipping from 49€
Worldwide shipping
- Manufacturer: Bosch Rexroth / STAR
- Model: KWC-035-SNH-C1-H-2
- Item Number: R162131310
- Old order number: 1621-313-10
- Device Type: Ball-Guide Carriage / Linear Guide Carriage
- Design: Narrow, tall design
- Size: 35
- Material: Carbon steel
- Accuracy class: H
- Preload: C1, light preload of 0.02 × C
- Dynamic load rating C: 41,900 N
- Static load rating C0: 54,000 N
- Torque capacity Mt, dynamic / static: 890 / 1.160 Nm
- Torque capacity ML, dynamic / static: 440 / 565 Nm
- Mounting thread: 4 × M8
- Mounting hole spacing E1 × E2: 50 × 50 mm
- Lubrication: Can be relubricated via grease fittings
- Length B: 105 mm, without grease nipple
- Width A: 70 mm
- Height dimension H1 according to the dimensional drawing: 47 mm
- System height H with guide rail: 55 mm
- Weight according to the catalog: 1.50 kg
