MK 40 NC (505580)
Free shipping from 49€
worldwide shipping

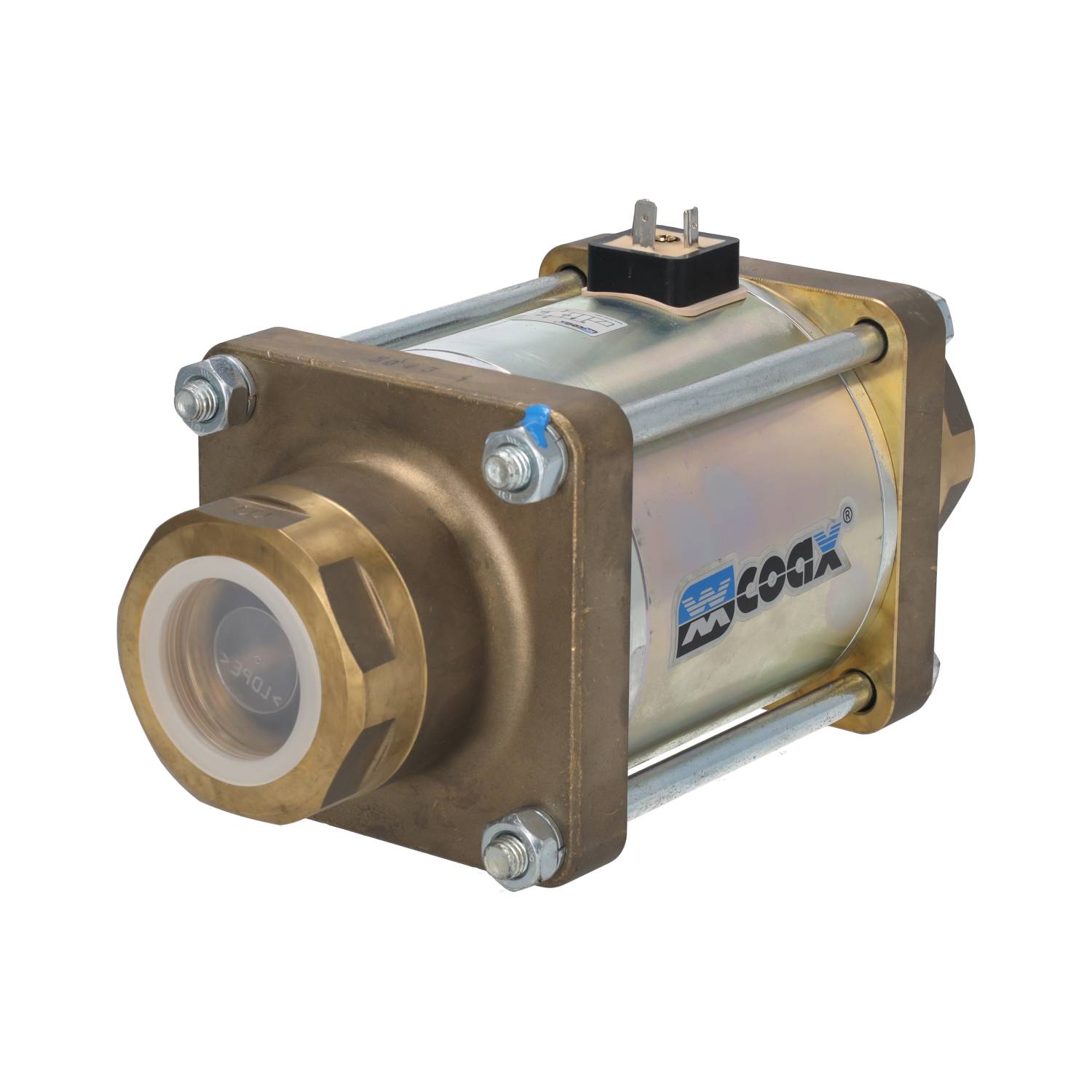

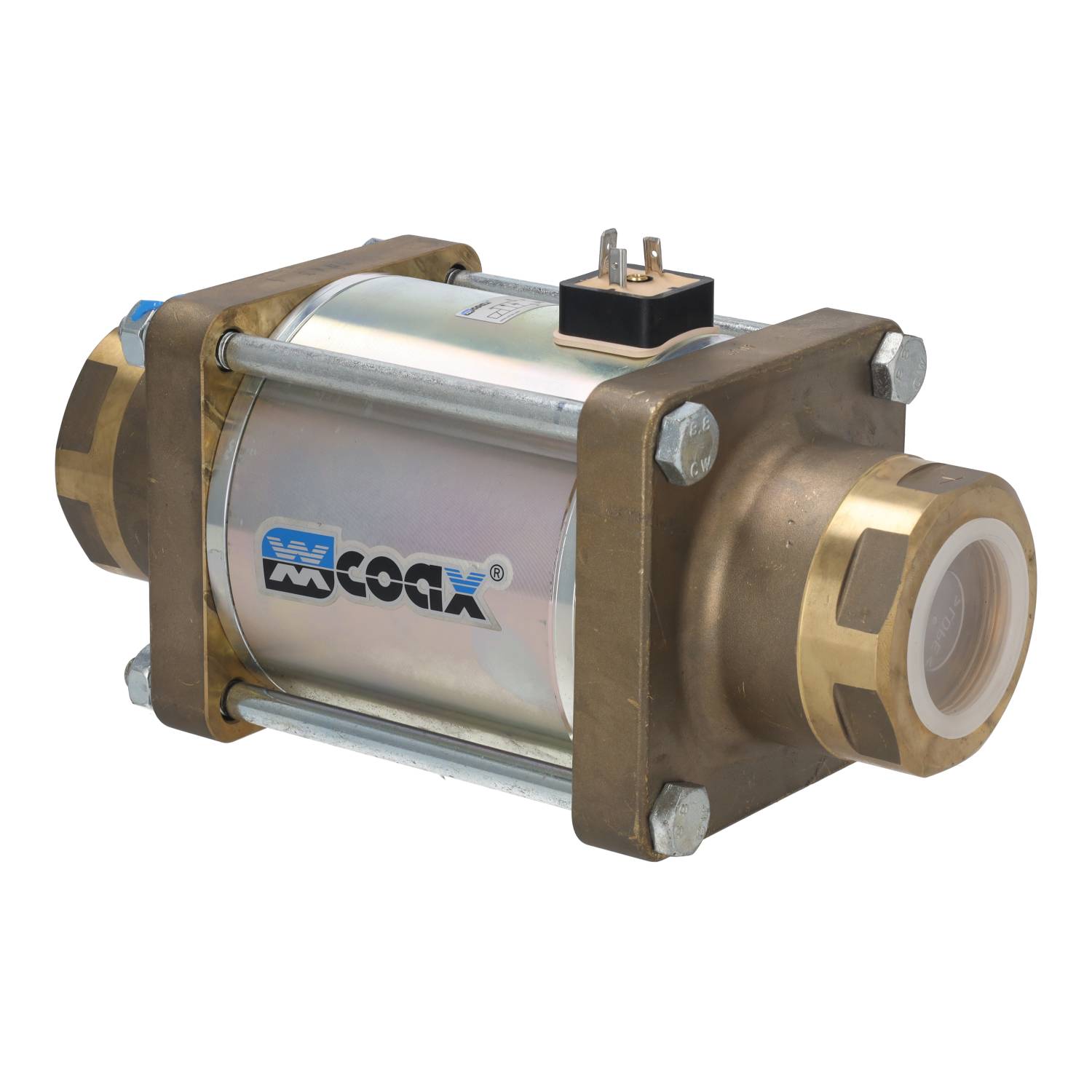

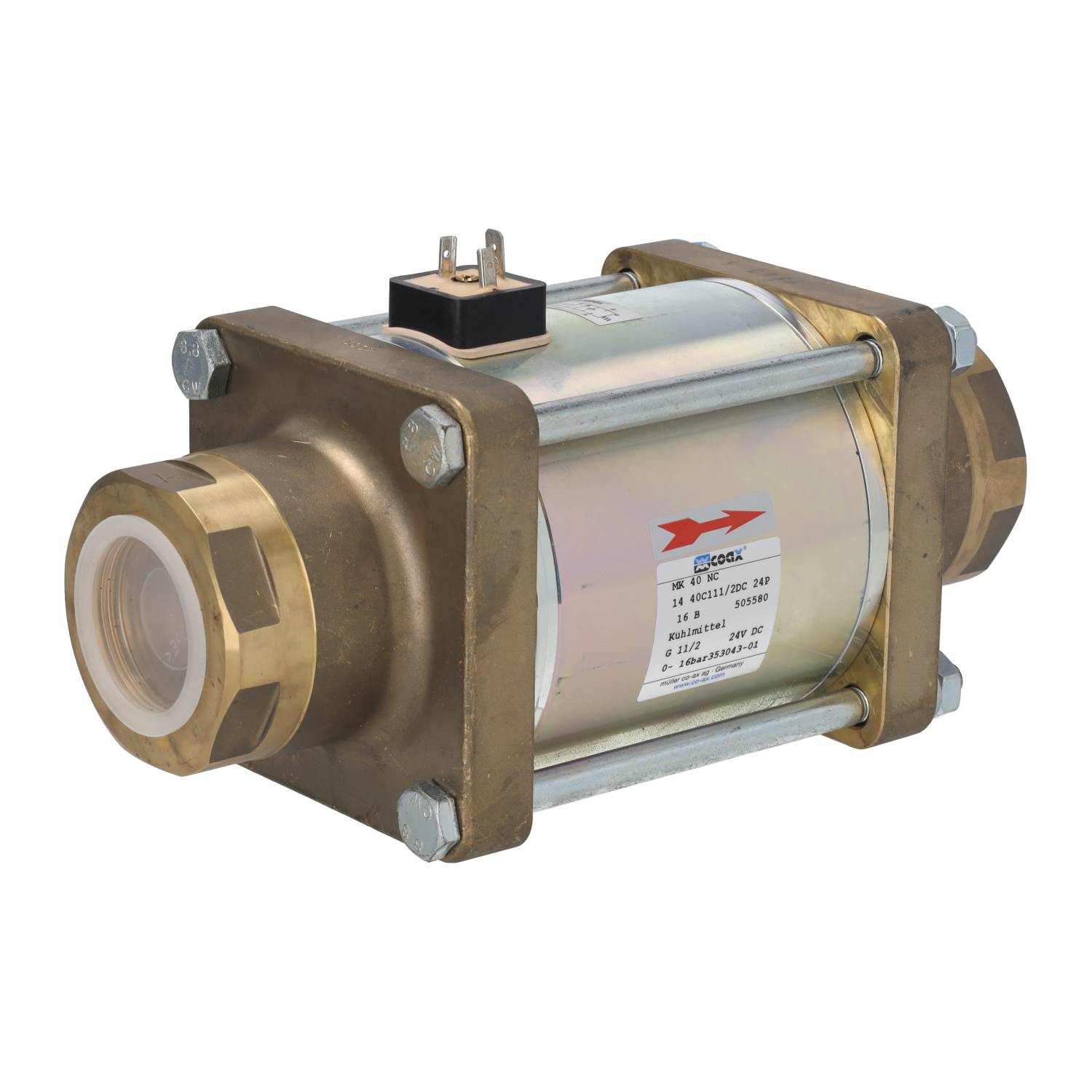

Produktbezeichnung: coax® Koaxialventil MK 40 NC
Funktion: 2/2-Wegeventil, stromlos geschlossen (NC)
Steuerung: Direktgesteuert, druckentlastet, mit Federrückstellung
Nenndruckbereich: PN 0–63 bar
Nennweite: DN 40 mm
Anschlussart: Muffe oder Flansch (PN 16 / 40 / 100)
Werkstoffe: Messing, Stahl verzinkt oder nickelbeschichtet, Edelstahl
Ventilsitz: Kunststoff auf Metall
Dichtwerkstoffe: NBR, PTFE, FPM, CR oder EPDM
Kv-Wert: 21,8 m³/h
Medium: gasförmig, flüssig, hochviskos, gallertartig oder verschmutzt
Betriebsrichtung: A → B (wechselseitig bis max. 16 bar)
Schaltspiele: 90 1/min
Schaltzeit: Öffnen 520 ms / Schließen 150 ms
Mediumstemperatur: DC: -20 bis +100 °C (optional bis +160 °C)
Umgebungstemperatur: DC: -20 bis +80 °C
Nennspannung: DC 24 V ±5 % / AC 230 V ±10 % 50–60 Hz
Stromaufnahme: N-Spule DC 24 V = 2,07 A / H-Spule DC 24 V = 3,24 A
Isolierstoffklasse: H (180 °C)
Schutzart: IP65
Einschaltdauer: ED 100 %
Anschluss: Steckverbinder DIN EN 175301-803 Form A, 4×90° drehbar
Explosionsschutz: II 3G Ex ec IIC T3 Gc / II 3D Ex tc IIIC T195 °C Dc
Endschalter: induktiv oder mechanisch
Gewicht: ca. 12,0 kg
Baulänge Standard: 258 mm
Besonderheiten: Für abrasive Medien geeignet, optional mit Handnotbetätigung oder Endschaltern
