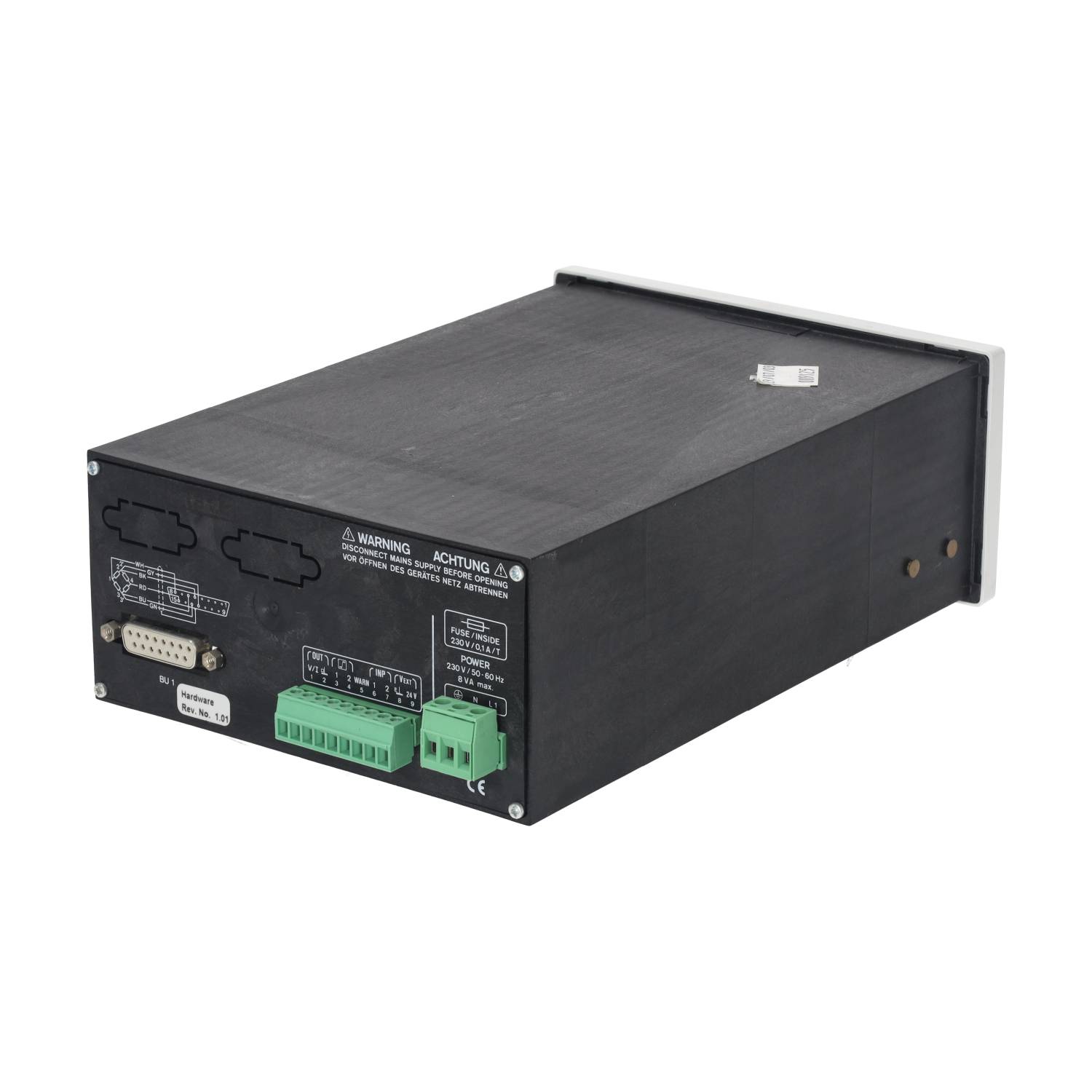

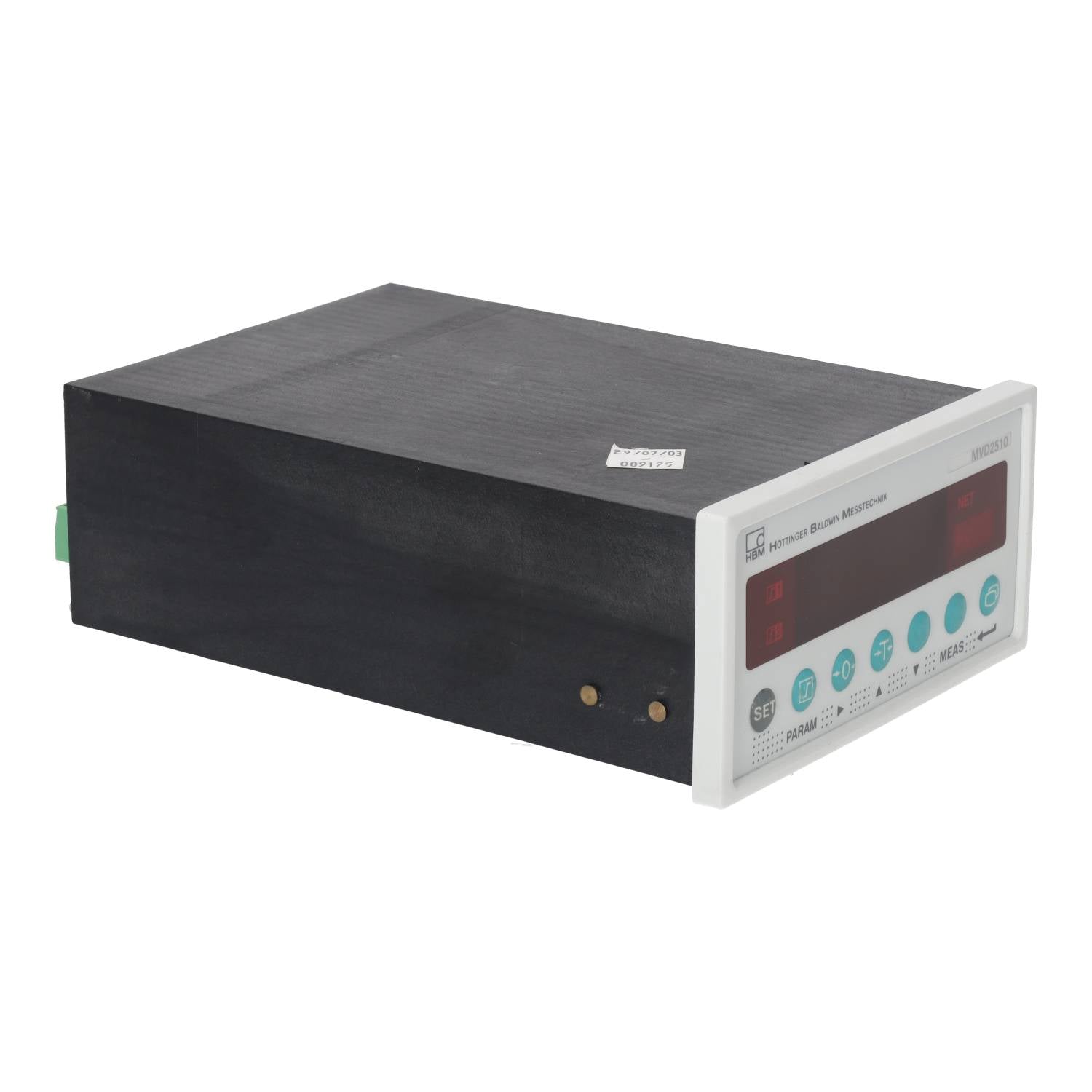

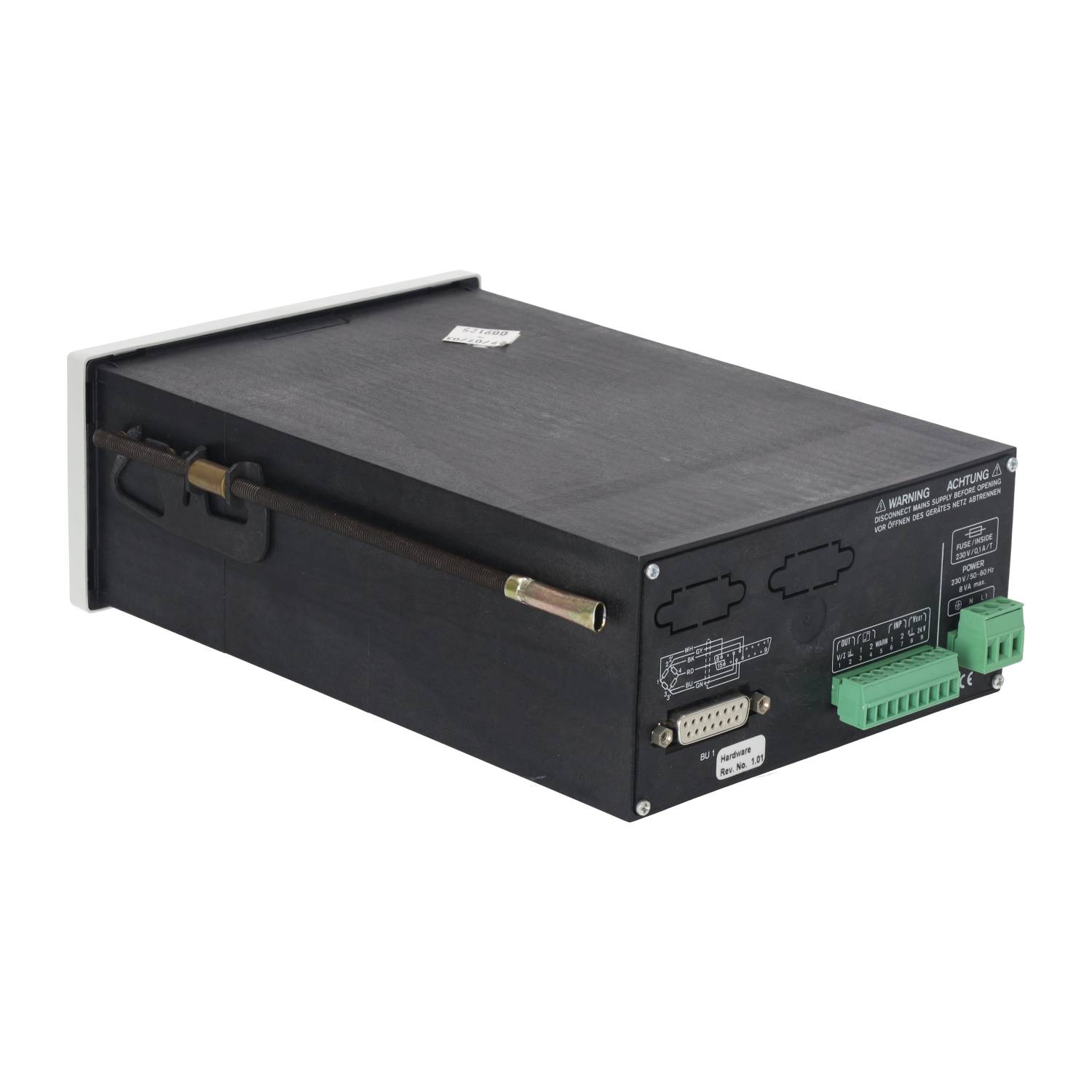

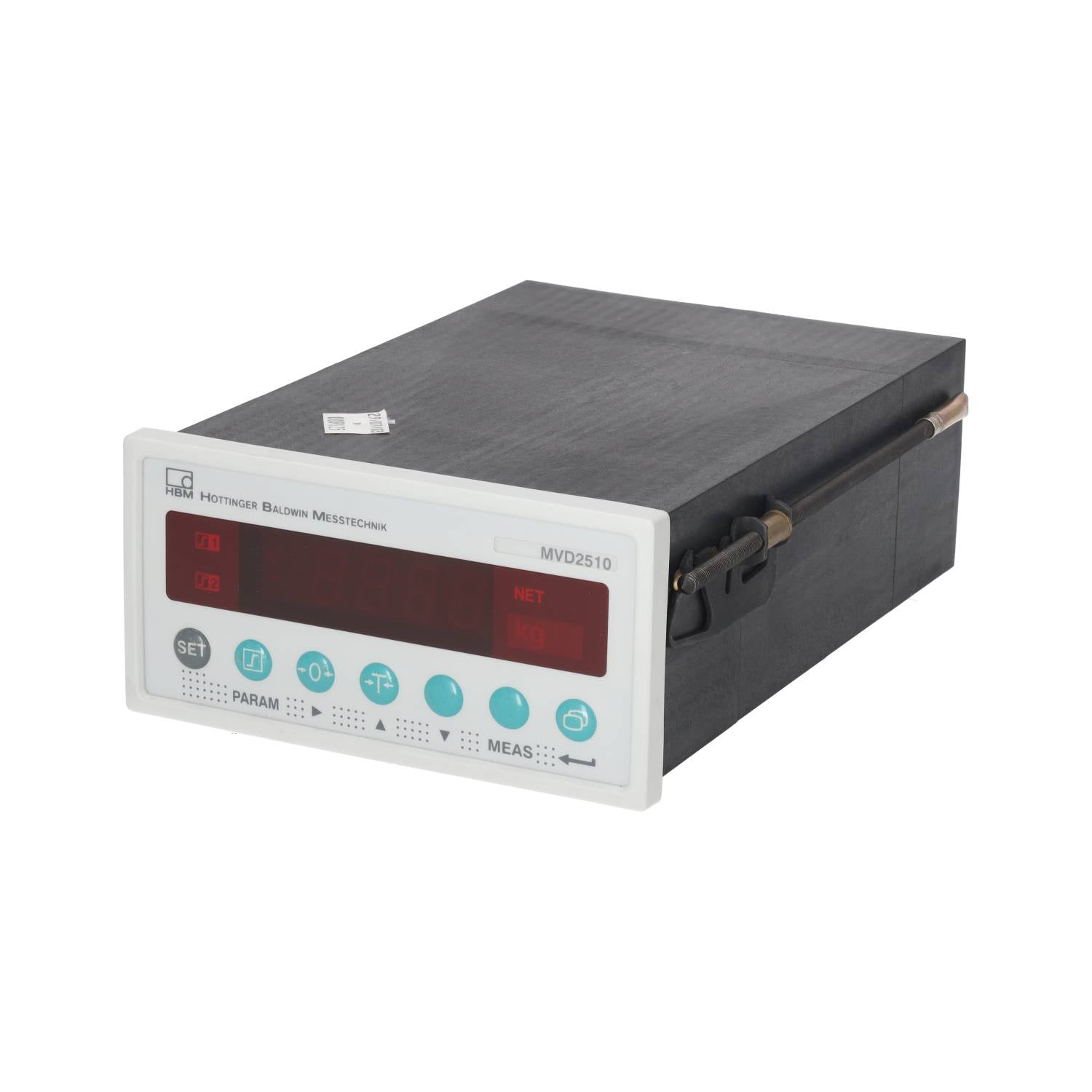

MVD 2510
Free shipping from 49€
worldwide shipping
Device Type: Panel-mount measuring amplifier
Model: MVD2510
Accuracy Class: 0.1
Power Supply: 115/230 V AC (+6 / –10 %), 48–60 Hz
Power Consumption: max. 8 VA
Bridge Excitation Voltage: ±2.5 V
Compatible Sensors: Strain-gauge full bridge (80–5000 Ω)
Measuring Range: 0.2 … 3.8 mV/V
Measurement Frequency Range: 0.05 … 5 Hz (adjustable low-pass filter)
Display: 4½-digit LED, 14.7 mm character height
Analog Output: ±10 V or 0…20 mA / 4…20 mA
Limit Switches: 2 configurable limit outputs with adjustable hysteresis
Control Inputs: 2 opto-isolated digital inputs (tare / zero / lock)
Control Outputs: 24 V, max. 0.5 A (opto-isolated)
Parameter Memory: 1 EEPROM parameter set
Allowed Sensor Cable Length: up to 500 m
Protection Class: IP40 (unit), IP51 (front)
Operating Temperature: –20 … +60 °C
Dimensions (W×H×D): 153 × 72 × 212 mm
Front Panel Cut-Out: 138 × 68 mm
Weight: approx. 1 kg
