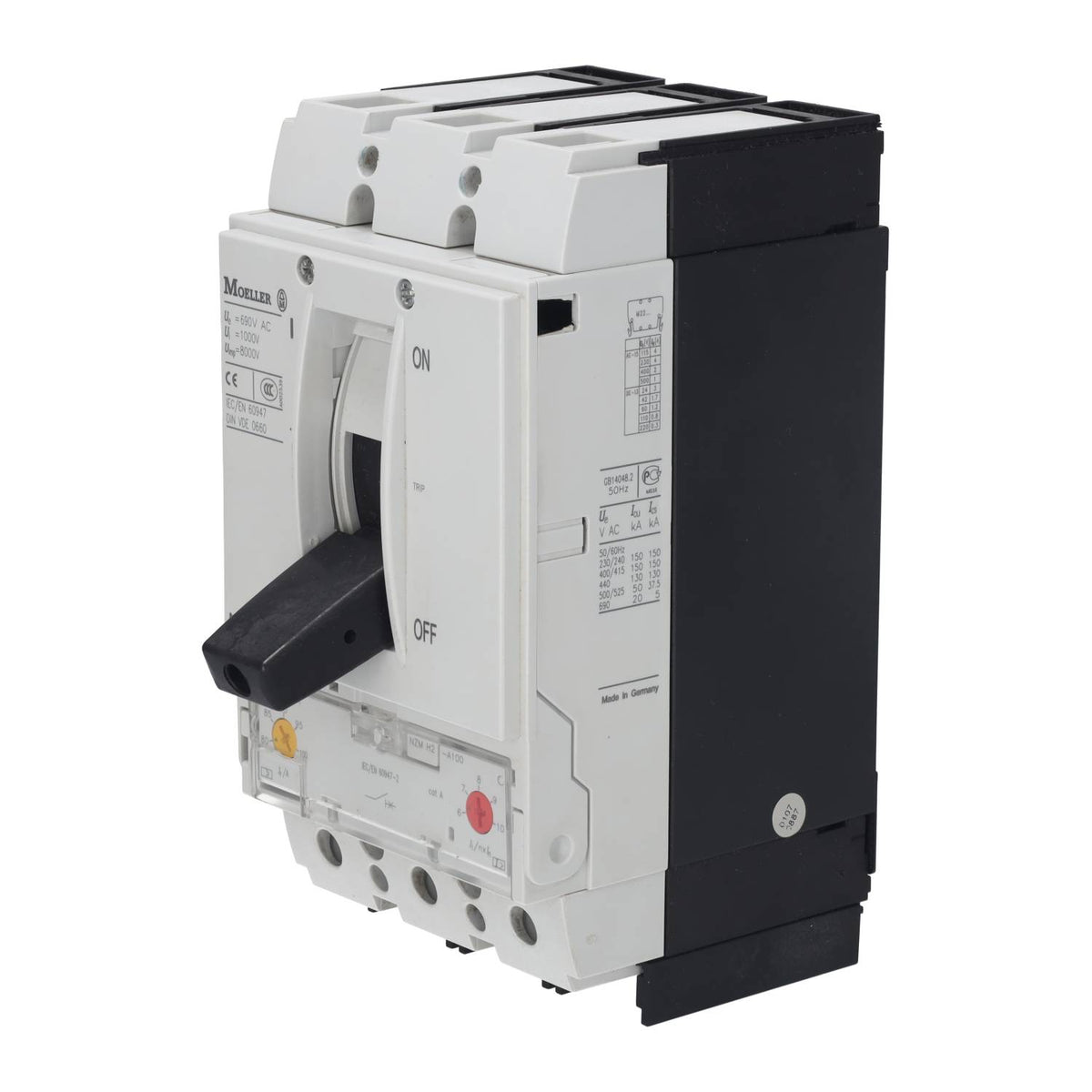

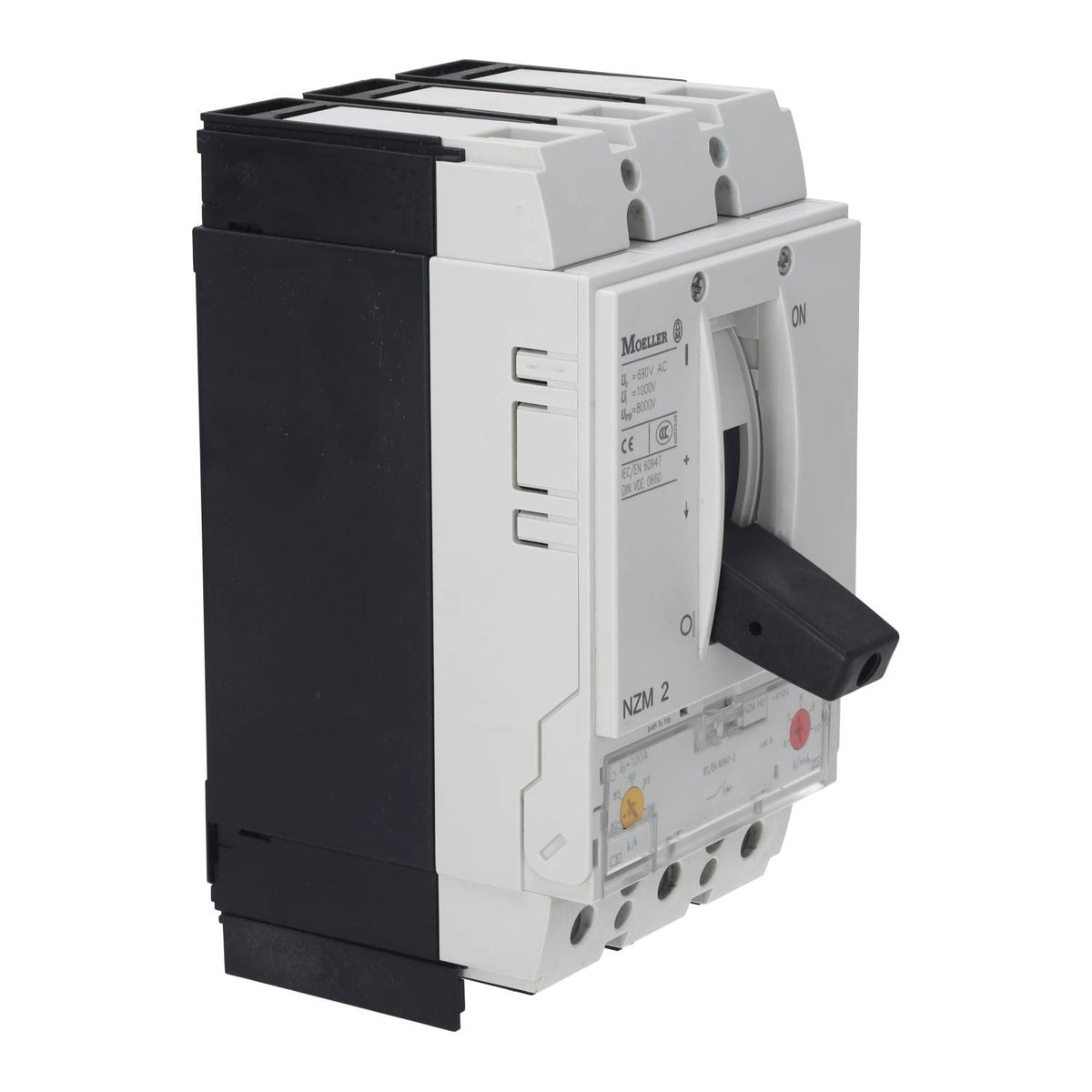

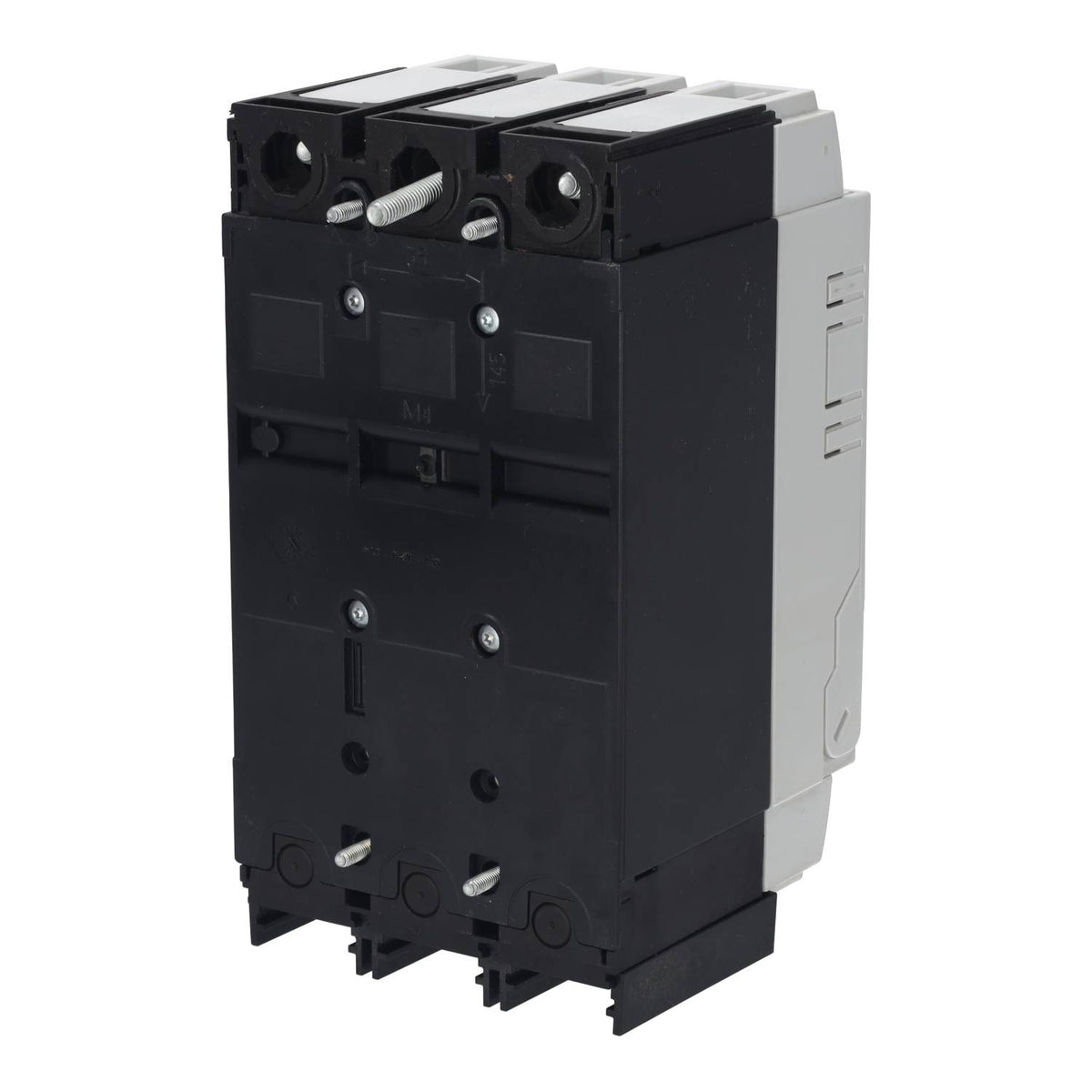

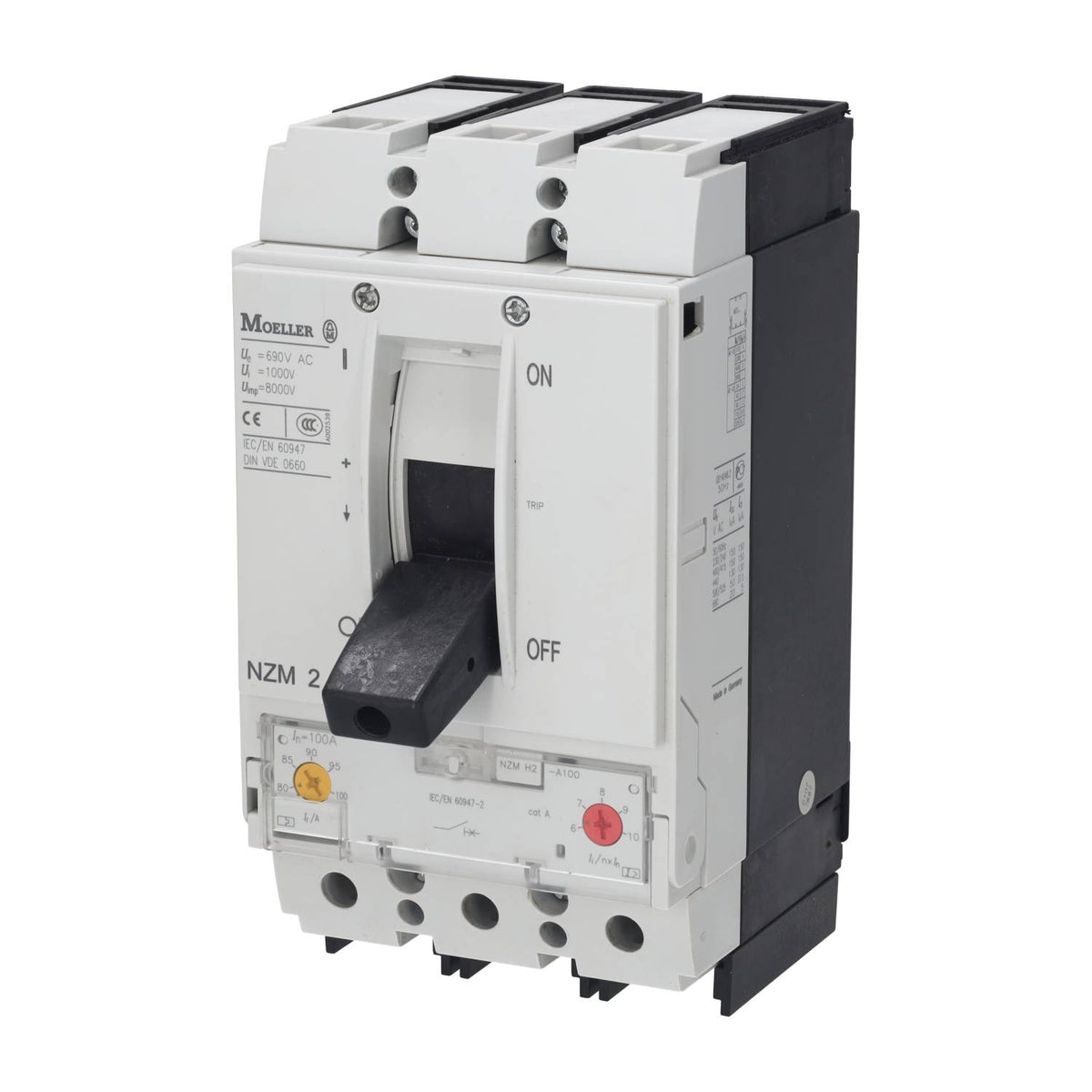

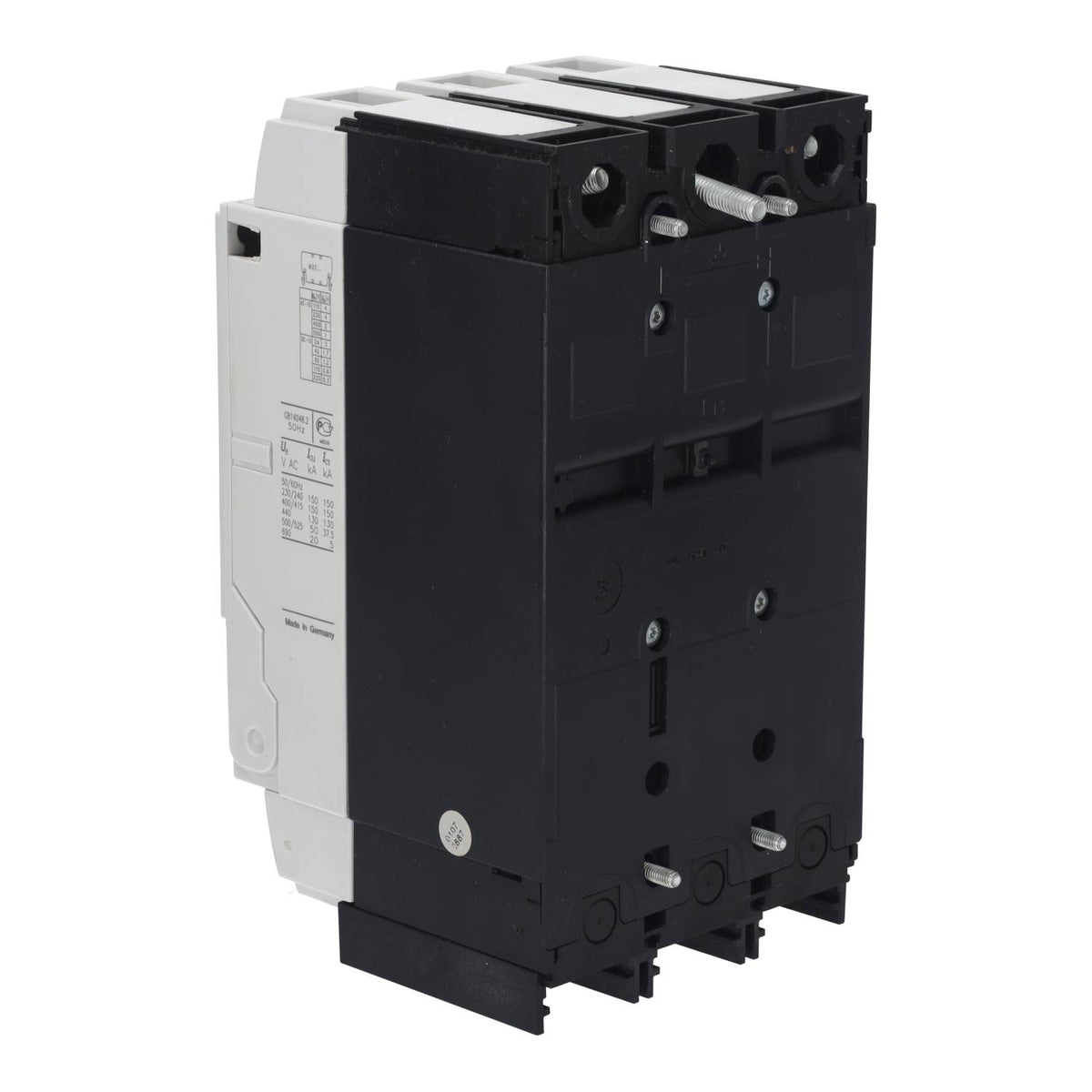

NZMH2-A100 (259099)
Free shipping from 49€
Worldwide shipping
- Manufacturer: Eaton
- Series: Moeller NZM Series
- Model: NZMH2-A100
- Catalog Number / Item Number: 259099
- EAN: 4015082590994
- Device Type: Circuit Breakers / Compact Circuit Breakers
- Size: NZM2
- Rated current: 100 A
- Number of items: 3-pin
- Rated voltage: 690 V AC
- Rated insulation voltage: 1000 V AC
- Rated surge voltage withstand capacity of main contacts: 8 kV
- Trigger system: Thermomagnetic
- Overload trip device: Adjustable 80–100 A
- Short-Circuit Quick-Release: Adjustable 600–1000 A
- Total short-circuit shutdown time: < 10 ms
- Rated short-time current withstand capacity (0.3 s): 1.9 kA
- Rated short-time current withstand capacity (1 s): 1.9 kA
- Usage category: A
- Rated current (Ics) at 230 V AC: 150 kA
- Switching capacity Ics at 400/415 V AC: 150 kA
- Rated current (Ics) at 440 V AC: 130 kA
- Rated current (Ics) for 525 V AC: 37.5 kA
- Rated current (Ics) at 690 V AC: 5 kA
- Short-circuit breaking capacity Icm at 400/415 V AC: 330 kA
- Mechanical service life: 20,000 switching cycles
- Maximum switching frequency: 120 cycles/hour
- Standard connection: Screw connection
- Operation: Rocker arm
- Installation: Permanent Installation
- Protection class: IP20
- Dimensions (W × H × D): 105 × 184 × 149 mm
- Weight: 2,361 kg
