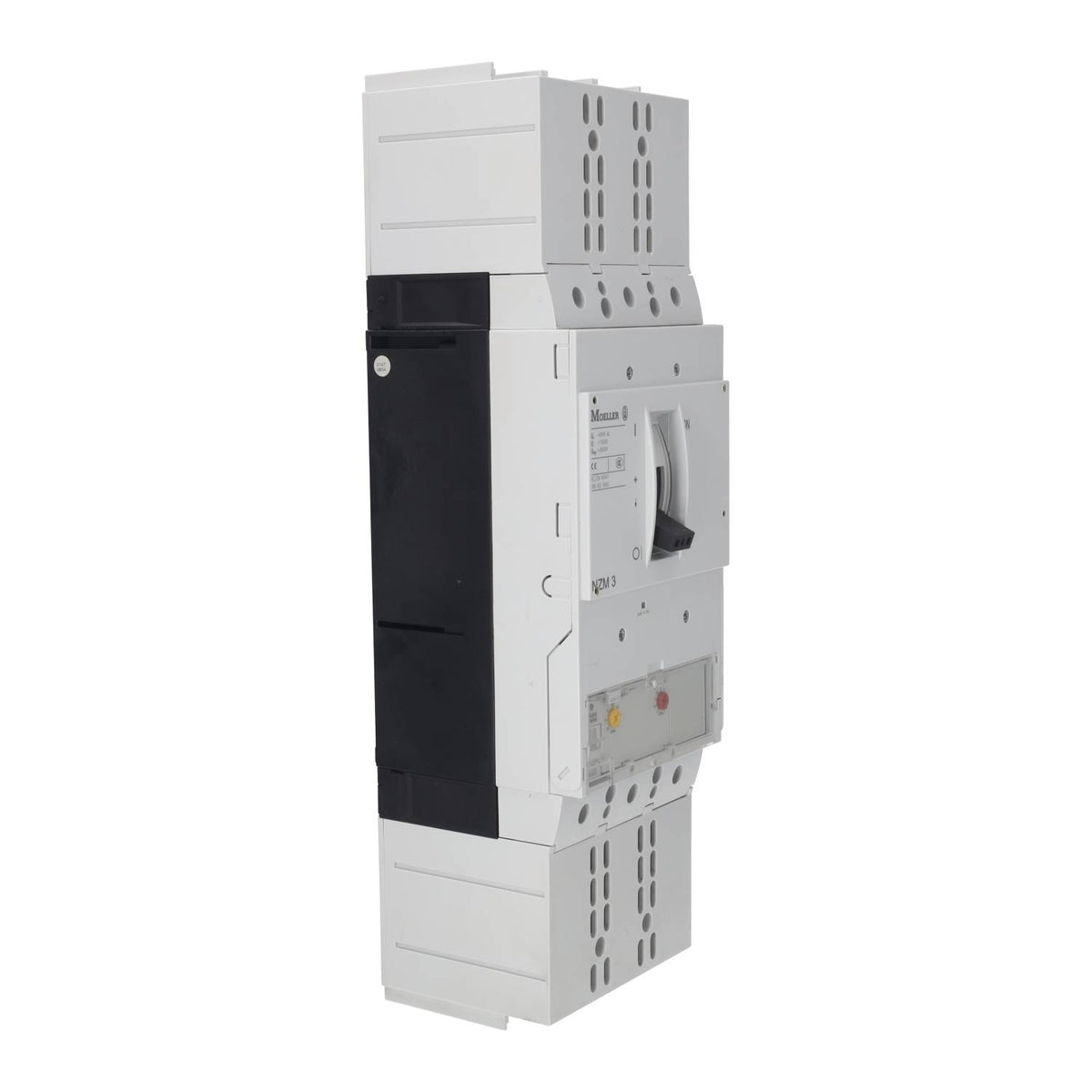

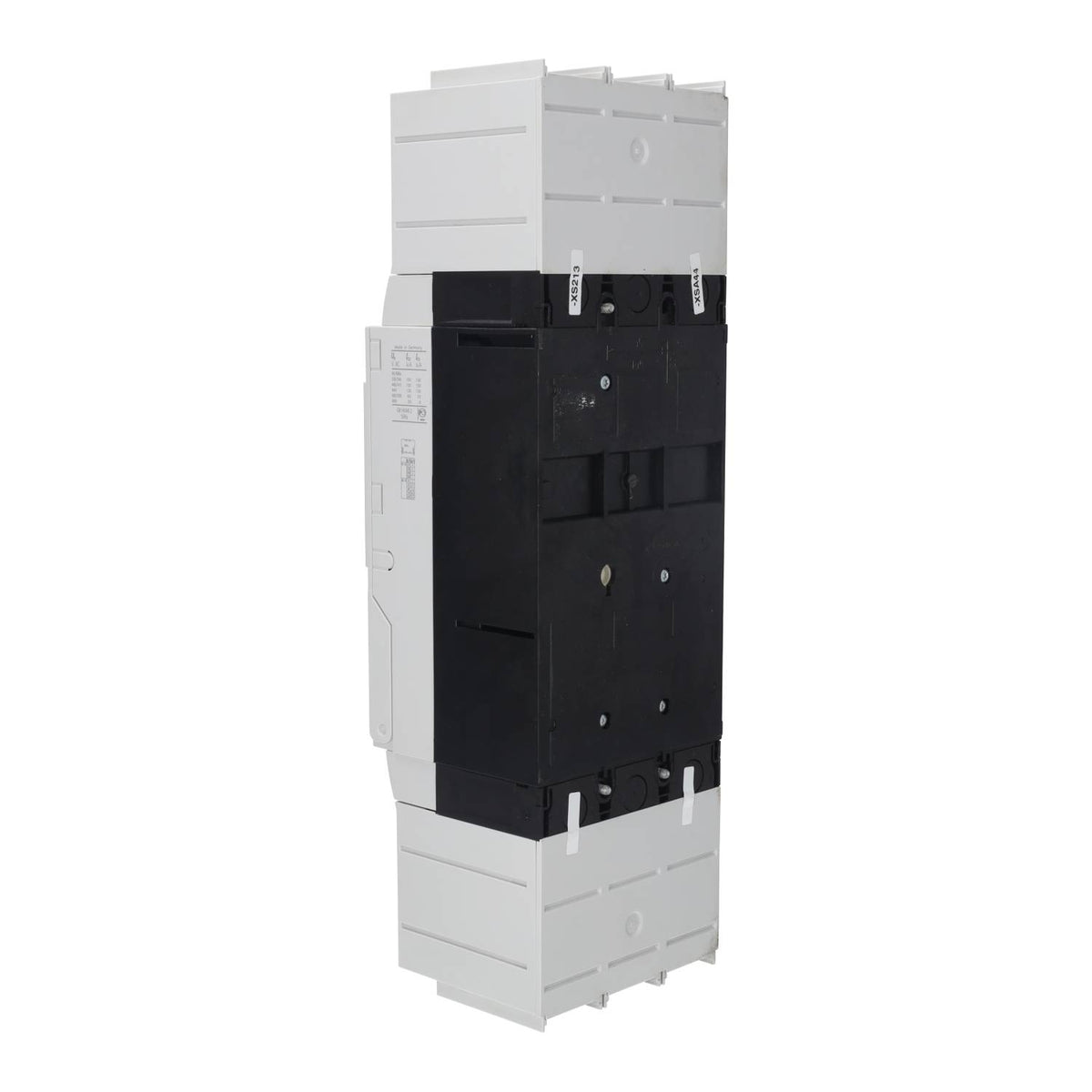

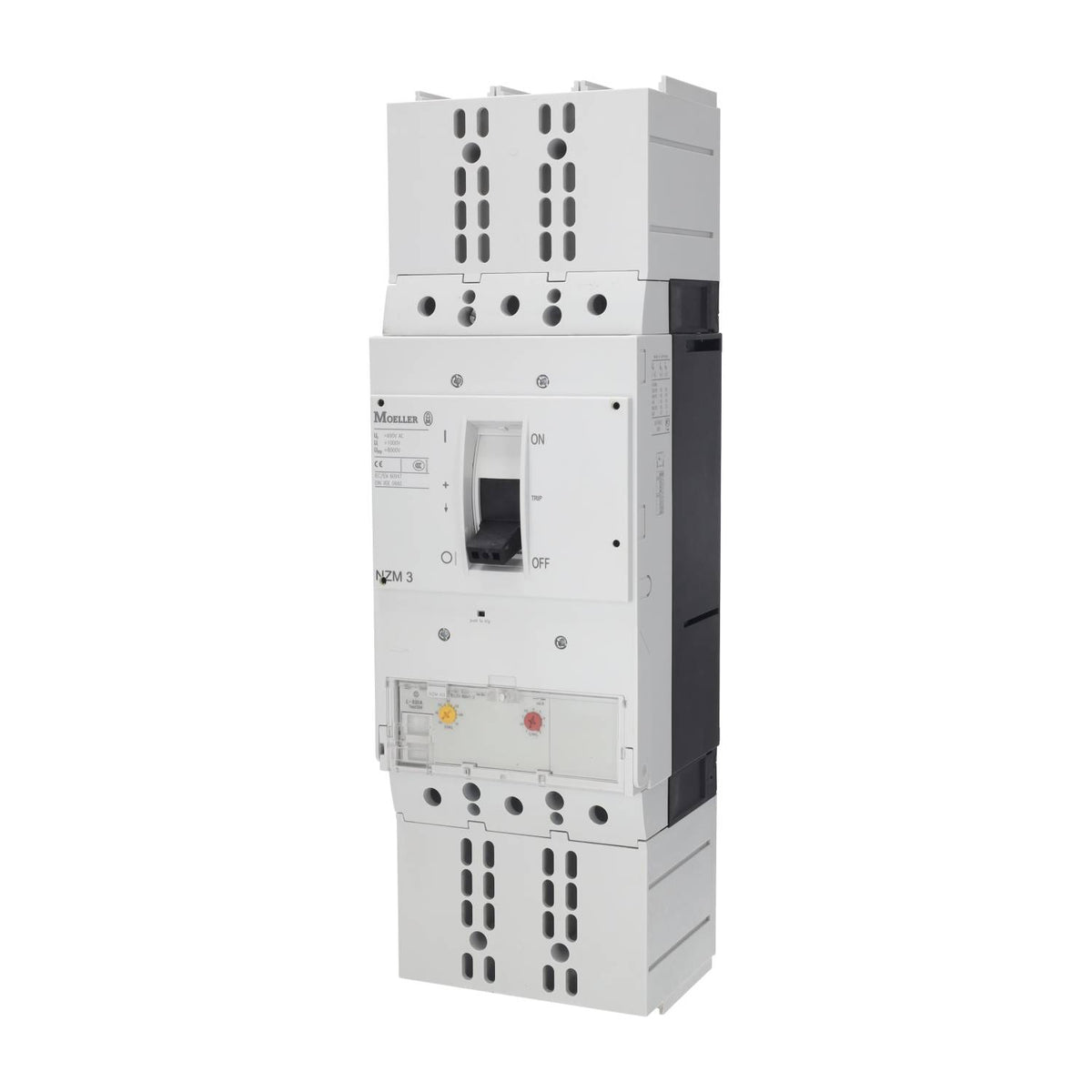

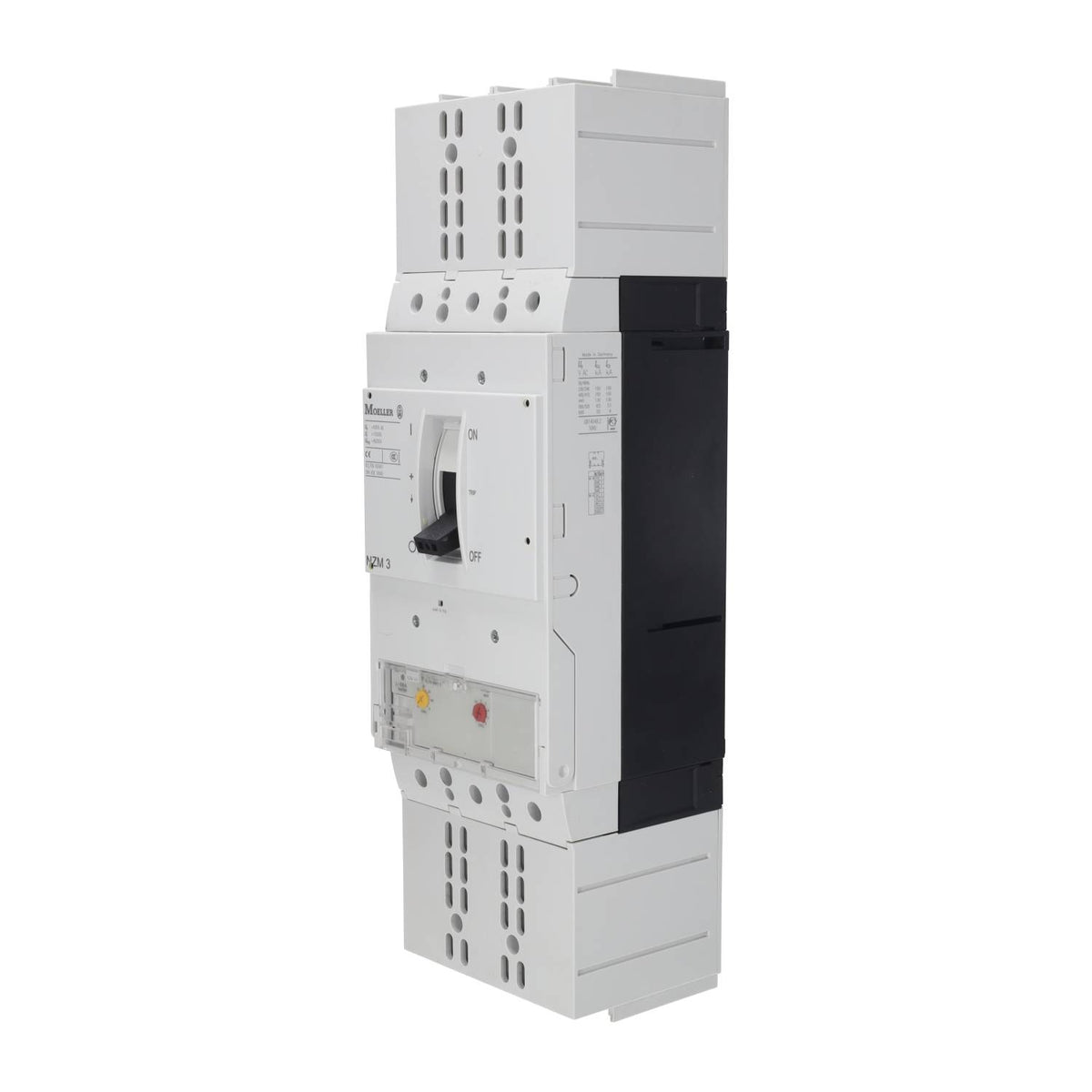

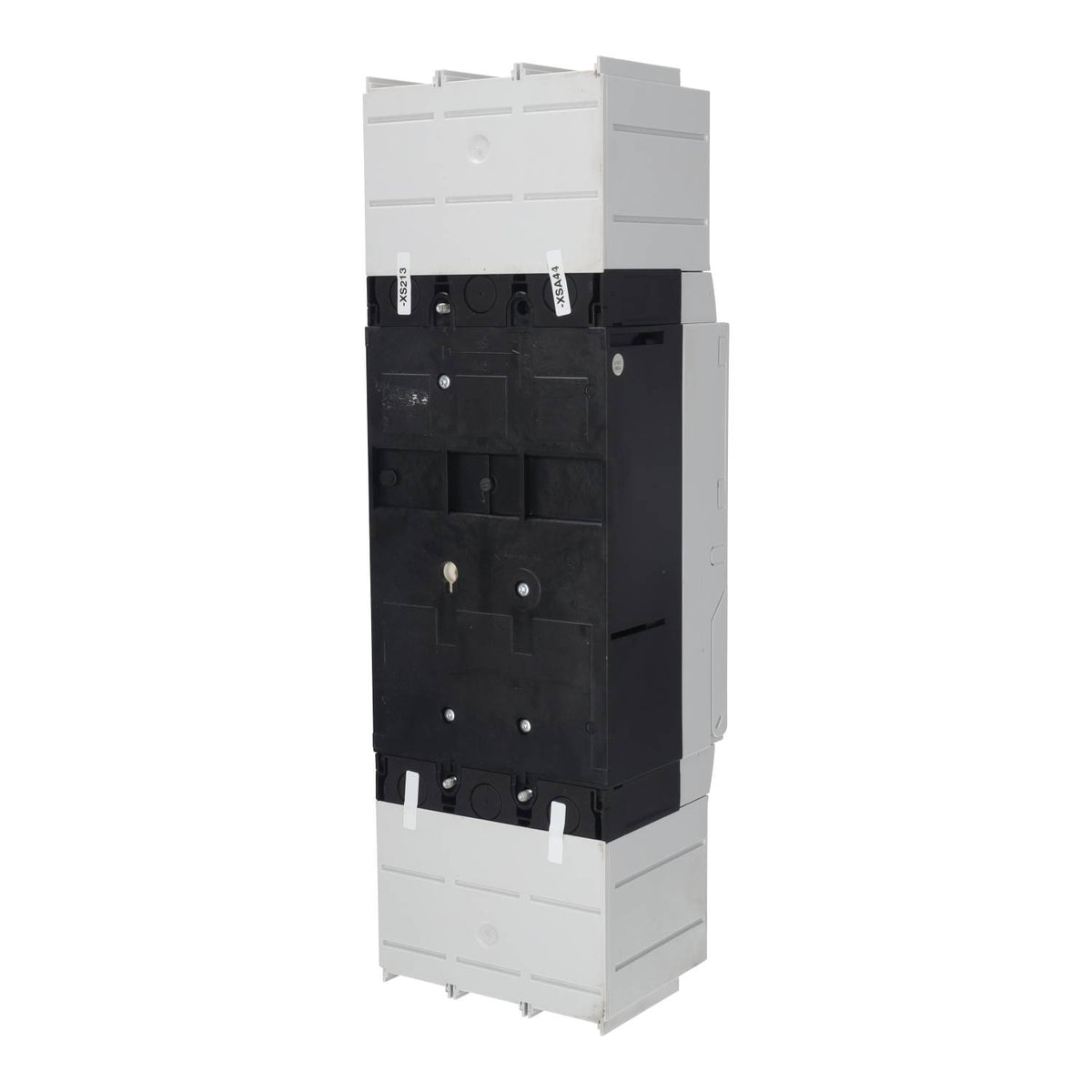

NZMH3-AE630 (259118)
Free shipping from 49€
Worldwide shipping
- Manufacturer: Eaton
- Series: Moeller NZM Series
- Model: NZMH3-AE630
- Catalog Number / Item Number: 259118
- EAN: 4015082591182
- Device Type: Compact Circuit Breakers / Circuit Breakers
- Size: NZM3
- Rated current: 630 A
- Number of items: 3-pin
- Rated voltage: 690 V AC
- Rated insulation voltage: 1000 V AC
- Rated surge voltage withstand capacity of main contacts: 8 kV
- Trigger system: Electronic
- Protection feature: Equipment and Circuit Protection
- Overload trip device: Adjustable 315–630 A
- Short-Circuit Quick-Release: Adjustable 1260–5040 A
- Total short-circuit shutdown time: < 10 ms
- Rated short-time current withstand capacity (0.3 s): 3.3 kA
- Rated short-time current withstand capacity (1 s): 3.3 kA
- Usage category: A
- Rated current (Ics) for 230 V AC: 150 kA
- Switching capacity Ics at 400/415 V AC: 150 kA
- Rated current (Ics) for 440 V AC: 130 kA
- Rated current (Ics) for 525 V AC: 33 kA
- Rated current (Ics) at 690 V AC: 9 kA
- Short-circuit breaking capacity Icm at 400/415 V AC: 330 kA
- Short-circuit breaking capacity Icm at 440 V AC: 286 kA
- Short-circuit breaking capacity Icm at 525 V AC: 143 kA
- Short-circuit breaking capacity Icm at 690 V AC: 74 kA
- Mechanical service life: 15,000 switching cycles
- Maximum switching frequency: 60 cycles/hour
- Standard connection: Screw connection
- Operation: Rocker arm
- Motor drive: Optional
- Installation: Permanent Installation
- Protection class: IP20
- Dimensions (W × H × D): 140 × 275 × 166 mm
- Weight: 7,088 kg
