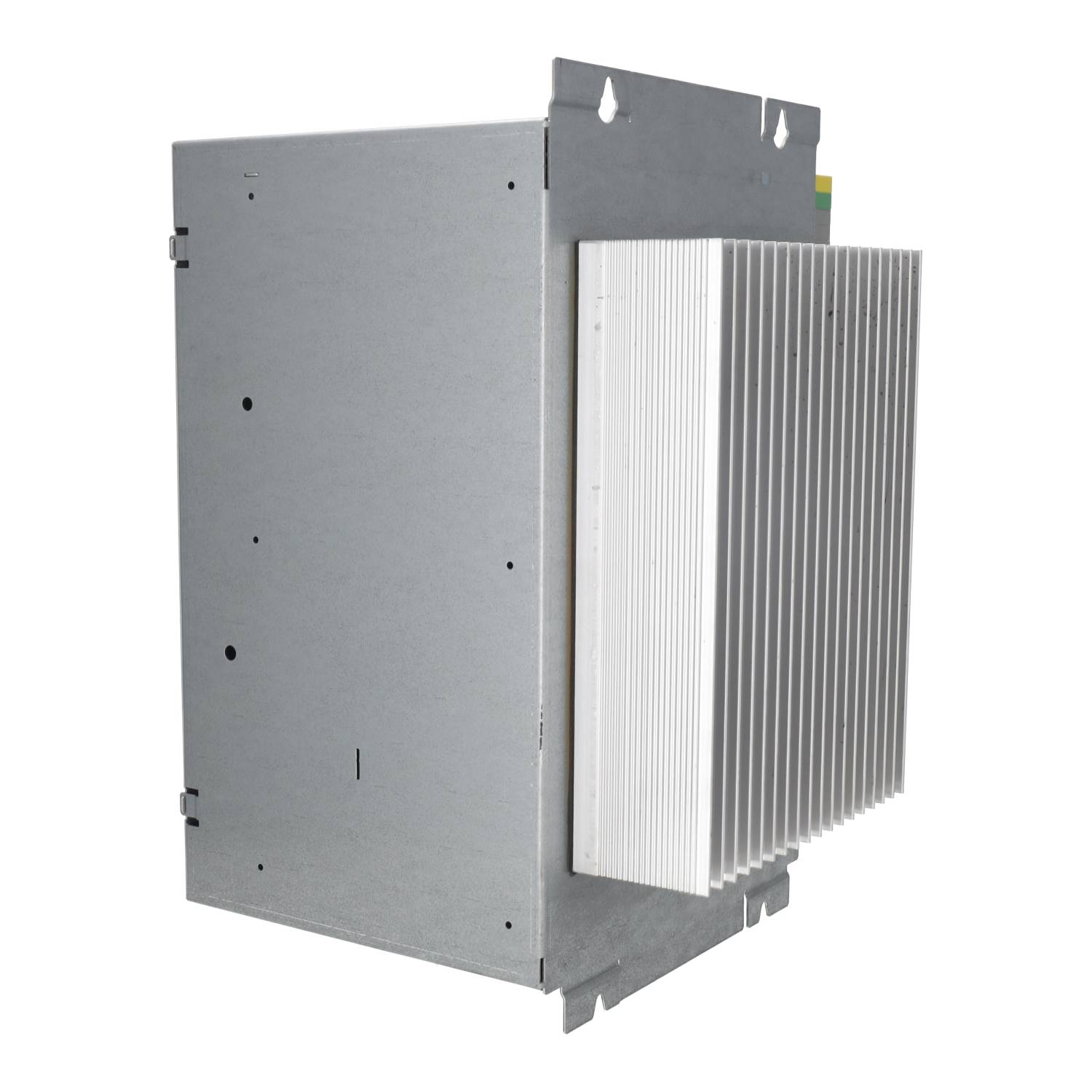

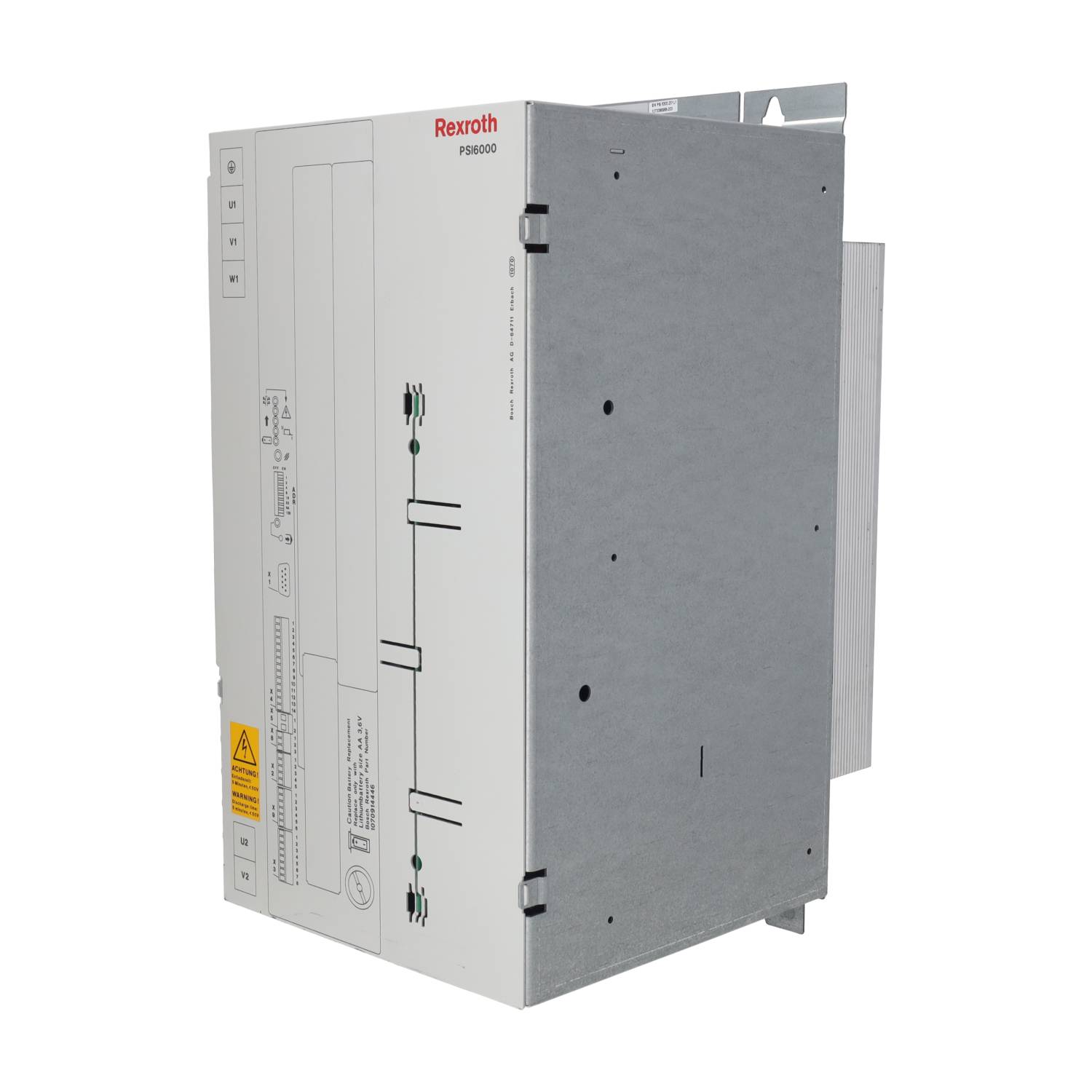

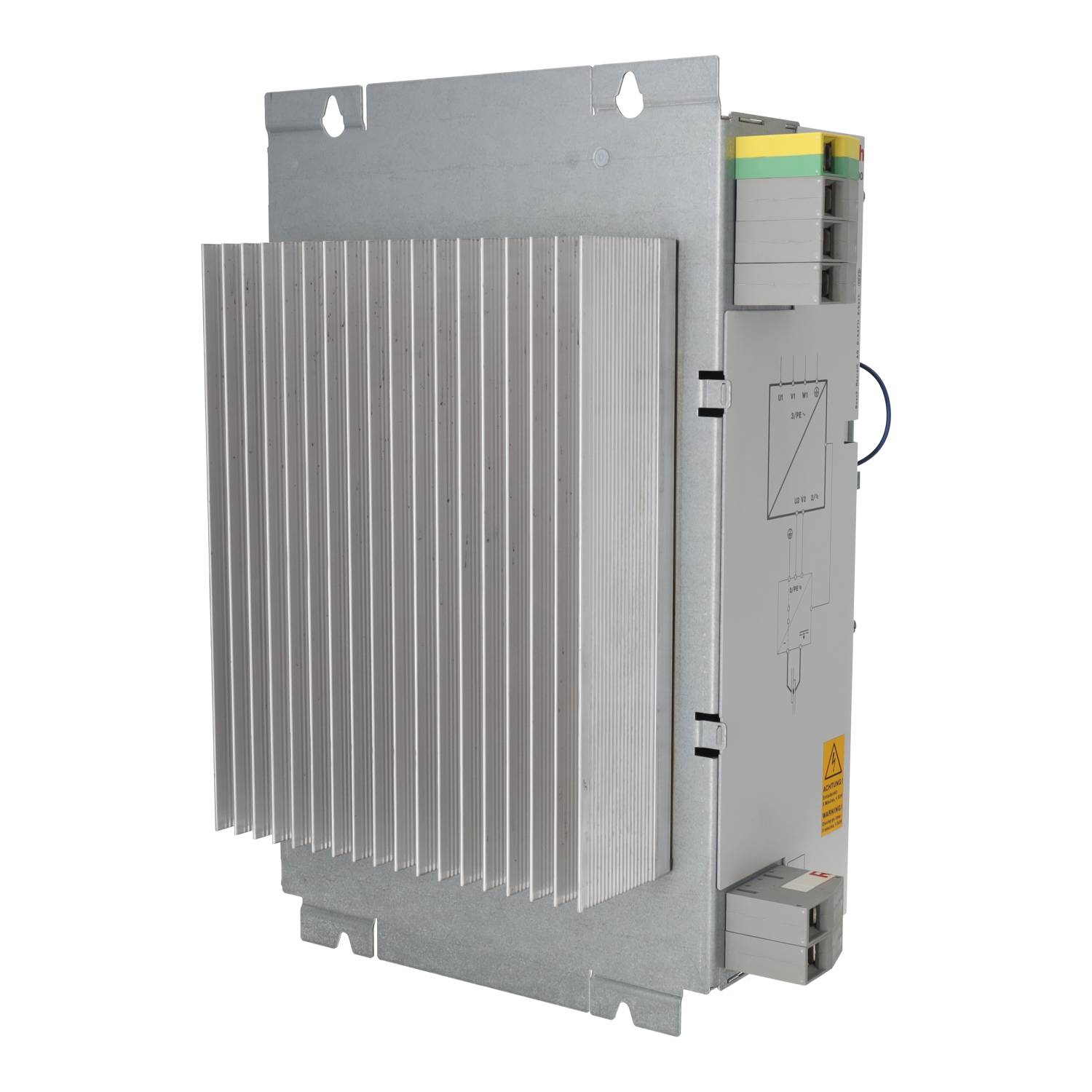

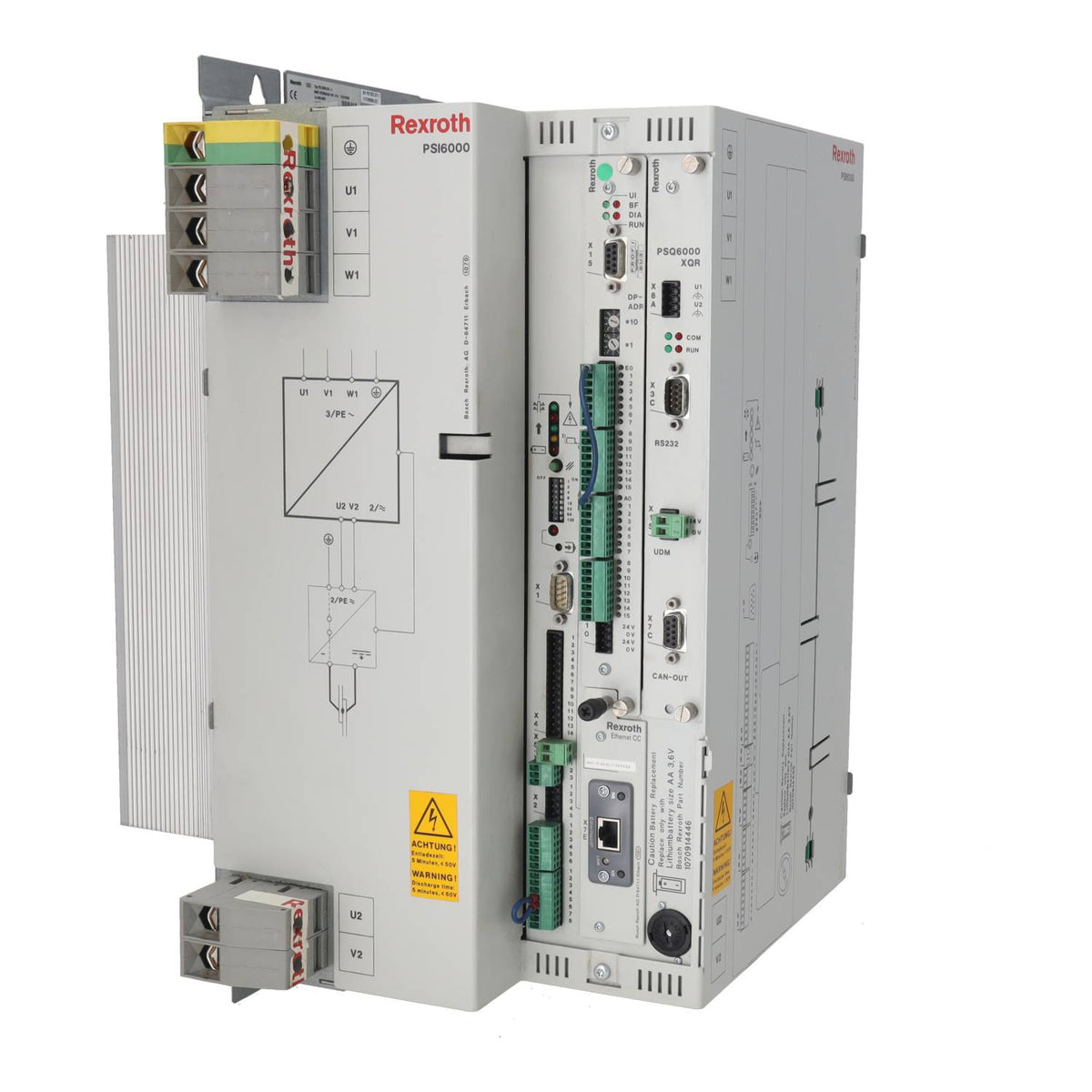

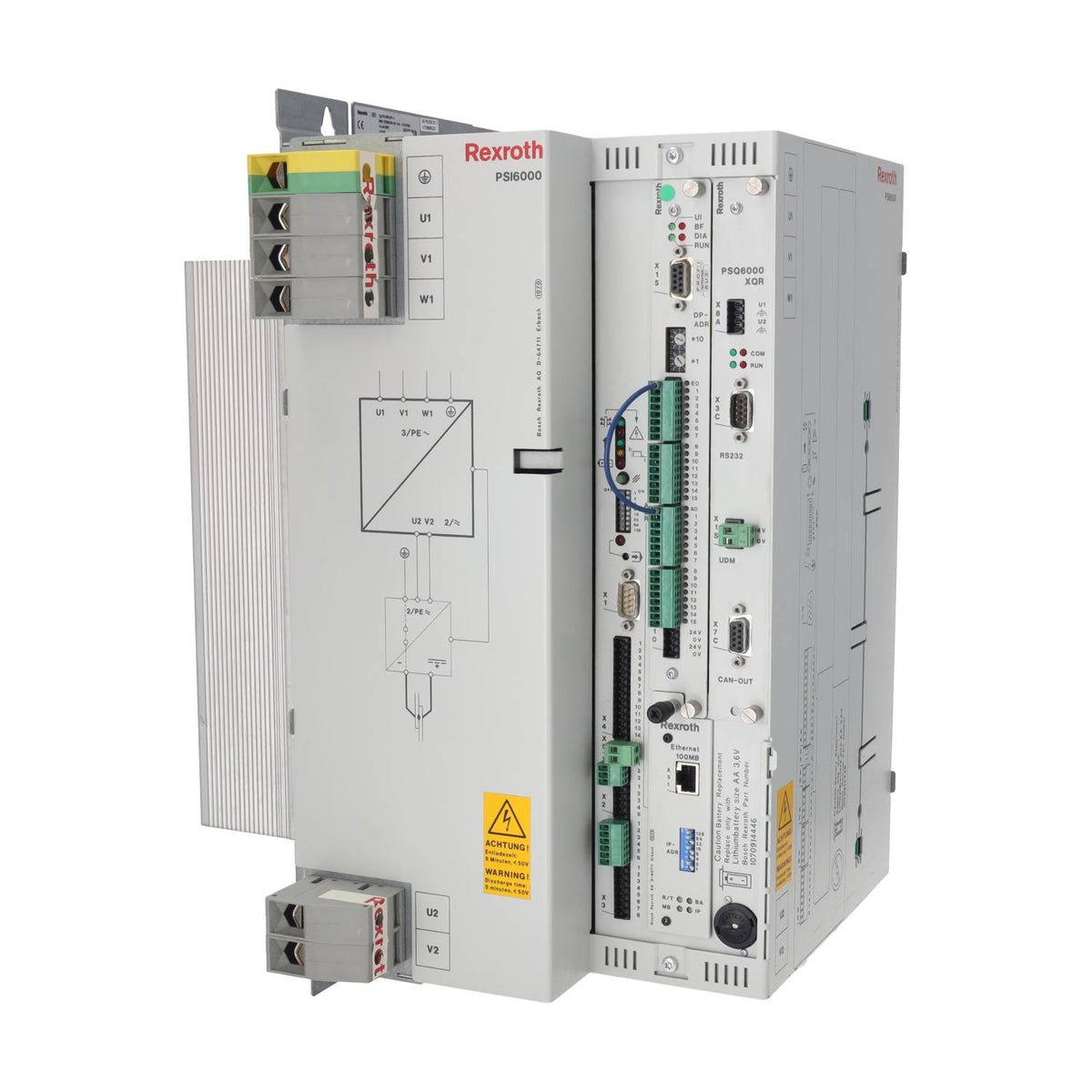

PSI 6300.201-L1 (1070084338 109)
Free shipping from 49€
worldwide shipping
Hersteller: Bosch Rexroth
Modell: PSI6300.201-L1
Artikelnummer: 1070084338 109
Produkttyp: Mittelfrequenz-Schweißsteuerung mit integriertem Umrichter
Bauart: 3-Phasen-Mittelfrequenzumrichter mit integrierter Schweißsteuerung
Netzspannungsbereich: 400 – 480 V AC
Netzspannungstoleranz: 400 V −15 %, 480 V +10 %
Netz-Nennstrom (max. thermischer Dauerstrom): 110 A
Max. Primärstrom: 800 A
Max. Sekundärstrom: 36 kA (mit Trafotyp PSG 3100)
Erforderlicher Anschlussquerschnitt: min. 35 mm²
Gewicht: ca. 20 kg
Anschlussklemmen: Rahmenklemmen, max. 50 mm² klemmbar
Anzugsdrehmoment: 6 – 8 Nm
Schaltschrankgrundverluste: 69 W
Schaltschrankverluste bei max. Leistung: 170 W
Max. Kühlverluste: 360 W
Schutzart: IP20 (Einbau in Schaltschrank mit IP54 empfohlen)
Betriebstemperatur: +10 bis +55 °C
Lagertemperatur / Transport: −25 bis +70 °C
