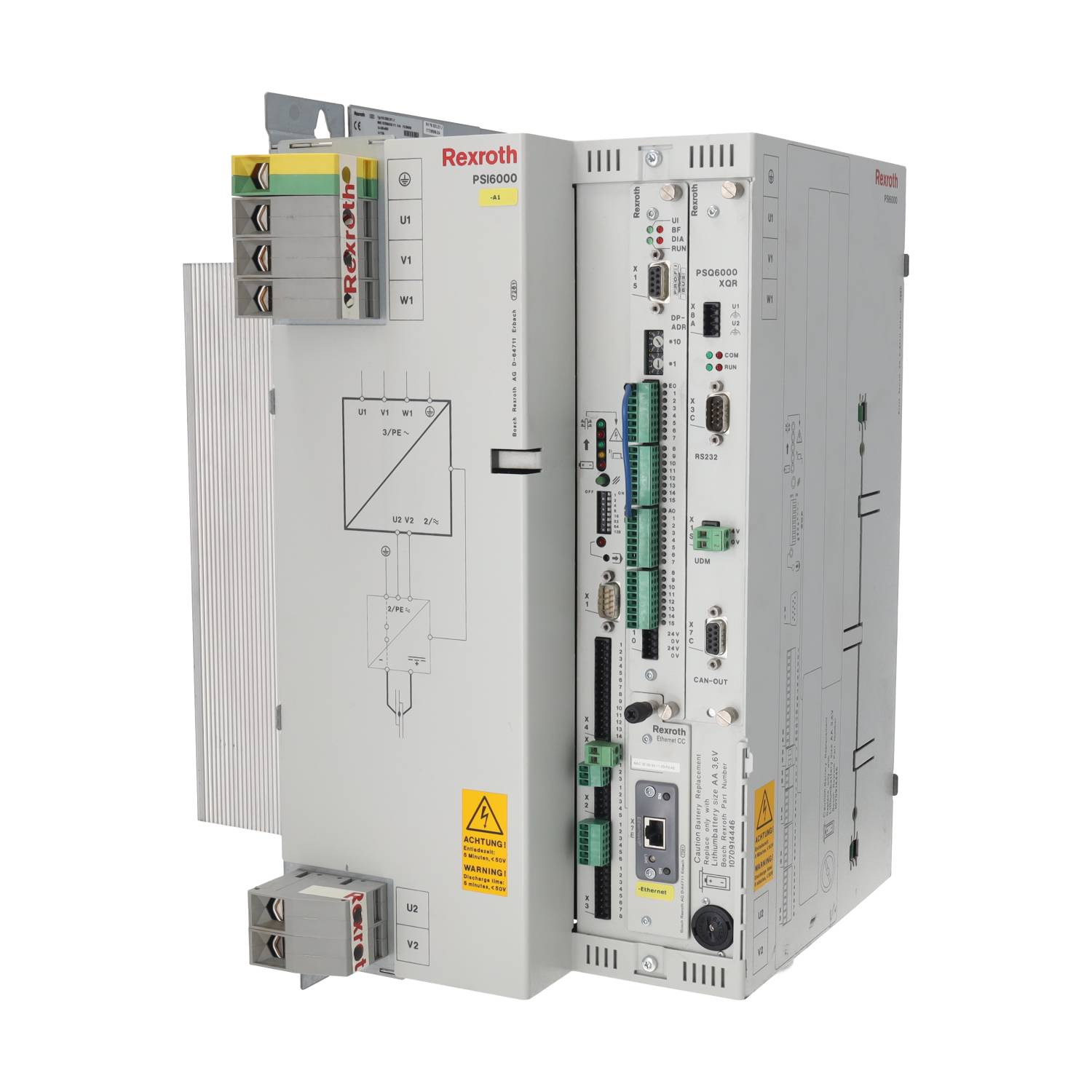

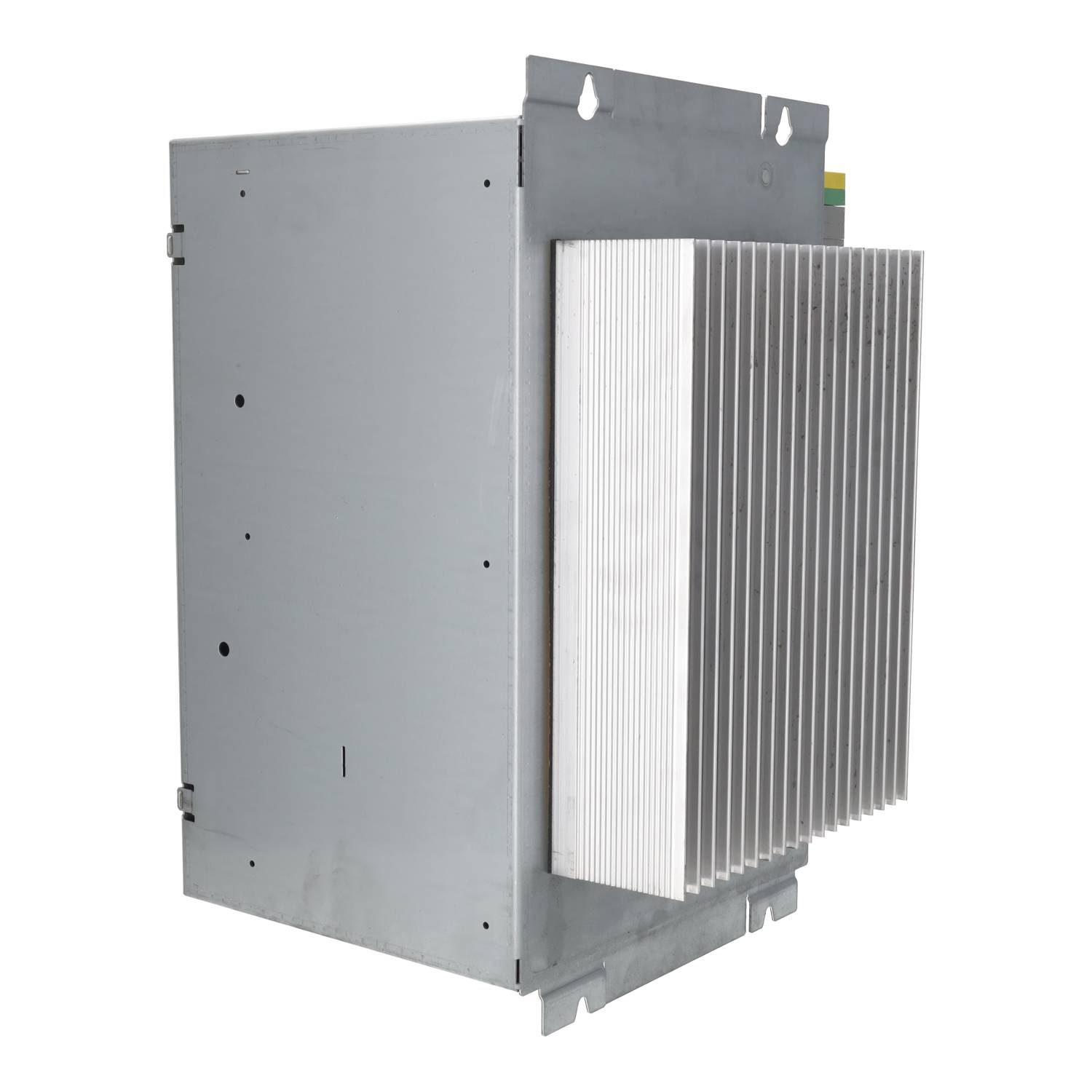

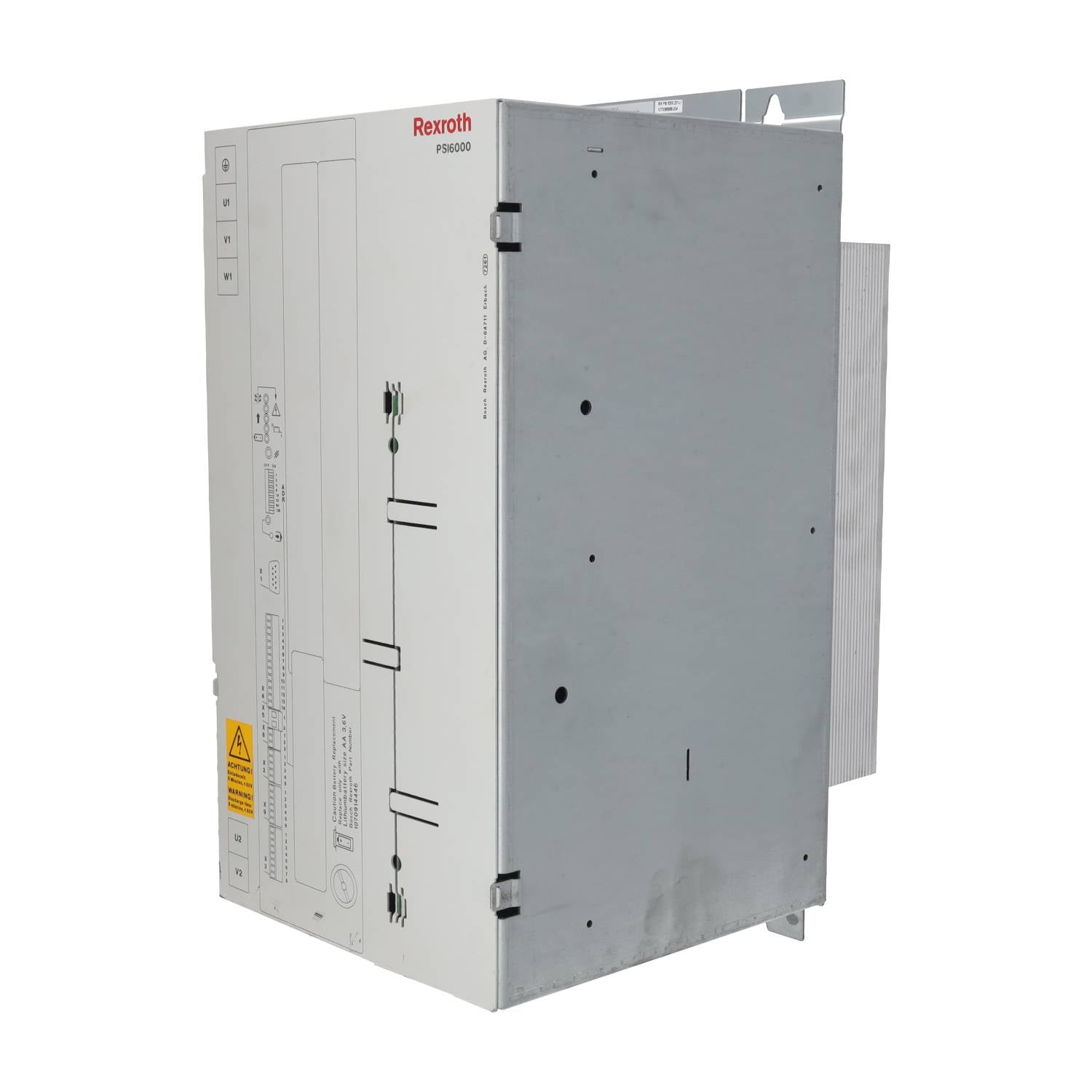

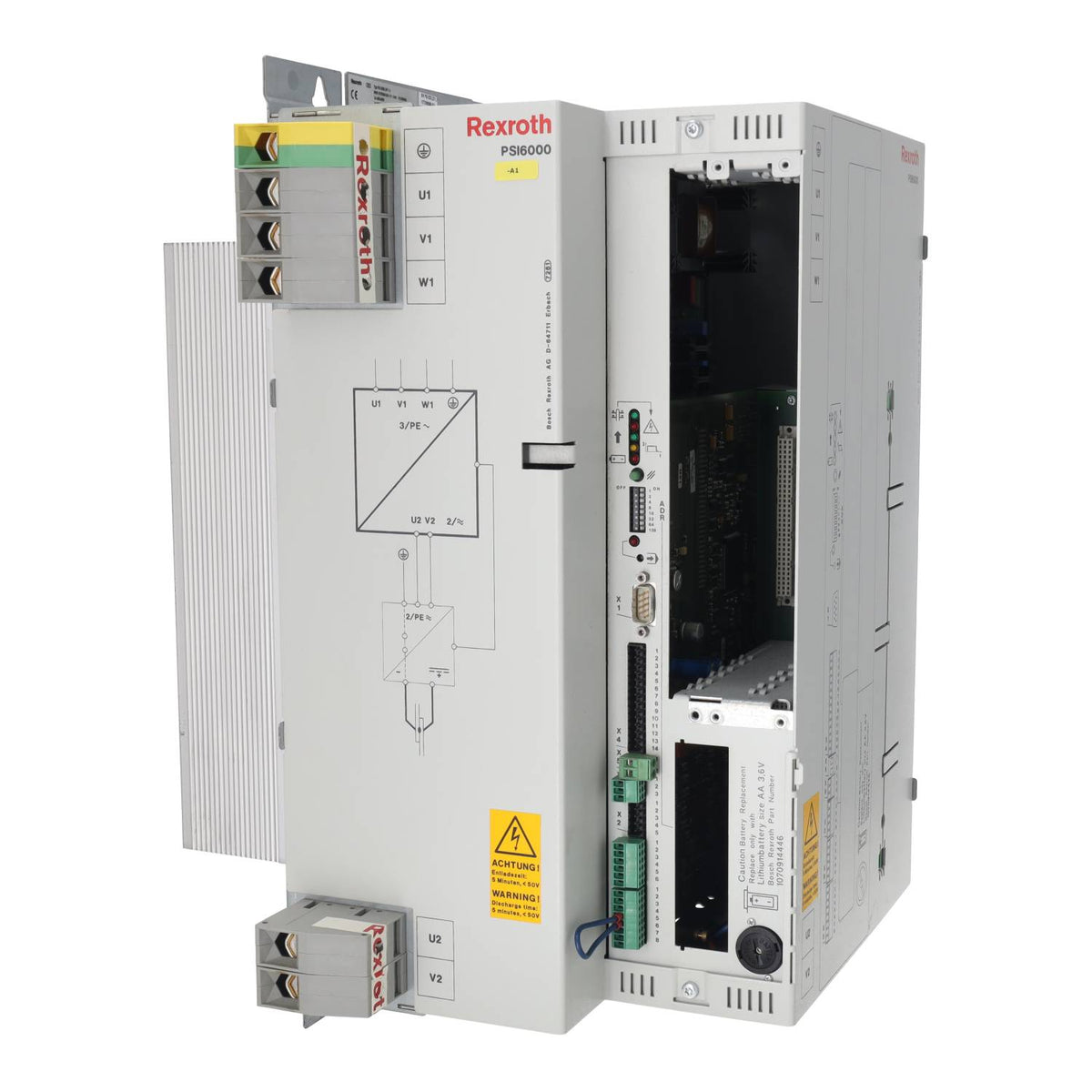

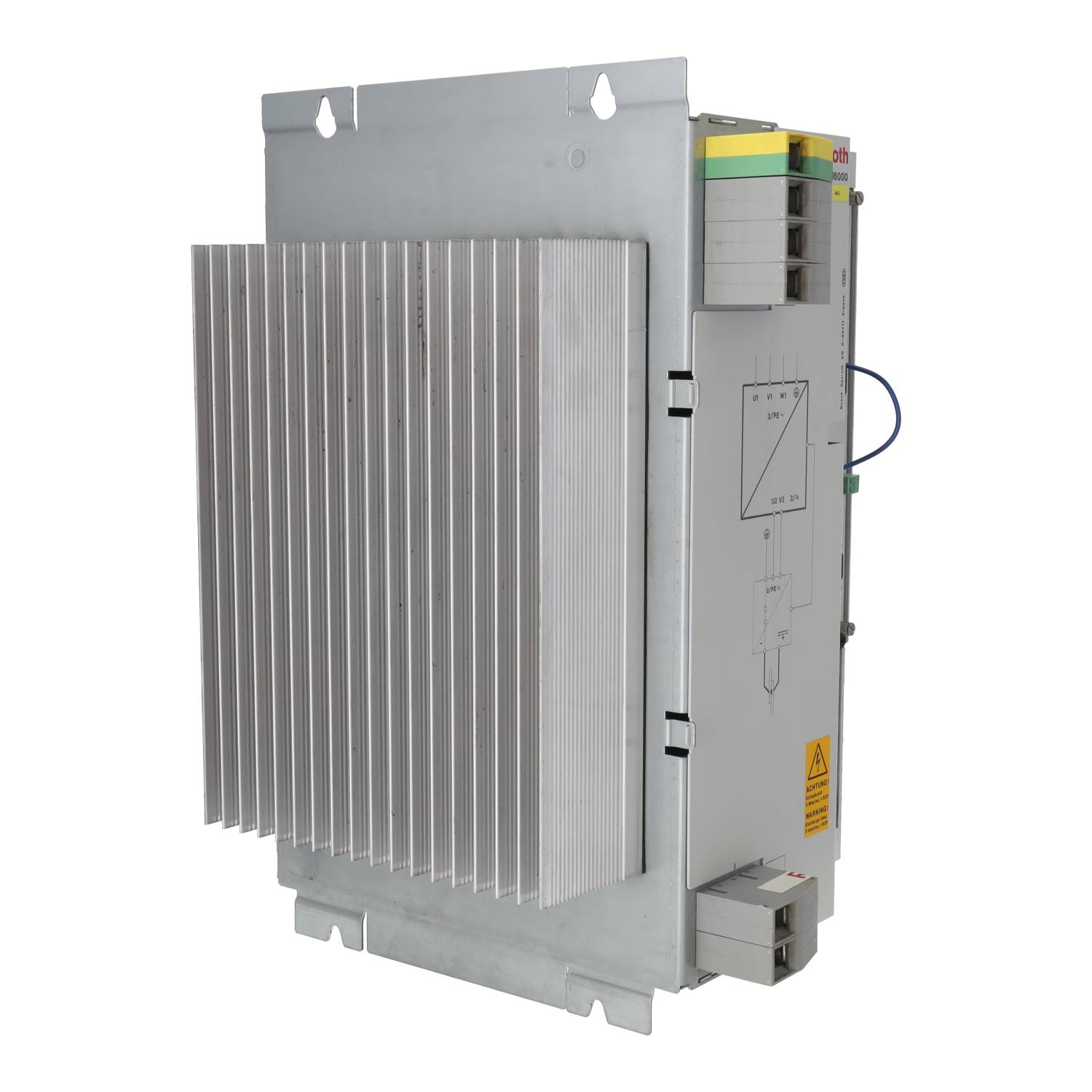

PSI 6300-201-L1 (1070084338 111)
Free shipping from 49€
worldwide shipping
Manufacturer: Bosch Rexroth
Model: PSI6300.201-L1
Part number: 1070084338 111
Product type: medium-frequency welding controller with integrated inverter
Design: 3-phase medium-frequency inverter with integrated weld controller
Mains voltage range: 400 – 480 V AC
Mains voltage tolerance: 400 V −15 %, 480 V +10 %
Rated mains current (max. continuous): 110 A
Max. primary current: 800 A
Max. secondary current: 36 kA (with transformer type PSG 3100)
Required connection cross-section: min. 35 mm²
Weight: approx. 20 kg
Connection terminals: frame terminals, max. 50 mm² clamping capacity
Tightening torque: 6 – 8 Nm
Control cabinet base losses: 69 W
Control cabinet losses at max. power: 170 W
Max. cooling losses: 360 W
Protection rating: IP20 (installation in cabinet with IP54 recommended)
Operating temperature: +10 to +55 °C
Storage / transport temperature: −25 to +70 °C
