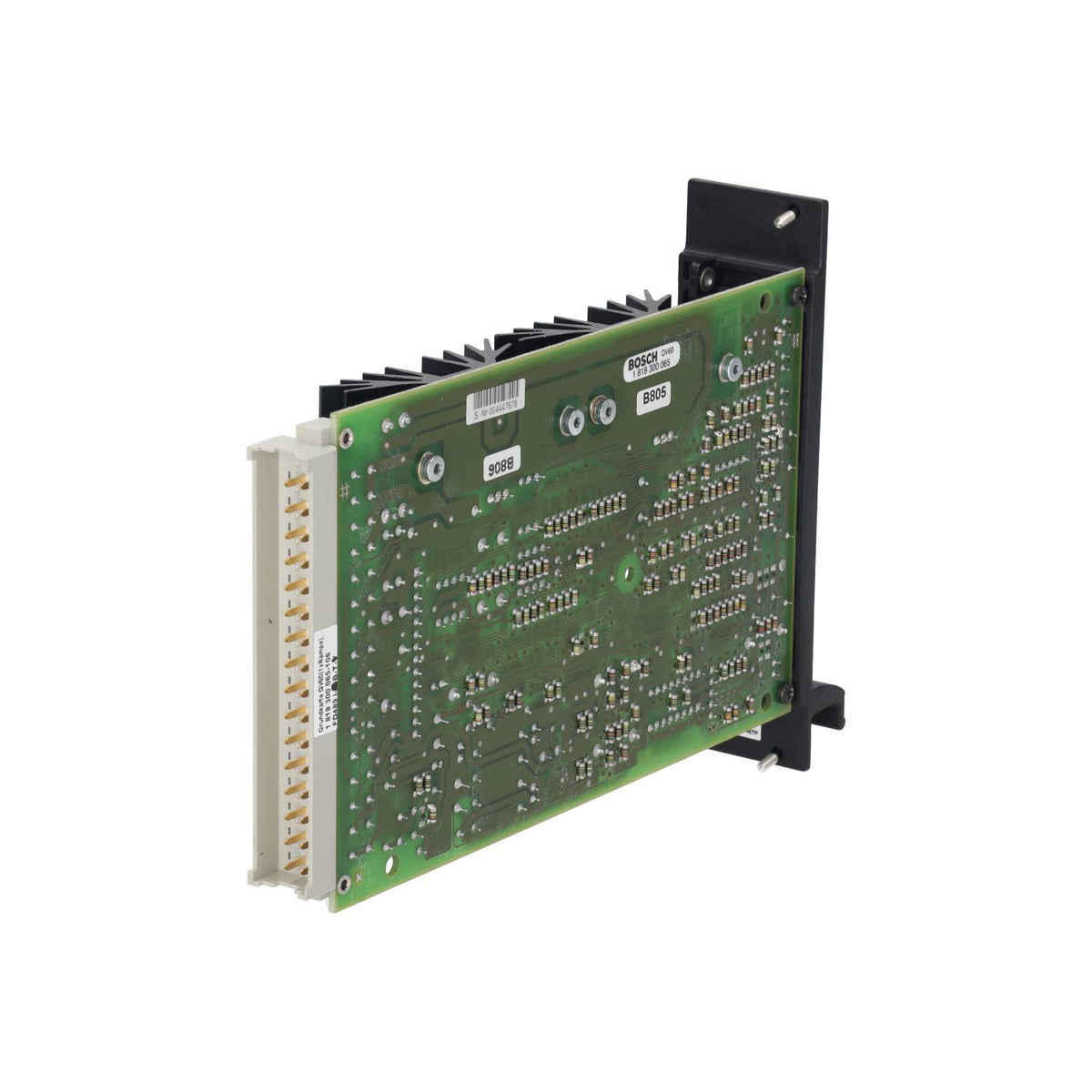

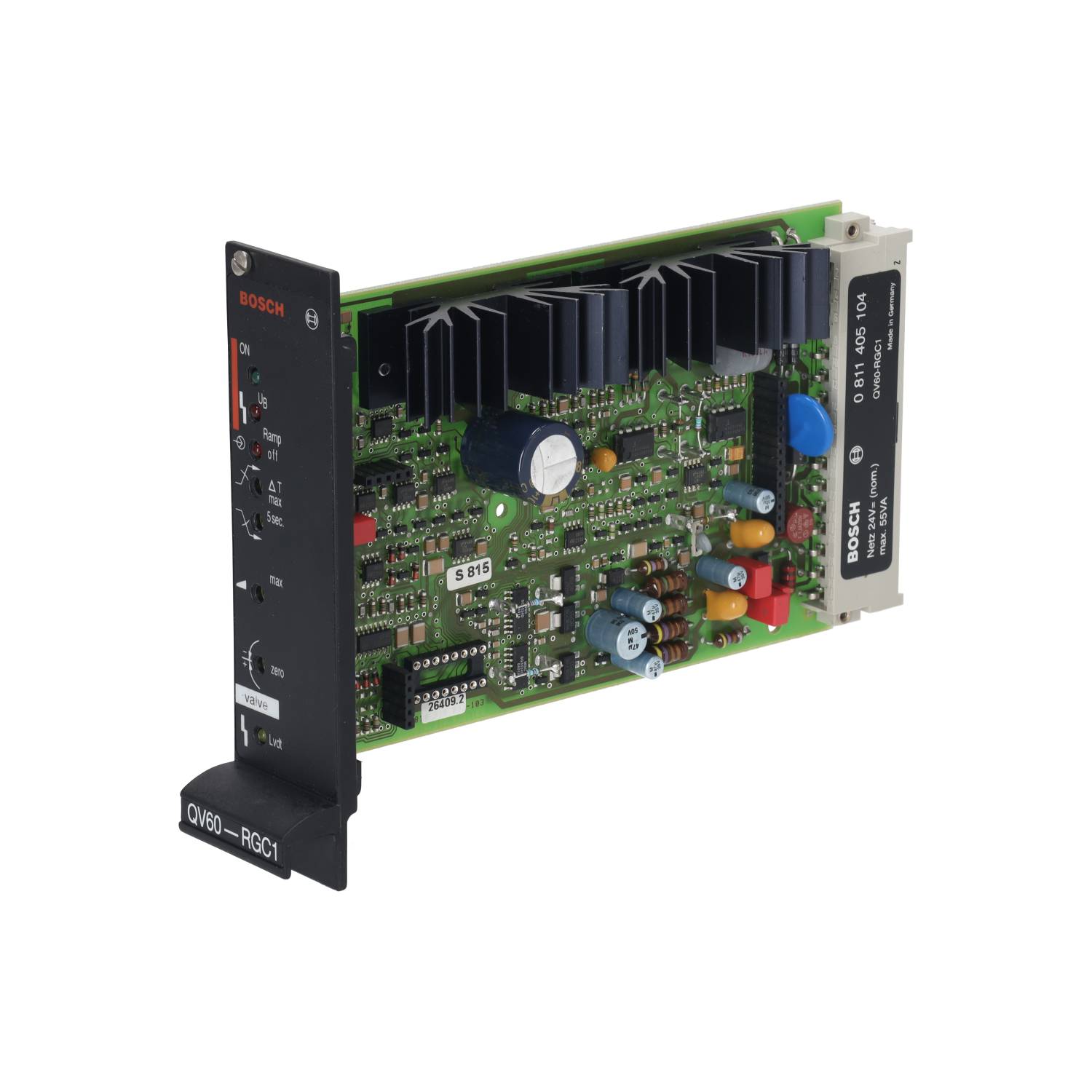

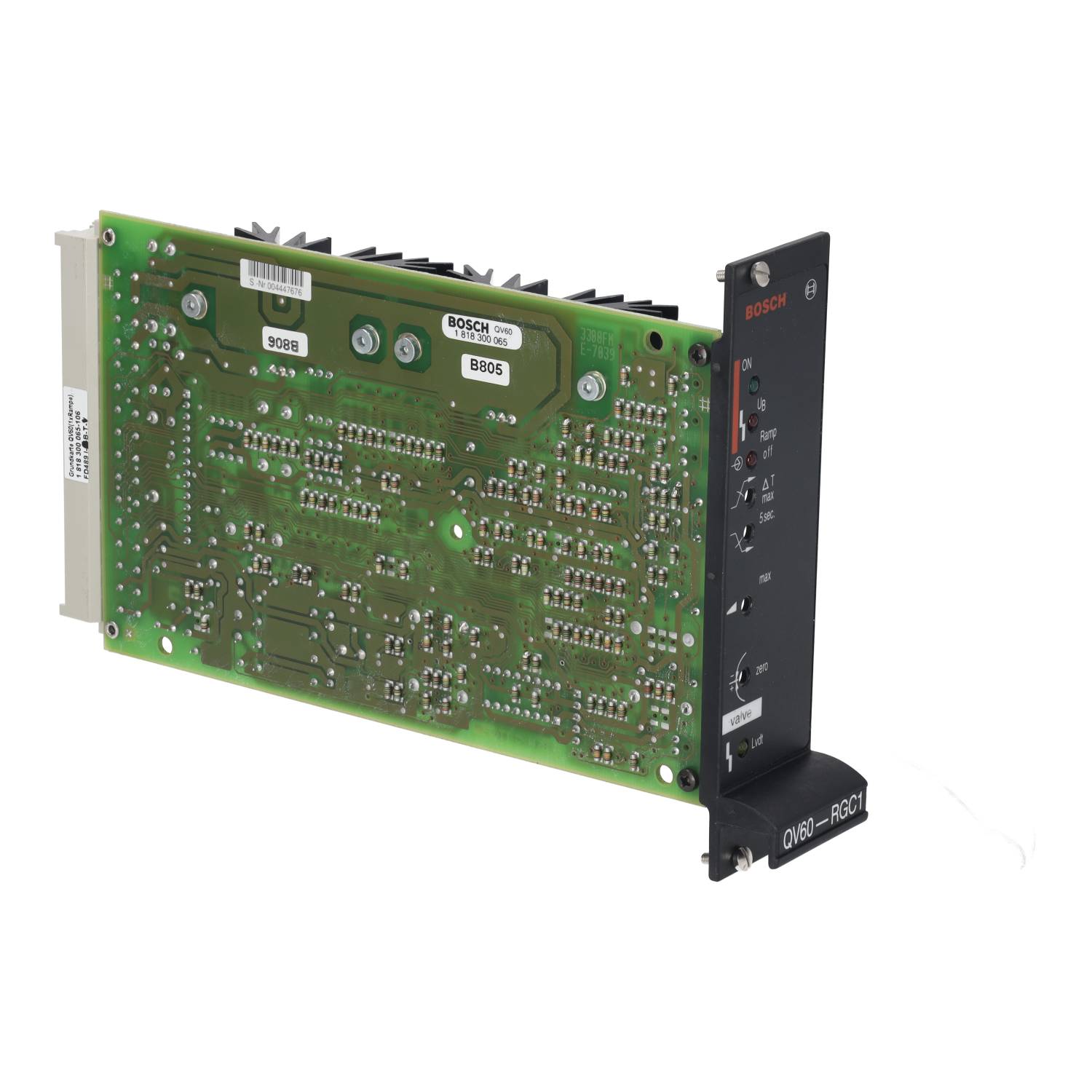

QV60-RGC1 (0 811 405 104)
Free shipping from 49€
worldwide shipping
Model: QV60-RGC1
Part Number: 0811405104
Board Size: 100 × 160 × 35 mm
Connector: DIN 41 612 – F32
Operating Temperature: 0–70 °C
Storage Temperature: –20–70 °C
Supply Voltage: 24 V DC
Battery Voltage: 21–40 V
AC Input (rectified): 21–28 Veff
Smoothing Capacitor: 4700 µF / 63 V
Power Consumption: max. 35 W / 60 W
Current Draw: max. 1.5 A / 2.5 A
Magnet Current: 2.7 A / 3.7 A
Magnet Output: square-wave, pulse-modulated
Setpoint Inputs: 0–10 V (UE I / II / III)
Signal Source: Potentiometer 1 kΩ
Feedback (Oscilloscope): 0–10 V
Enable: 8.5–40 V
Ramp OFF: 8.5–40 V
Cable Length Magnet: up to 20 m = 1.5 mm² / up to 50 m = 2.5 mm²
Cable Length Transducer: max. 50 m
Protection Functions: cable break detection, undervoltage, short-circuit-proof outputs
Control: PID behavior
Power Stage: switched, fast response
Ramp: switchable
Adjustment: zero, sensitivity, accel/decel ramp
LED Indicators: green (enable), yellow (cable break / ramp off), red (under-voltage)
