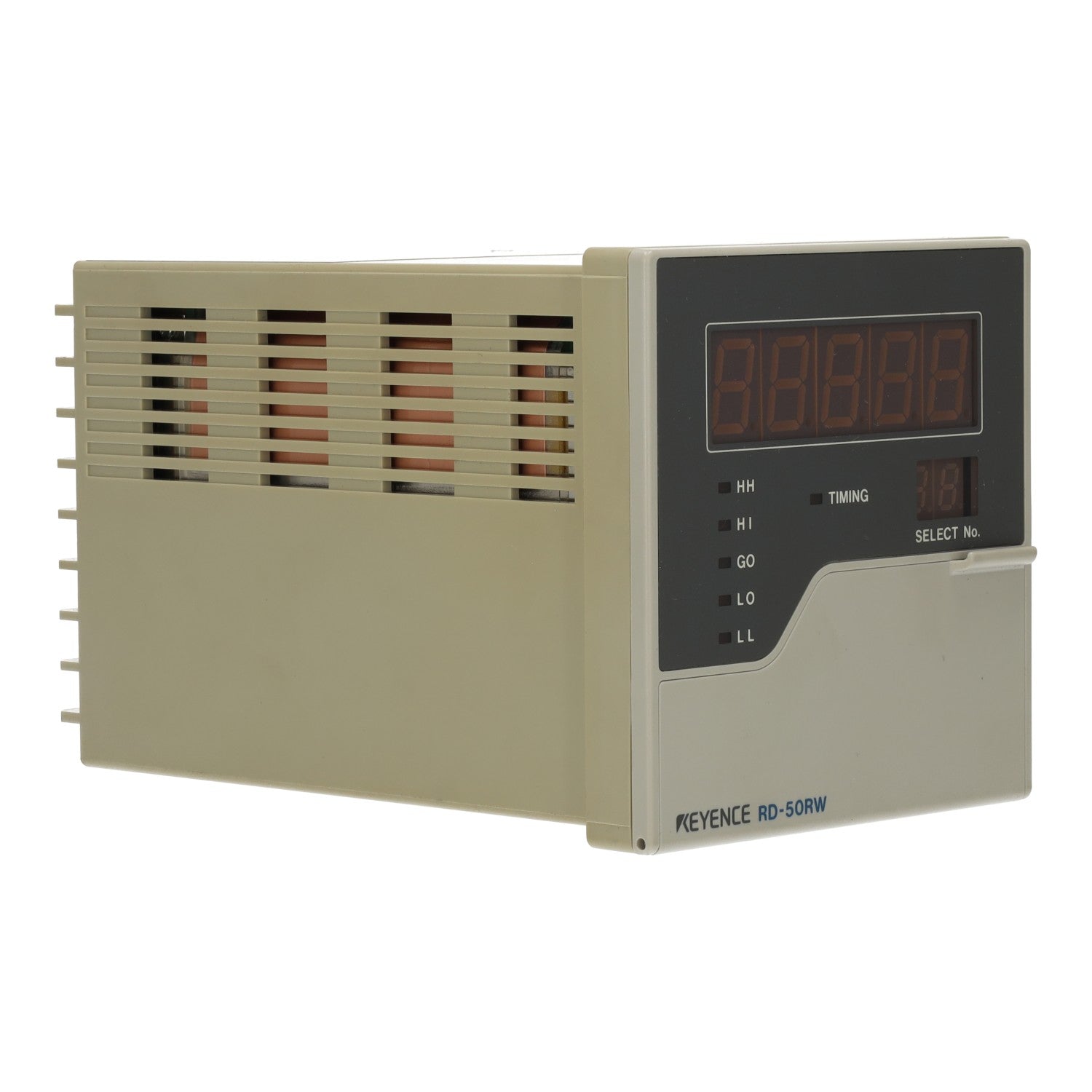

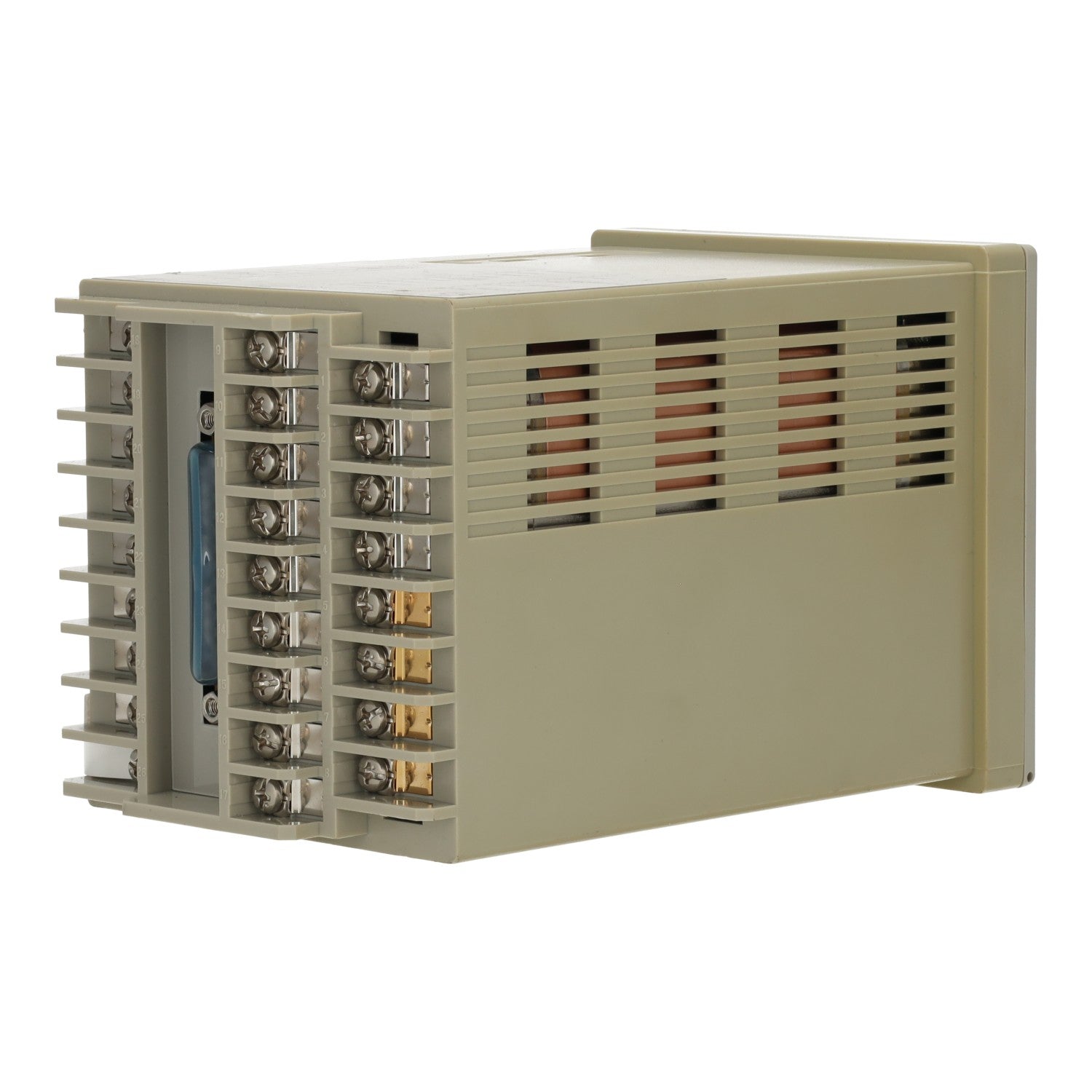

RD-50RW
Free shipping from 49€
worldwide shipping
Model | RD-50RW |
|||
Measurement function | DC voltage measurement, DC current measurement |
|||
A/D converting system | Successive comparison |
|||
Measurement range | ±5 VDC, ±10 VDC, 4 to 20 mA DC (selectable) |
|||
Display range | -19999 to +39999 |
|||
Measurement accuracy | ±0.03 % of F.S. (at ±5 VDC range), ±0.03 % of F.S. (at ±10 VDC range) |
|||
Input | Impedance | 1 MΩ (for voltage input), 350 Ω (for current input) |
||
System | Single-ended |
|||
Number of inputs | 2 |
|||
Sampling rate | 2,000 times/second |
|||
Display speed | 20 times/second |
|||
Display power | 7-segment 3-colour LED (character height: 15.24 mm) |
|||
Over-range alarm | FFFF is displayed |
|||
Control input | Synchronous, Hold-reset, Auto-zero, External setting, |
|||
Control input | Timing input |
|||
Hold reset input |
||||
Auto-zero input |
||||
External setting input |
||||
Controloutput | Setting method | 4 steps x 8 programmable setups (selectable)*1 |
||
Signal | 5 x NPN (HH, HI, GO, LO, LL): 100 mA max. (40 V max.)*1 |
|||
Response time | 1 ms (when average number 1)*1 |
|||
OFF-delay time | 60 ms (ON/OFF selectable)*1 |
|||
Analogue output voltage | Output voltage | ±10 VDC |
||
Impedance | 100 Ω |
|||
Response time | 1 ms (when average number 1)*2 |
|||
Interface | Data output and control input through RS-232C |
|||
Major functions | MDL, digital fi lter, auto-zero, offset, input, data processing (10 modes), |
|||
Rating | Power voltage | 24 VDC ±10 %, Ripple (P-P) 10 % or less |
||
Current consumption | 270 mA or less |
|||
Environmental resistance | Ambient temperature | 0 to +50 °C |
||
Relative humidity | 35 to 85 % RH (No condensation) |
|||
Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions |
|||
Weight | Approx. 700 g (excluding fi ttings) |
|||
