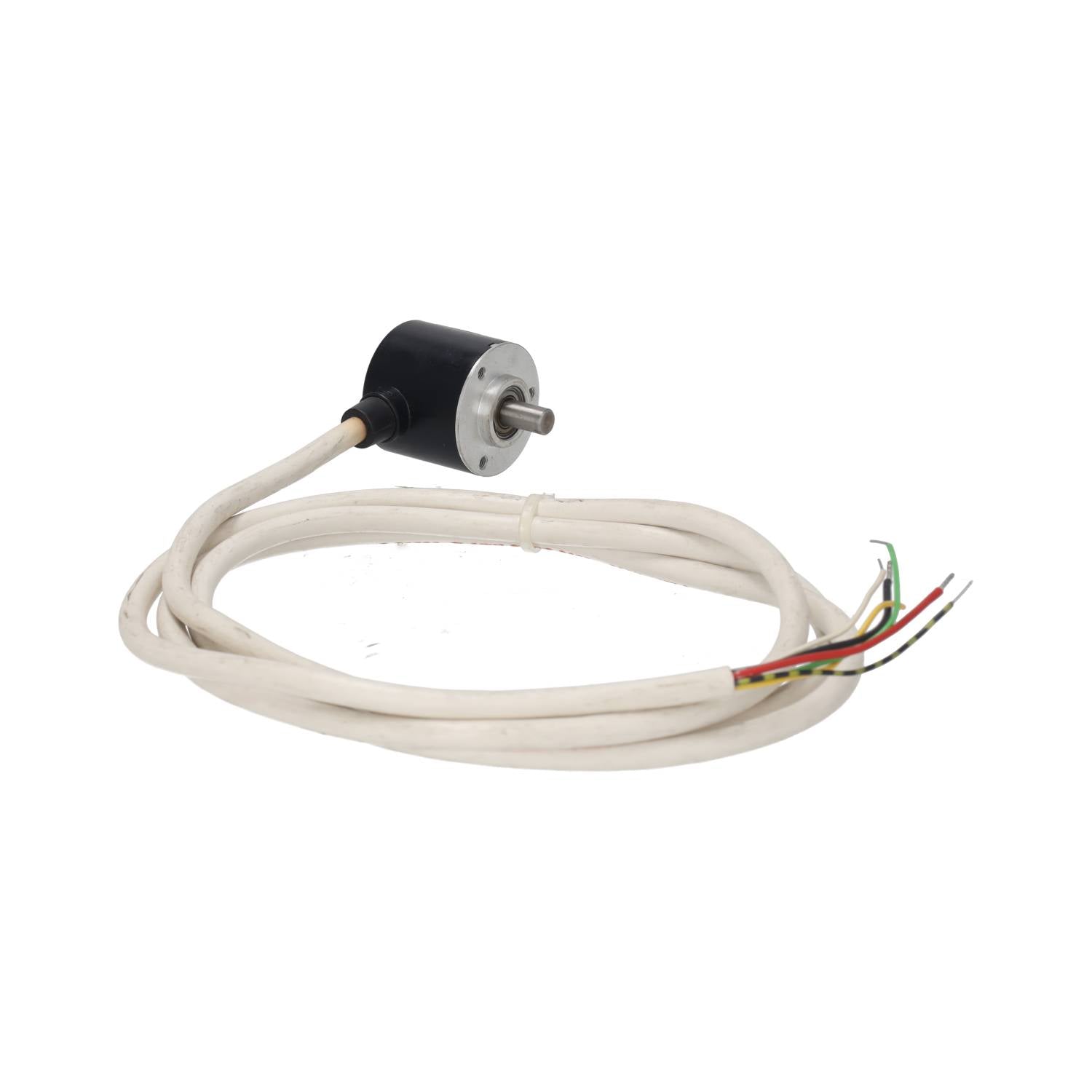

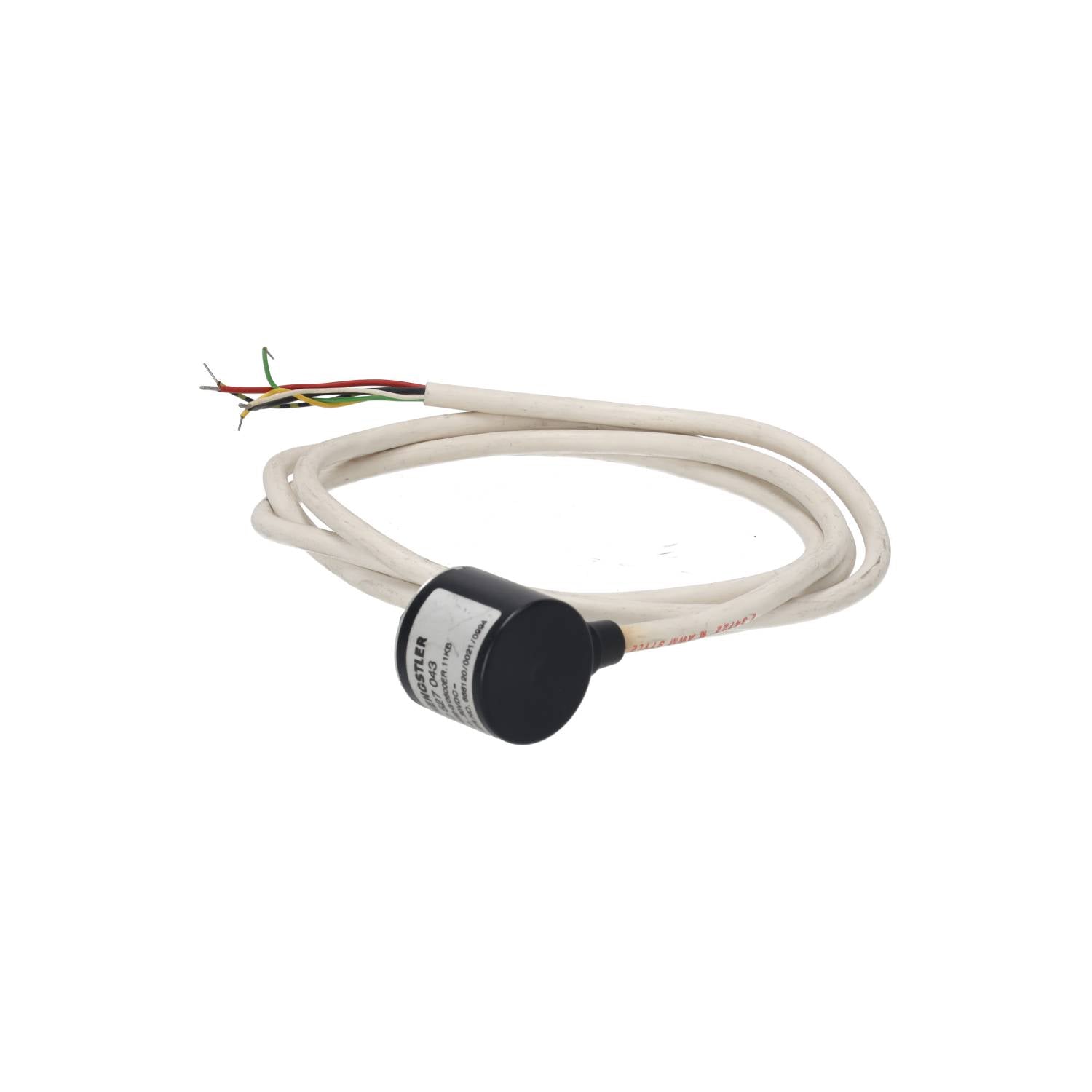

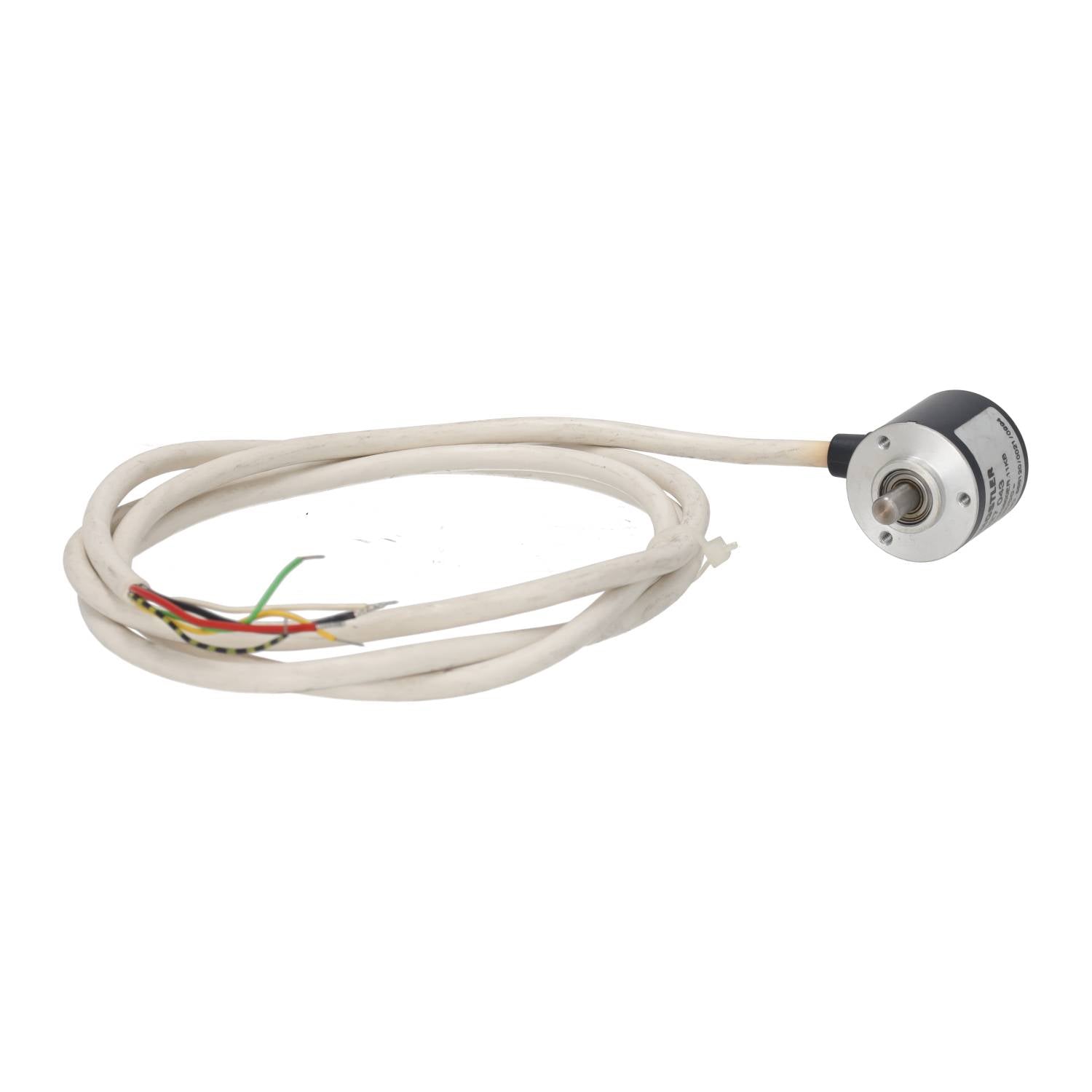

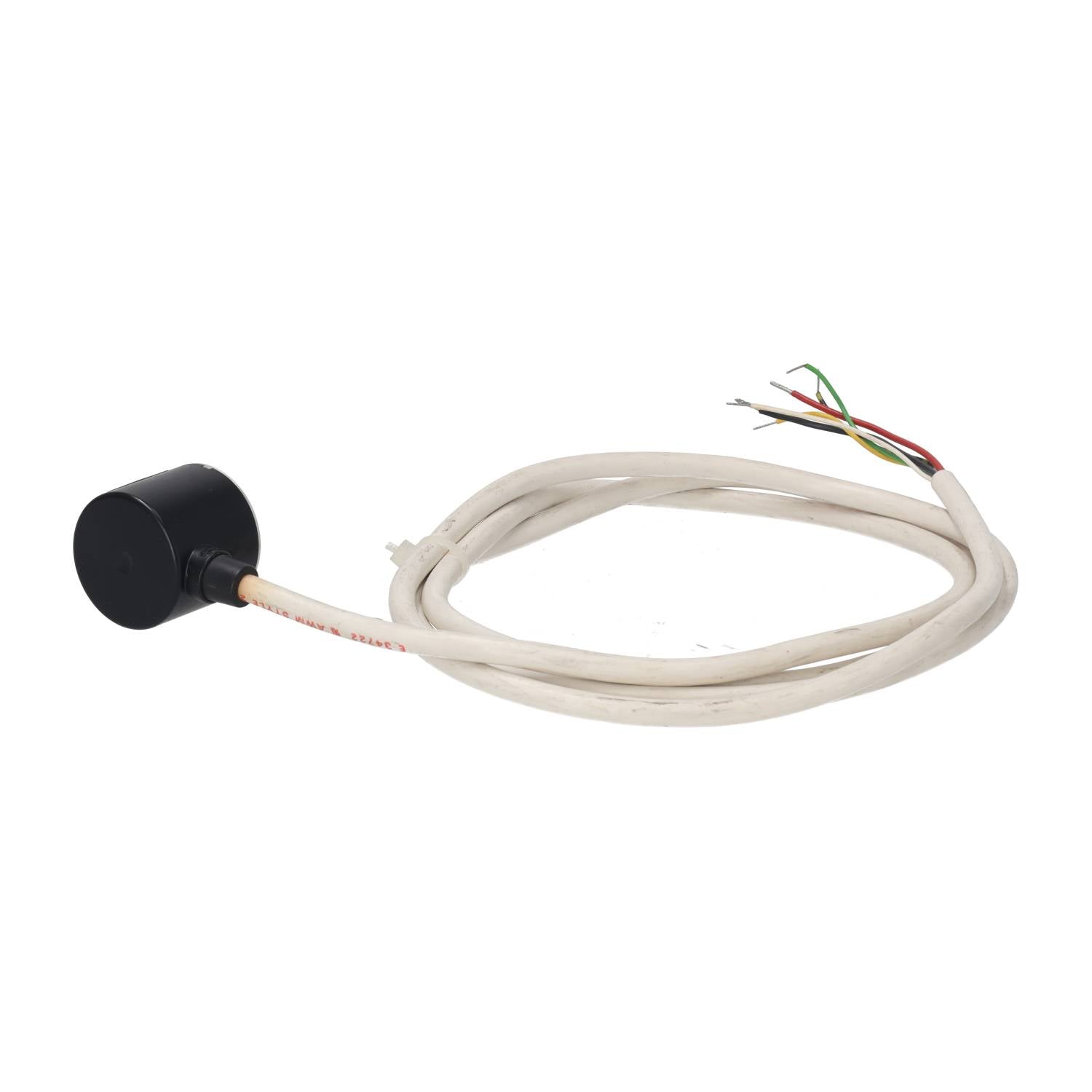

RI32-O/600ER.11KB (0 527 043)
Free shipping from 49€
worldwide shipping
Model: RI32-O
Line count (resolution): 5 ... 1500
Output signal: TTL (5 V) / HTL (5–30 V)
Max. pulse frequency: 300 kHz (5 V) / 200 kHz (10–30 V)
Supply voltage: 5 V ±10 % or 10–30 V DC (depending on model)
Current consumption: 30–60 mA (depending on voltage)
Housing diameter: 30 mm
Shaft diameter: 5 mm or 6 mm (solid shaft)
Ingress protection shaft / housing: IP40 / IP50
Max. speed: 6000 rpm
Starting torque: ≤ 0.05 Ncm
Axial / radial shaft load: 5 N / 10 N
Shock resistance: 1000 m/s² (6 ms)
Vibration resistance: 100 m/s² (10–2000 Hz)
Operating temperature: –10 … +60 °C
Storage temperature: –25 … +85 °C
Housing material: plastic
Shaft material: stainless steel
Connection: PVC cable, axial or radial
Weight: approx. 50 g
