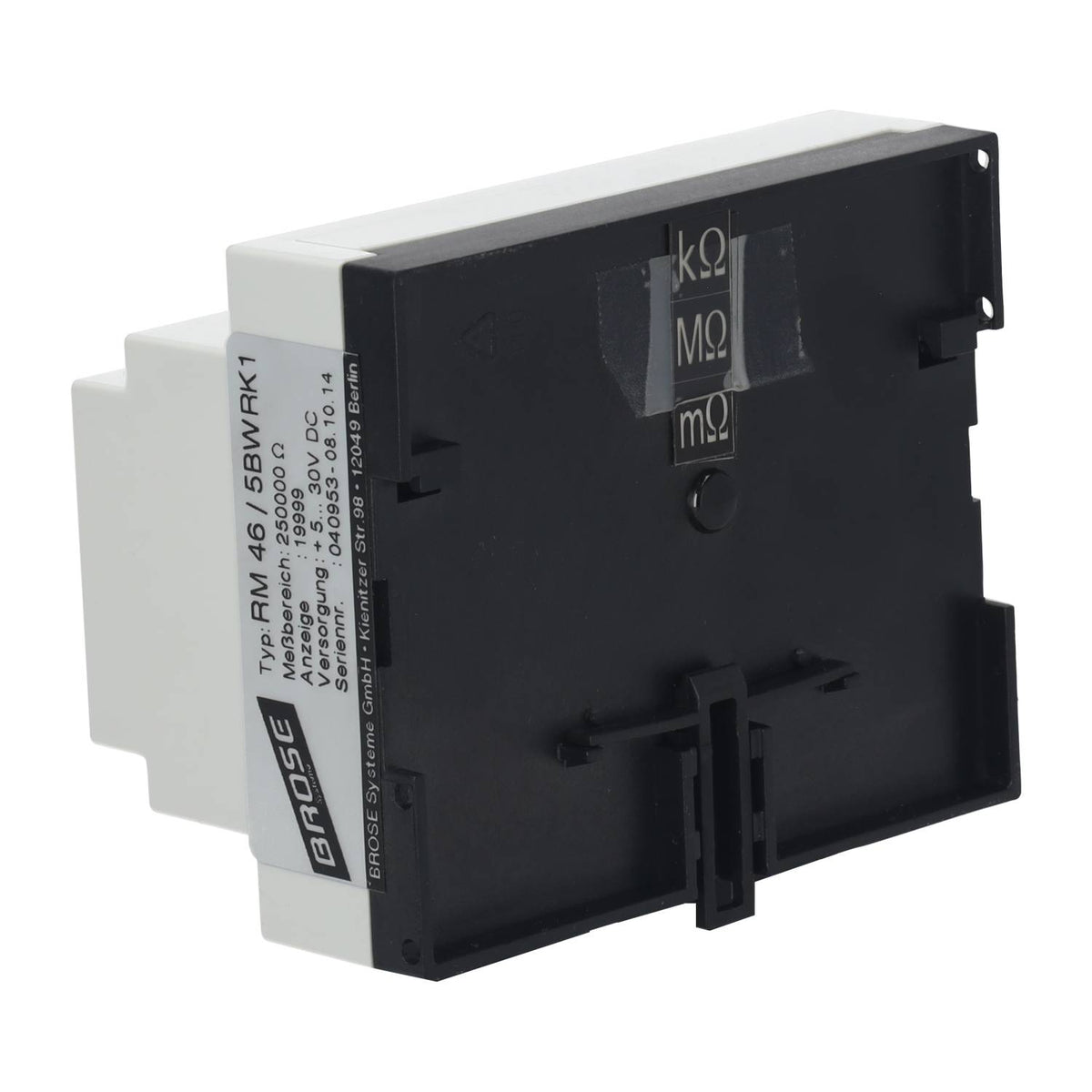

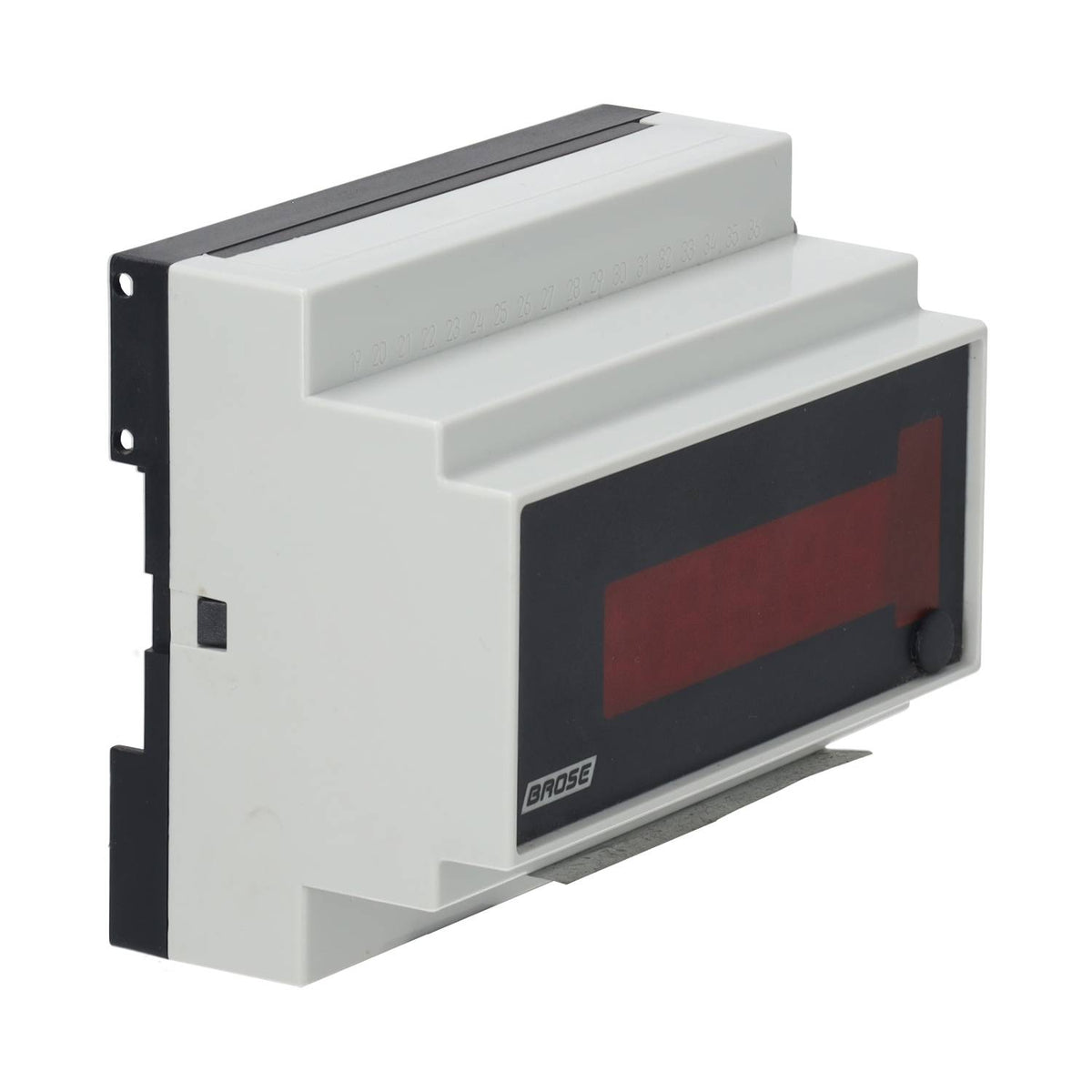

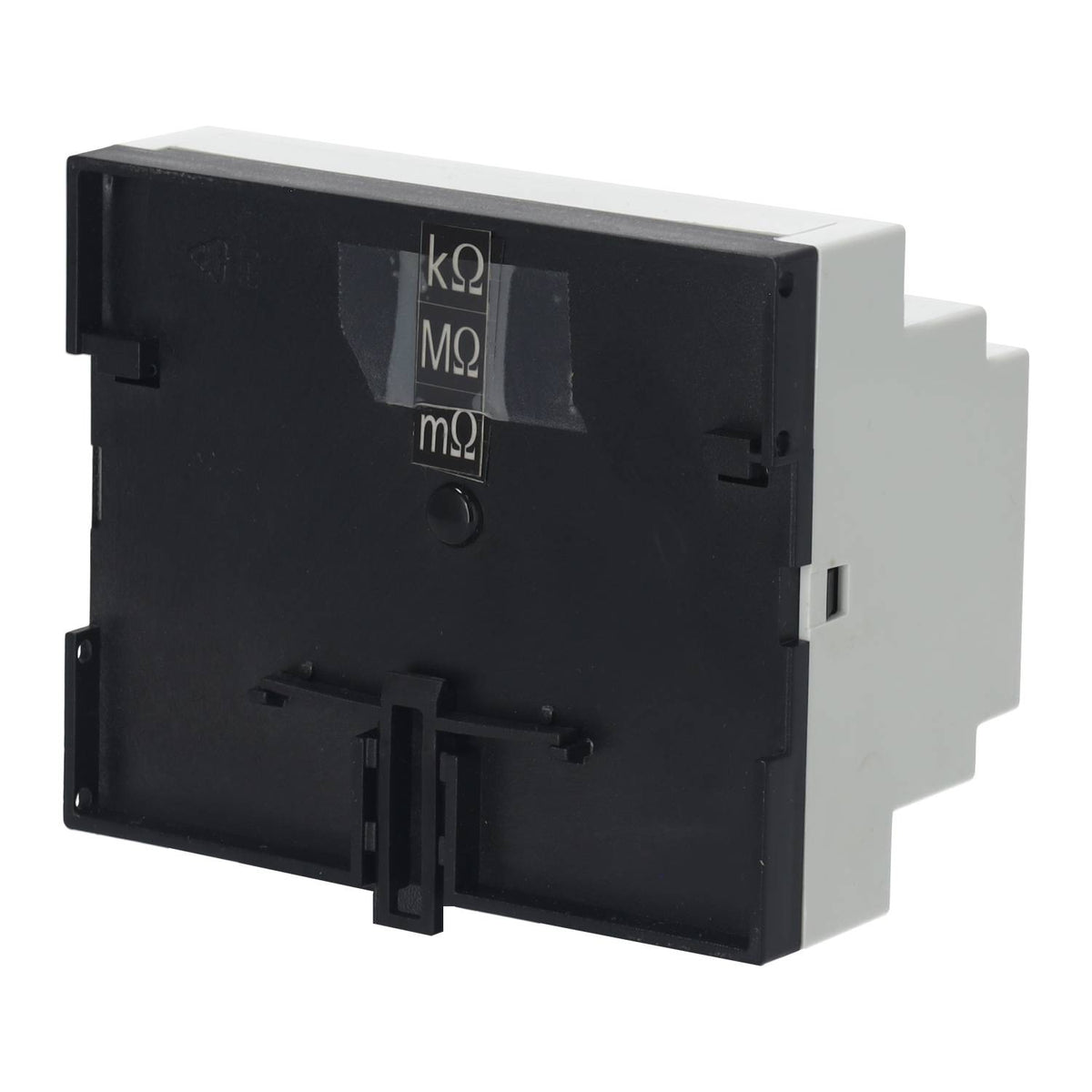

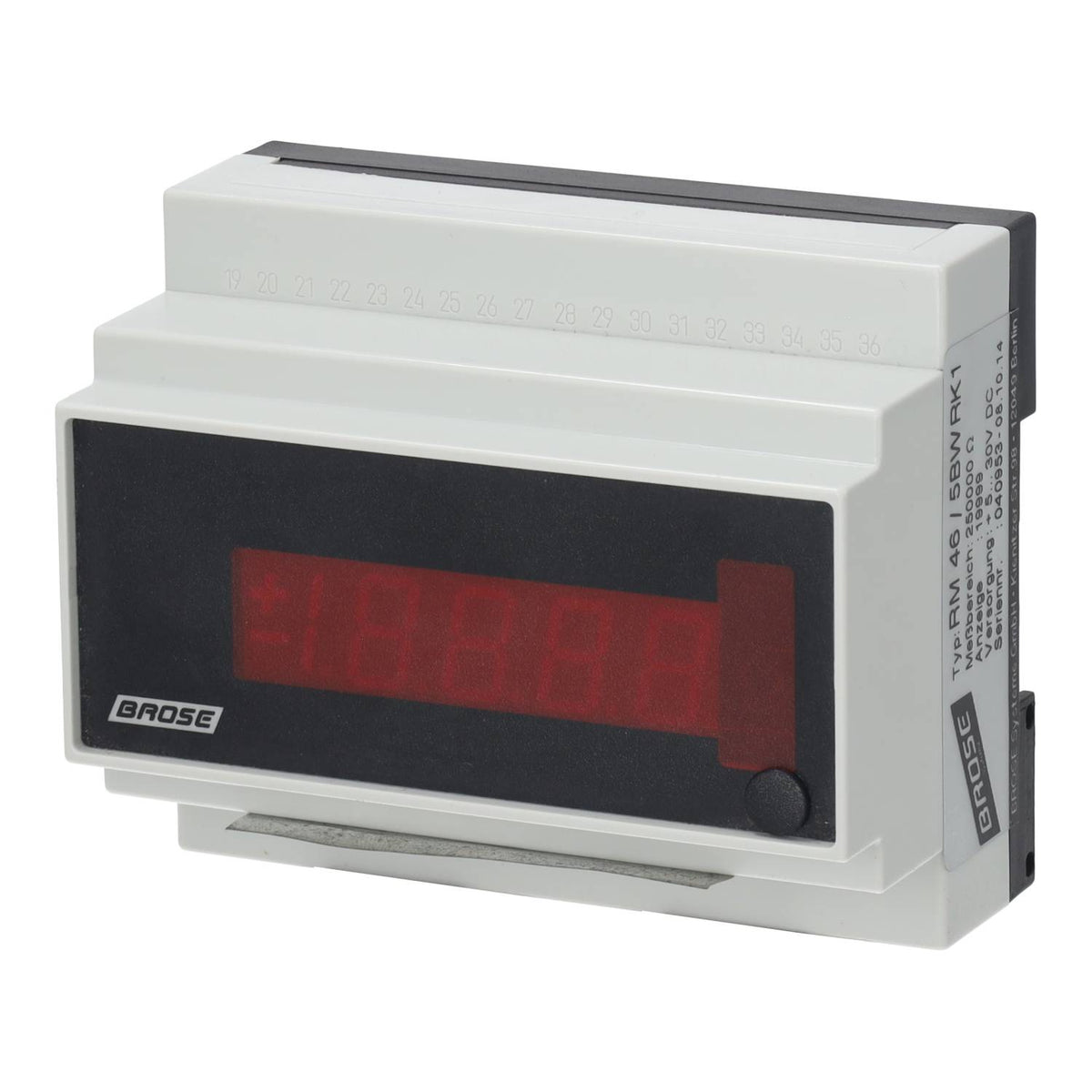

RM46 / 5BWRK1
Free shipping from 49€
Worldwide shipping
- Manufacturer: BROSE Systeme GmbH
- Series: RM 46
- Model: RM46 / 5BWRK1
- Device type: Digital Rail Meter
- Installation: EN-Mounting on mounting rails
- Measurement range: 20 kΩ
- Measured current: approx. 54 µA
- Option B: Factory-specific special calibration
- Advertisement: 4½-digit 7-segment LED display
- Display area: ±19,999 digits
- Ad height: 14 mm
- Display color: Red
- Polarity indicator: Automatically, + or −
- Decimal point: Adjustable at all positions
- Ad storage: Minimum / Maximum / Average / Hold / Tare
- Increment: 1, 2, 5, or 10 digits
- Measurement rate: 4, 10, 16, or 50 conversions per second
- Settling time: approx. 0.15 s
- Measurement error: ±0.02% of the measured value ±1 digit
- Temperature coefficient: ±25 × 10⁻⁶/K
- Long-term stability: ±0.025% drift over 3 years
- Warm-up time: 2 min RM46
- Limit switches: 2 independent limit switches, each with 2 limit values
- Relay contacts: Changeover Switch, 250 V AC / 2 A
- Supply voltage: 85–300 V AC, 47–440 Hz, or 120–300 V DC
- Power consumption: 3.3 VA at 230 V AC
- Sensor Power Supply: +12 V DC ±5%, 20 mA stabilized
- Front Protection Rating: IP50, optional IP65
- Protection Class Connection: IP20
- Housing material: PC/ABS, UL 94 V-0
- Connection: 15-pin pluggable screw terminal
- Width: 88 mm
- Height: 90,5 mm
- Depth: 62 mm
- Weight: approx. 0.23 kg
