RS20-0800M2T1SDAE
Free shipping from 49€
Worldwide shipping

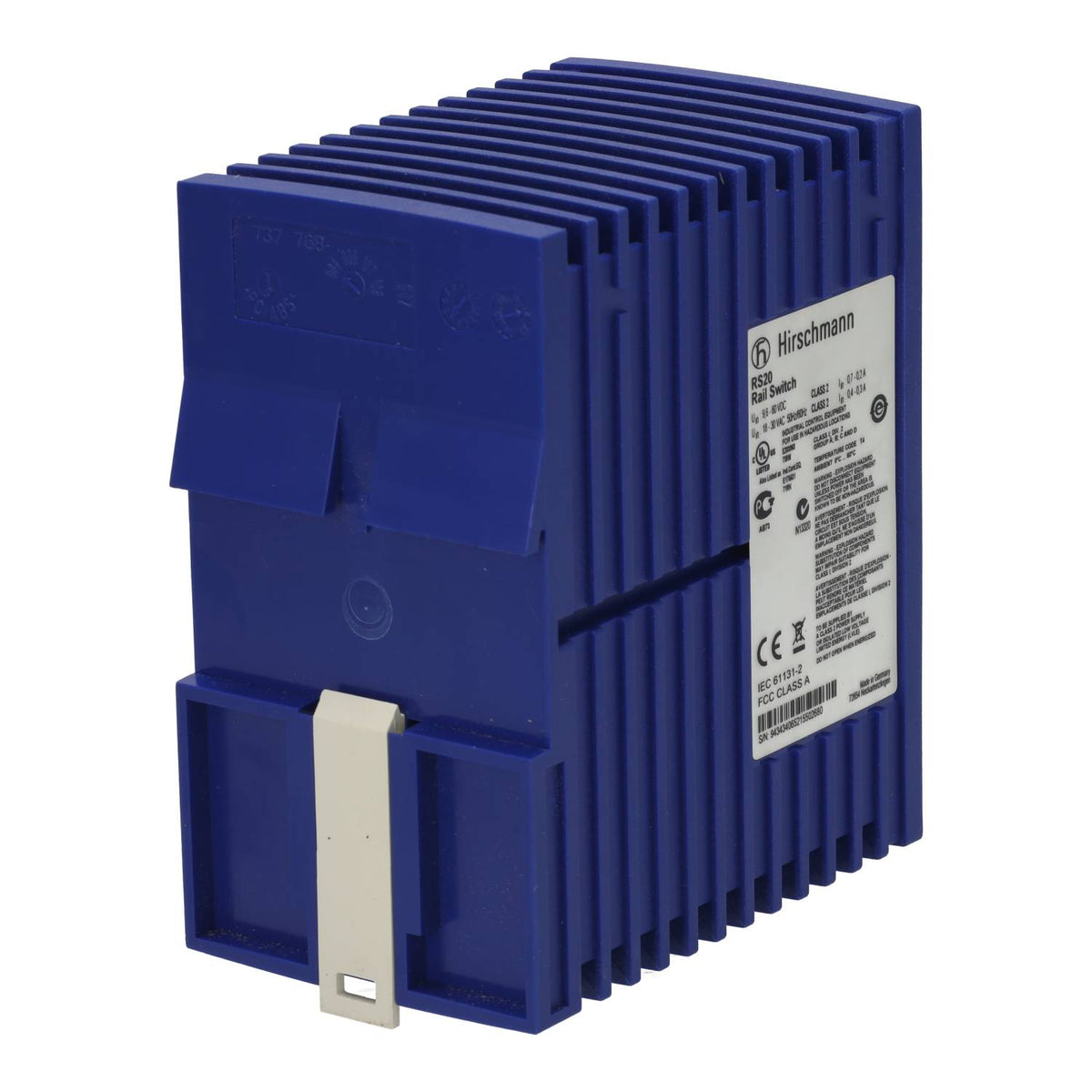

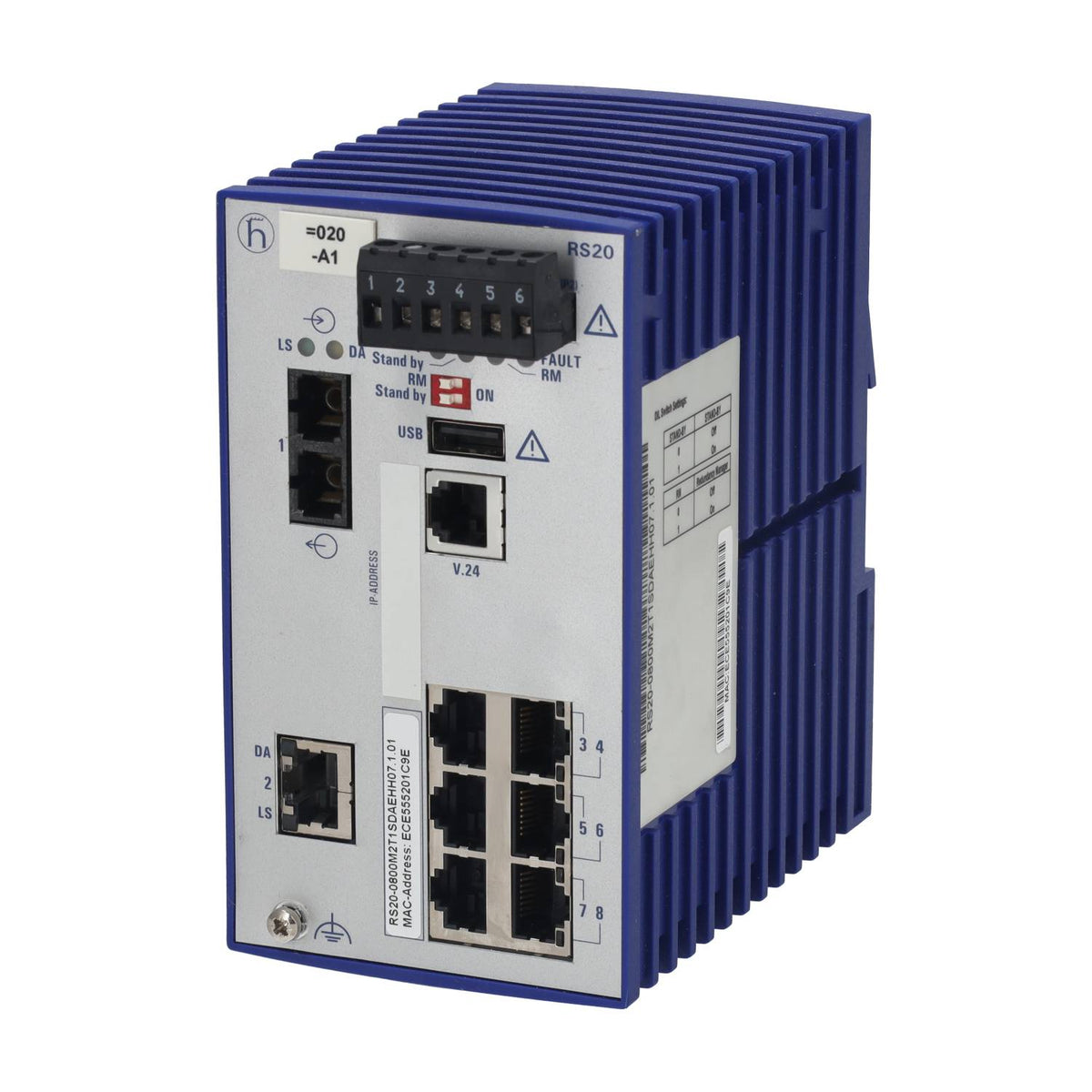

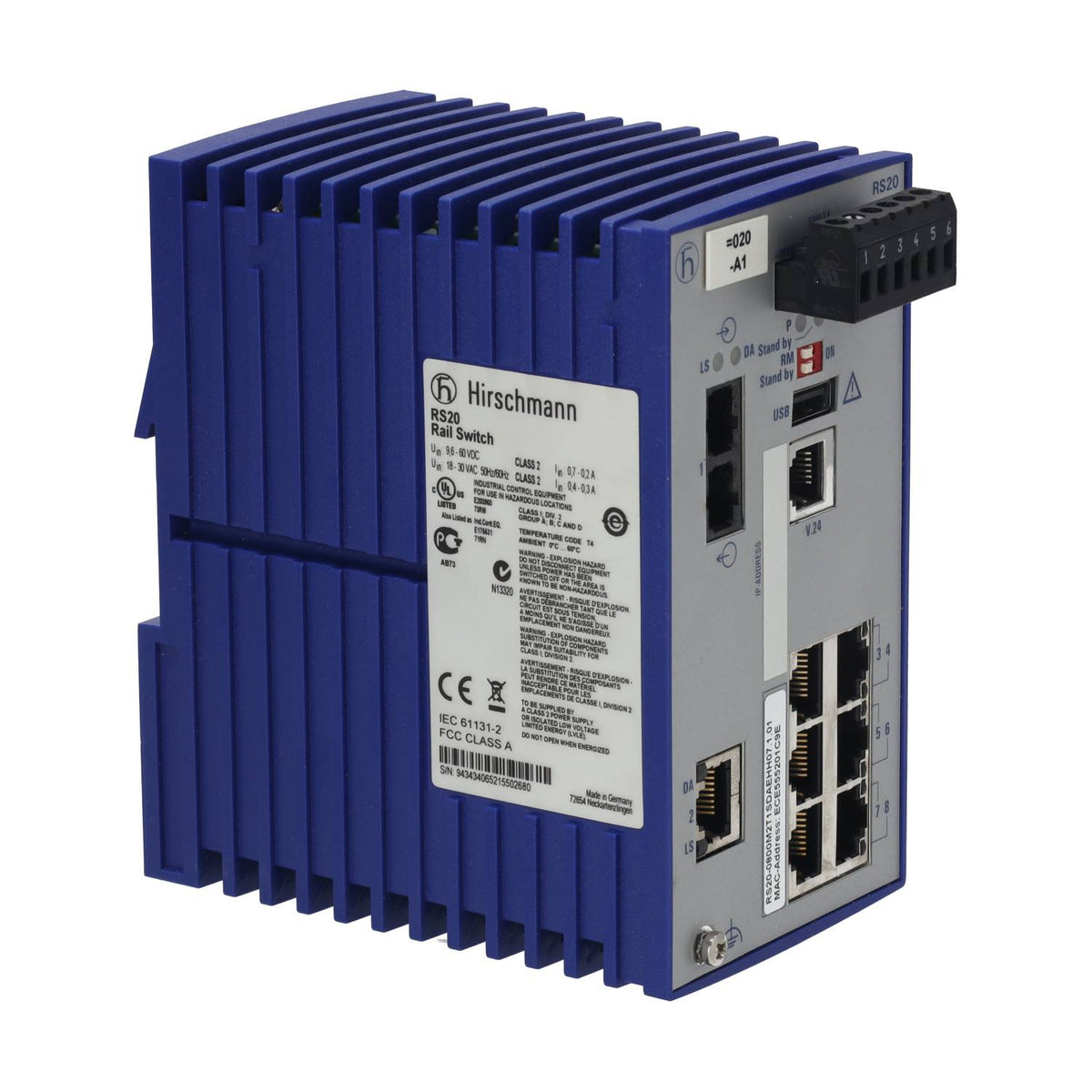

Type: RS20-0800M2T1SDAE
Manufacturer: Hirschmann / Belden
Order number: 943 434-003
Device type: Managed Industrial Fast Ethernet Switch
Design: Compact, DIN rail
Port configuration: 6 × RJ45 10/100BASE-TX, 2 × SC Multimode 100BASE-FX
Total ports: 8 Fast Ethernet ports
Switch method: Store-and-Forward
Management: Web interface, SNMP, CLI
VLAN support: IEEE 802.1Q
Multicast: IGMP Snooping
Redundancy protocols: RSTP / MRP
Diagnostic functions: Port Mirroring, Broadcast/Unicast Limiter
Supply voltage: 12/24/48 V DC (9.6…60 V DC)
Power consumption: approx. 8–10 W
Voltage inputs: redundant
Relay contact: Alert Message
Operating temperature: 0…+60 °C
Storage temperature: −40…+70 °C
Relative humidity: 10–95%, non-condensing
Protection class: IP20
Housing: Metal
Installation: DIN top-hat rail (TS 35)
Dimensions (H × W × D): approx. 131 × 111 × 47 mm
Weight: approx. 0.4 kg
Front-end interfaces: USB port, serial V.24 (RJ11)
Certifications: CE, cUL508, EN 50121-4, IEC 61850-3 / IEEE 1613
Software Level: “E” (Enhanced Layer 2, without Layer 3 functions)
