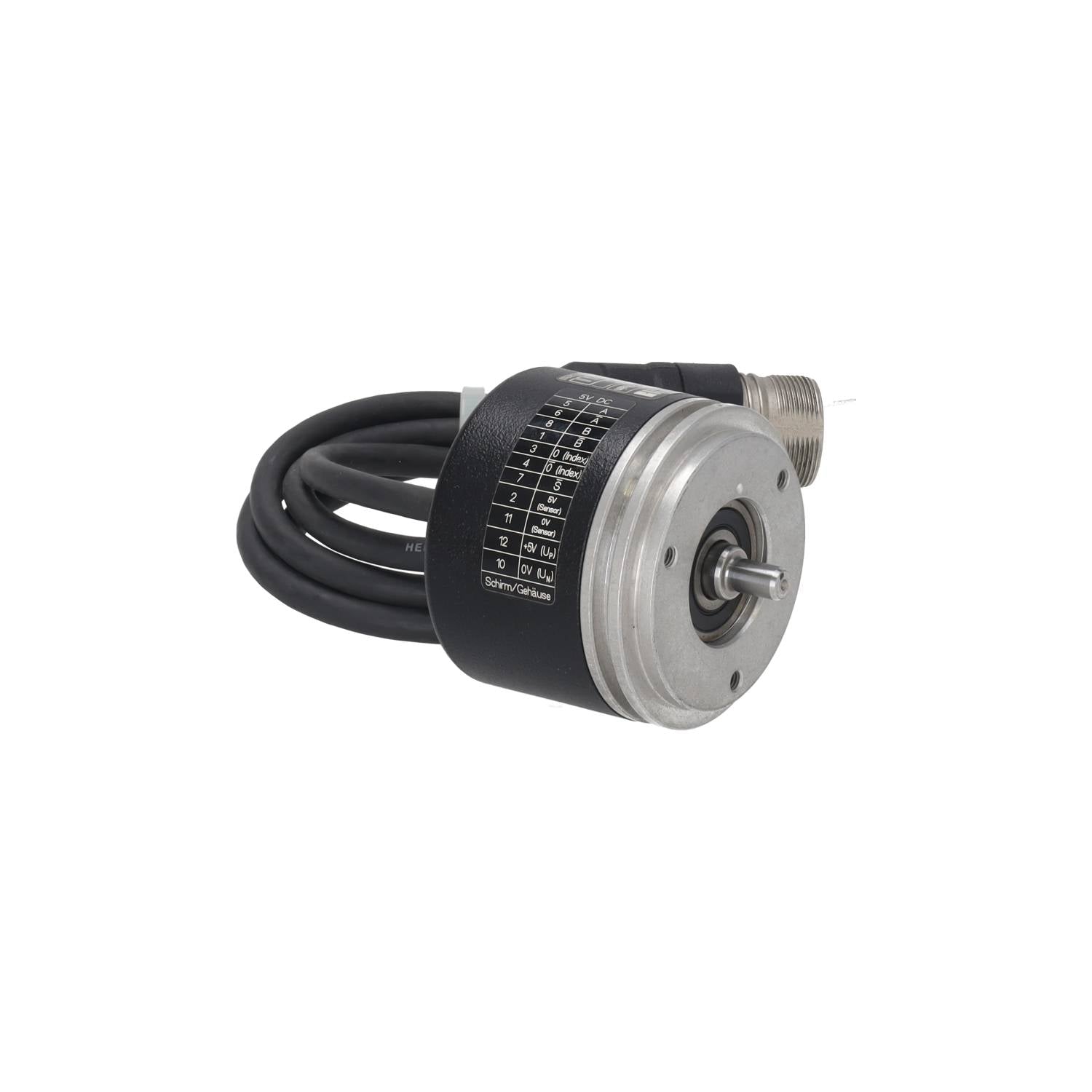

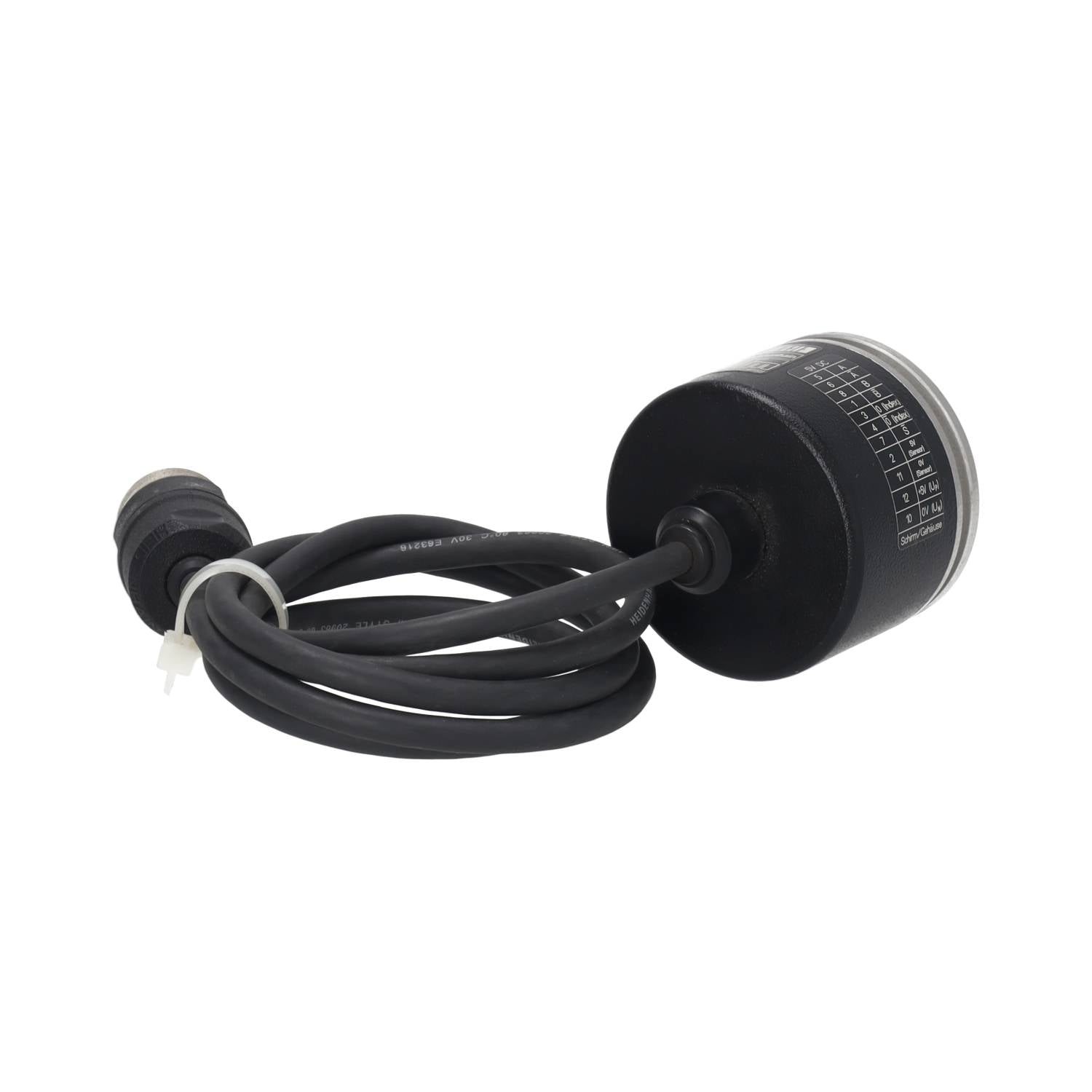

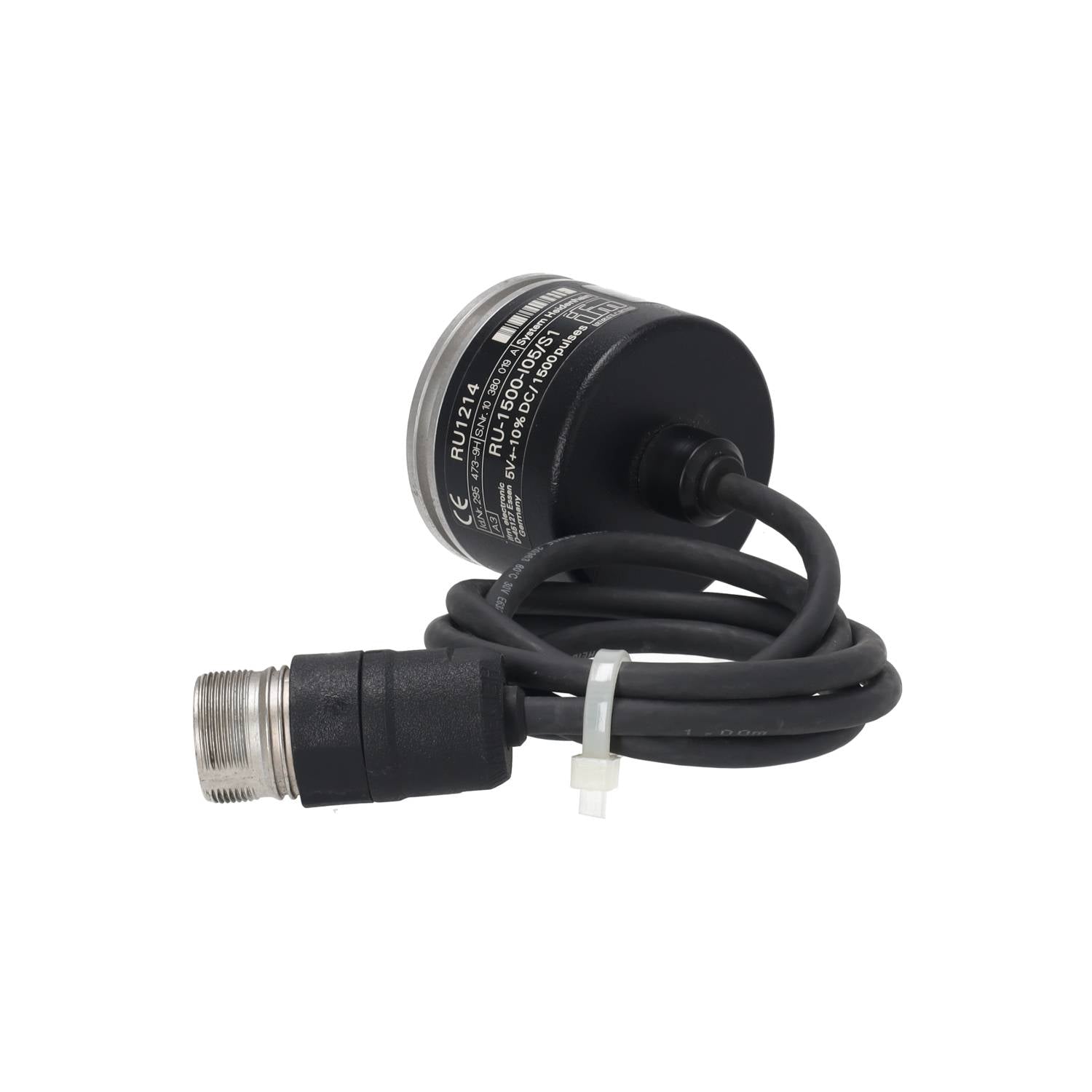

RU1214 (RU-1500-I05/S1)
Free shipping from 49€
worldwide shipping
Model: RU-1500-I05/S1
Article number: RU1214
Device type: Incremental rotary encoder
Shaft type: Solid shaft
Shaft diameter: 6 mm
Resolution: 1500 pulses/rev
Measuring principle: Incremental
Supply voltage: 5 V DC (±10%)
Current consumption: 150 mA
Signal type: TTL
Output current: max. 20 mA per output
Switching frequency: 300 kHz
Phase shift A/B: 90°
Max. mechanical speed: 12,000 rpm
Starting torque: max. 1 Nm (at 20 °C)
Max. shaft load: axial 10 N / radial 20 N
Housing: Cylindrical, aluminum
Dimensions: Ø 58 mm, length 46 mm
Shaft material: Stainless steel (1.4104)
Protection rating: IP64
Temperature range (operation & storage): –30 °C … +100 °C
Humidity (max.): 98 % RH
Shock resistance: 100 g (6 ms)
Vibration resistance: 10 g (55–2000 Hz)
Electrical connection: 1 m PUR cable, axial + M23 connector
Mounting type: Synchro flange
