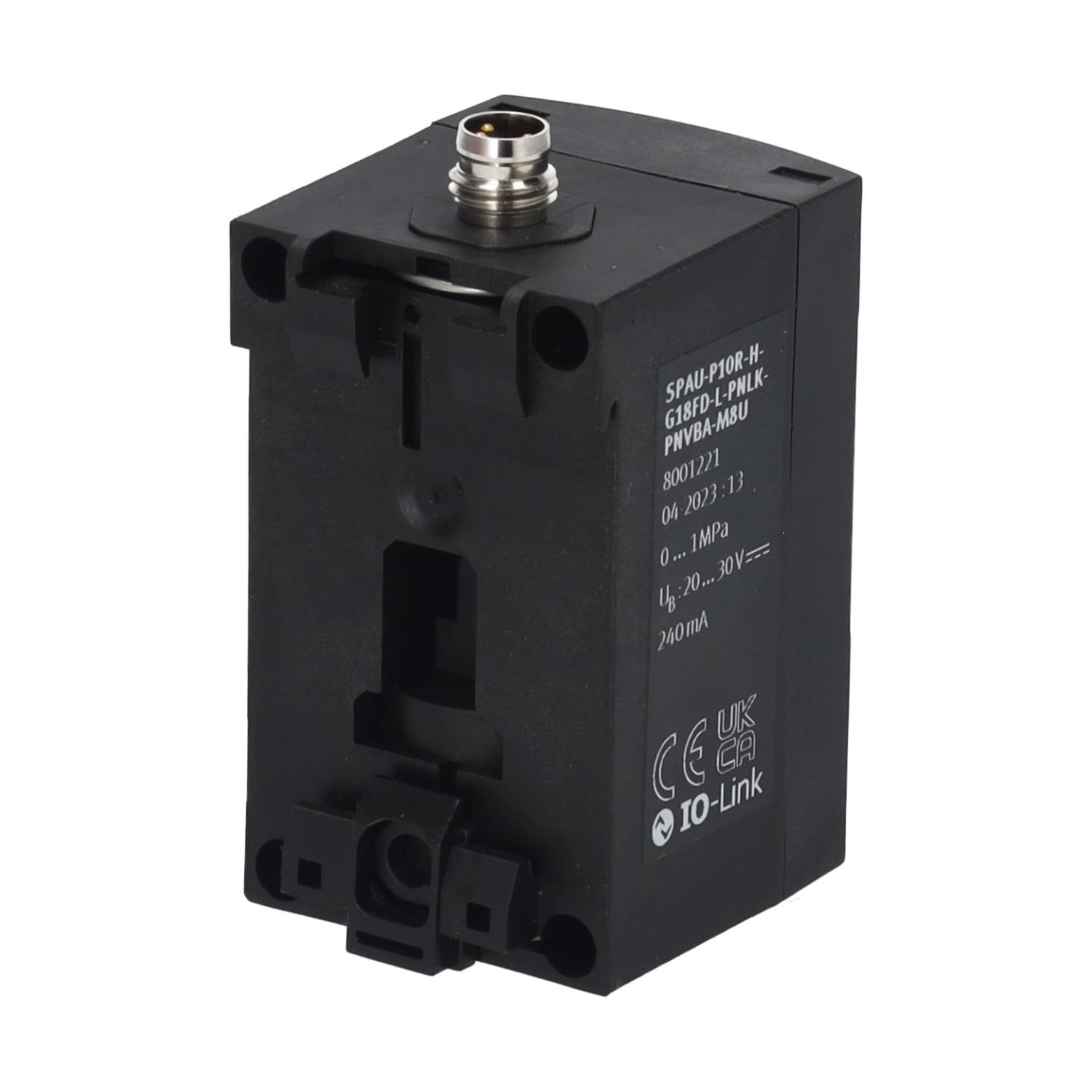

SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M8U (8001221)
Free shipping from 49€
worldwide shipping
Measuring principle: Piezoresistive pressure sensor
Pressure measuring range: 0 … 10 bar
Overload range: –1 … 20 bar
Electrical connection: M8 connector
Supply voltage: 15 … 30 V DC
Idle current: typically 35 mA
Max. output current: 100 mA
Switching output accuracy: ±2 % FS
Repeatability: ±0.3 % FS
Operating temperature range: 0 … +50 °C
Media: Compressed air per ISO 8573-1:2010 [7:4:4], inert gases, oil-lubricated operation possible
Protection class: IP65
Display: Multicolor LCD (blue/red)
Mounting position: Any installation position
Functions: Threshold/window comparator, auto-difference monitoring, IO-Link 1.1
IO-Link version: 1.1 (COM2, cycle time 3 ms)
Selectable units: bar, kPa, MPa, psi, mmHg, inchHg, inchH₂O, kgf/cm²
Housing material: Reinforced PA
Shock resistance: 30 g at 11 ms
Vibration resistance: 10–60 Hz: 0.35 mm / 60–150 Hz: 5 g
Installation dimension: G1/8” connection
Front panel mounting: Possible
