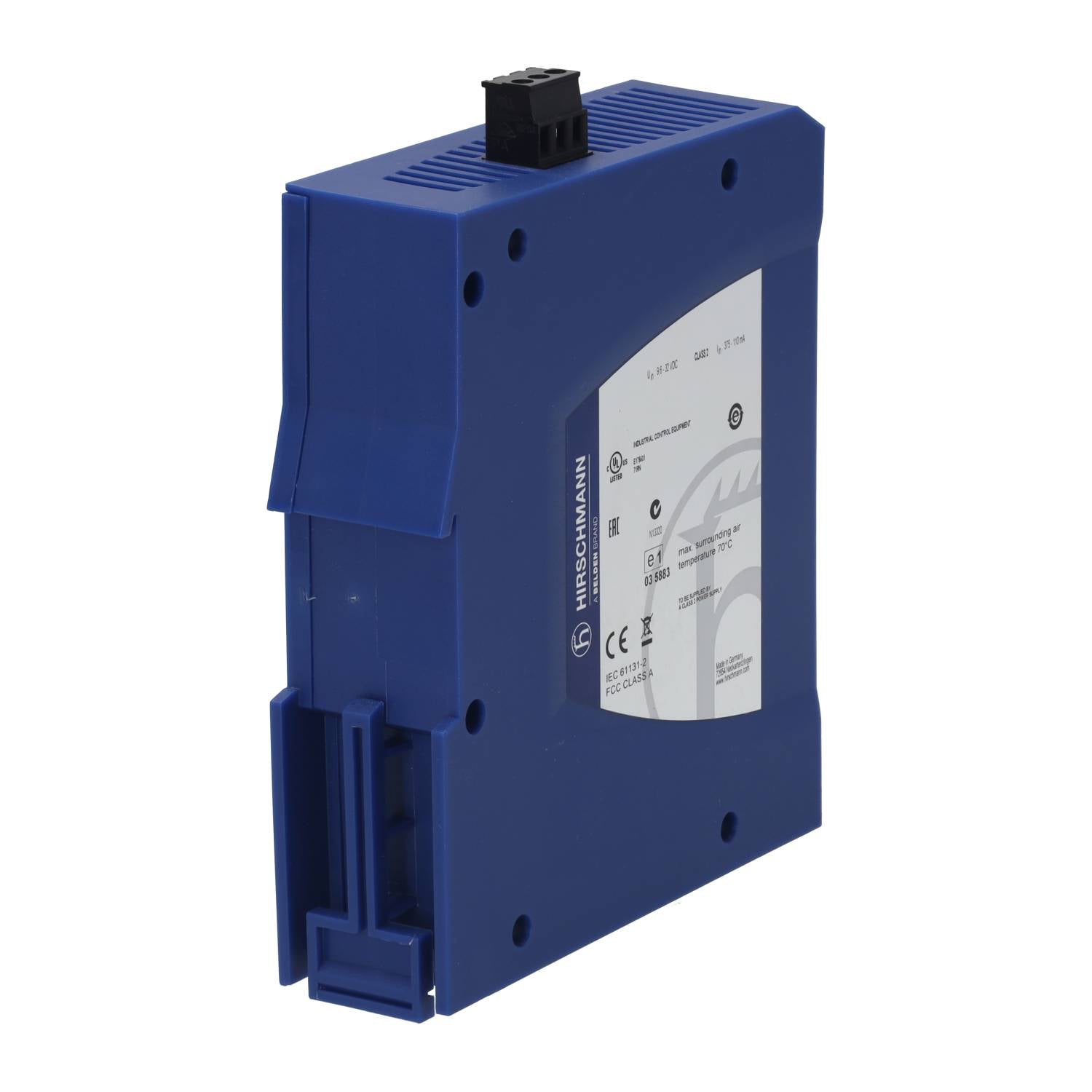

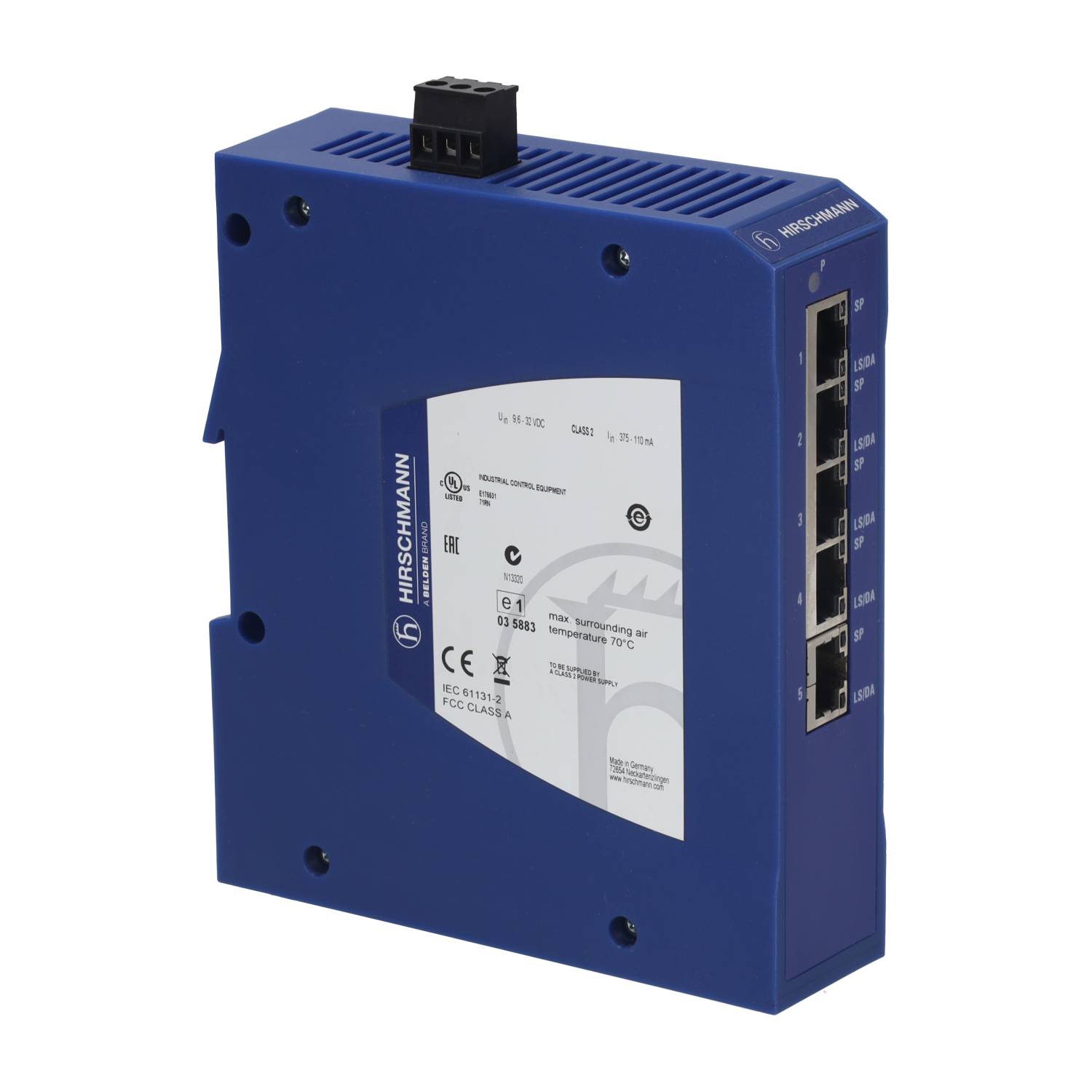

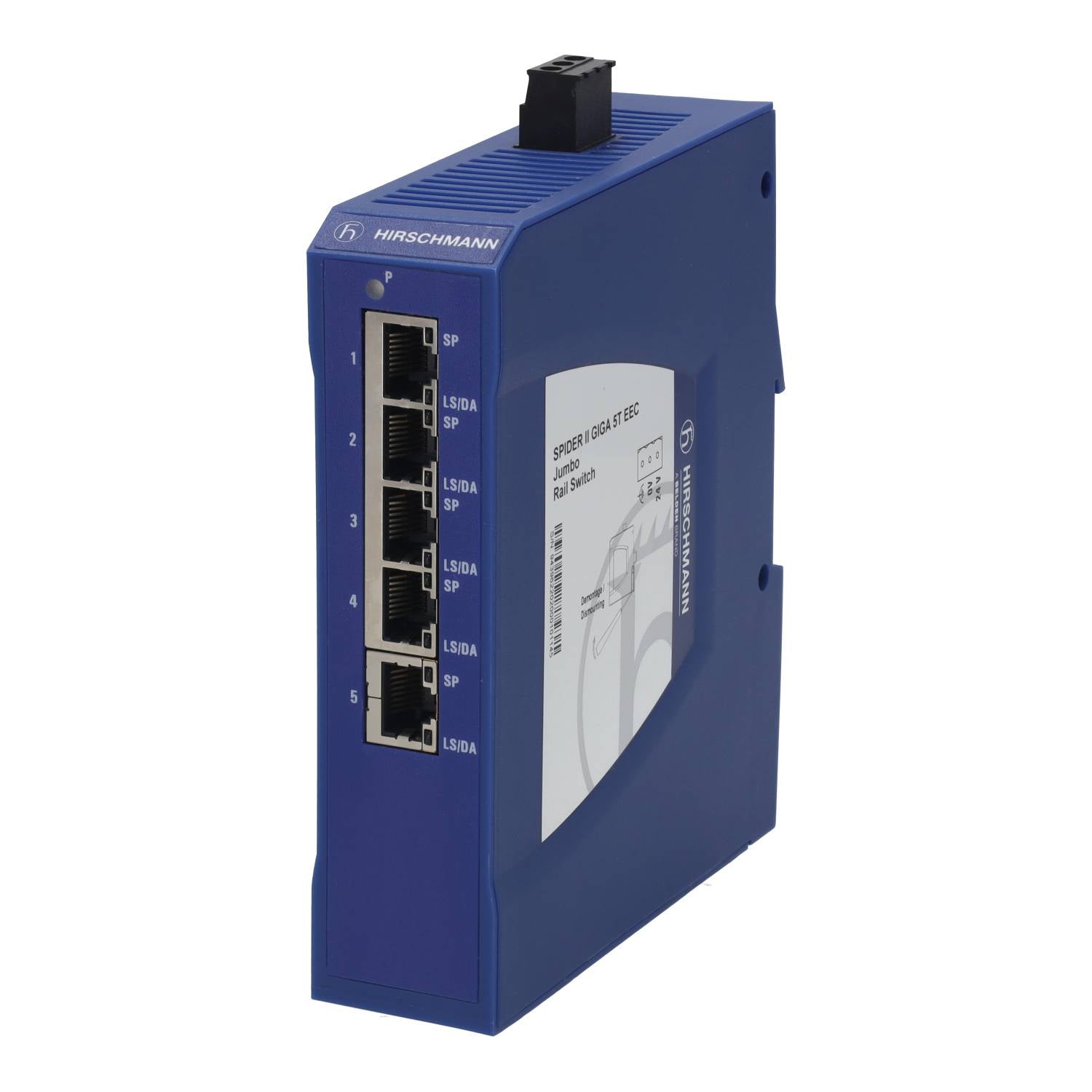

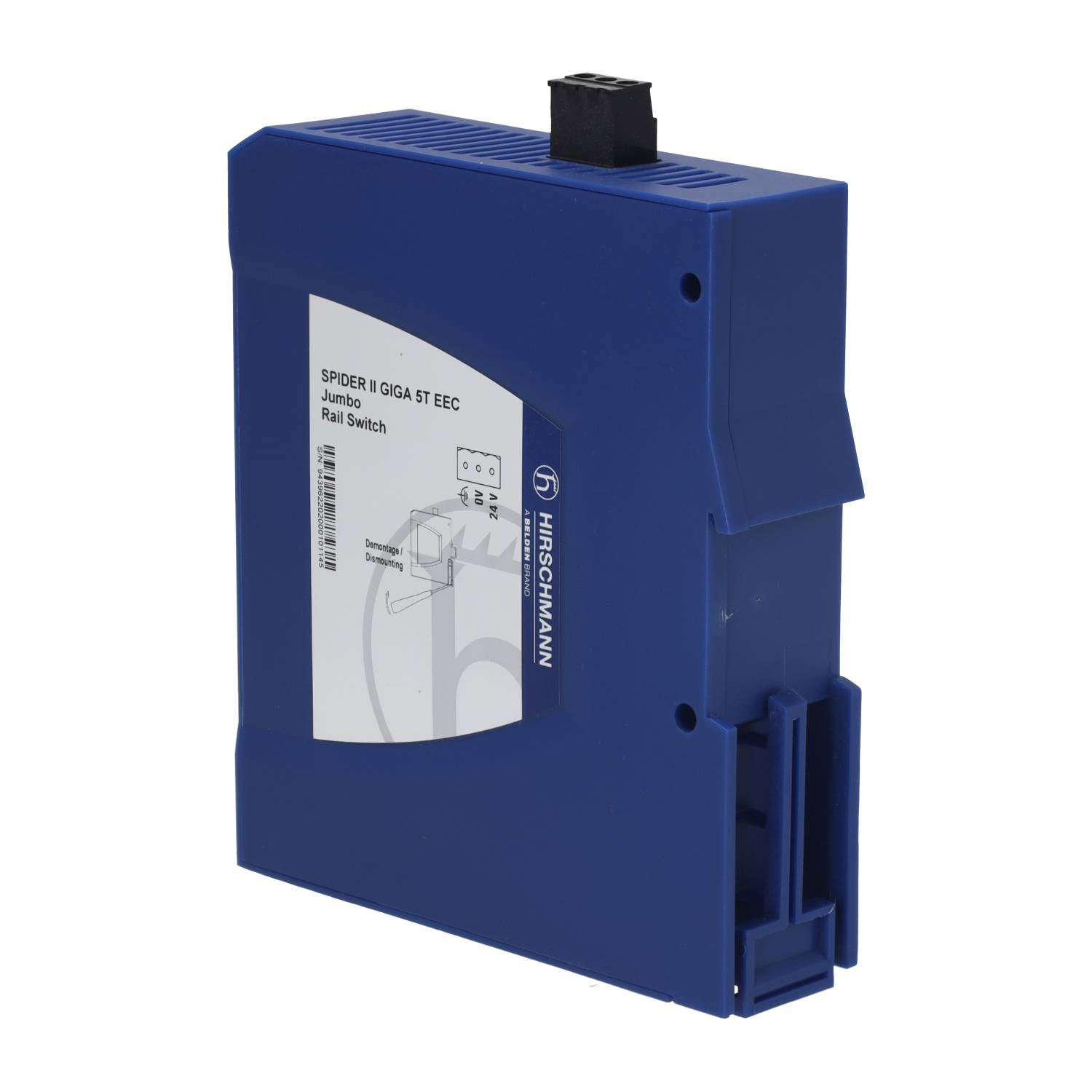

SPIDER II Giga 5T EEC (943 962-002)
Free shipping from 49€
worldwide shipping
Type: SPIDER II Giga 5T EEC
Order Number: 943 962-002
Device Type: Unmanaged Industrial Ethernet Switch
Application: Setup of industrial Ethernet networks according to IEEE 802.3
Ports: 5 × RJ45 sockets, 10/100/1000 Mbit/s Twisted Pair (Auto-Negotiation, Auto-Crossing, Auto-Polarity)
Data Rate: 10 / 100 / 1000 Mbit/s (Half / Full Duplex)
Power Supply: 9.6 … 32 V DC (SELV), NEC Class 2 Power Source (max 5 A)
Power Consumption: max. 3.6 W
Power Dissipation: 12.1 BTU (IT)/h
Protection Class: IP 30
Safety Class: SELV according to IEC/EN 60950-1
Operating Temperature: −40 °C … +70 °C
Storage Temperature: −40 °C … +85 °C
Relative Humidity: up to 95 %, non-condensing
Pollution Degree: 2
Dimensions (W × H × D): 35 mm × 154 mm × 121 mm
Weight: approx. 255 g
Mounting: DIN rail mounting (35 mm, DIN EN 60715)
Housing: Metal enclosure, fanless design
Indicators: LEDs for power and port status
EMC Standards: EN 61000-6-2 (Industrial Immunity), EN 55022 Class A
Vibration Resistance: IEC 60068-2-6 (5 Hz – 150 Hz, 1 g)
Shock Resistance: IEC 60068-2-27 (15 g / 11 ms)
- New (OVP): Unused and undamaged items in the original packaging.
- New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
- Like New: Items that look like new and show only minimal signs of wear.
- Very good: Items that show only slight signs of wear and are fully functional.
- Good: Items that show normal signs of use but are still fully functional.
- Acceptable: Items that show more severe signs of wear but are functional.
- Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair.
We offer worldwide shipping, with the buyer covering shipping costs outside Germany.
Orders received by 2:00 p.m. will be dispatched on the same working day. However, this does not apply to purchases over €1,000 outside Europe, as an export note is required for this, or for shipments sent by a freight forwarder. For particularly urgent deliveries, you can choose express shipping.
For each of our products you can select the condition, with the following categories available:
New (OVP): Unused and undamaged items in the original packaging.
New (without original packaging): Unused and undamaged items that may no longer be in the original packaging.
Like New: Items that look like new and show only minimal signs of wear. Very Good: Items that show only light signs of wear and are fully functional. Good: Items that show normal signs of wear but are still fully functional.
Acceptable: Items that show more severe signs of wear but are functional.
Defective / DIY: Items that are no longer functional or have significant damage. These items are usually sold for spare parts or for repair. If there are major differences between the condition categories, e.g. broken casing, a separate image is added for the affected category. Otherwise, grades such as "Very Good" and "Good" can only be distinguished from one another by increasing signs of wear.
The E-Stand on Siemens industrial electronics products provides information about the development and modifications of a specific product. It is a classification system that Siemens uses to identify different production and development stages within a product type. Each E-Stand can include technical improvements, adjustments or other changes.
An important point to note is that products with different E-levels are not always directly interchangeable. Technical characteristics may differ between versions, which means that compatibility with your existing plant or system may not always be guaranteed. It is advisable to carefully check whether the new product is compatible with the corresponding E-level for your application before making a replacement.
We attach great importance to transparency in our shop. That's why we list the E-Stand for every Siemens industrial electronics product so that you know exactly which version you are purchasing. This should help you make an informed decision.
