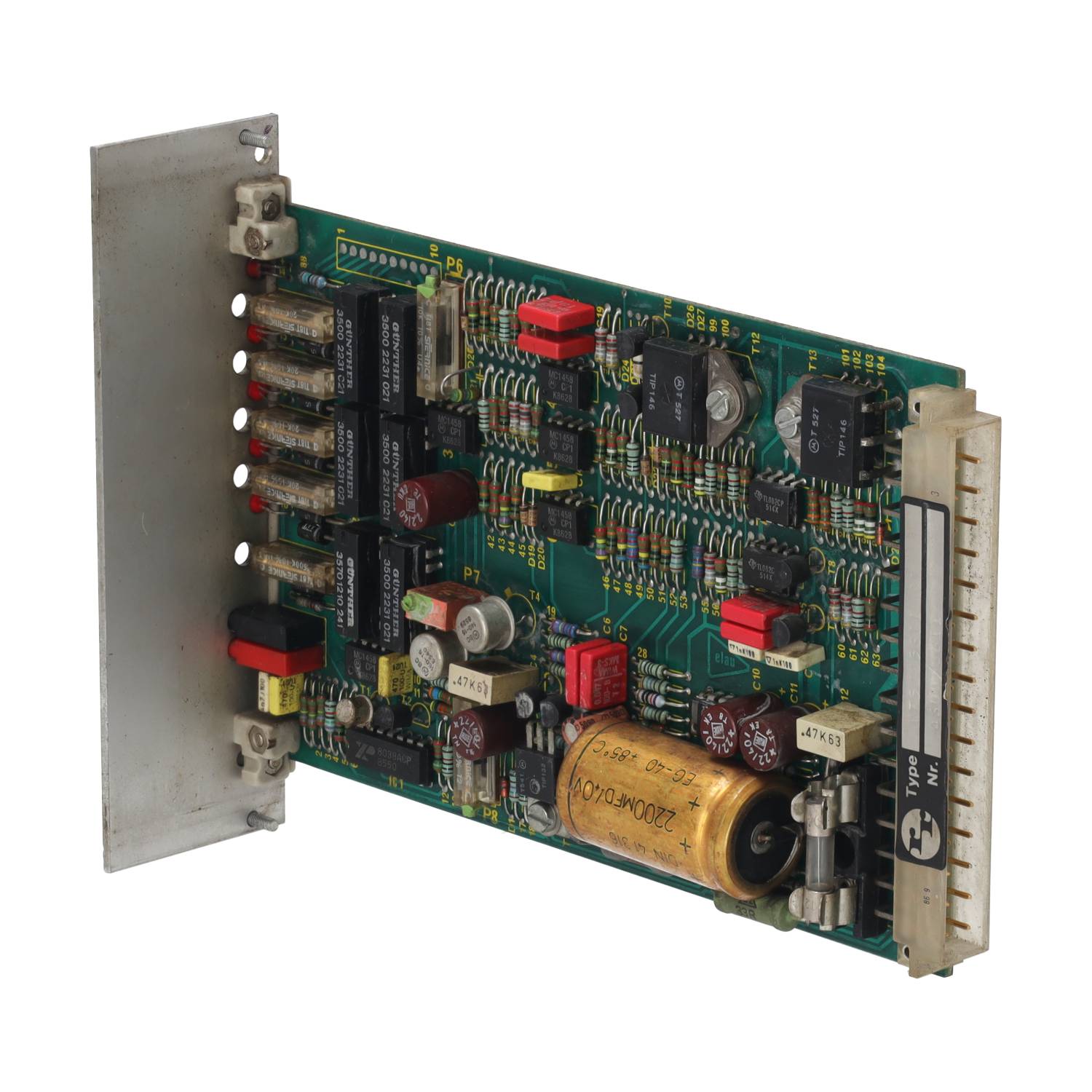

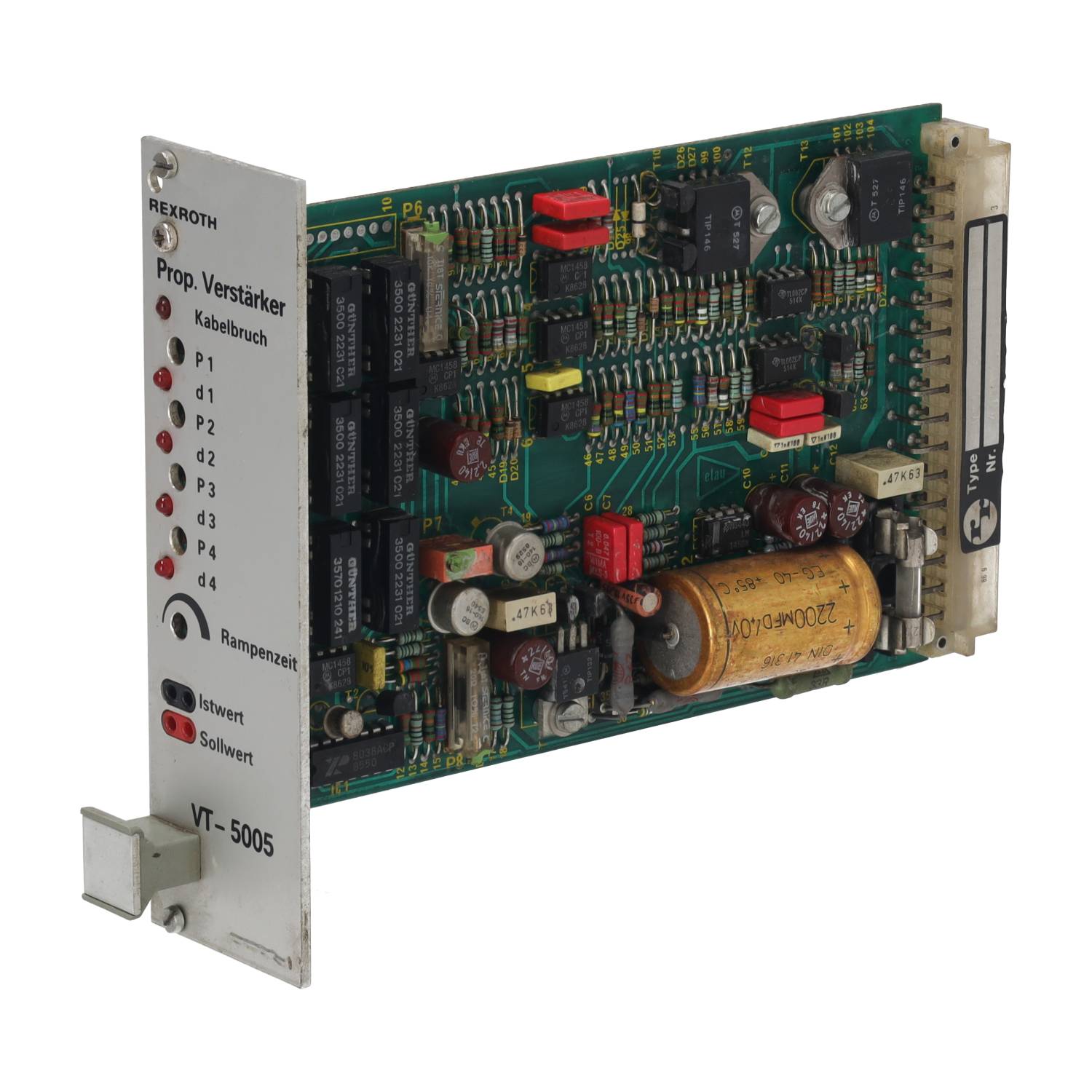

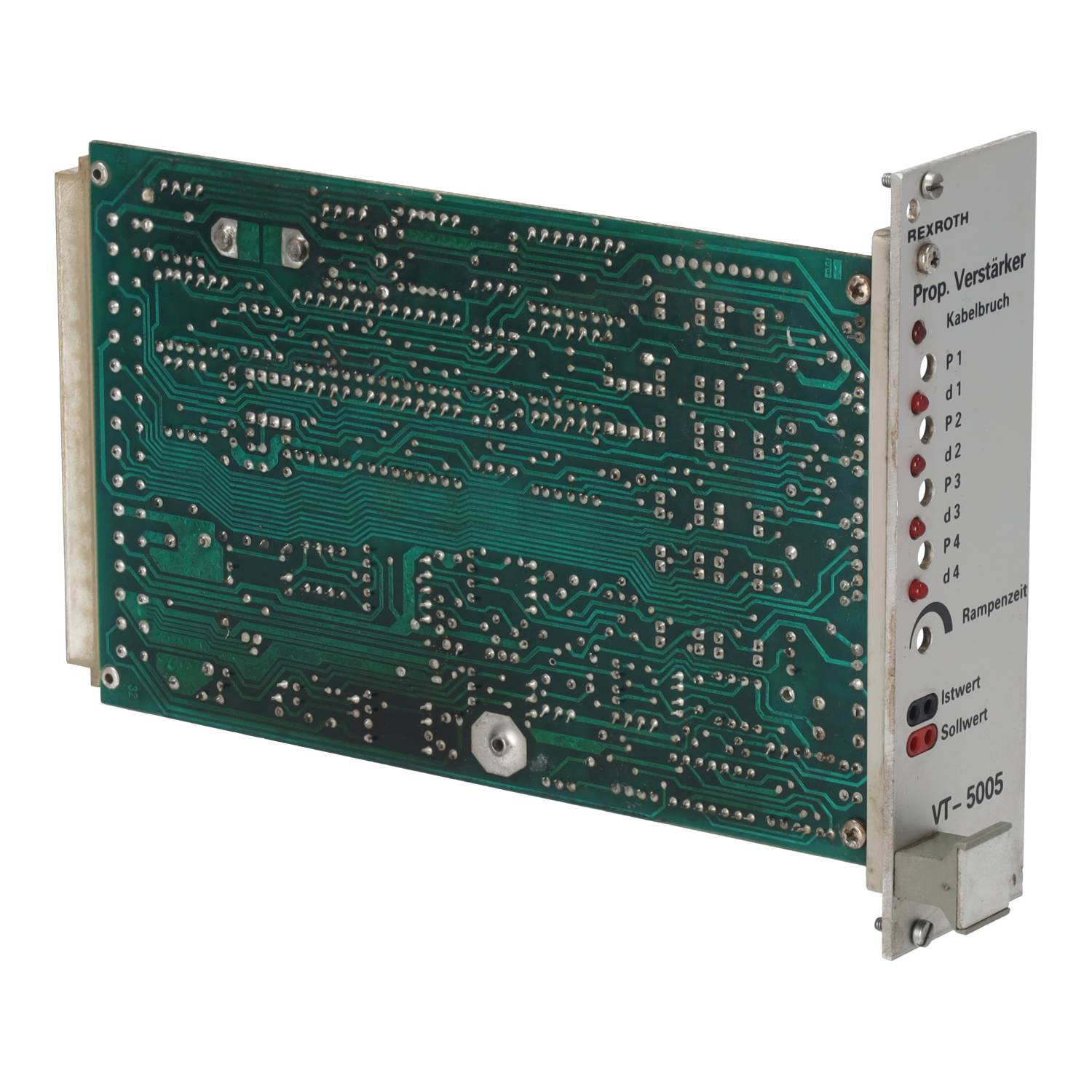

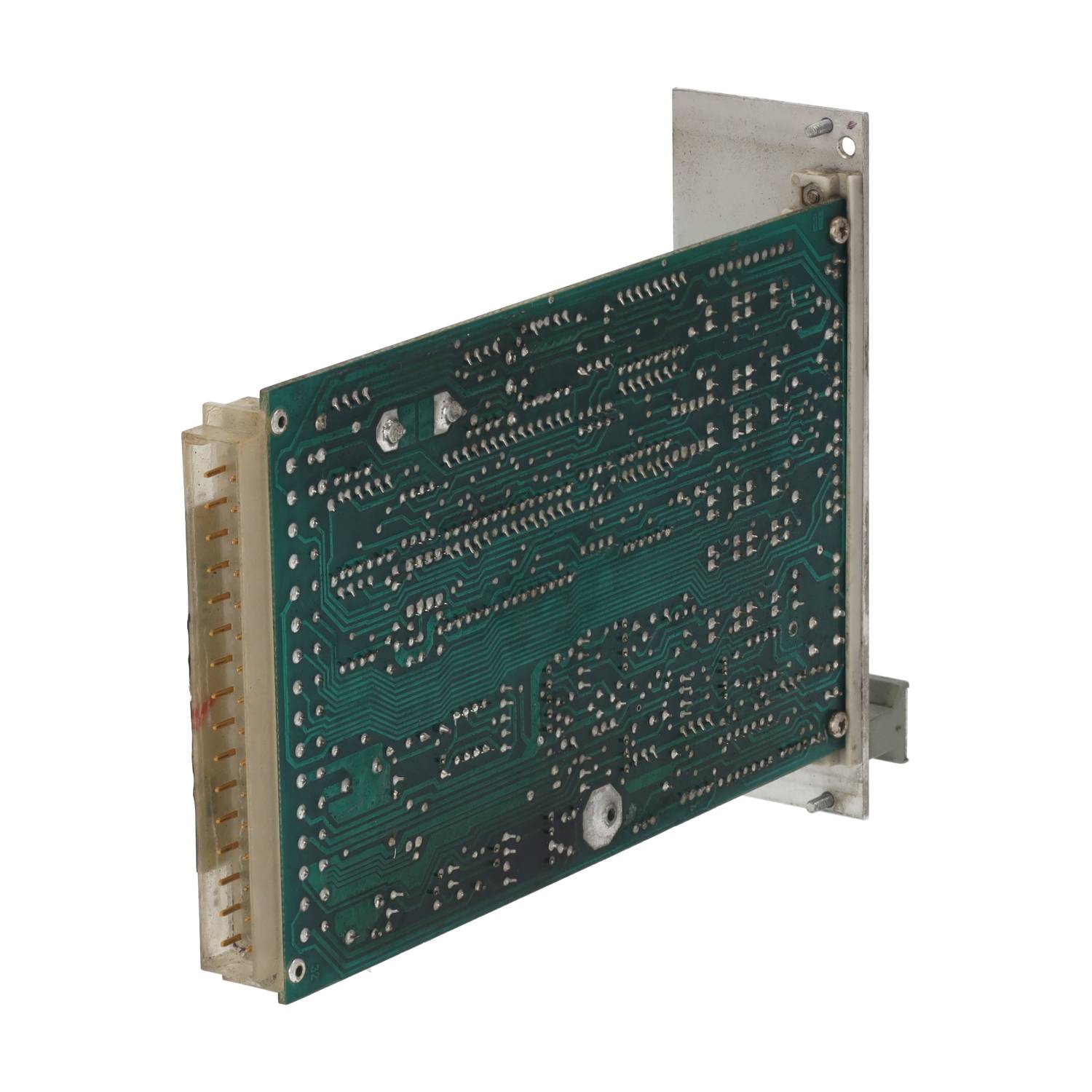

VT5005S11
Free shipping from 49€
worldwide shipping
• Device series: 1X
• Supply voltage: 24 VDC (+40 % / −5 %)
• Operating range: 22–35 VDC
• Power consumption: < 50 VA
• Current consumption: < 2 A
• Fuse rating: 2.5 A slow-blow
• Setpoint inputs 1–4: ±9 V
• Setpoint input 5: 0…±10 V, input resistance ≥100 kΩ
• Enable active / inactive: >8.5 V / <6.5 V
• Ramp time: 30 ms … 1 s or 5 s (adjustable, ±20 %)
• Solenoid current VT5005: 1.8 A ±20 %, coil resistance 5.4 Ω
• Endstage switching frequency: up to approx. 1.5 kHz
• LVDT oscillator frequency: 2.5 kHz ±10 %
• LVDT supply: 5 V / max. 30 mA
• Regulated auxiliary voltages: ±9 V (±1 %, 25 mA loadable)
• Measurement jack “w” setpoint: 0…±6 V
• Measurement jack “x” feedback: 0…±6 V
• Connector: 32-pin DIN 41612, type D
• Card format: Eurocard 100 × 160 mm
• Front panel: 3 U, 1 TE / 7 TE
• Operating temperature: 0…50 °C
• Storage temperature: −20…+85 °C
• Weight: approx. 0.15 kg
