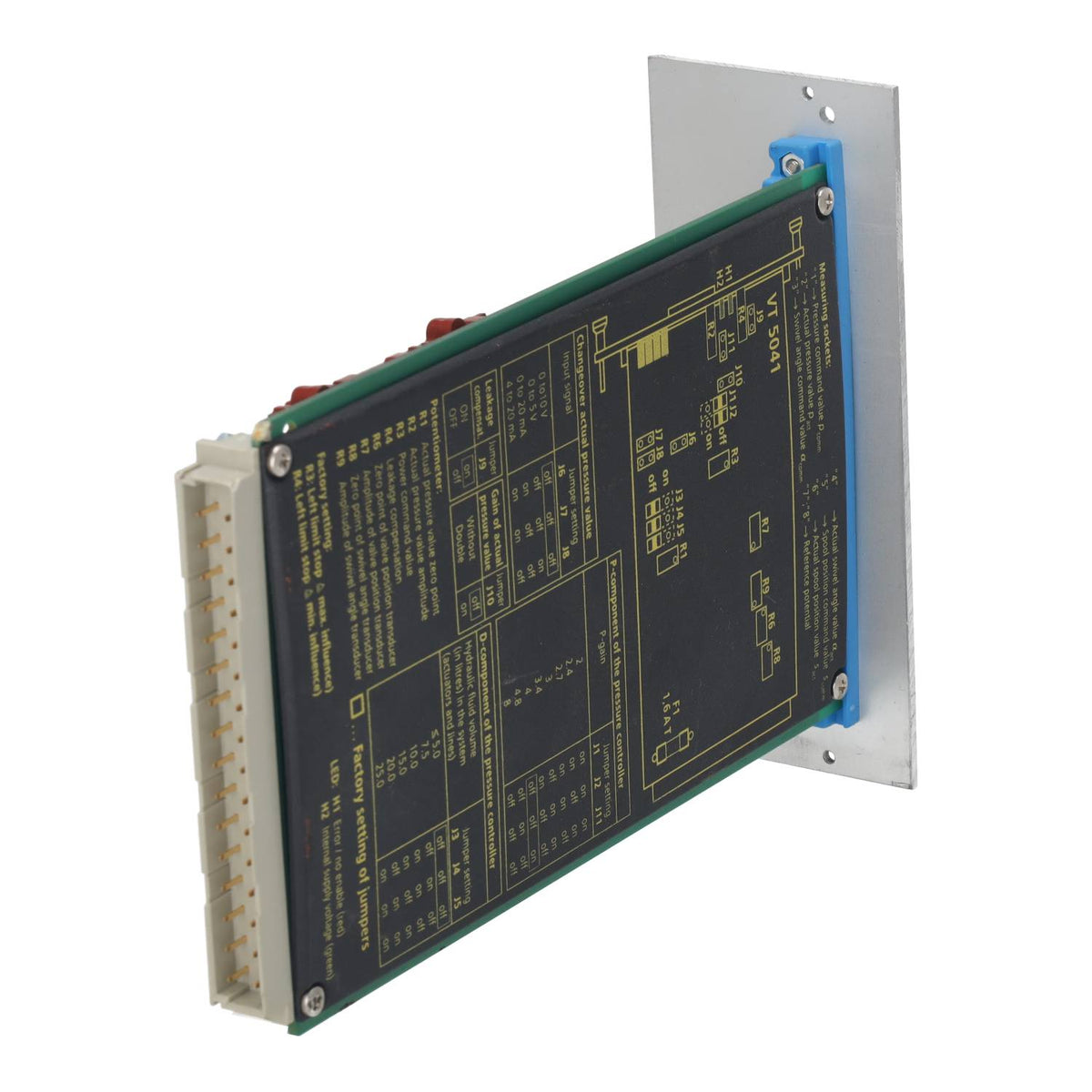

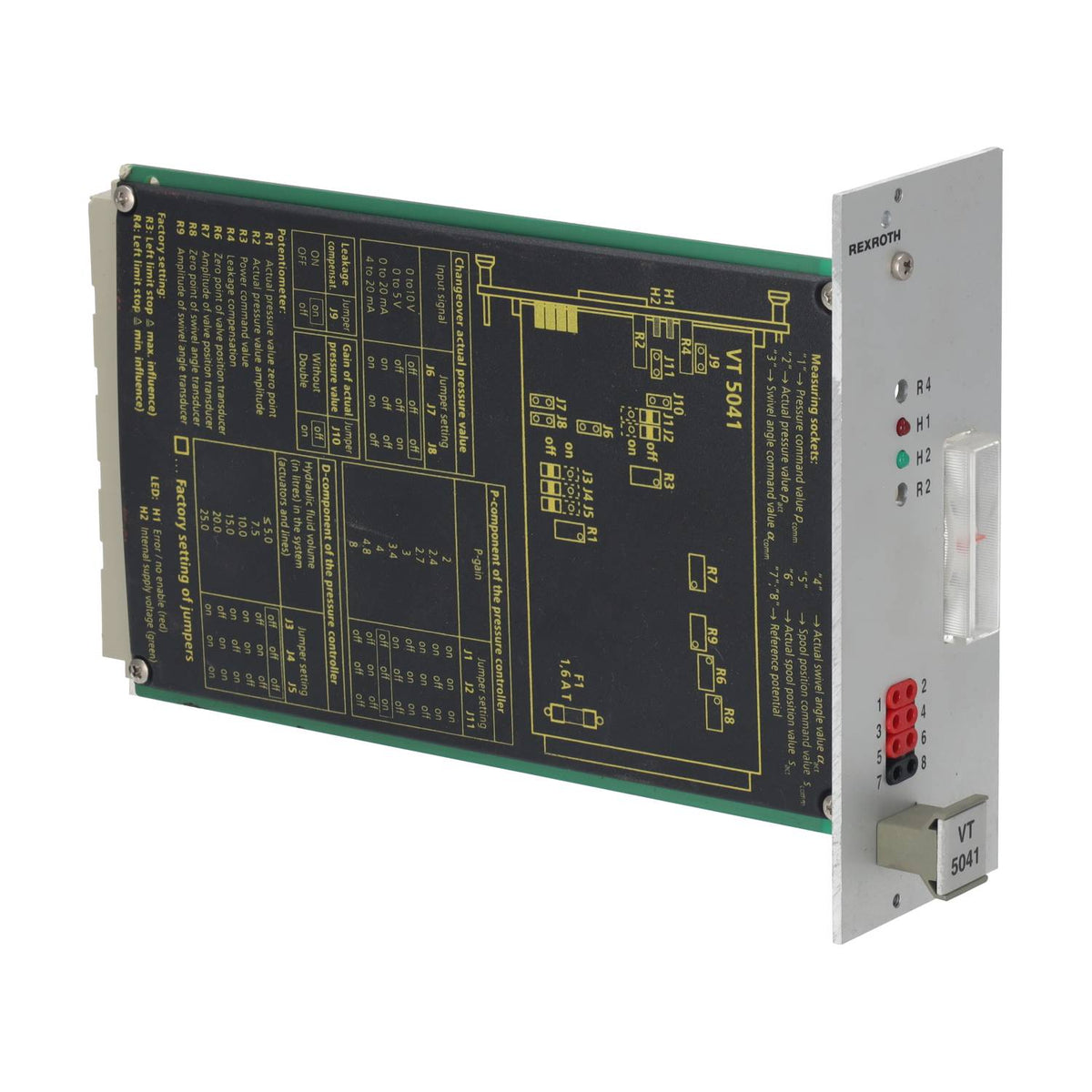

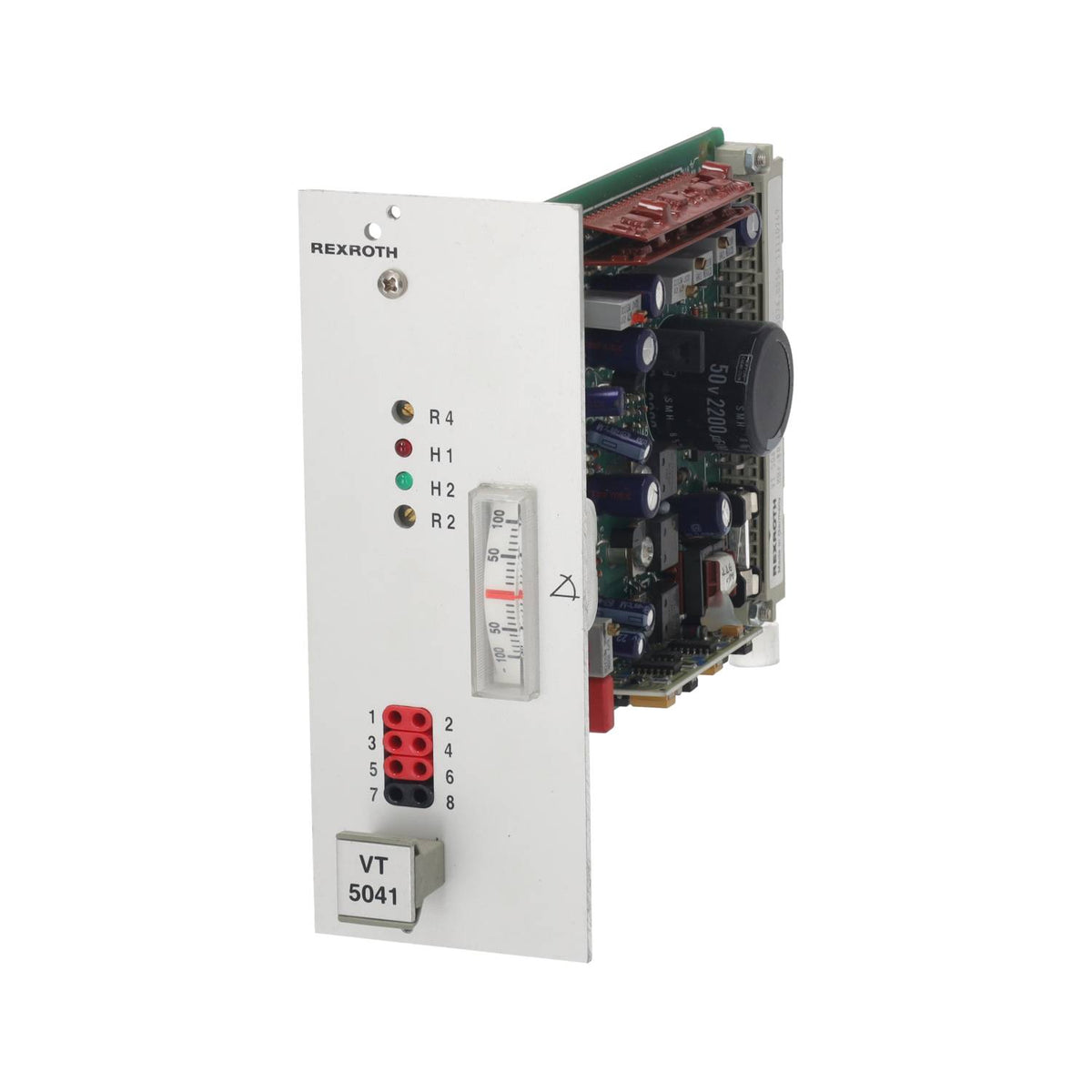

VT5041-25/3 (R900749983)
Free shipping from 49€
Worldwide shipping
- Manufacturer: Bosch Rexroth
- Series: VT 5041
- Model: VT5041-25/3
- Part Number / Item Number: R900749983
- Device Type: Analog amplifier card / external control electronics
- Implementation: Euro-format plug-in card
- Application: Control of the DFE1 adjustment on A10VSO axial piston pumps
- System affiliation: SYDFE1 Pressure and Flow Control System
- Series: 25
- Additional feature: With power limiting and display instrument
- Rules: Pressure Control and Swivel Angle Control
- Performance Limits: Available, internal or external setpoint specification
- Operating voltage: 24 V DC, +40% / −10%
- Functional Area: Supply: 21–35 V DC
- Power consumption: 35 VA
- Rated current consumption: 0,6 A
- Maximum current consumption: 1,25 A
- Backup: 1,6 A sluggish
- Pressure setpoint input: 0–10 V
- Setpoint input for swivel angle: −10 to +10 V
- Pressure Actual Value Input: 0–5 V, 0–10 V, 0–20 mA, or 4–20 mA
- Power Setpoint Input: 0–10 V
- Approval received: > 21 V
- Maximum magnetic flux: 2,5 A
- Auxiliary voltages: ±15 V ±3 %, 10 mA
- Oscillator frequency: approx. 5 kHz
- Connection: 32-pin female connector, DIN 41612, Form D
- LED Displays: H1 Malfunction / no enable signal; H2 internal supply voltage
- Measuring sockets: Pressure setpoint, pressure actual value, swivel angle setpoint, swivel angle actual value, piston position setpoint, and piston position actual value
- Card format: Map of Europe 100 × 160 mm
- Front panel height: 3 HE / 128,4 mm
- Front panel width: 10 TE / 50,5 mm
- Mounting depth: 186 mm
- Weight: 0.21 kg
